The product's shade and actual color may differ from what is shown in the picture, as the images are for illustrative purposes. The product description is general and may not include all the product's features.

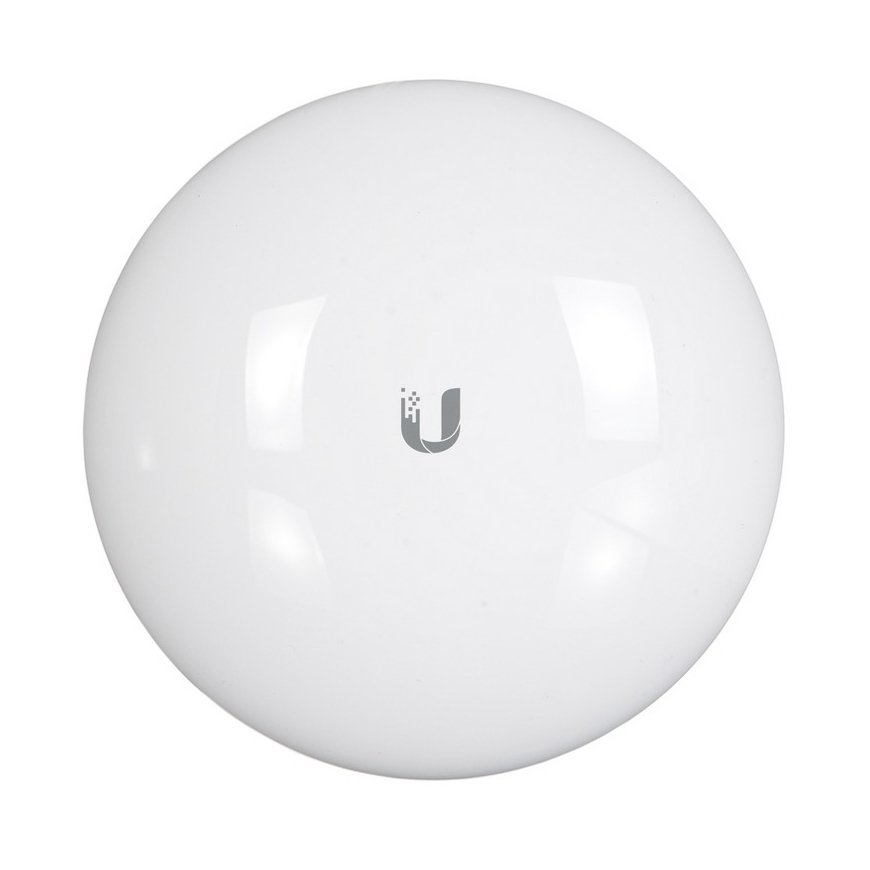

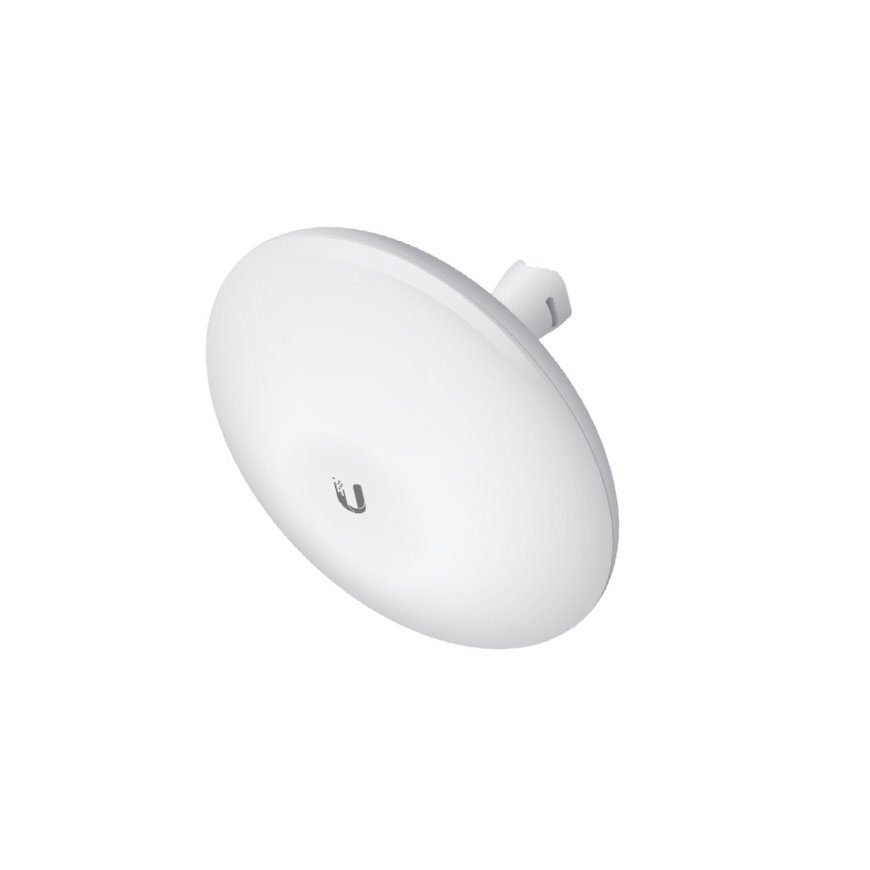

Ubiquiti NanoBeam M5 network antenna 16 dBi
99.27 €
Monthly payment from 3,46 €
2067286 NBE-M5-16
0810354022449, 0701017581413, 0810354022470, 0810354024955, 2514011503194, 4250605594640, 8103540224492, 8592457071327
Goods will arrive at the Tallinn warehouse on 23.09.26
You are interested in this product?
All about the product
Incorporating innovative industrial design with advanced technology, the NanoBeam M is the latest generation of Ubiquiti Networks airMAX CPE for customer locations.Plug and Play Installation

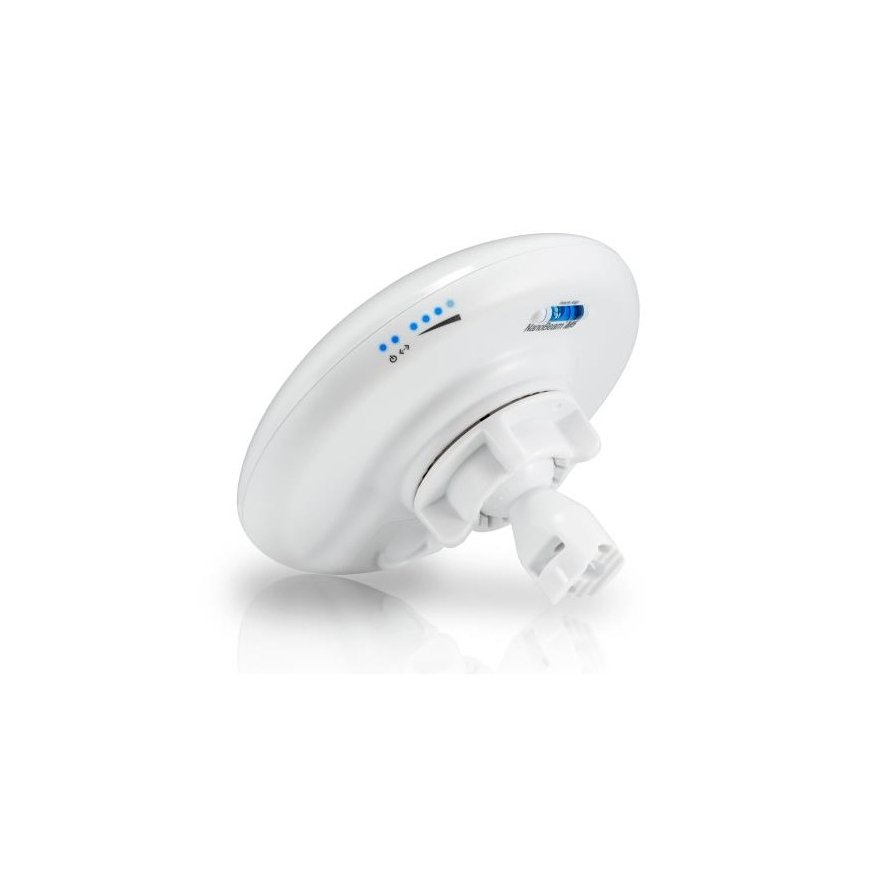

The NanoBeam mounts to a variety of surfaces including poles or walls, and offers the freedom of three-axis alignment. No screws are required for pole-mounting, and only a single wall screw (not included) is required for wall-mounting.
Incredible Antenna “Beam” Performance
The form factor of the NanoBeam features the highest gain for its size. The NanoBeam’s excellent beam directivity provides the best performance in high-noise environments.
Advanced Software Technology
Ubiquiti’s airMAX technology is proven in millions of deployments worldwide, exhibiting outstanding performance in outdoor environments. The TDMA airMAX protocol enables unprecedented scalability, high throughput and low latency in unlicensed, multipoint networks.
Design | |
| Product colour | White |
Antenna | |
| Antenna gain level (max) | 16 dBi |
Operational conditions | |
| Operating temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
Weight & dimensions | |
| Width | 140 mm |
| Depth | 140 mm |
| Height | 54 mm |
| Weight | 320 g |
Other features | |
| Power requirements | 24V |
| Frequency band | 5 GHz |
| Mounting | Wall |
Certificates | |
| Certification | FCC, IC, CE |
Technical details | |
| Compliance certificates | RoHS |
Logistics data | |
| Quantity per pack | 1 pc(s) |
| Harmonized System (HS) code | 85177100 |
