Equip 37"-70" Articulating TV Wall Bracket
49.00 €
Monthly payment from 2,16 €
2063214 650342
4015867225455
Shipping 14-15 b.d.
You are interested in this product?
All about the product
The equip® TV Wall Mount Bracket is a compact but sturdy product that ensures a reliable installation of your LCD/TV. Follow the graphic guide included in the package, you can install your TV on your own with ease. The wall bracket fits most of the wall materials- brick, concrete and wood, making the ideal choice for you to set up your screens.Features | |
| Maximum weight capacity | 35 kg |
| Panel mounting interface | 200 x 200, 300 x 300, 400 x 200, 400 x 400, 600 x 400 |
| Minimum screen size | 94 cm (37") |
| Maximum screen size | 177.8 cm (70") |
| Number of displays supported | 1 |
| Minimum VESA mount | 200 x 200 mm |
| Maximum VESA mount | 600 x 400 mm |
| Mounting type | Wall |

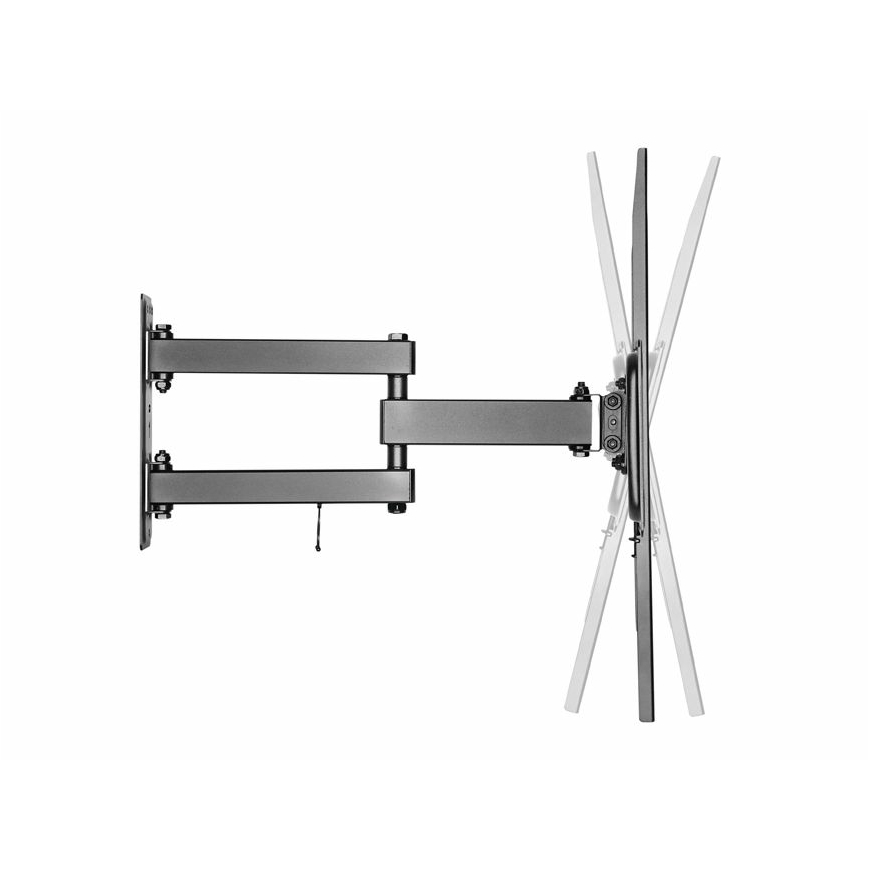

| Tilt angle range | -15 - 10° |
| Tilt adjustment | Yes |
| Product colour | Black |
| Certification | ROHS |
| Housing material | Stainless steel |
Ergonomics | |
| Distance to the wall (max) | 42.7 cm |
| Distance to the wall (min) | 6.3 cm |

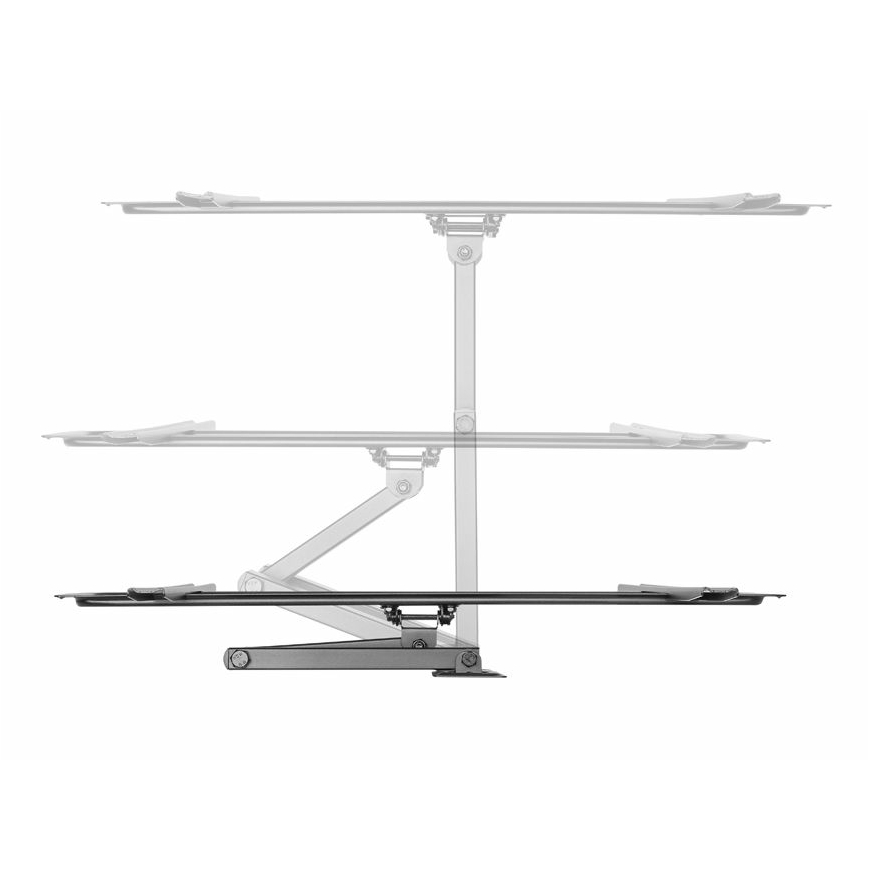

| Pan range | -90 - 90° |
Packaging data | |
| Manual | Yes |
| Package weight | 3.54 kg |
| Package type | Box |
| Package depth | 68 mm |
| Package height | 677 mm |
| Package width | 231 mm |
| Quantity per pack | 1 pair(s) |
Packaging content | |
| Mounting kit | Yes |
Weight & dimensions | |
| Weight | 3.12 kg |
| Width | 655 mm |
| Height | 427 mm |
| Depth (max) | 42 cm |
Technical details | |
| Country of origin | China |
Logistics data | |
| Master (outer) case width | 430 mm |
| Master (outer) case length | 245 mm |
| Master (outer) case height | 690 mm |
| Master (outer) case gross weight | 22 kg |
| Products per master (outer) case | 6 pc(s) |
| Harmonized System (HS) code | 85299097 |
