Intellinet Fast Ethernet Media Converter, 10/100Base-Tx to 100Base-Fx (SC) Multi-Mode, 2 km (1.24 mi)
56.75 €
Monthly payment from 2,36 €
2050022 506502
0766623506502, 0041114196470, 0132018259313, 0151902999050, 0521227151356, 0763615759687, 0885616208985, 7666235065028
Shipping 3-5 b.d.
You are interested in this product?
All about the product
The Intellinet Network Solutions Fast Ethernet Media Converter was specifically designed to offer the network designer a device for migration from copper-based Ethernet to Fibre Ethernet. Now migration or expansion of existing networks can be achieved with minimum cost and complexity. The converter is completely transparent to the network so the network performs exactly the way it did before - only now it can support both copper and fibre mediums.Expands the Size of an Existing Network
Provides fibre connectivity to Ethernet segments, allowing for even further networking expansion between extended workgroups. Also provides building-to-building connectivity without the need for the cost and disruption associated with the installation of additional routers.
Enhances the Distance between Networking Devices
Connecting the converter to fibre segments can further extend distances between networking nodes. This can be achieved by direct connection between the converter and a fibre-based node or networking device.
Cabling Flexibility
Network managers can install fibre cabling anywhere within a network without changing the arrangement of copper-based Ethernet. The compact size of the converter allows it to be easily deployed in any narrow desktop location or to be used in a wall-mount installation. Several converters can be simultaneously installed into a 19"; rack-mountable chassis.
Features | |
| Networking standards | IEEE 802.3, IEEE 802.3u |
| Ethernet interface type | Fast Ethernet |
| Product colour | Black |
| Maximum data transfer rate | 100 Mbit/s |
| Fiber mode structure | Multi-mode |
| Maximum transfer distance | 2000 m |
Packaging data | |
| Package type | Box |
Weight & dimensions | |
| Weight | 500 g |
| Depth | 107 mm |
| Height | 26 mm |
| Width | 70 mm |
Operational conditions | |
| Operating temperature (T-T) | 0 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage temperature (T-T) | -45 - 80 °C |
Logistics data | |
| Harmonized System (HS) code | 85176990 |
Packaging content | |
| AC adapter included | Yes |
| Manual | Yes |
Other features | |

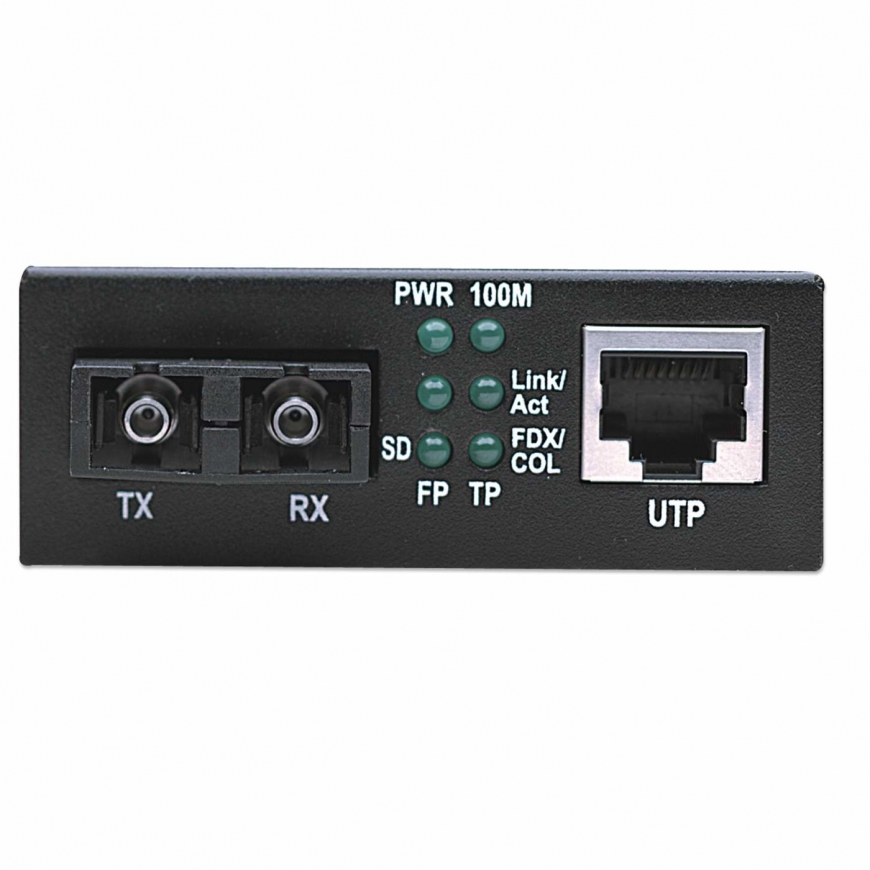

| LED indicators | Power, Status, LAN, Link |
| DC-in jack | Yes |
| Fiber cable diameters supported (core/cladding) | 50/125, 62.5/125 |
Power | |
| Input voltage | 5 V |
| Input current | 1 A |
Technical details | |
| Housing material | Metal |
Certificates | |
| Certification | FCC Class B, CE, UKCA, NDAA |
