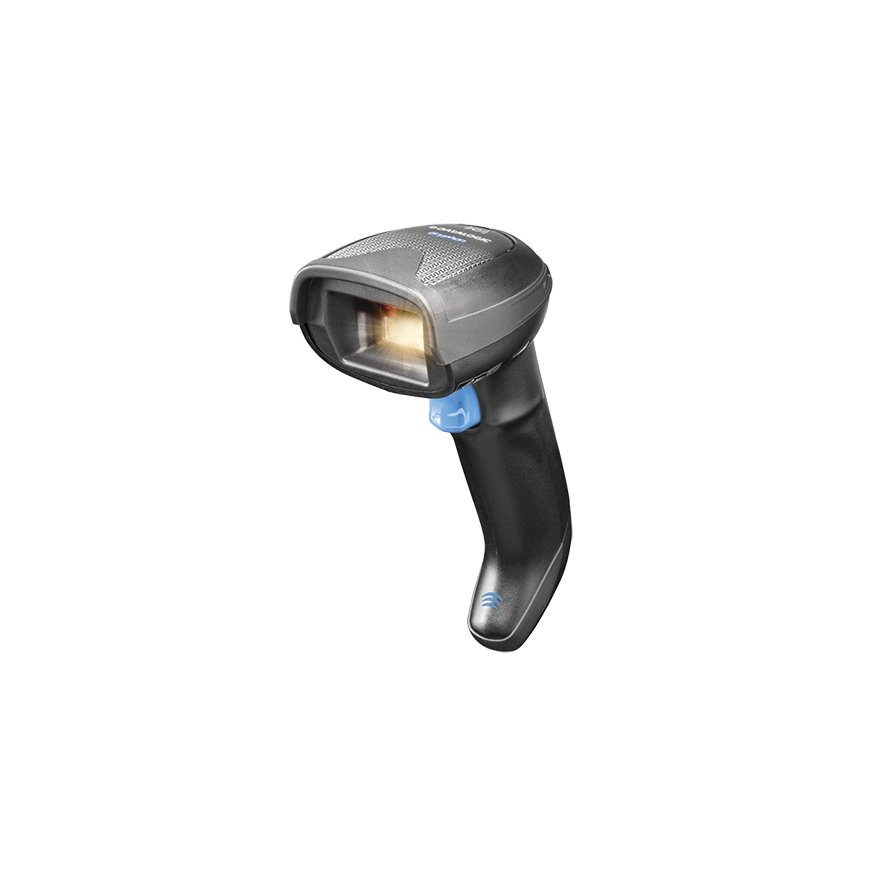

Datalogic Gryphon I GM4500 Handheld bar code reader 1D/2D Laser Black
314,58 €
312.14 €
Monthly payment from 8,94 €
2049964 GM4500-BK-433K1
5706998646071
Shipping 11-15 b.d.
You are interested in this product?
All about the product
The Gryphon 4500 series stands out with an elegant and trendy design, user friendly ergonomics and features the most advanced megapixel sensor with warm-white-illumination 2D technology for outstanding performance.The Gryphon 4500 omnidirectional imager provides snappy reading performance on all common 1D and 2D codes. High Density (HD) models are available for reading smaller, condensed codes as well as a dedicated version with red illumination optics to support Digital Watermarking.
Datalogic’s Motionix™ motion-sensing technology enables the scanner to intuitively switch into ‘hand held’ mode when the device is picked up. When placed back into the cradle, it seamlessly returns to ‘stand’ mode. The adjustable position cradle provides the flexibility to use the scanner in presentation or stand mode while it is charging.
The wireless models feature Bluetooth wireless technology (GBT model) or narrow band radio communications with Datalogic’s STAR Cordless System (GM model).
One of the most important technical innovations that the Gryphon 4500 wireless readers achieve is the wireless charging system for the battery, which enhances the reliability of the entire solution, while lowering the total cost of ownership (no need for contact cleaning or maintenance procedures). The maximum reliability offered by the Gryphon wireless charging technology means 24/7 activities with no stops for maintenance or repair and top-level operating productivity and performance.
The Gryphon 4500 imagers are also available in Healthcare models featuring disinfectant-ready and anti-microbial enclosures for applications in the Healthcare industry.
Features | |
| Scanner type | 1D/2D |
| Product colour | Black |
Performance | |
| Sensor type | Laser |
| International Protection (IP) code | IP52 |
Scanning | |
| Wavelength | 650 nm |
| Yaw reading angle | -65 - 65° |
| Pitch reading angle | -65 - 65° |
| Tilt reading angle | 0 - 360° |
| Light levels (direct sunlight) | 0 - 100000 lx |
| Type | Handheld bar code reader |
| 2D (matrix & stacked) barcodes supported | Aztec Code, Data Matrix, MaxiCode, Micro QR Code, MicroPDF417, QR Code, GS1 DataBar Expanded Stacked, GS1 DataBar Stacked Omnidirectional |
| Optical sensor resolution (W x H) | 1280 x 800 pixels |
Technical details | |
| Linear (1D) barcodes supported | Code 39, EAN-13, GS1 DataBar Expanded, U.P.C., GS1 DataBar Omnidirectional, PDF417 |
Ports & interfaces | |
| Operating frequency | 433 MHz |
| Connectivity technology | Wired & Wireless |
| Wireless range | 50 m |
| Standard interfaces | USB, RF Wireless |
Power | |
| Input voltage | 4.5 - 14 V |
| Number of reads per charge | 80000 |
| Battery voltage | 12 V |
| Charging time | 4 h |
| Power source type | Battery |
Weight & dimensions | |
| Weight | 235 g |
| Width | 109 mm |
| Depth | 68 mm |
| Height | 166 mm |
Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 0 - 95% |
Sustainability | |
| Sustainability certificates | RoHS |
Packaging content | |
| Cables included | USB |
Packaging data | |
| Charging base | Yes |
Logistics data | |
| Harmonized System (HS) code | 84716070 |
Battery | |
| Battery capacity | 3250 mAh |
| Battery technology | Lithium-Ion (Li-Ion) |
