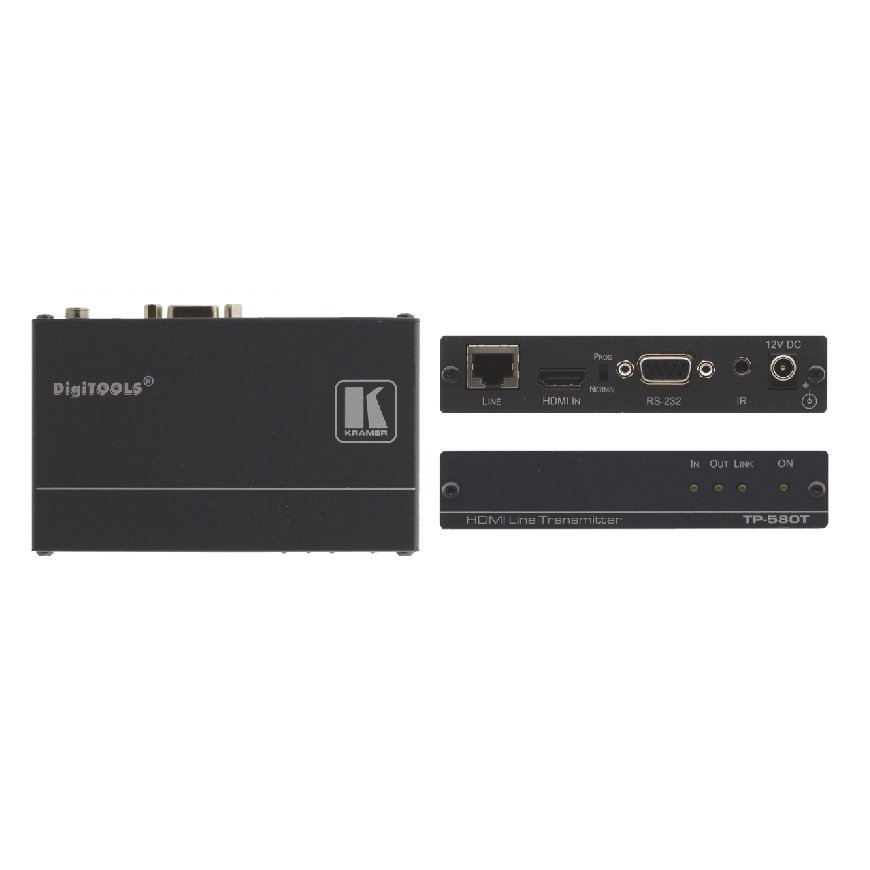

Kramer Electronics TP-580T video signal converter 1920 x 1080 pixels
248,20 €
248.19 €
Monthly payment from 7,29 €
2041563 TP-580T
7291063051631
Goods will arrive at the Tallinn warehouse on 22.10.26
You are interested in this product?
All about the product
The TP−580T is a high−performance, HDBaseT twisted pair transmitter for HDMI, bidirectional RS−232 and IR signals. The TP−580T inputs HDMI, RS−232, and IR signals and converts them into an HDBaseT twisted pair signal that it transmits to a TP−580R receiver.- Max. Data Rate - 10.2Gbps (3.4Gbps per graphic channel).
- HDTV Compatible.
- HDCP Compliance.
- HDBaseT Technology.
- HDMI Support - Deep Color, x.v.Color, Lip Sync, HDMI Uncompressed Audio Channels, Dolby TrueHD, DTS−HD, CEC.
- 3D Pass-Through.
- EDID PassThru - Passes EDID signals between the source and display.
- 2K & 4K Support.
- Bidirectional RS-232 & IR Interface. - Commands and data can flow in both directions via the RS−232 interface, allowing status requests and remote control of the destination unit.
- System Range - Up to 70m (230ft).
- Cable - For optimum range and performance using HDBaseT, use Kramer's BC−HDKat6a cable. Note that the transmission range depends on the signal resolution, source and display used. The distance using non−Kramer CAT 6 cable may not reach these ranges.
- Indicators - Status LEDs for input, output, link and power.
- Compact DigiTOOLS - 3 units can be rack mounted side−by−side in a 1U rack space with the optional RK−3T universal rack adapter.
Features | |
| Product colour | Black |
Weight & dimensions | |
| Weight | 60 g |
| Depth | 114 mm |
| Height | 24 mm |
| Width | 188 mm |
Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage temperature (T-T) | -40 - 70 °C |
Logistics data | |
| Harmonized System (HS) code | 85176990 |
Power | |
| Input voltage | 12 V |
