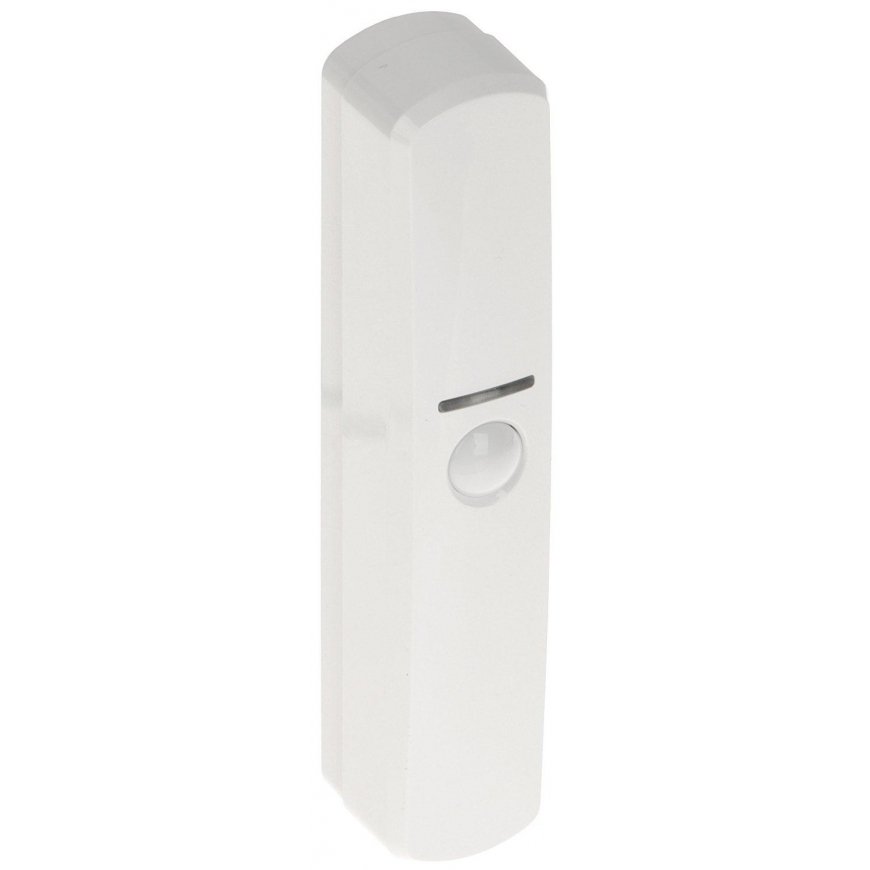

WIRELESS CURTAIN SENSOR PIR ACD-220 ABAX2 SATEL
59,19 €
58.23 €
Monthly payment from 2,40 €
2020959 ACD-220
5905033337954
Shipping 11-12 b.d.
You are interested in this product?
All about the product
The curtain detector provides a narrow detection angle.
The ACD-220 works with other devices compatible with the ABAX2 wireless system.
| Support : | Wireless signaling systems SATEL ABAX2 |
| Battery power : | 1 x CR123A 3V Lithium Battery (included) |
| Battery life : | ~ 2 years old |
| Current consumption : | 15mA (max) 70 µA (Standby mode) |
| Frequency range : | 868.0 ... 868.6 MHz |
| Radio range (in open area) : | max. 2000 ACU-220, max. 1200 m ACU-280 |
| Usage : | For indoor spaces |
| Sensor type : | Passive IR (PIR) |

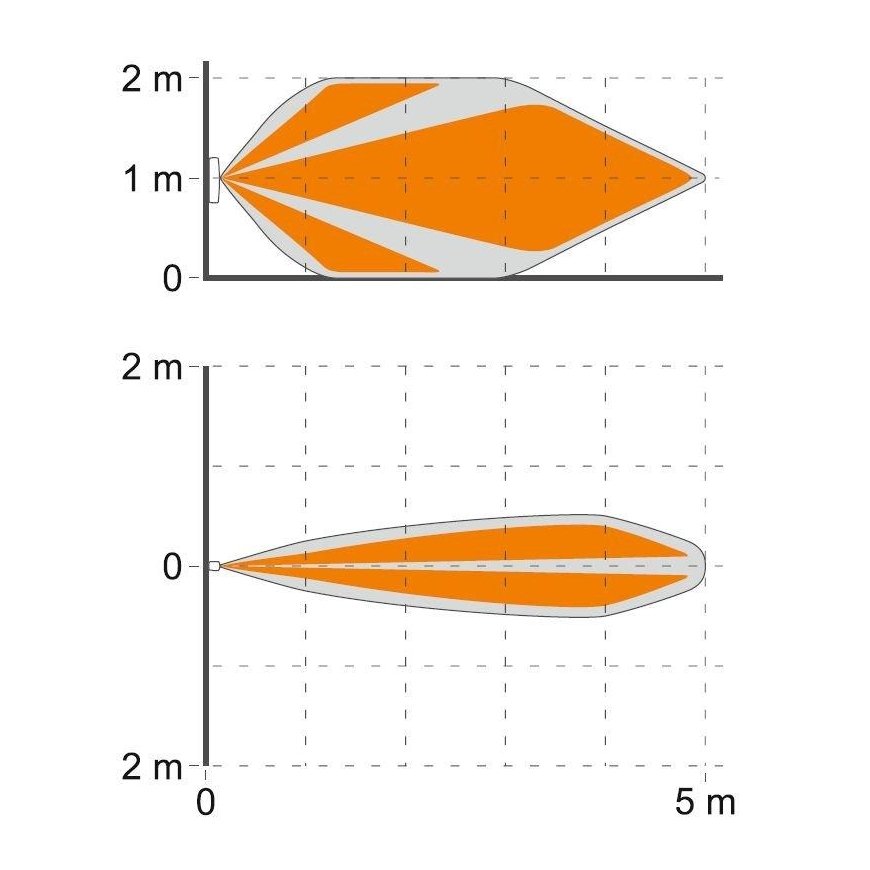

| Detection angle / detection distance : | 15 ° / 5 x 1 yr |
| Sensitivity adjustment : | ✔ |
| Pre-alarm function : | - |
| Digital temperature compensation : | ✔ |
| Resistance to animals : | - |
| Detectable movement speed : | 0.3 ... 1 m/s |
| Compliance with standards : | EN50130-4, EN50130-5 |
| Environmental class : | II according to EN50130-5 |
| Main features : | Cover lenses digital detection algorithm with temperature compensation, ensuring high resistance to false alarms and parameter repetition Two-way encrypted radio communication - AES Protection against interference thanks to frequency shift ensures reliable transmission Monitoring of motion detection system battery status control The "ECO" option provides up to four times the battery life extension (ABAX2 only) Sabotage detection - opening the case, tearing it from the base LED indication Remote module software update Remote configuration Installed temperature sensor, Temperature measurement: -10 °C ... 55 °C |
| Color : | White |
| Working temperature : | -10 °C ... 55 °C |
| Weight : | 0.022 kg |
| Dimensions : | 105 x 25 x 20 mm |
| Manufacturer / Brand : | SATEL |
| Warranty : | 2 years |
