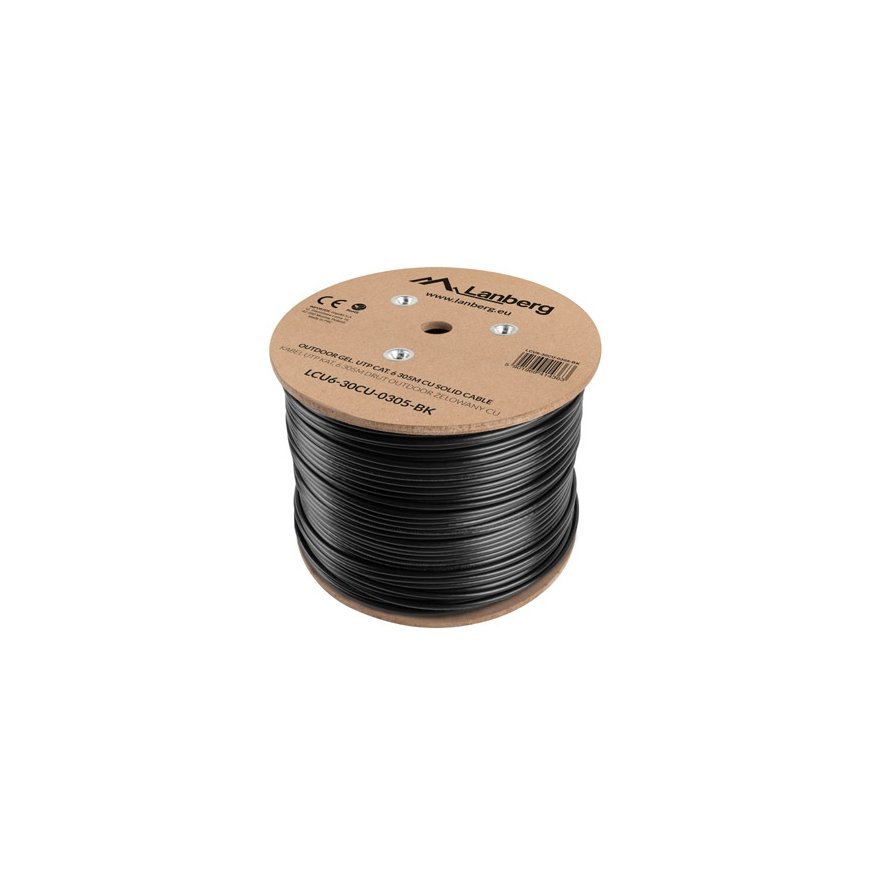

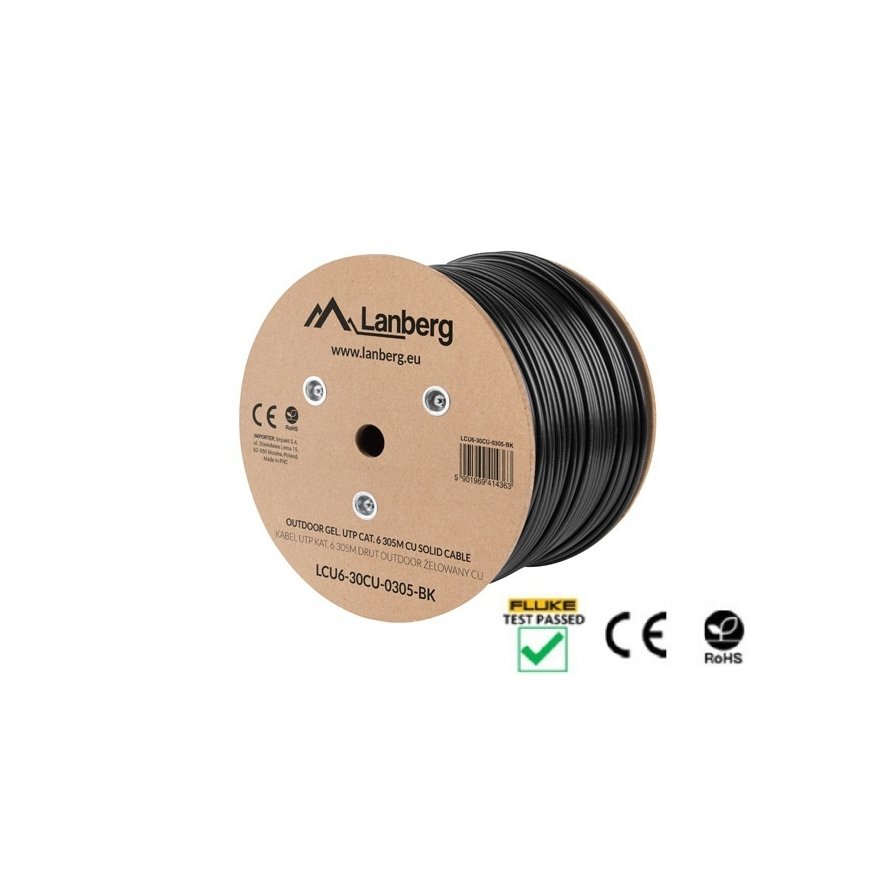

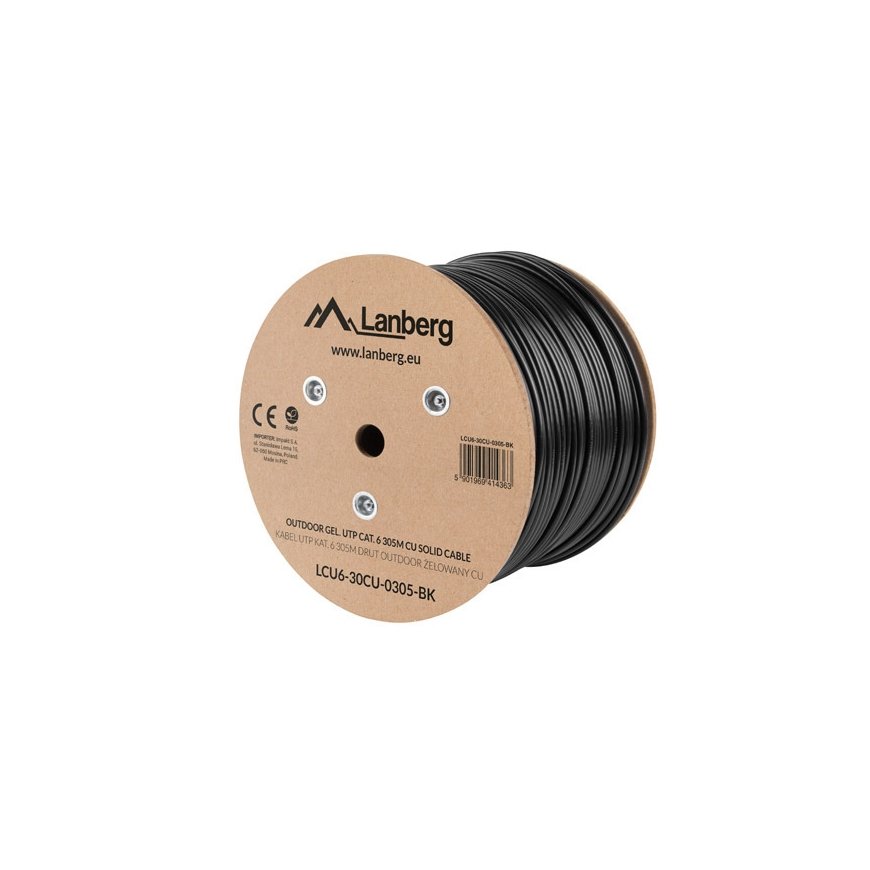

Lanberg LCU6-30CU-0305-BK networking cable Black 305 m Cat6 U/UTP (UTP)
208.37 €
Monthly payment from 6,27 €
2017607 LCU6-30CU-0305-BK
5901969414370
Shipping 3-7 b.d.
You are interested in this product?
All about the product
Product specification:- LAN cable category 6 UTP (unshielded) gelled outdoor.
- Length 305m.
- The wires are made of pure copper (CU 100% bare copper).
- AWG 23 (4*2*0.57mm).
- Conductor stranding: single wire.
- Color: black RAL9004.
- Printed length counter at every meter of cable.
- PE insulation 6.8mm:
- HDPE conductor insulation: 0.93mm.
- Operation up to 250Mhz.
Electrical characteristics (20 degrees):
- Conductor resistance (max.): 20 - 36Om / 305m.
- Insulation resistance (min.): 5000mOm km.
- Pair-to-Ground capacitance: < 330PF / 100m.
- Characteristic impedance: < 100Om (+/- 15).
- Transport and storage temperature: 0 - 60 degrees.
- Operating temperature: -20 - 70 degrees.
- Working distance: 180m.
Features | |
| Cable length | 305 m |
| Connector 1 | No |
| Connector 2 | No |
| Jacket material | Polyvinyl chloride (PVC) |
| Cable standard | Cat6 |
| Cable shielding | U/UTP (UTP) |
| AWG wire size | 23 |
| Frequency | 250 MHz |
| Conductor material | Copper |
| Product colour | Black |
| Connector 1 gender | No |
| Connector 2 gender | No |
