The product's shade and actual color may differ from what is shown in the picture, as the images are for illustrative purposes. The product description is general and may not include all the product's features.

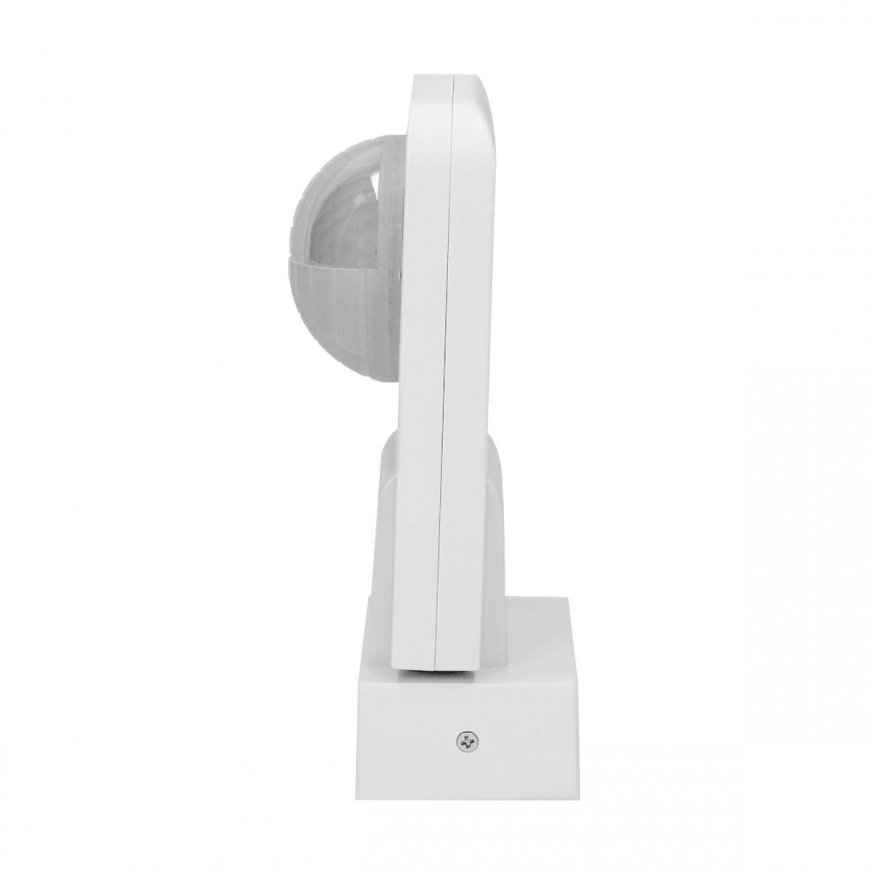

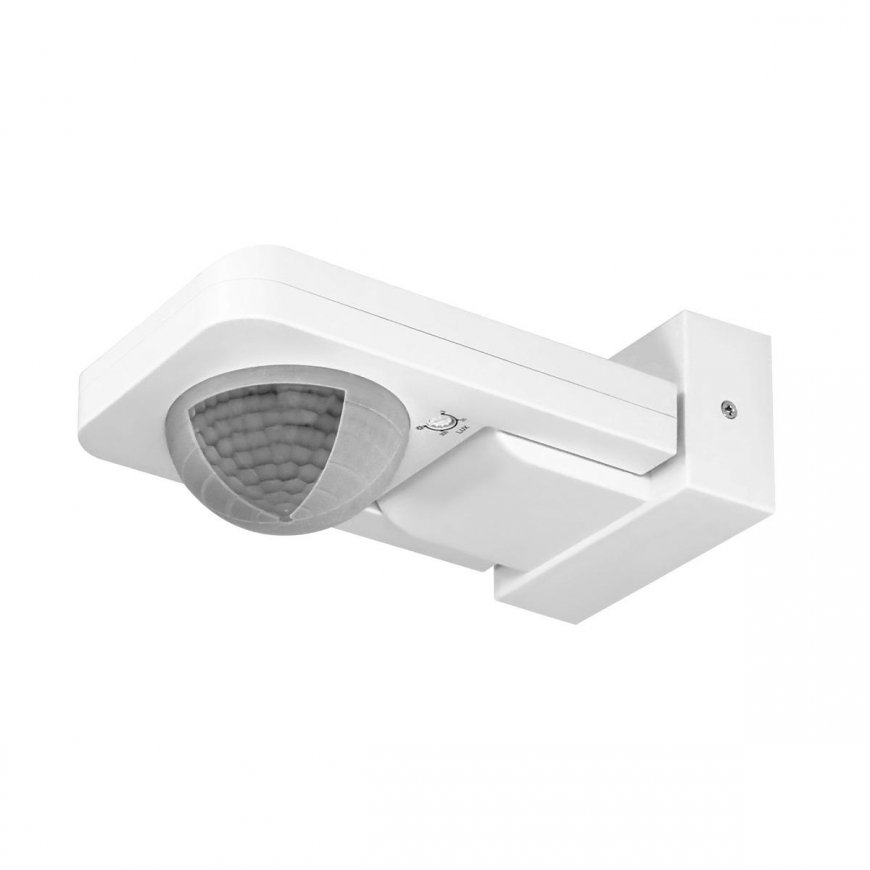

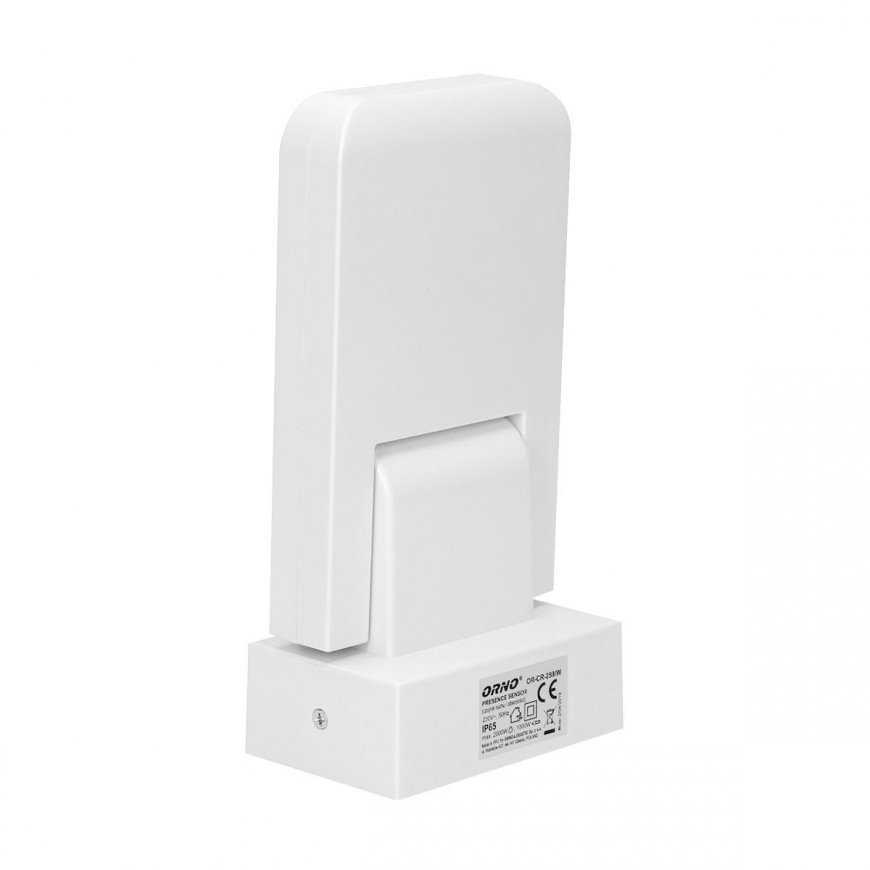

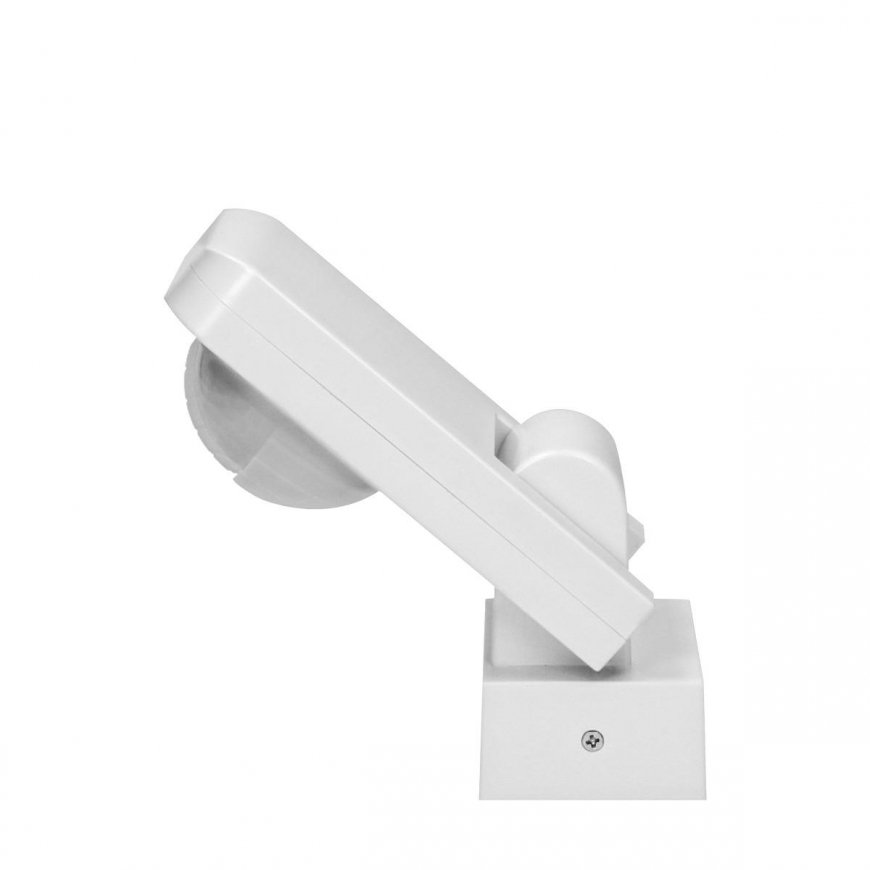

Orno 360 motion sensor. IP65, 2000W, range max. 20 years old, white
1992586 OR-CR-259/W
5900378653370
Shipping 8-13 b.d.
All about the product
The Orno OR-CR-259/W motion sensor is used to automatically control lighting or other electrical devices. They are activated by an infrared sensor that detects the movement of a heat-producing object within the sensor's field of view. They work as long as the sensor detects movement. If no movement is detected within the set time, the lighting or the device automatically switches off.

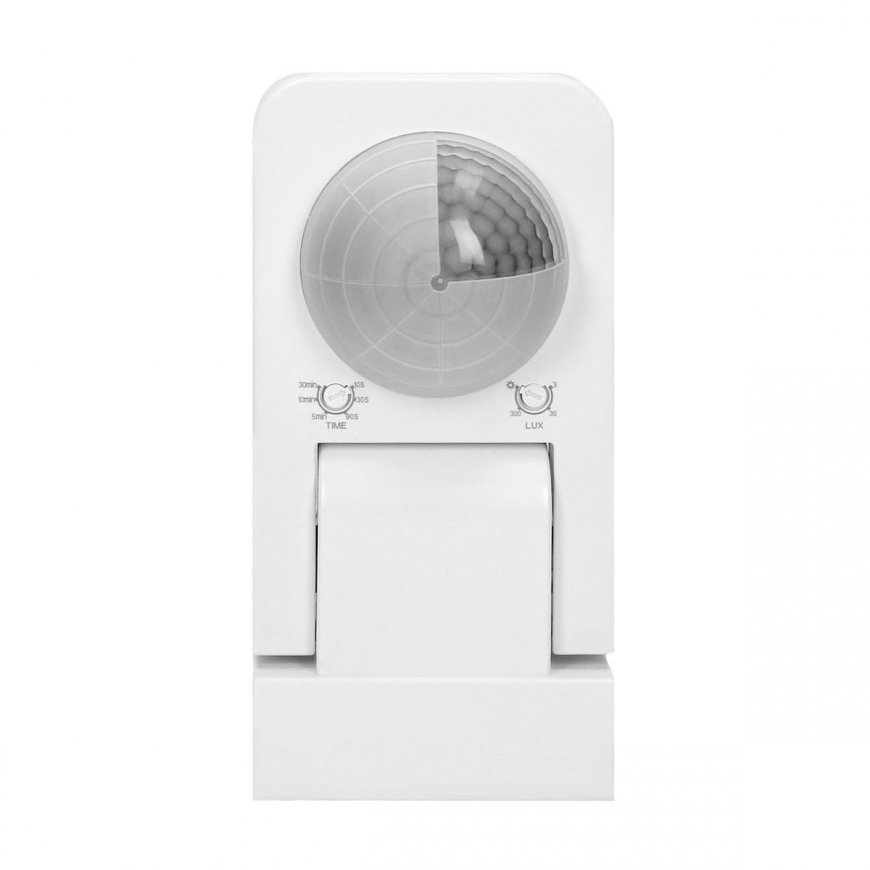

It has potentiometers to adjust the lighting time (TIME) and light intensity sensitivity (LUX). Works with LED lighting.
Product features:
- passive infrared sensor
- cooperation with LED lighting
- viewing angle: 360 degrees
- adjustment: lighting time (TIME) and light intensity sensitivity (LUX)
- installation: surface
- White color
Technical specifications:
- max load: 2000 W (resistive), 1000 W (inductive)
- viewing angle: 360 degrees
- light intensity adjustment: <3 - 2000 lux
- lighting time adjustment: min. 10 sec. (+/- 3 sec.), max. 30 minutes (+/- 2 min.)
- sensor range: Ø20 m
- working temperature: -20 degrees C ... +40 degrees C
- installation height: 2.2 - 6 m
- Degree of protection: IP65 (waterproof)
- power supply: ~230V/50Hz
- power consumption: 0.5 W (working)
- dimensions: 172.5 x 56 x 86.5 mm
- weight: 0.22 kg
Including:
- sensor Orno OR-CR-259/W - 1 pc;
- quick reference.
