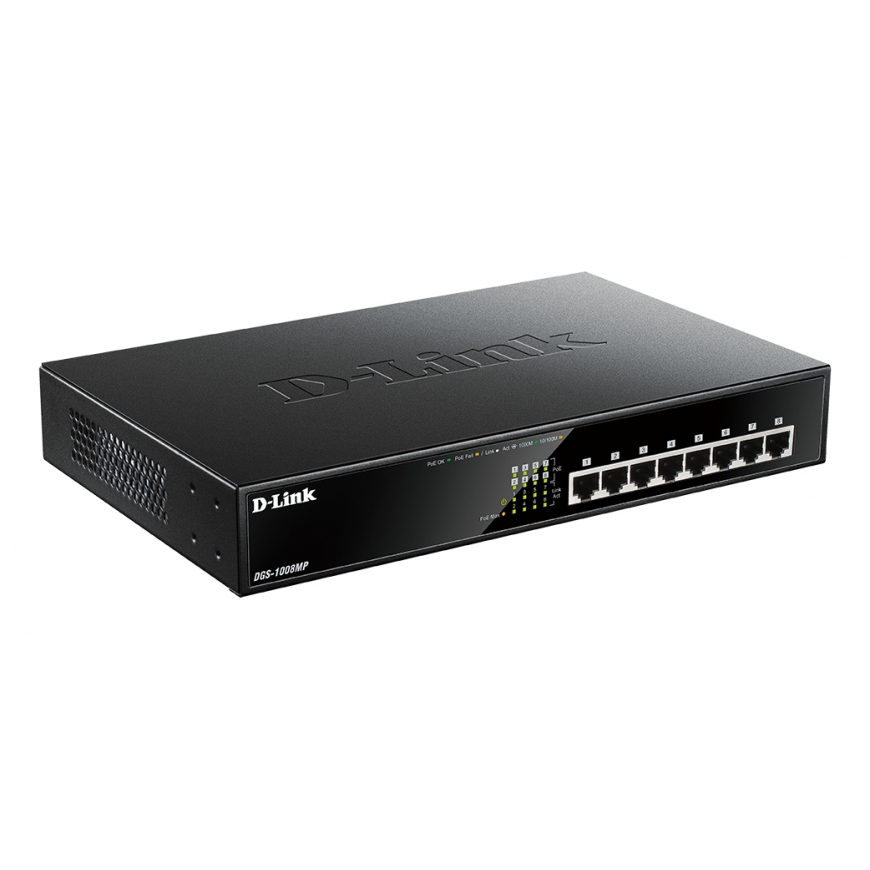

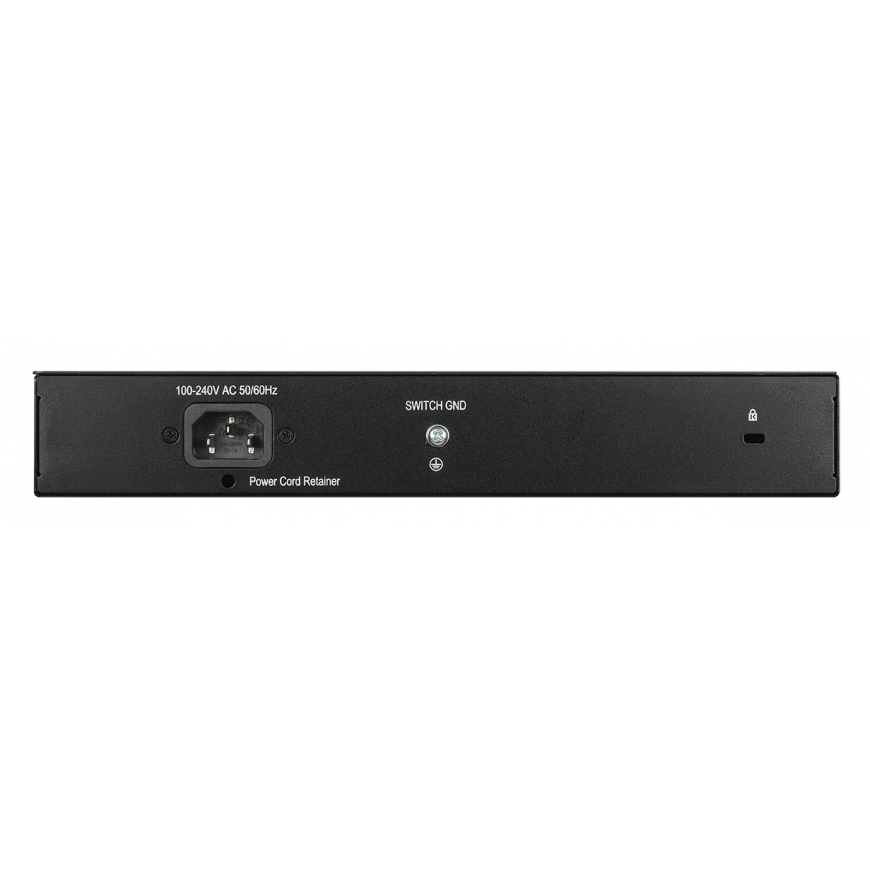

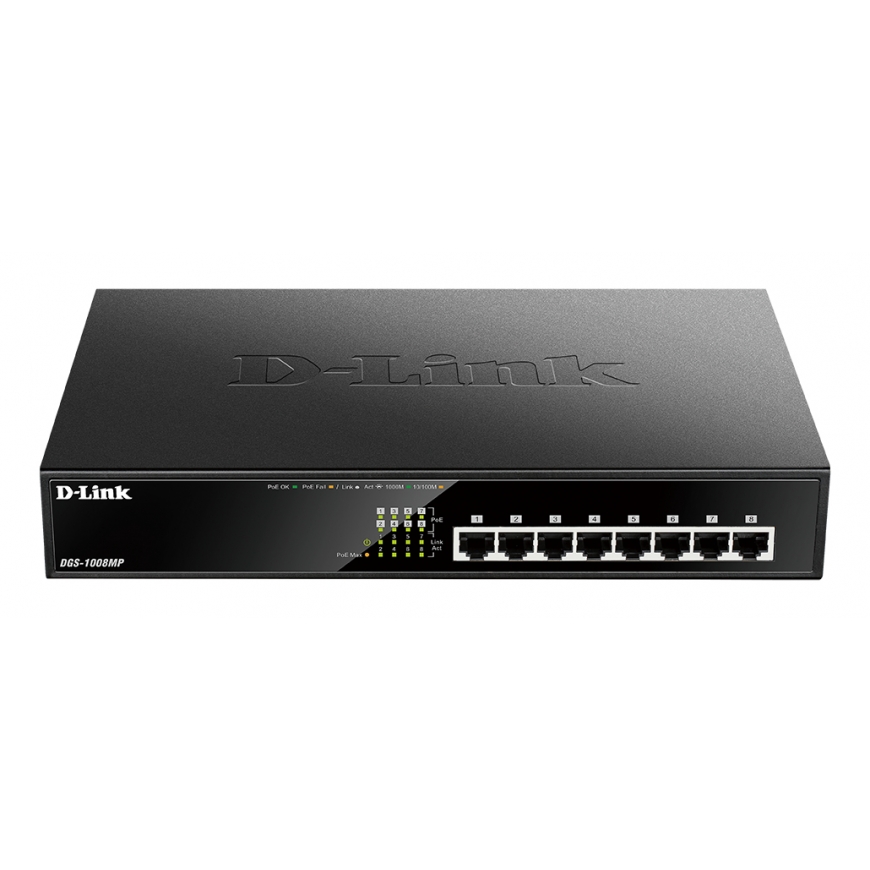

D-Link 8-Port Desktop Gigabit PoE+ Switch
130.98 €
Monthly payment from 4,27 €
1982971 DGS-1008MP
0790069420337, 0790069420320, 0790069420351, 0790069474002
Shipping 11-12 b.d.
You are interested in this product?
All about the product
Something of a powerhouse when it comes to Power-over-Ethernet switches, this compact beauty offers PoE to 802.3af/at standard across all eight Gigabit Ethernet ports, at up to 30 Watts per port with a power budget total of 140 Watts. Which, put simply, means you can power devices such as access points, IP phones and video surveillance cameras simply by plugging them in with an Ethernet cable – no additional power required.The DGS-1008MP features 8 x 10/100/1000BASE-T ports that support the IEEE 802.3at PoE+ protocol. Each of the 8 PoE+ ports can supply up to 30 watts with a total PoE power budget of 140 watts. PoE is especially suitable for devices that are far from power outlets or when you want to minimise the clutter of extra cables.
No configuration is required and installation is quick and easy. Support for Auto MDI/MDI-X on all ports eliminates the need for crossover cables when connecting to another switch. Auto- Negotiation on each port senses the link speed of a network device (10, 100 or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance. The switch has been designed without fans ensuring silent operation wherever it is installed. With wire-speed filtering and store-and-forward switching, the DGS-1008MP maximises network performance while minimising the transmission of bad network packets.
DGS-1008MP switches feature both D-Link Green 3.0 Technology and IEEE802.3az Energy Efficient Ethernet (EEE) to cut operating costs without sacrificing operational performance or functionality. With D-Link Green technology, the switches constantly monitor the link status and network utilisation of every port. The switches also automatically detect cable length and can reduce transmission power usage for shorter cables. By pairing EEE capable devices with DGS-1008MP switches organizations can drastically reduce power consumption by automatically putting ports into a sleep mode when not being used.
Network | |
| Networking standards | IEEE 802.3ab, IEEE 802.3u, IEEE 802.3at, IEEE 802.3az, IEEE 802.3x, IEEE 802.3i |
| Auto MDI/MDI-X | Yes |
| Full duplex | Yes |
Security | |
| MAC address table | 8000 entries |
Design | |
| LED indicators | Yes |
| Product colour | Black |
Power | |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (typical) | 13.5 W |
| Power over Ethernet (PoE) | Yes |
Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -10 - 70 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
Weight & dimensions | |
| Width | 280 mm |
| Depth | 180 mm |
| Height | 44 mm |
| Weight | 1.84 kg |
Packaging data | |
| Package width | 262 mm |
| Package depth | 391 mm |
| Package height | 102 mm |
| Package weight | 2.85 kg |
Other features | |
| Form factor | 1U |
| Rack mounting | Yes |
Logistics data | |
| Shipping (inner) case height | 28.5 cm |
| Shipping (inner) case width | 40.6 cm |
| Shipping (inner) case length | 54.5 cm |
| Shipping (inner) case net weight | 14.2 kg |
| Products per shipping (inner) case | 5 pc(s) |
| Pallet gross weight (air) | 563.8 kg |
| Master (outer) cases per pallet (air) | 36 pc(s) |
| Products per pallet (air) | 180 pc(s) |
| Pallet gross length | 110 cm |
| Pallet gross width | 120 cm |
| Pallet height (air) | 193.5 cm |
| Pallet gross weight (sea) | 563.8 kg |
| Master (outer) cases per pallet (sea) | 36 pc(s) |
| Products per pallet (sea) | 180 pc(s) |
| Pallet height (sea) | 193.5 cm |
| Shipping (inner) case gross weight | 15.3 kg |
| Harmonized System (HS) code | 85176990 |
