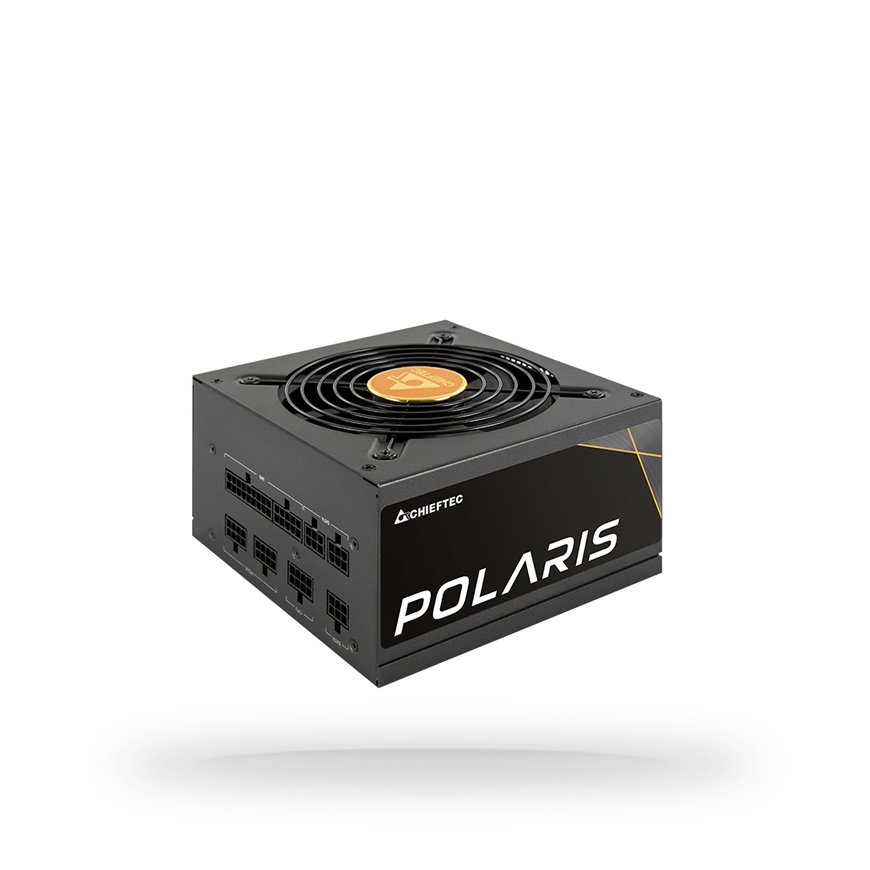

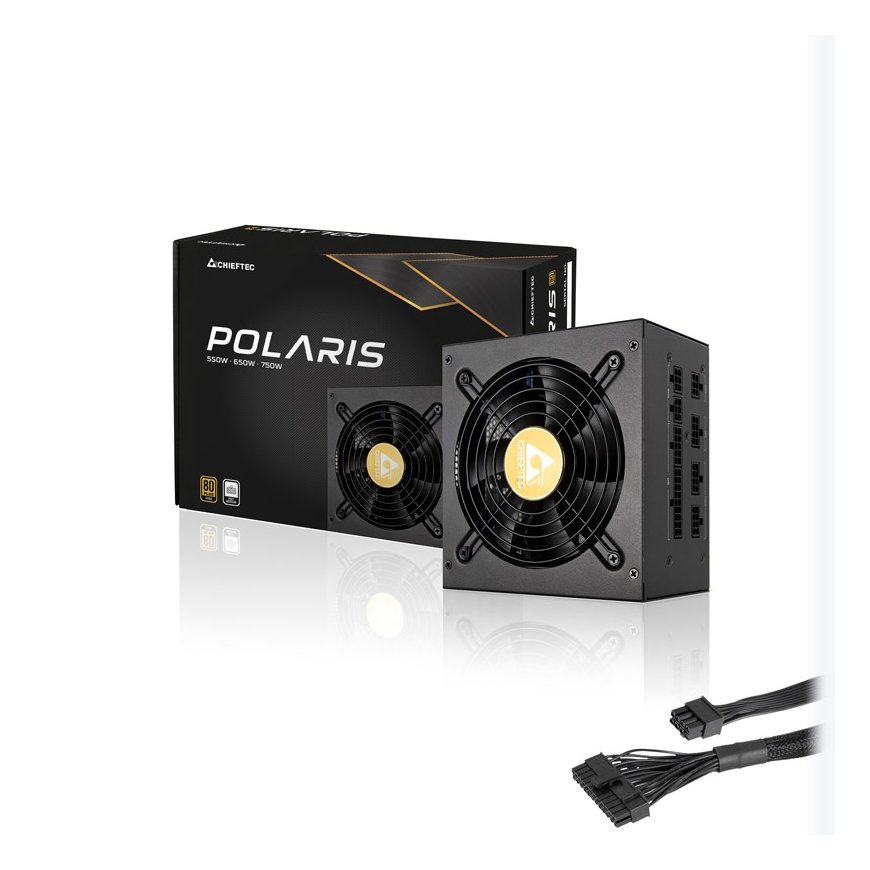

Chieftec Polaris power supply unit 750 W 20+4 pin ATX PS/2 Black
114.86 €
Monthly payment from 3,86 €
1980522 PPS-750FC
0753263076441, 7532630764418
Shipping 13-14 b.d.
You are interested in this product?
All about the product
The Polaris Series brings CHIEFTEC’s trusted and proven experience with high quality, 80 PLUS® Gold certified, fully modular power supplies back to the forefront of modern technology. Polaris Series PSU’s feature state-of-the-art technical design including LLC half-bridge converter with DC-to-DC technology, as well as high power-density to allow higher efficiency and power output with a more compact size.With the size of only 140mm in length and fully modular cable management, the Polaris Series is easy to install in any system for standard ATX PSU. Cable lengths of 650mm ensure that these power-supplies can be used even in large builds. Whether a small PSU housing for compact system is needed or longer cables for large systems, the Polaris Series can be trusted to do the job with top performance and efficiency.
Power | |
| Input current | 10 A |
| Power protection features | Over current, Overload, Over voltage, Overheating, Short circuit, Under voltage |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 120 W |
| Combined power (+12V) | 750 W |
| Combined power (+5V) | 120 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 22 A |
| Max output current (+12V) | 62.5 A |
| Max output current (+5V) | 22 A |
| Max output current (+5Vsb) | 3 A |
| Max output current (-12V) | 0.3 A |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Total power | 750 W |
Performance | |
| ATX version | 2.4 |
| Purpose | PC |
| 80 PLUS certification | 80 PLUS Gold |
| Power supply unit (PSU) form factor | PS/2 |
Design | |
| Product colour | Black |

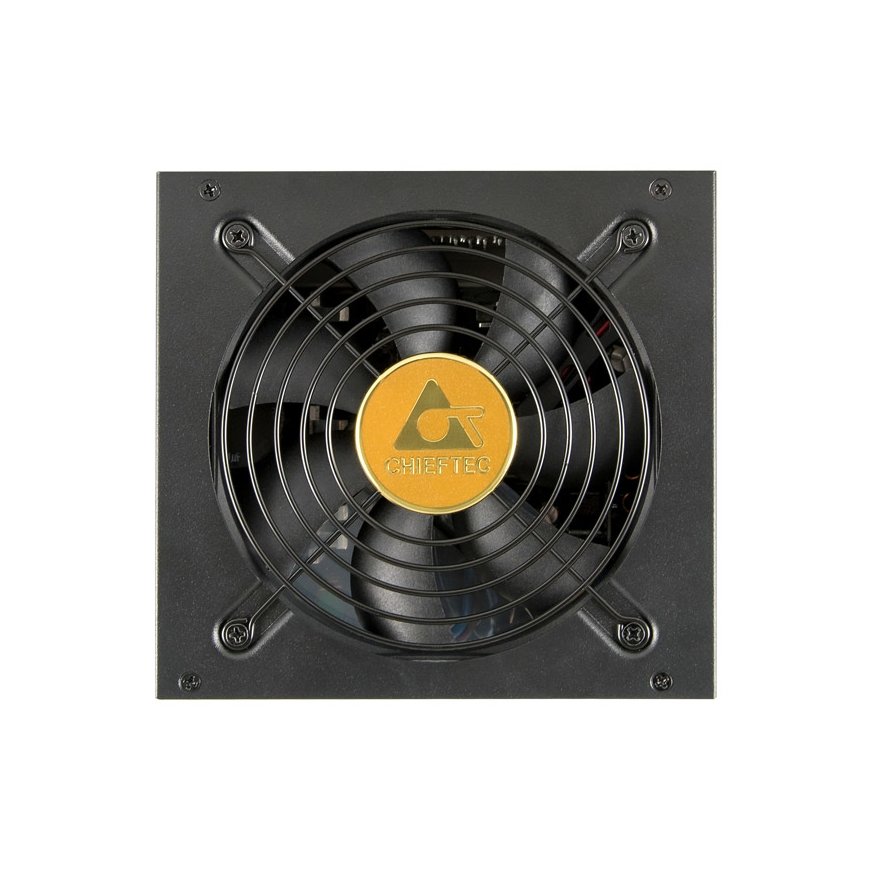

| Number of fans | 1 fan(s) |
| Fan diameter | 12 cm |
| Fan location | Top |
| Cooling type | Active |

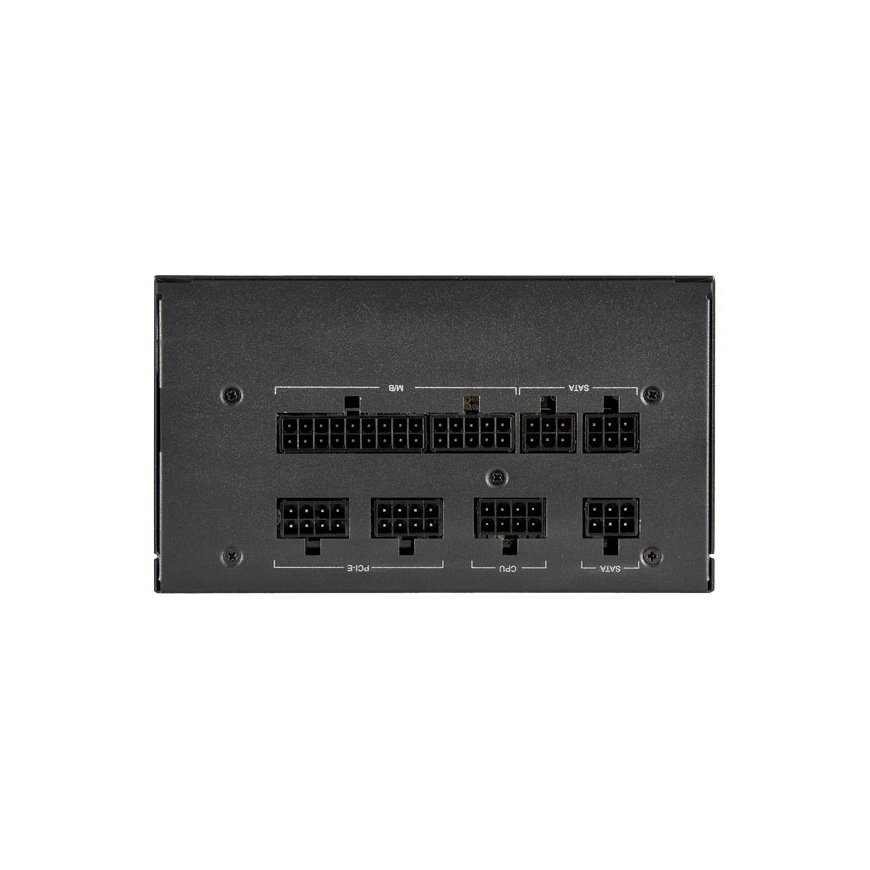

Ports & interfaces | |
| Floppy drive power connector | 1 |
| Number of SATA power connectors | 8 |
| Peripheral (Molex) power connectors (4-pin) | 3 |
| CPU power connector (4+4 pin) | Yes |
| PCI Express power connectors (6+2 pin) | 4 |
| Motherboard power connector | 20+4 pin ATX |
| Cabling type | Fully-Modular |
| Floppy disk drive connector | Yes |
| Motherboard power cable length | 65 cm |
| SATA power cable length | 450, 150 |
| Peripheral (Molex) power cable length | 450, 150 |
| PCI Express power cable length | 50 cm |
| CPU power cable length | 65 cm |
Weight & dimensions | |
| Weight | 2.29 kg |
| Width | 150 mm |
| Depth | 140 mm |
| Height | 87 mm |
Packaging data | |
| Package weight | 2.59 kg |

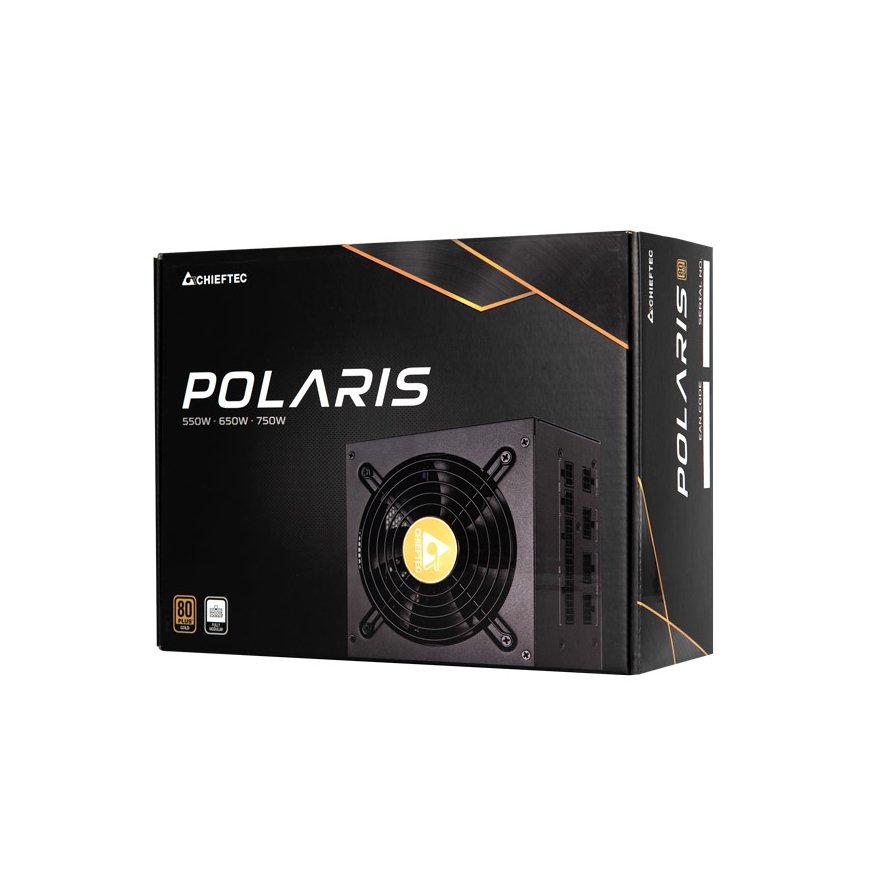

| Package type | Box |
Logistics data | |
| Harmonized System (HS) code | 84733020 |
Certificates | |
| Compliance certificates | RoHS |
