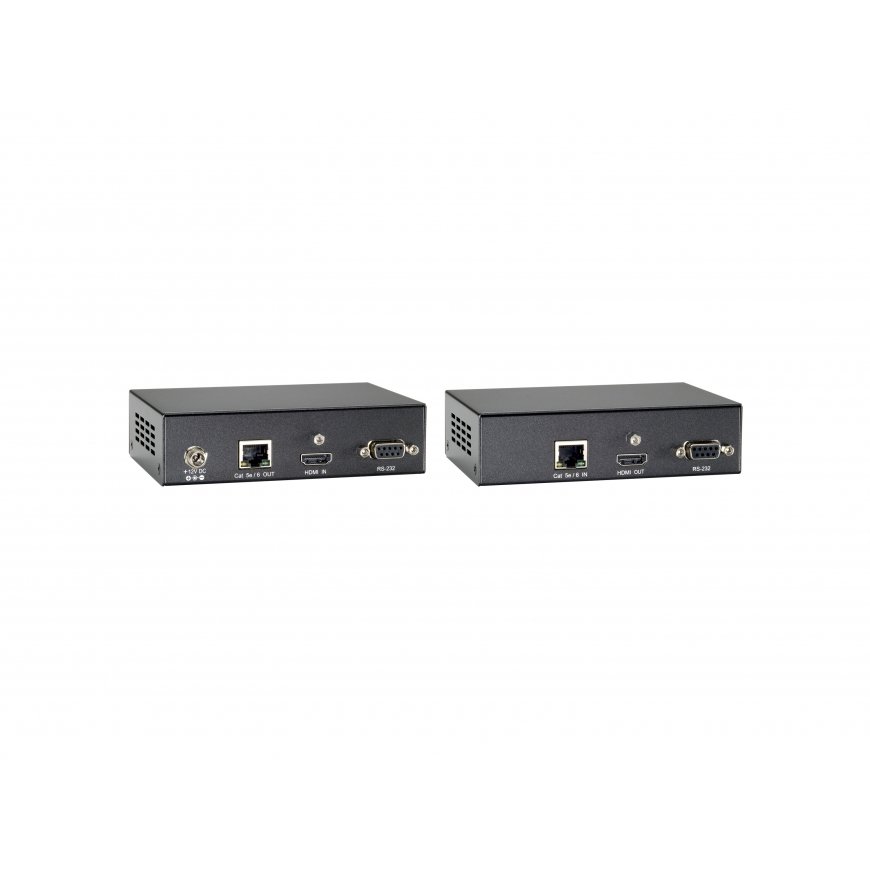

LevelOne HDMI over Cat.5 Extender Kit, HDBaseT, 100m, 802.3af PoE
350.75 €
Monthly payment from 9,93 €
1951823 HVE-9200P
4015867192917
This product is no longer in stock
You are interested in this product?
All about the product
The HVE-92 series is a HDMI extension solution supports HDBaseT technology which transmits HDMI signal and multi-channel audio at resolution Ultra HD 4K x 2K (3840 x 2160 @ 30Hz) and 1080p Full HD up to 100m via Cat5e or Cat6 cable.The series of products are embedded with EDID priority management of HDMI outputs supports EDID Hotplug refreshing function. These products also provide Bi-Directional RS-232 and IR to control the connected devices from either source or display location.
All the features are made to simplify installation and reduce costs, but at the same time providing exceptional video and audio quality. The HVE-92 series is the perfect solution for Digital Signage, trade shows, home theater installations, medical facilities, and other public exhibitions.
- IEEE 802.3af PoE compliant to simplify deployment and installation
- Simple Plug and Play installation
- Built-in EDID Hot Plug Detection (HPD)
- HDMI outputs with EDID management
- Transmission distance of up to 100m for HDMI(4k2k), IR and RS-232
- Bi-Directional RS-232 pass through & IR Control
- Supports video resolutions up to 3840 x 2160 (4K x 2K) @ 30Hz
- HDMI and HDCP complaint
- Supports Dolby TrueHD, DTS-HD Master Audio, Dolby Digital Plus, LPCM 7.1 audio
- Supports 3D, CEC & Lip Sync pass-through
- Screw-in power socket for added safety
Features
| Product colour | Grey |
| Width | 125 mm |
| Depth | 85 mm |
| Height | 40 mm |
| AC adapter included | Yes |
| Cables included | AC |
| Type | AV transmitter & receiver |
| Material | Metal |
| Package width | 300 mm |
| Package depth | 170 mm |
| Package height | 120 mm |
| Supported video modes | 1080p |
| Maximum resolution | 3840 x 2160 pixels |
| Package weight | 1.45 kg |
| Manual | Yes |
| DC-in jack | Yes |
| LED indicators | Yes |
| Power over Ethernet (PoE) | Yes |
| RJ-45 input ports | 1 |
| Current | 2 A |
| Operating voltage | 12 V |
| Package dimensions (WxDxH) | 300 x 170 x 120 mm |
| Receiver dimensions (WxDxH) | 85 x 125 x 40 mm |
| Bandwidth | 10.2 Gbit/s |
| Cable types supported | Cat5; Cat6; Cat5e |
| Maximum transfer distance | 100 m |
| HDMI in | 1 |
| Number of HDMI outputs | 1 |
| Colour depth | 48 bit |
| Transmitter dimensions (WxDxH) | 85 x 125 x 40 mm |
| RS-232 input ports | 2 |
