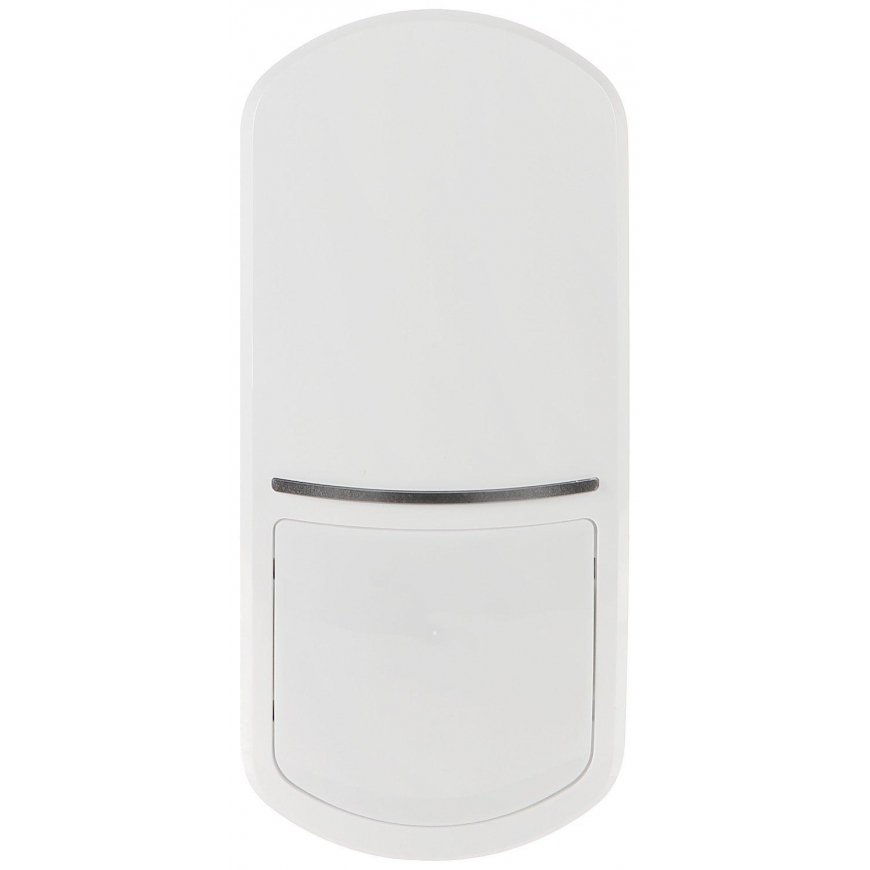

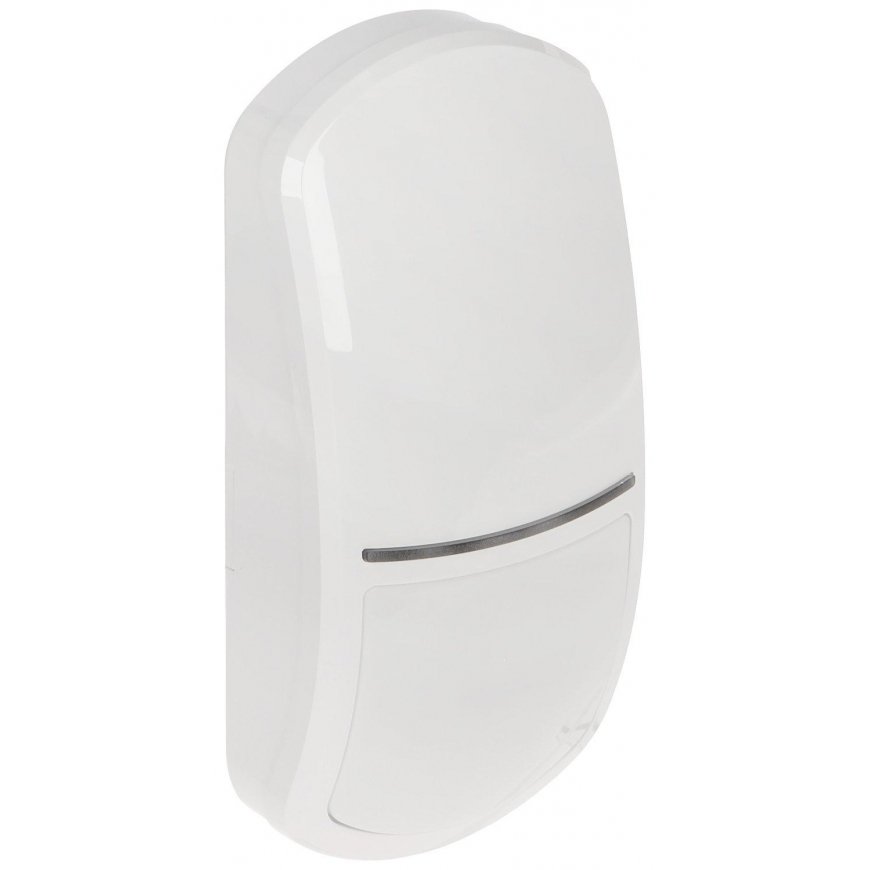

PIR SENSOR SLIM-PIR-LUNA SATEL
31.58 €
1948678Shipping 11-15 b.d.
You are interested in this product?
All about the product
Digital passive infrared detector with LED lighting function.
| Usage : | For indoor spaces |
| Pyroelement : | Double |
| Sensor type : | Passive IR (PIR) |
| Distance : | 20 x 24 m, 90 ° |
| Sensitivity adjustment : | Ability to set 1 of 16 sensitivity levels |
| Resistance to animals : | - |
| Violation alarm time : | 2 s |
| Maximum output load : | 40 mA / 24 V DC |
| Digital temperature compensation : | ✔ |
| Detectable movement speed : | 0.3 ... 3 m/s |
| Meals : | 12 V DC / 97 mA (max) |
| Main features : | The lighting function is performed by an LED diode Meets standard EN 50131-2-2 @ Grade 2 Optical tamper protection that reacts to opening the case and pulling it away from the wall Remote on/off of the LED indicator and choice of lighting color from 7 colors Built-in parametric resistors 2EOL: 2 x 1.1kΩ, 2 x 4.7 kΩ, 2 x 5.6 kΩ Remote control (not included) |
| Working temperature : | -10 °C ... 55 °C |
| Weight : | 0.11 kg |
| Dimensions : | 62 x 137 x 42 mm |
| Manufacturer / Brand : | SATEL |
| Warranty : | 5 years |
