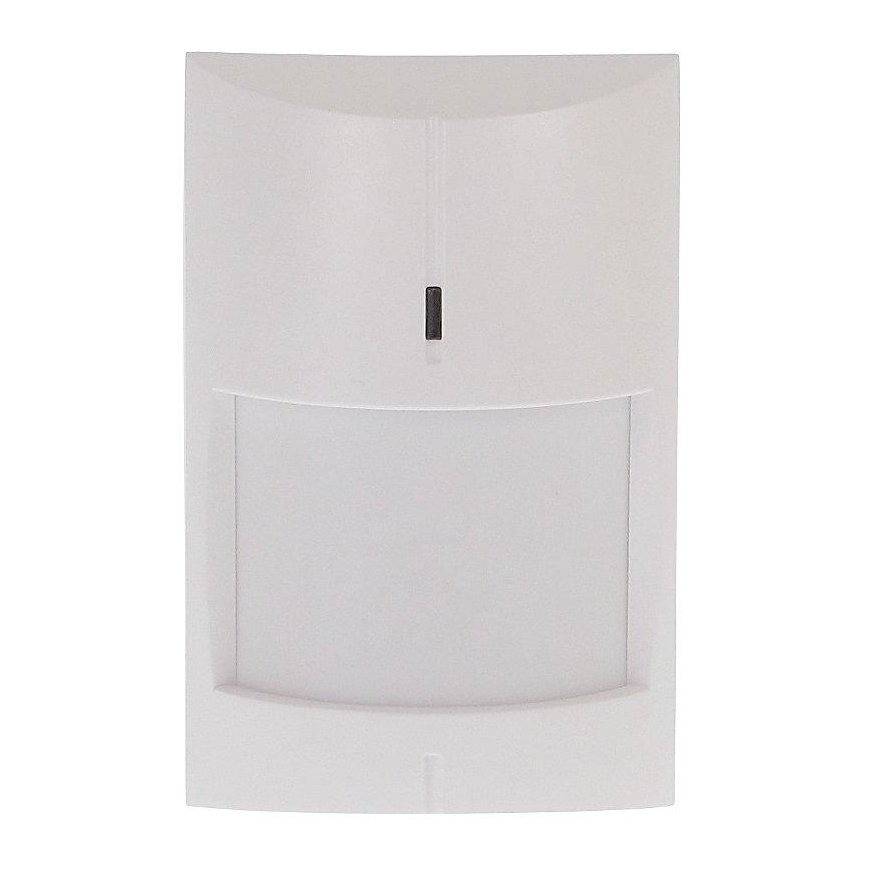

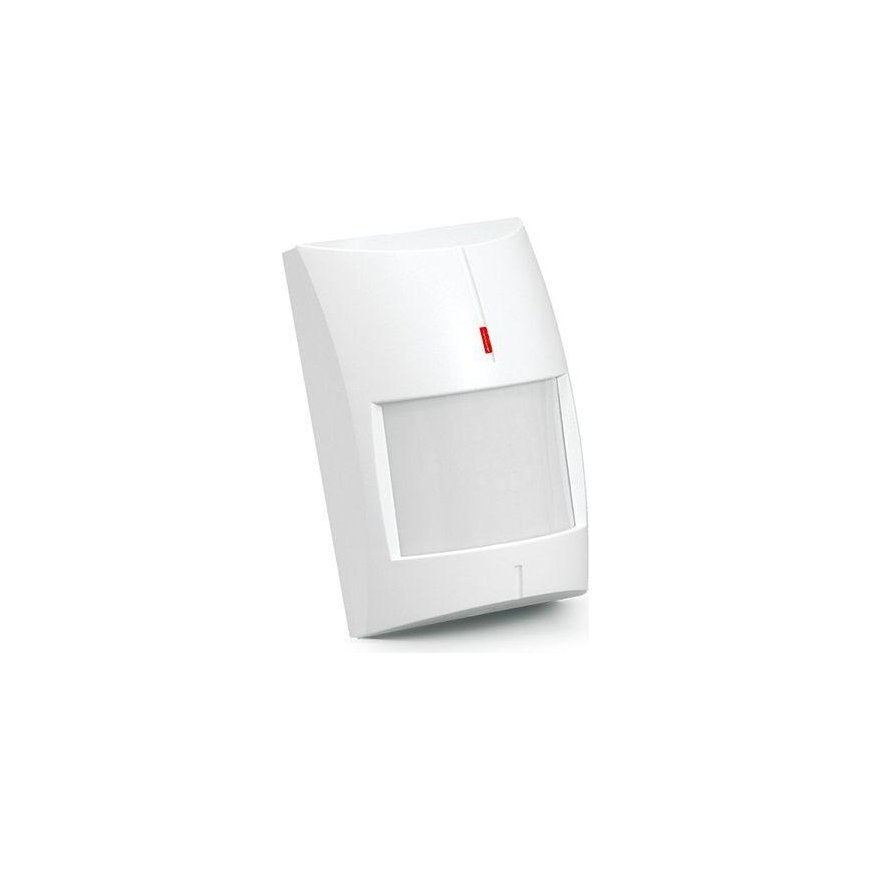

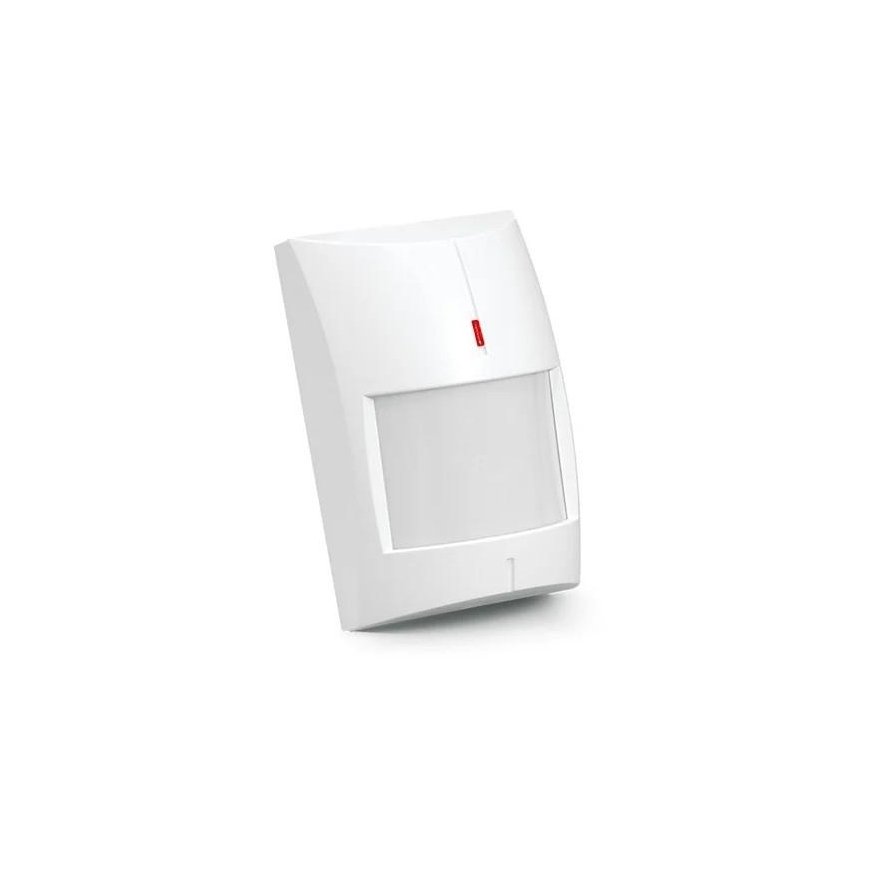

DUAL TECHNOLOGY DETECTOR: MICROWAVE + PIR Gray SATEL
38.85 €
Monthly payment from 1,90 €
1940972 GREY
5905033334717
Shipping 11-15 b.d.
You are interested in this product?
All about the product
Digital dual (PIR + microwave) detector.
If the PIR detector is activated, and the MW detection confirms the PIR detector has been triggered, then an alarm signal will be sent to the alarm control panel.
The device is intended for the protection of premises with unfavorable conditions - drafts or intense convection, e.g. rooms with fireplaces with air heating..
| Usage : | For indoor spaces |
| Pyroelement : | Double |
| Sensor type : | Passive IR (PIR) and microwave (MW) |
| Distance : | 13 x 10 m |
| Sensitivity adjustment : | PIR sensor - Potentiometer Microwave (MW) - Potentiometer |
| Microwave frequency band : | 24 GHz |
| Resistance to animals : | ≤ 15 kg |
| Anti-masking function : | - |
| Violation alarm time : | 2 s |
| Maximum output load : | 40 mA / 16 V DC |
| Digital temperature compensation : | ✔ |
| Meals : | 12 V DC / 17 mA |
| Working temperature : | -10 °C ... 55 °C |
| Detectable movement speed : | 0.3 ... 3 m/s |
| Weight : | 0.01 kg |
| Dimensions : | 63 x 96 x 49 mm |
| Manufacturer / Brand : | SATEL |
| Warranty : | 2 years |
