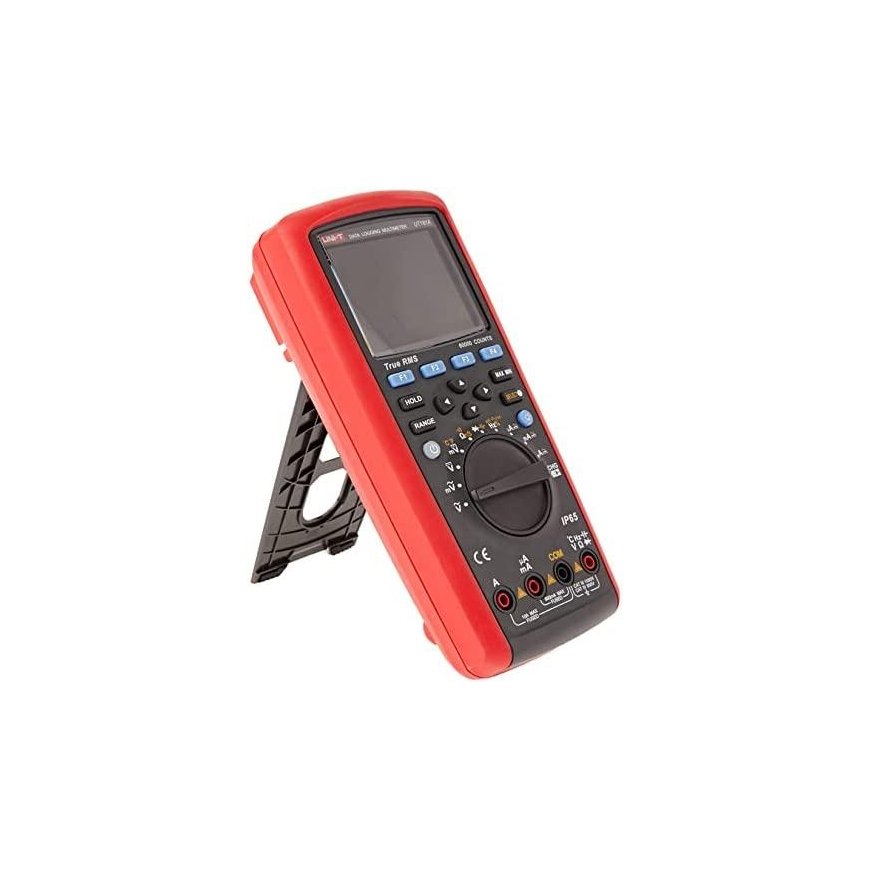

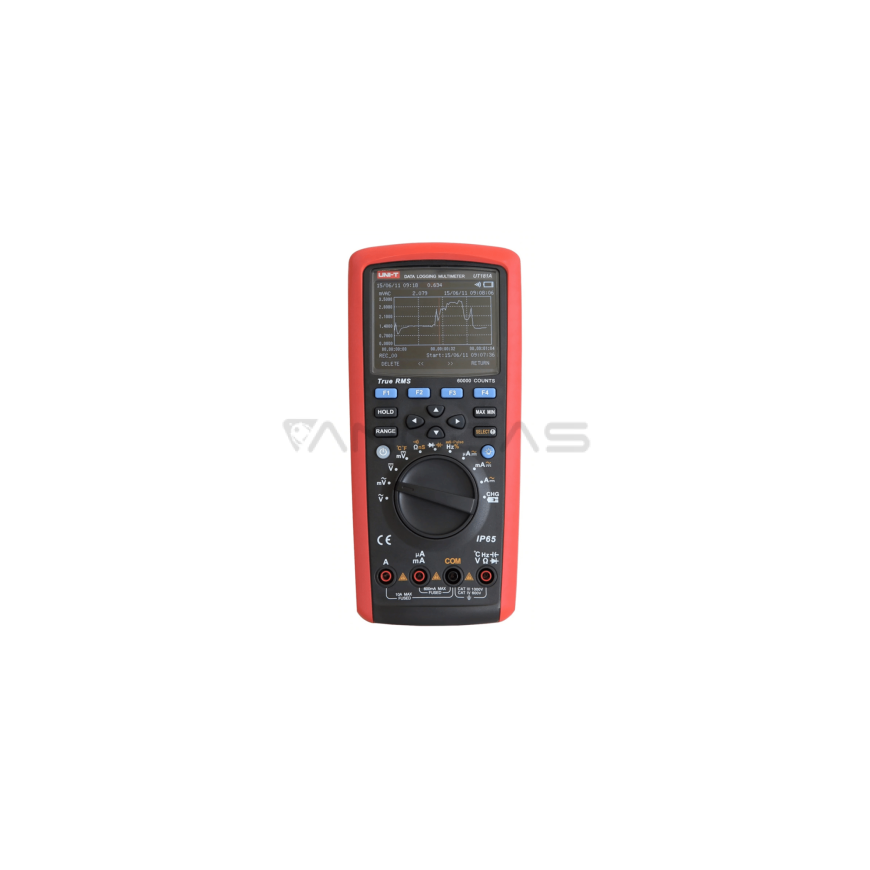

Universal multimeter Uni-t UT181A

All about the product

Multimeter Uni-t UT181A is a universal multimeter whose functions allow you to measure various physical values, including the voltage and intensity of direct and alternating current, which will allow you to determine the fault of the electrical installation. Useful for both professionals and ordinary people.
Technical data:

• Constant voltage: 60mV / 600mV / 6V / 60V / 600V / 1000V ± (0.025% + 5)
• AC voltage: 60mV / 600mV / 6V / 60V / 600V / 1000V ± (0.3% + 30)
• Continuous current: 600 µA / 6000 µA / 60 mA / 600 mA / 10 A ± (0.08% + 10)
• AC voltage: 600 µA / 6000 µA / 60 mA / 600 mA / 10 A ± (0.6% + 20)
• Resistance: 600 Ohm / 6 kOhm / 60 kOhm / 600 kOhm / 6 MOhm / 60 MOhm ± (0.05% + 2)
• Conductivity: 60 nS ± (2% + 10)
• Capacitance: 6 nF / 60 nF / 600 nF / 6 µF / 60 µF / 600 µF / 6 mF / 60 mF ± (2% + 5)
• Frequency: 60 Hz / 600 Hz / 6 kHz / 60 kHz / 600 kHz / 6 MHz / 60 MHz ± (0.01% + 5)
• Temperature: -40°C ~ 1000°C ± (1% + 30), -40°F ~ 1832°F ± (1.5% + 50)
• Duty rate: 10% ~ 90% ± (1.2% + 30)
• Pulse width: 250 ms
• Diode test: about 3V
• Continuity check
• Automatic/manual change of measurement ranges
• True RMS measurement
• AC + DC measurement
• Simultaneous temperature measurement with two probes
• Comparative measurements
• Low pass filter: 1kHz (-3dB)
• MAX / MIN recording

• The last measurement is recorded

• Voltage level measurement (dBV / dBm)
• Record the maximum values
• Relative measurement mode
• Record of measurements: 20,000
• Trends of change
• Date/time display
• LCD backlight adjustment
• Analog diagram: 61 segments
• Warning about incorrectly selected test sockets
• Low battery indicator
• Automatic shutdown
• Maximum reading: 60,000
• Optical connection
• Voltage measurement input impedance: about 10 MOhm
• Power supply: rechargeable lithium-ion battery 7.4 V, 2200 mAh
• Screen size: 3.5 inch color TFT LCD screen
• Product dimensions: 103 x 225 x 59 mm
• Product weight: 638.6 g

• Battery
• Test leads
• USB wire
• 2x temperature measuring probe
• Temperature measuring socket
• Charging socket
• AC adapter
• Case
