Lindy 5 Port Seamless Presentation Switch HDBaseT Extender - Transmitter
949.00 €
Monthly payment from 25,34 €
1912852 38338
4002888383387
This product is no longer in stock
You are interested in this product?
All about the product
The 5 Port Seamless Presentation Switch HDBaseT Transmitter is one part of a high performance, reliable solution for extending AV signals over long distances via Cat.6 network cable.By combining this transmitter unit with the Lindy HDBaseT receiver n. 38214, the following distance and resolution combinations are possible when using high quality Cat.6 U/UTP or F/UTP cable:70m: 1920x1080@60Hz 4:4:4 8bit40m: 3840x2160@60Hz 4:4:4 8bit / 4:2:2 12bit
It can be connected to other HDBaseT receiver supporting up to 4K30 resolutions.

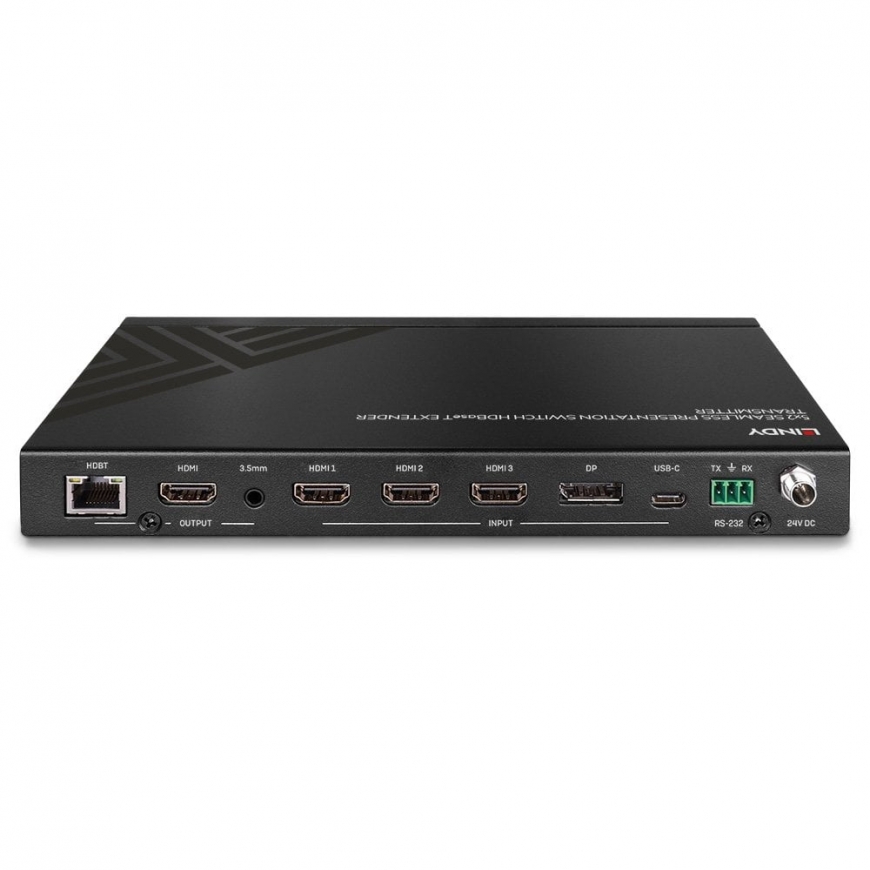

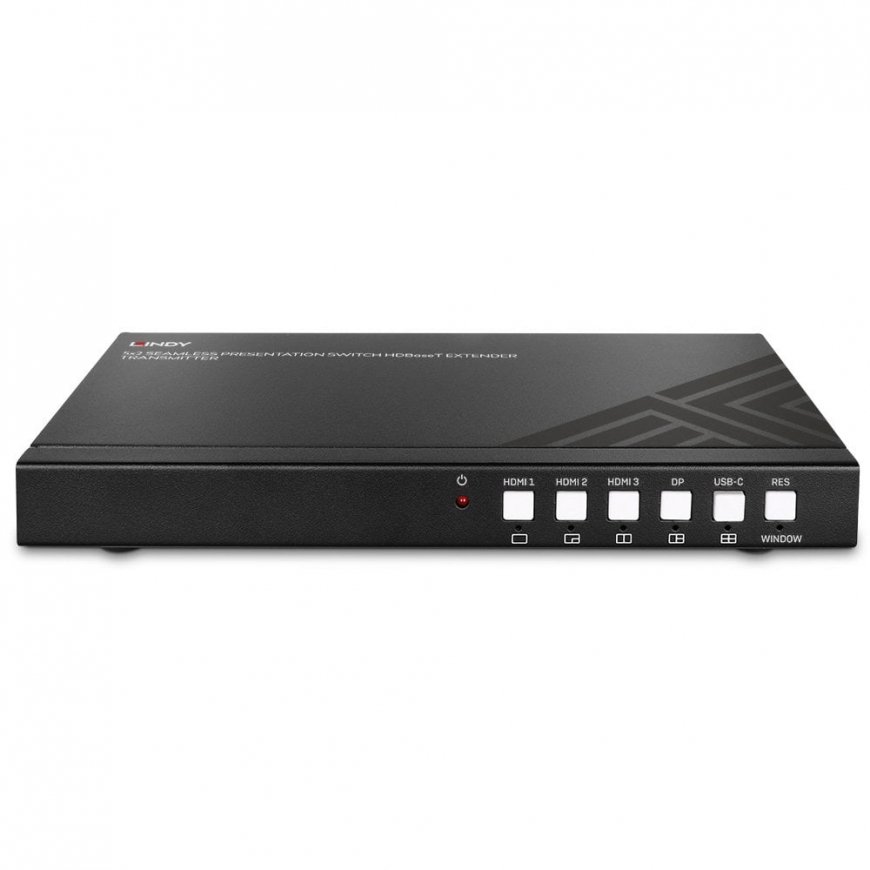

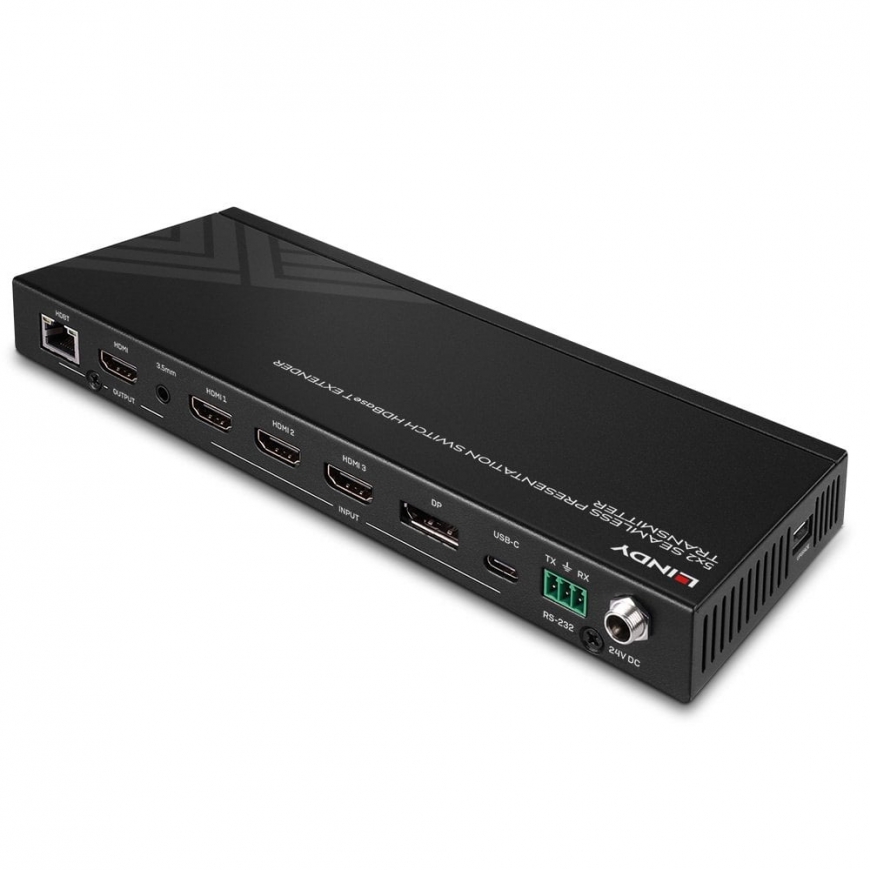

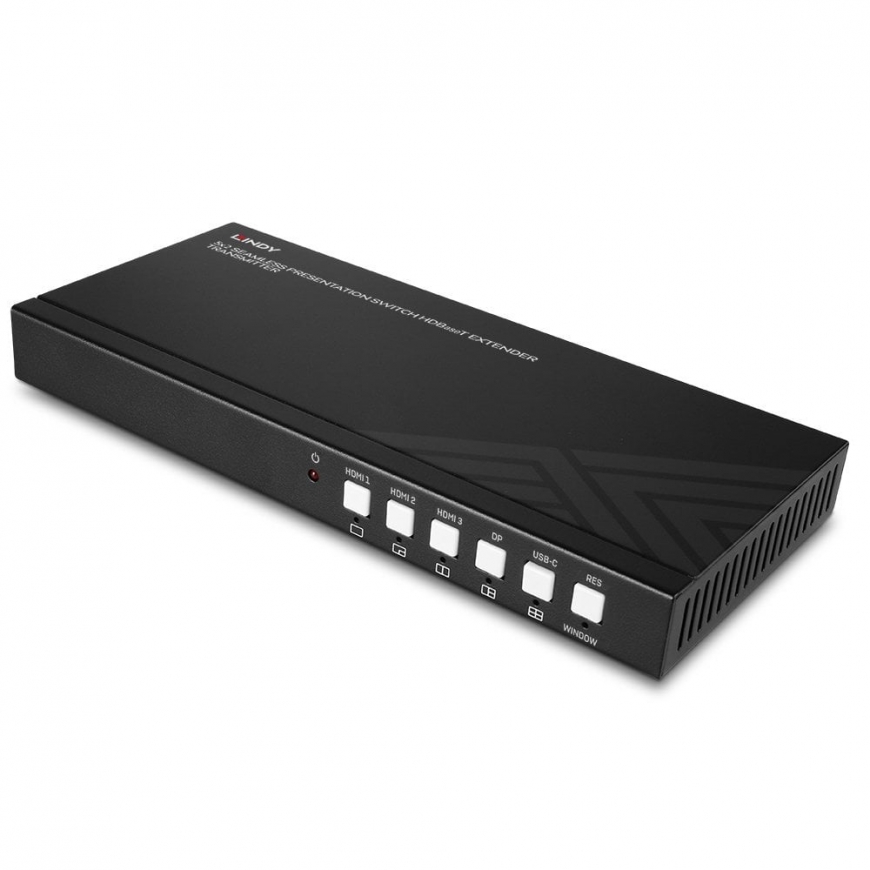

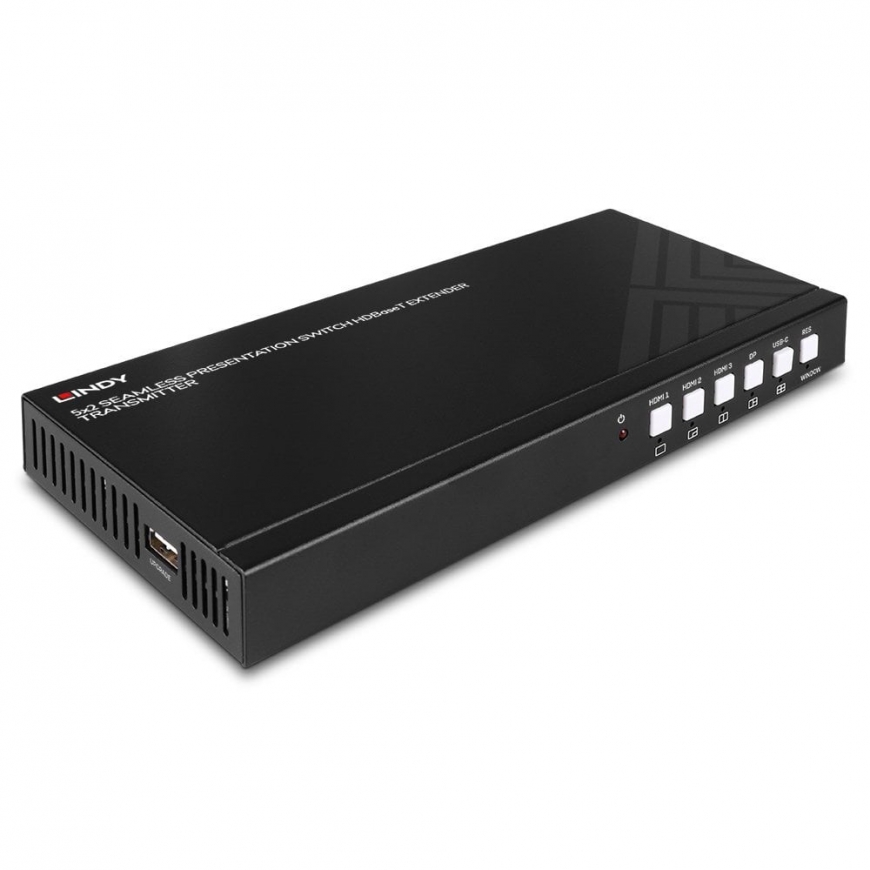

This unit provides 3 HDMI, 1 DP and 1 Type C inputs with 1 HDBaseT and 1 HDMI local outputs; sources can be switched seamlessly pushing the buttons on the front panel, long press can activate different multiview options. This and many more functions such as auto-switch mode, select resolutions, EDID, PIP size, etc. can be managed via RS-232 commands.
2 outputs are mirrored while 3.5mm stereo audio output can be used for connecting speakers or headphones to get de-embedded audio.
PoC (Power over Cable) functionality allows power to be supplied alongside data through Cat.6 network cable in a point to point connection between the transmitter and a receiver with the same feature, meaning only a single power supply is required.
This transmitter provides a full range of solutions and AV interfaces to connect different kind of devices, ideal for presentations, trade shows and conference rooms. Type C sources must support Alternate Mode.
HDBaset is a globally recognised standard for high quality distribution of AV content and other technologies, including power and control, over longer distances via low cost Cat.6 or above cable.
HDBaseT and the HDBaseT Alliance logo are trademarks of the HDBaseT Alliance.
Features | |
| Product colour | Black |
Design | |
| Type | AV transmitter |
Other features | |
| HDCP | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| Material | Metal |
| HDMI in | 3 |
Ports & interfaces | |
| HDCP version | 2.2 |
Packaging data | |
| Package weight | 1.02 kg |
| Package depth | 138 mm |
| Package height | 75 mm |
| Package width | 273 mm |
| Quantity per pack | 1 pc(s) |
Operational conditions | |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 10 - 50% |
| Operating temperature (T-T) | 0 - 40 °C |
Certificates | |
| Certification | CE, UKCA, FCC, RoHS, REACH & California Proposition 65 |
Weight & dimensions | |
| Weight | 590 g |
| Depth | 100 mm |
| Height | 25 mm |
| Width | 225 mm |
