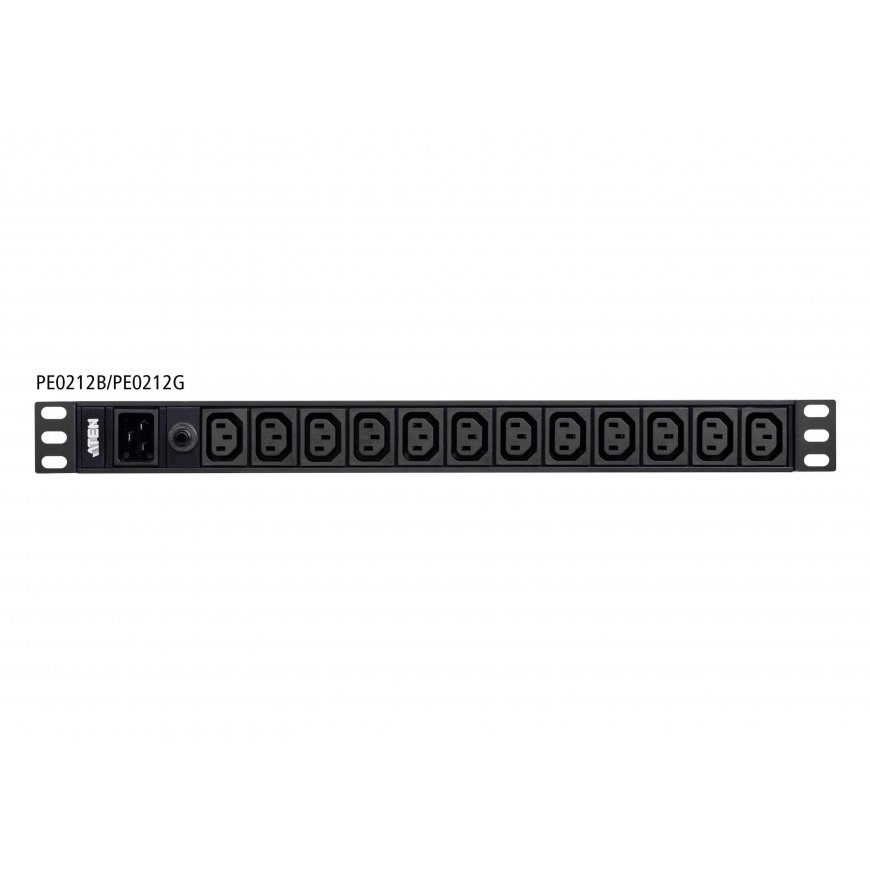

ATEN 1U 16A 12Port Basic PDU
79.38 €
Monthly payment from 2,94 €
1904154 PE0212G-AT-G
2000001254660, 0672792009174, 4719264647215
This product is no longer in stock
You are interested in this product?
All about the product
The PE0212 series Basic PDU contains 12 AC outlets and is available in IEC or NEMA socket configurations. The PE0212 series Basic PDU features a space-saving 1U design that allows it to be mounted vertically on the outside of a rack, resulting in a more effi cient use of space in the server room, while providing 12 AC outlets.1x Basic PDU
1x LIN2-314K-P42G Power cord
1x User Instructions
Features
| Product colour | Black |
| Weight | 1.3 kg |
| Width | 488 mm |
| Depth | 44 mm |
| Height | 45 mm |
| Type | Single-phase |
| Package width | 112 mm |
| Package depth | 697 mm |
| Package height | 82 mm |
| Package weight | 1.49 kg |
| Master (outer) case width | 595 mm |
| Master (outer) case length | 710 mm |
| Master (outer) case height | 188 mm |
| Master (outer) case gross weight | 14.9 kg |
| Products per master (outer) case | 10 pc(s) |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Housing material | Aluminium |
| AC input frequency | 50 / 60 Hz |
| Power protection features | Over current |
| Master (outer) case net weight | 13 kg |
| AC outlets quantity | 12 AC outlet(s) |
| Maximum current | 16 A |
| Operating altitude | 0 - 3000 m |
| Rack capacity | 1U |
| AC outlet types | C13 coupler |
| Power plug | C20 coupler |
| PDU types | Basic |
| Nominal input voltage | 100 - 240 V |
| Load capacity | 3840 VA |
| Compliance certificates | RoHS |
