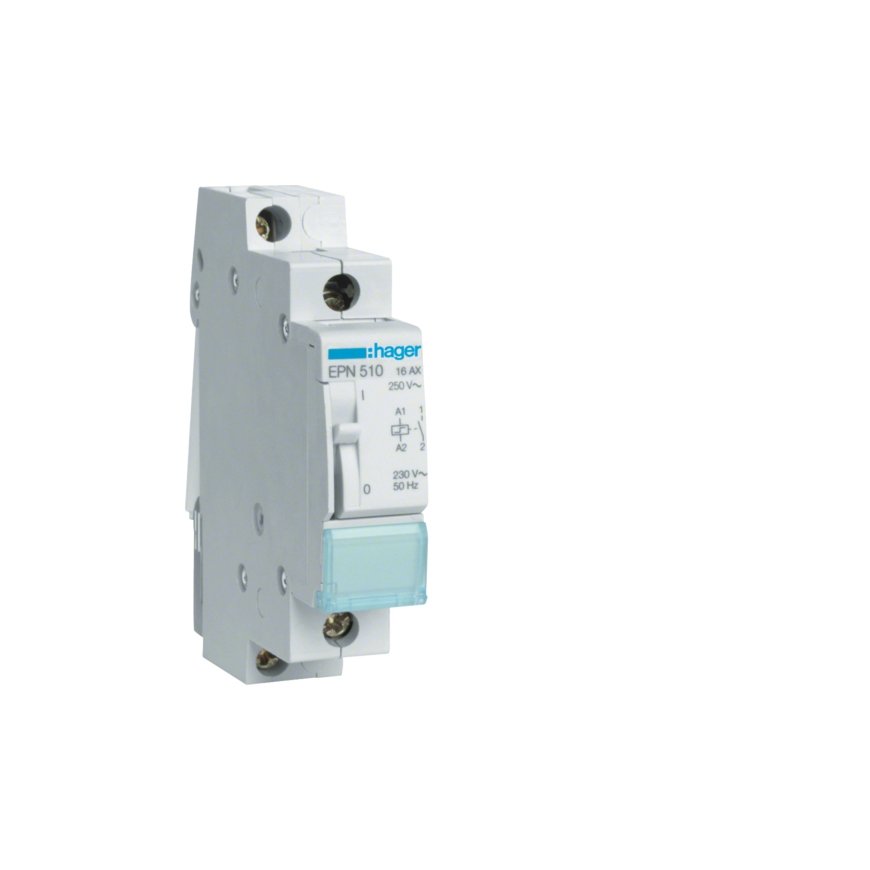

Hager EPN510 electrical relay
29.72 €
1882911 EPN510
3250612369614
Shipping 8-12 b.d.
You are interested in this product?
All about the product
Technical CharacteristicsTightening torque:1,6Nm
Type of contacts:1NO
Rated operational AC voltage:250 V
type of connection:with screw
Connection cross-sect. flexible cable:1 / 6mm²
Connection cross-sect. rigid cable:1,5 / 10mm²
European directive RoHs:voluntary compliance
European directive WEEE:not concerned
Frequency:50/60 Hz
Operating temperature:-5 to 40 °C
Storage temperature:-40 to 80 °C
Protection index IP:IP20
Features
| Sustainability certificates | RoHS |
| Operating temperature (T-T) | -5 - 40 °C |
| AC input voltage | 230 V |
| AC input frequency | 50 - 60 Hz |
| Number of contacts | 1 |
| Cable section | 1/6 mm² |
