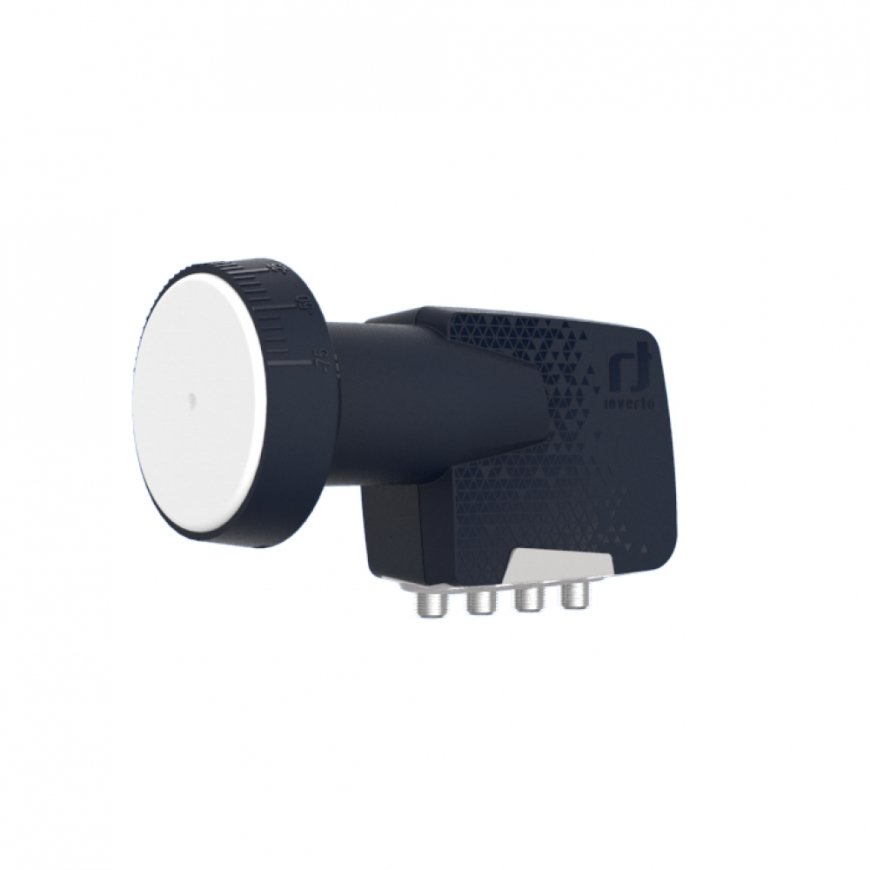

Inverto IDLP-QDL410-PREMU-OPN Low Noise Block downconverter (LNB) 10.7 - 12.75 GHz Black, White
37.34 €
Monthly payment from 1,86 €
1878613 8907902
5453002613283
Shipping 9-13 b.d.
You are interested in this product?
All about the product
Specifically designed and selcted to address the demand of the global DTH market for a competitive and 4G/LTE protected solution, this LNB provides optimized reception capabilities using the latest chipset technology and waveguide design for satellite signal reception. It enables the reception of satellite TV and radio from a single satellite and its distribution to four single tuner Set-top boxes (or 2 twin tuner PVR). The LNB supports HD and UHD transmissions, delivers one-of-a-kind RF performances, very low power consumption and importantly engineered to mitigate interferences from 4G/LTE transmissions. Manufactured to the highest industry quality standards and engineered to meet strict specifications, this LNB is an ideal solution for the demanding customer of DTH operators and satellite broadcast reception across the world.Technical details | |
| Output frequency range | 950 - 2150 MHz |
| Input frequency range | 10.7 - 12.75 GHz |
| Noise figure | 0.2 dB |
| Voltage Standing Wave Ratio (VSWR) | 2.5 : 1 |
| Conversion gain | 55 dB |
| Low band LO frequency | 9.75 GHz |
| High band LO frequency | 10.6 GHz |
| Output impedance | 75 Ω |
| Image rejection | 40 dBmW |
| Temperature drift (±) | 1 MHz |
| Gain ripple (±) | 0.6 dB |
| Cross-polarization isolation | 22 dB |
| Compression point (1 dB) | 0 dBmW |
Colour | |
| Product colour | Black, White |
Weight & dimensions | |
| Weight | 221 g |
| Package width | 155 mm |
| Package depth | 91 mm |
| Package height | 76 mm |
Packaging data | |
| Package weight | 281 g |
Power | |
| Power consumption | 120 mA |
Operational conditions | |
| Operating temperature (T-T) | -35 - 60 °C |
Packaging content | |
| Quantity | 1 |
