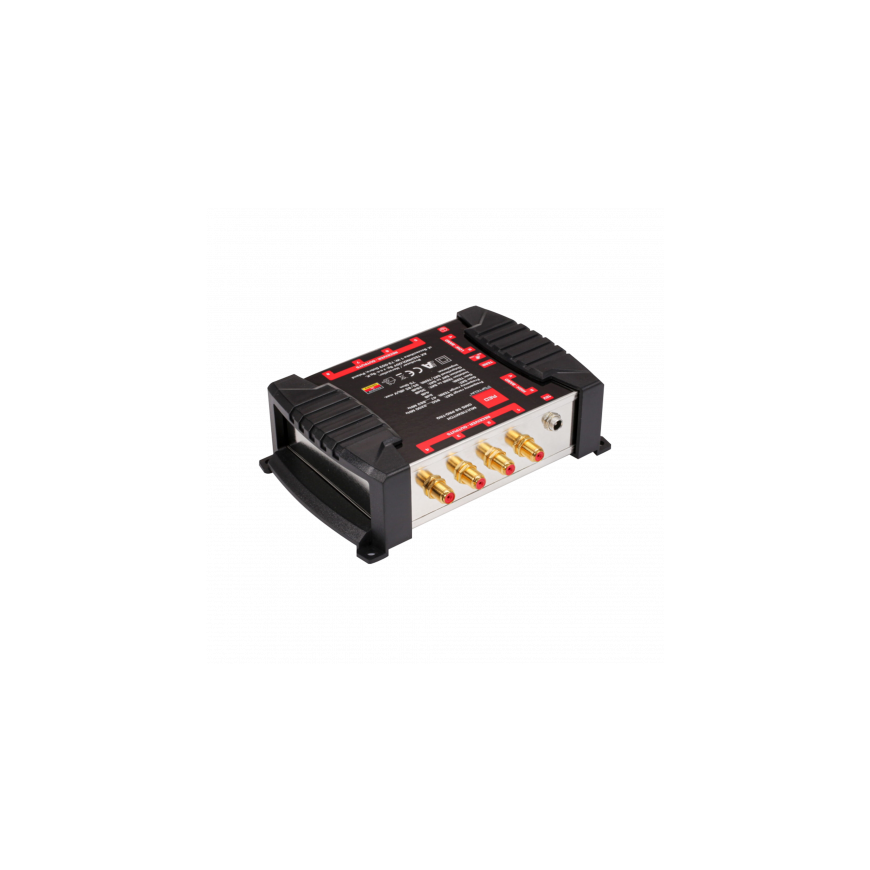

Inne LP Multiswitch OPTICUM OMS 5/8 PRO TRQ PLATINUM
59.00 €
Monthly payment from 2,42 €
1877934 URZ0630
Shipping 9-13 b.d.
You are interested in this product?
All about the product
Multiswitch OPTICUM OMS 5/8 PRO TRQ PLATINIUMMultiswitch is intended for antenna installation of DVB-S2 satellite and terrestrial TV DVB-T2 systems. Gold-plated sockets significantly reduce signal loss in the antenna cable connection, lack of oxidation. Multiswitch automatically recognizes the type of signal that will be sent to the receivers. During installation, it is necessary to take into account the connection of the multiswitch to a satellite antenna with a diameter of at least 0.8 m and a Quattro or Quad LNB and a terrestrial television antenna. Separation of the satellite and terrestrial signal received from the multiswitch is carried out using the terminal sockets of the subscriber. The Multiswitch is powered by an external power source, which eliminates the phenomenon of increased operating temperature, which is a common cause of device failure.
Connection:
- one Quattro or QUAD converter
- one terrestrial DVB-T antenna
- 8 terrestrial and/or satellite television receivers
Technical data:
- SAT frequency range: 950-2200 MHz
- TER frequency range: 47-862 MHz
- SAT gain (950-2150 MHz): 2 dB
- TER gain (47-862 MHz): 4 dB
- SAT and TER separation: 30 dB
- TER and SAT separation: 28 dB
- Separation between H/V polarizations: 25 dB
- Maximum SAT output level: 95 dBuV
- Maximum TER output level: 85 dBuV
- Input/output impedance: 75 Ohm
- Polarity/band switching: 13V/18V 13V/22kHz-18V/22kHz
- Mains power supply: 230V AC 50Hz
- Operating temperature: 0...+55 oC
- Dimensions: 175 x 133 x 54 mm (actual dimensions)
The set includes:
- Multiswitches
- Power adapter Wrench for screwing the F connector
- AC adapter
- Original packaging
