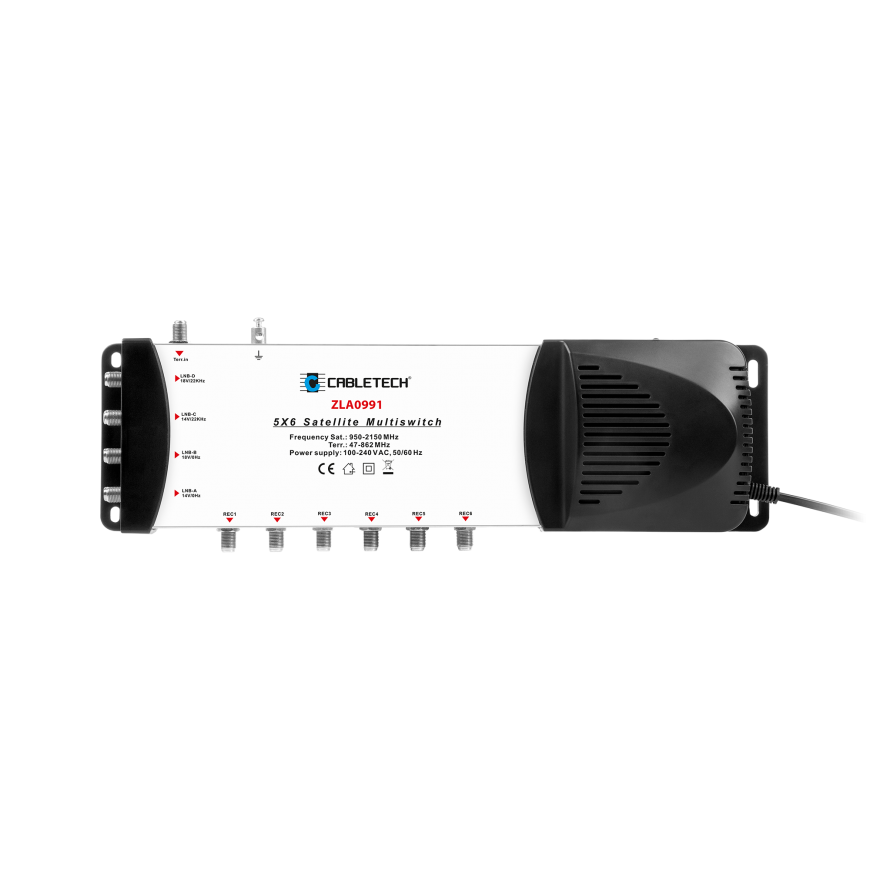

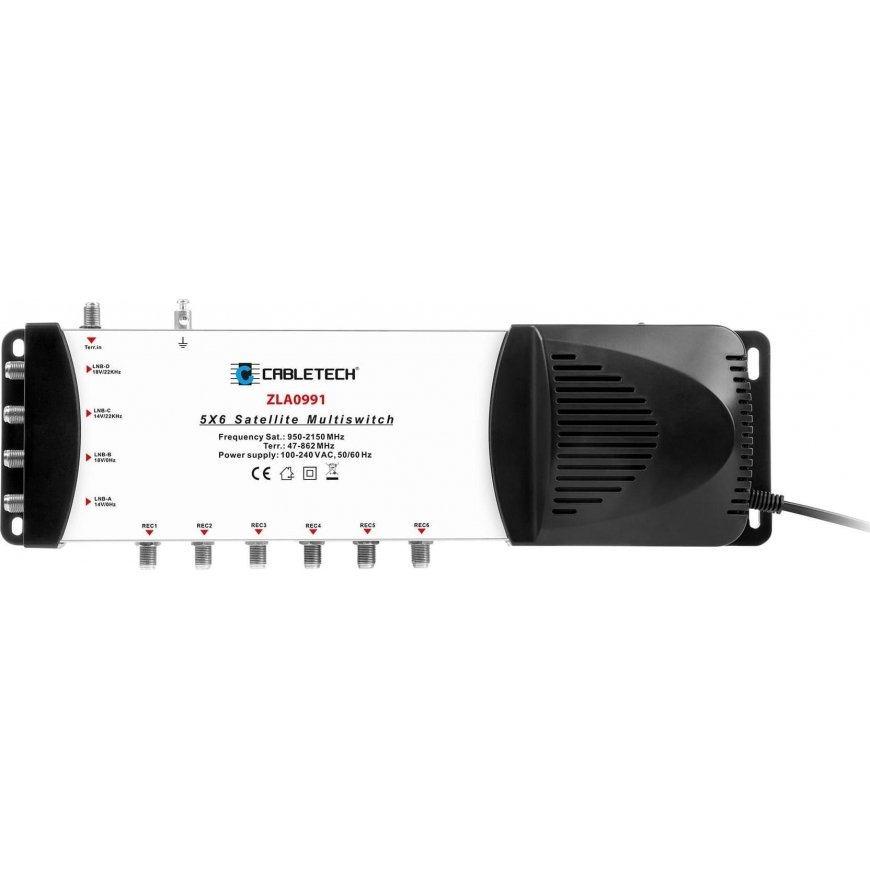

Cabletech 5x6 multiswitch
59.00 €
Monthly payment from 2,42 €
1861384 ZLA0991
5901890064408
Shipping 9-13 b.d.
You are interested in this product?
All about the product
Inputs: 4 satellite and 1 TVExits: 6
Satellite frequency range: 950-2150 MHz
Terrestrial frequency range: 47 ~ 862 MHz
TV gain: 2dB
SAT gain: -4dB
Separation of TV/SAT inputs: 28 dB
Separation between SAT inputs: 28 dB
Output separation: 30 dB
H/V separation: 30dB
TV input loss: 10 dB
SAT input loss: 8 dB
SAT output level: 100dBuV @ 35dBIMA^(3), EN50083-3
TV output level: 85dBuV @ 60dBIMA^(3), EN50083-5
Connectors: F type
Cascades: Yes
LTE Filter: Yes
Power supply: built-in power supply
Power supply: 100-240V~, 50/60Hz
Integrated amplifier
Steel body in a plastic frame
Dimensions: 365 x 121.8 x 49.8 cm
Weight: 0.62 kg
