LevelOne 16-Port Fast Ethernet Switch
LevelOne 16-Port Fast Ethernet Switch
LevelOne 16-Port Fast Ethernet Switch
LevelOne 16-Port Fast Ethernet Switch
LevelOne 16-Port Fast Ethernet Switch

The product's shade and actual color may differ from what is shown in the picture, as the images are for illustrative purposes. The product description is general and may not include all the product's features.

LevelOne 16-Port Fast Ethernet Switch

82,45 €
Monthly payment from 3.02
1836181

FSW-1650

5711045652103, 0000327398125, 0597138491393, 0878742005580, 4005922209889, 4015867136447, 5050914833374, 8787420055804

This product is no longer in stock

You are interested in this product?
(Read terms of service)
Product Overview

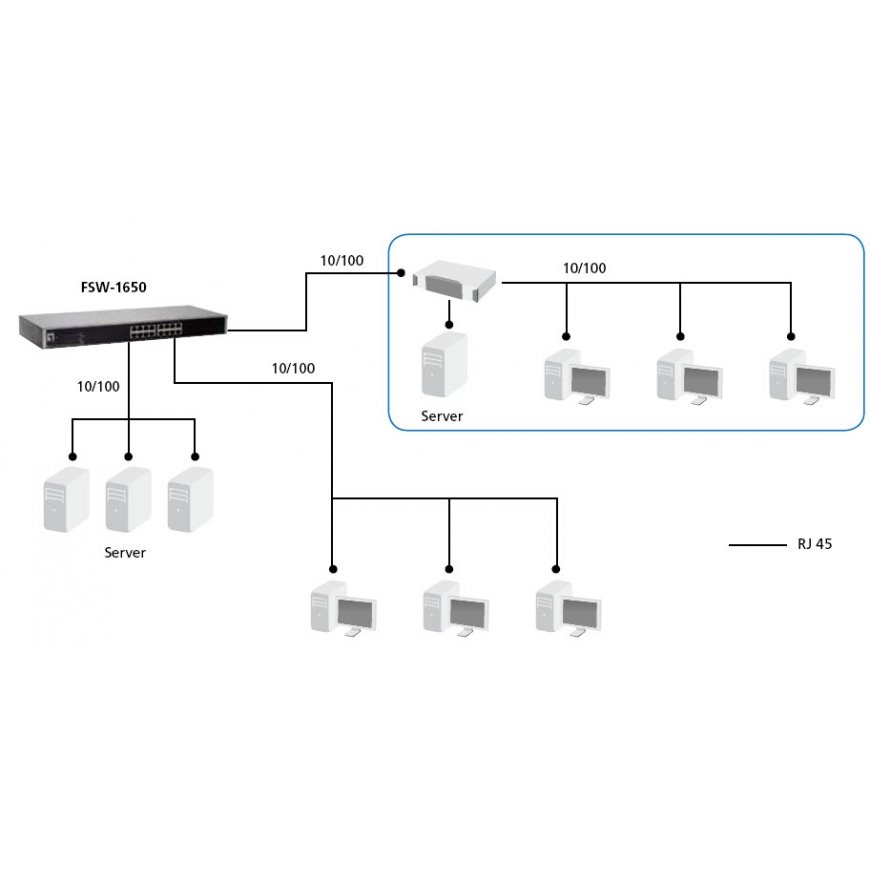

The FSW-1650 switch provides an ideal solution for small businesses that demand a reliable network switch that provides a high bandwidth interface between file servers and workgroups, departments and offices.

Advanced Networking Features
The LevelOne FSW-1650 is a wire-speed, nonblocking 16 port Fast Ethernet Unmanaged Switch with an internal power supply. It provides a network with an 8K MAC address table, 3.2Gbps backplane throughput, asymmetrical flow-control support for full-duplex network connectivity, auto-negotiation and Auto-MDIX.

The 16-port Fast Ethernet Switch utilizes packetstore- and forwarding switching for error-free data transmissions and IEEE802.3x backpressure flow control to control data flow between the sending and receiving nodes as well as to prevent any data packet loss.

Compact Design
The FSW-1650 is a compact designed network switch. Users can place the switch on any desktop area or mount it in a 19-inch server rack or cabinet by using the included rack-mounting accessory kit.

Quick Configuration and Easy Maintenance
The LevelOne FSW-1650 does not require any software configuration. It is Plug-and-Play enabled for quick set-up and immediate use within the Local Area Network. The 16 port Faster Ethernet Switch is equipped with a full range of LEDs for instant error detection, networking monitoring and network
troubleshooting.

- Provides flexibility of 16 x 10/100BASE-TX ports
- 10/100Mbps-Full/Half-duplex, Auto-Negotiation, Auto-MDI/MDIX
- Supports 8K MAC address auto-learning and auto-aging
- QoS control for traffic prioritization and bandwidth management
- IEEE 802.3x Flow Control protects against lost packets for reliable data transmission
- 19-inch metal housing
- Minimize carbon footprint with advanced energy efficient technology (IEEE 802.3az)
Power
AC input voltage 100 - 240 V
AC input frequency 50 - 60 Hz
Design
LED indicators Power, LAN, Activity, Link
Product colour Grey
Operational conditions
Operating relative humidity (H-H) 10 - 90%
Operating temperature (T-T) 0 - 40 °C
Storage temperature (T-T) -40 - 70 °C
Storage relative humidity (H-H) 5 - 95%
Weight & dimensions
Weight 2.6 kg
Width 44 mm
Depth 208 mm
Height 440 mm
Packaging data
Package weight 2.7 kg
Package height 550 mm
Package width 308 mm
Package depth 94 mm
Other features
Power over Ethernet (PoE) No
Full duplex Yes
Logistics data
Country of origin China
Harmonized System (HS) code 85176990
Packaging content
Cables included AC
Certificates
Certification CE, RoHS
