LevelOne 8-Port Fast Ethernet Switch
35.03 €
1826815 FSW-0808TX
4015867109540, 0891042001304, 4014619101603, 5050914833688, 8910420013042
Shipping 6-8 b.d.
You are interested in this product?
All about the product

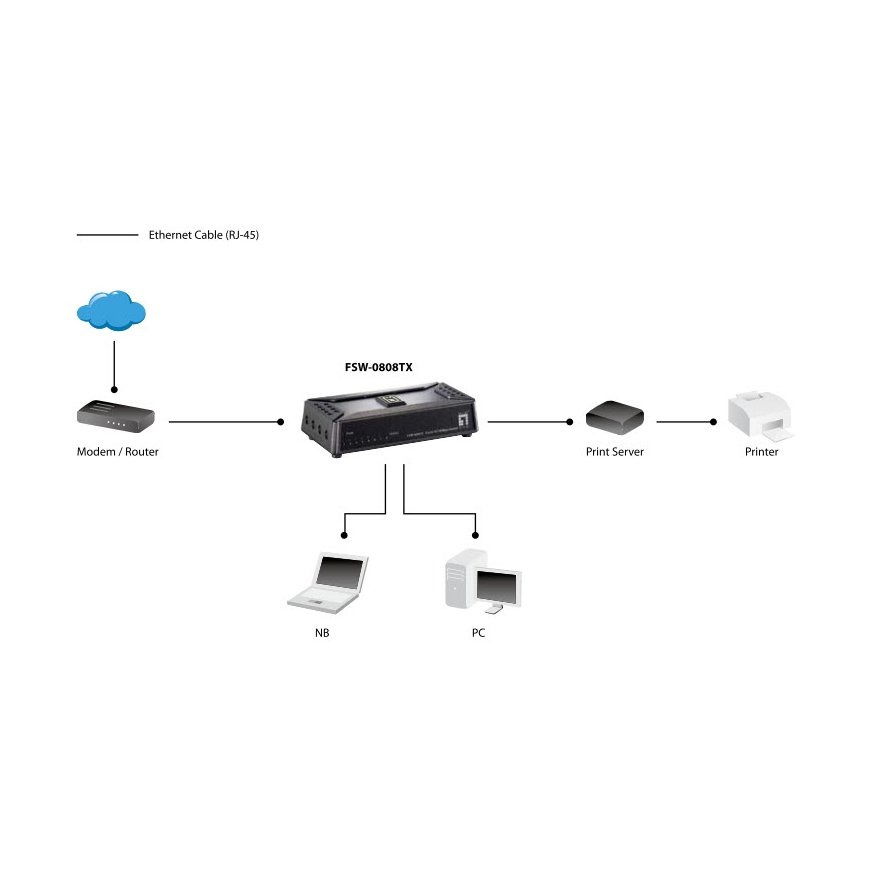

The LevelOne FSW-0808 is a wire-speed, non-blocking networking device that provides 8 ports 10/100Mbps Ethernet connections. All ports support auto-negotiation and auto-MDI/MDIX sensing, eliminating the need for crossover cables or Uplink Ports. Each port can be used as general network port or as connecting port into a router, server, hub or another network switch.Easy Configuration and Maintenance
The LevelOne FSW-0808TX does not require software configuration. Users can immediately use any features of this product simply by attaching the cables and turning on the power. For instant error detection, the switch is equipped with a full range of LEDs to help you monitor and troubleshoot problems on your network.
Compact Size Design
This switch is compact specially designed to fit on the desktop or in other space-limited locations. The FSW-0808TX provides an ideal solution for businesses that crave a reliable network to exchange large data files and multimedia information with bandwidth-starving workgroup, departments, and offices.
- Provides flexibility of 8 x 10/100BASE-TX ports
- 10/100Mbps-Full/Half-duplex, Auto-Negotiation, Auto-MDI/MDIX
- Supports 1K MAC address auto-learning and auto-aging
- IEEE 802.3x Flow Control protects against lost packets for reliable data transmission

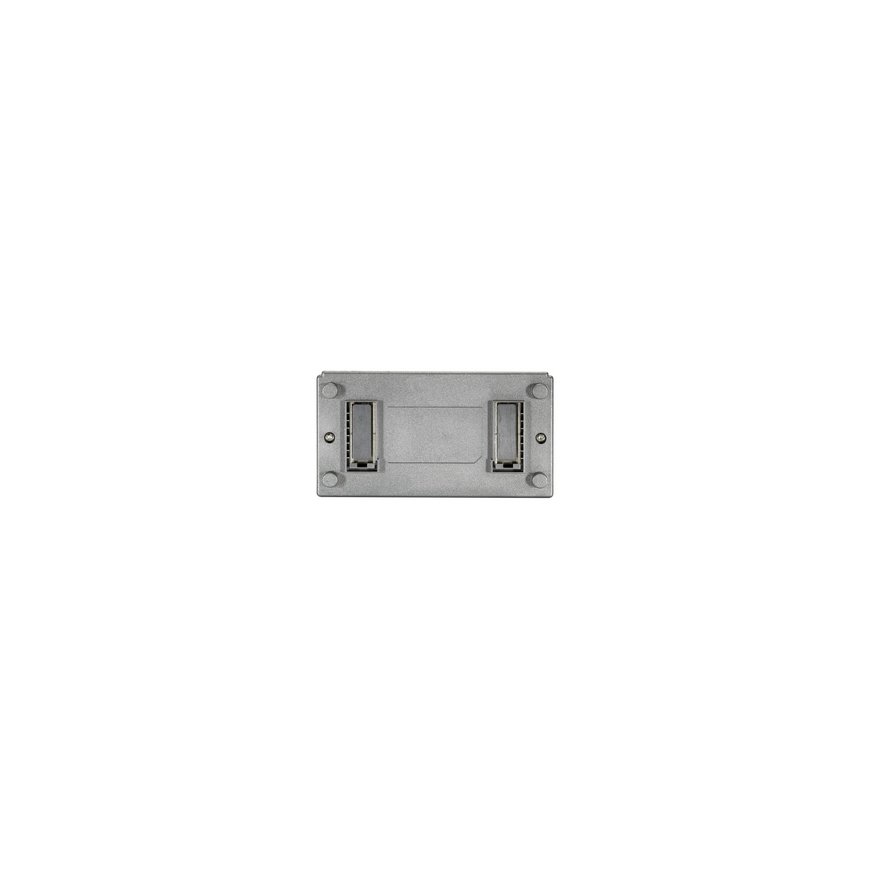

- Magnetic base for easy placement
- Quick and easy installation
Power | |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
Design | |
| LED indicators | Power, Activity, Link |
| Product colour | Grey |
Operational conditions | |
| Operating relative humidity (H-H) | 5 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 10 - 90% |
Weight & dimensions | |
| Width | 125 mm |
| Depth | 69 mm |
| Height | 30 mm |
Packaging data | |
| Package weight | 300 g |
| Package height | 90 mm |
| Package width | 75 mm |
| Package depth | 130 mm |
Other features | |
| Power over Ethernet (PoE) | No |
| Full duplex | Yes |
Logistics data | |
| Country of origin | China |
| Harmonized System (HS) code | 85176990 |
Certificates | |
| Certification | FCC, CE, RoHS |
