EK Water Blocks Loop Uni Pump Reservoir Bracket Mounting plate
20.67 €
1787062 3831109824696
3831109824696
Shipping 12-17 b.d.
You are interested in this product?
All about the product

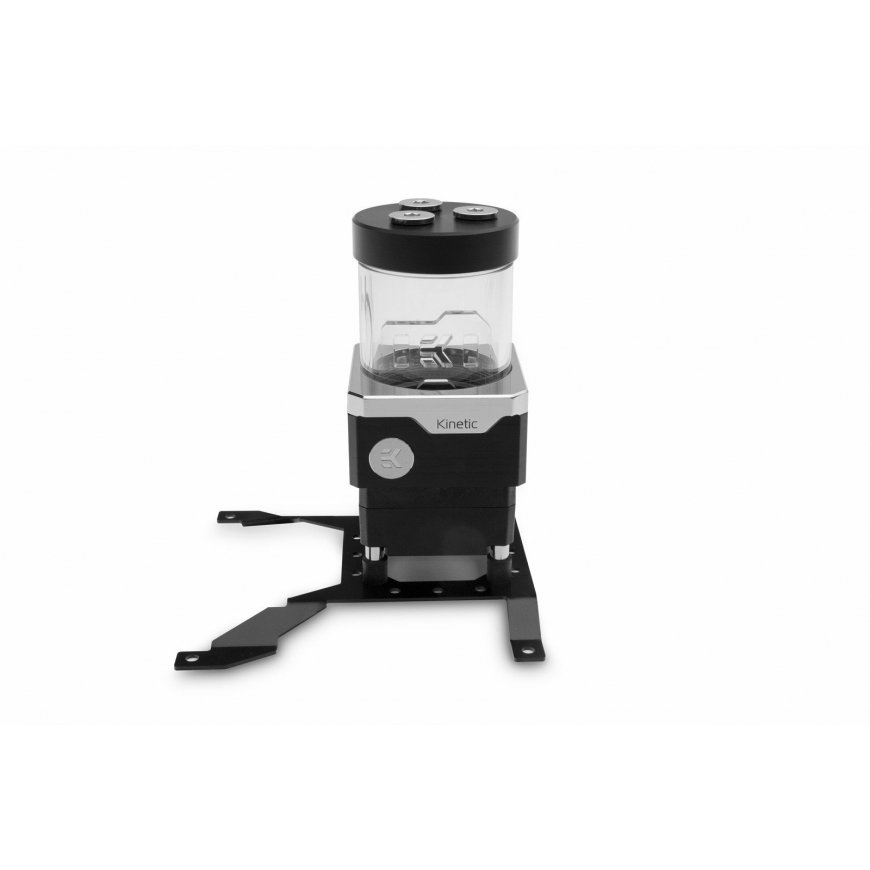

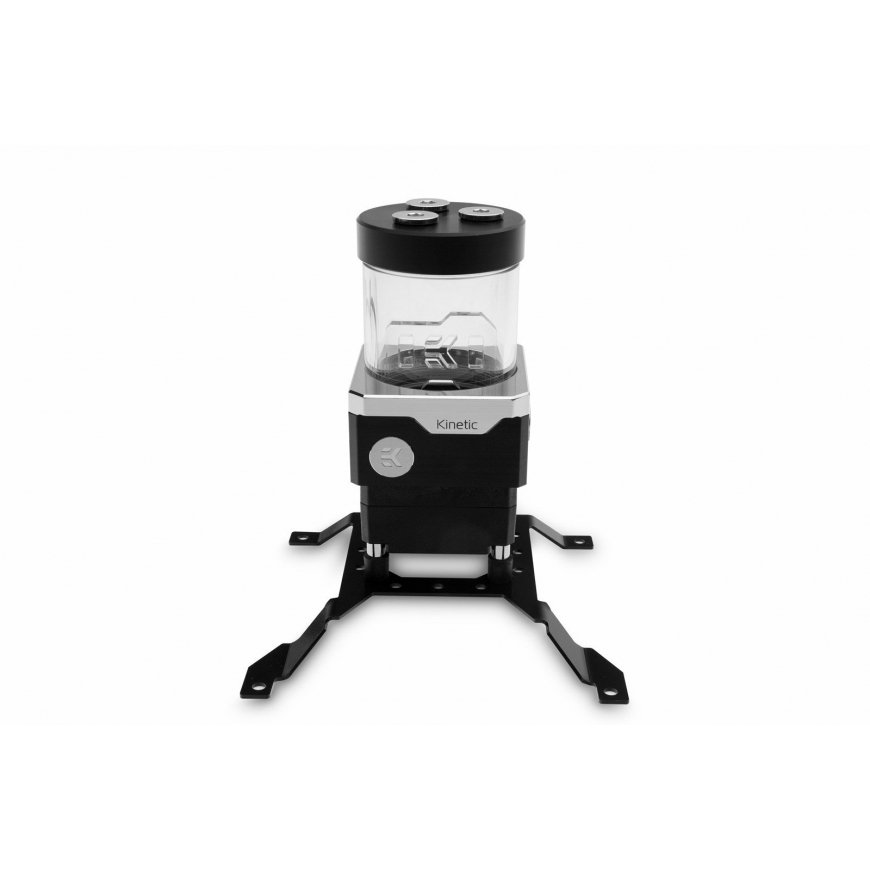

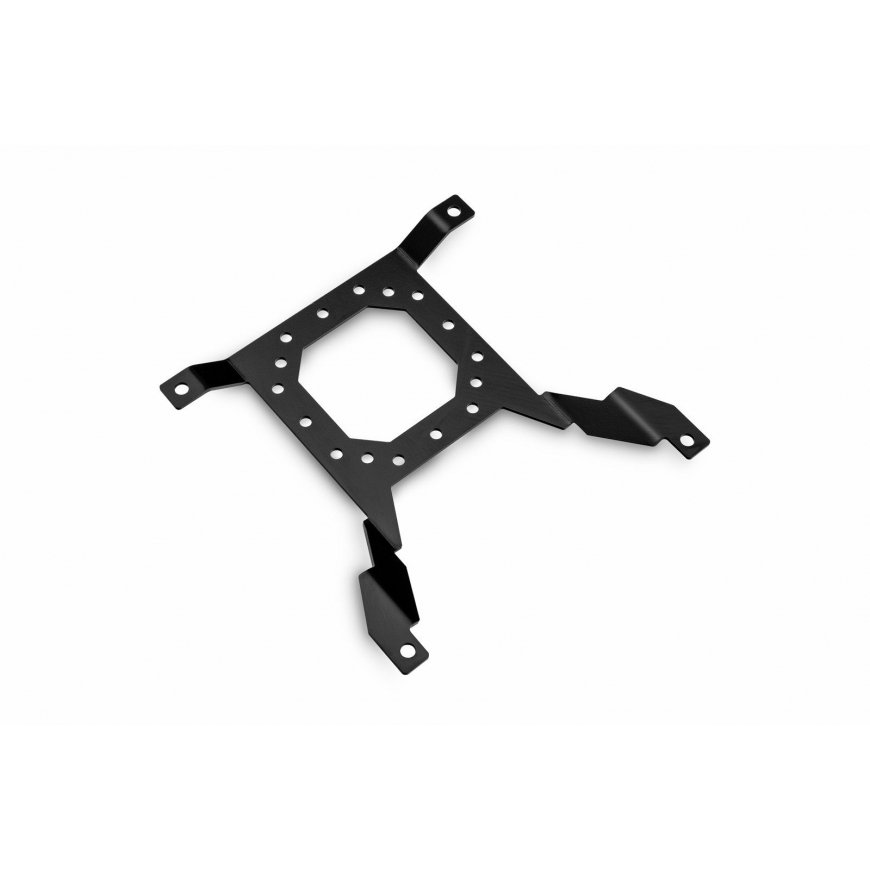

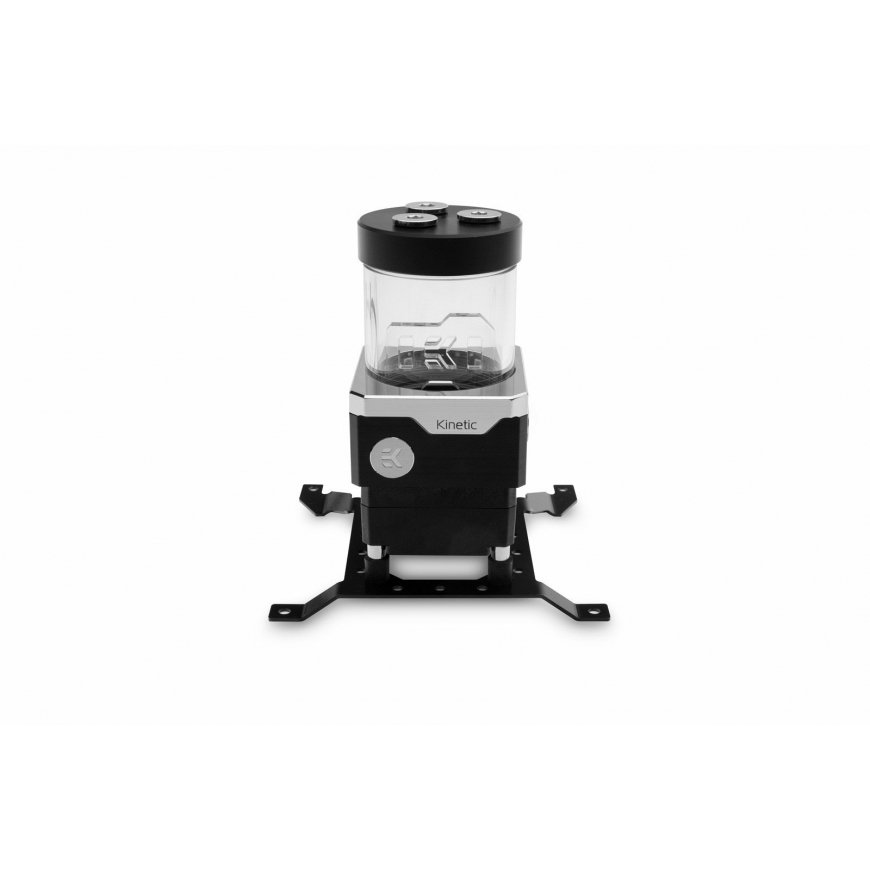

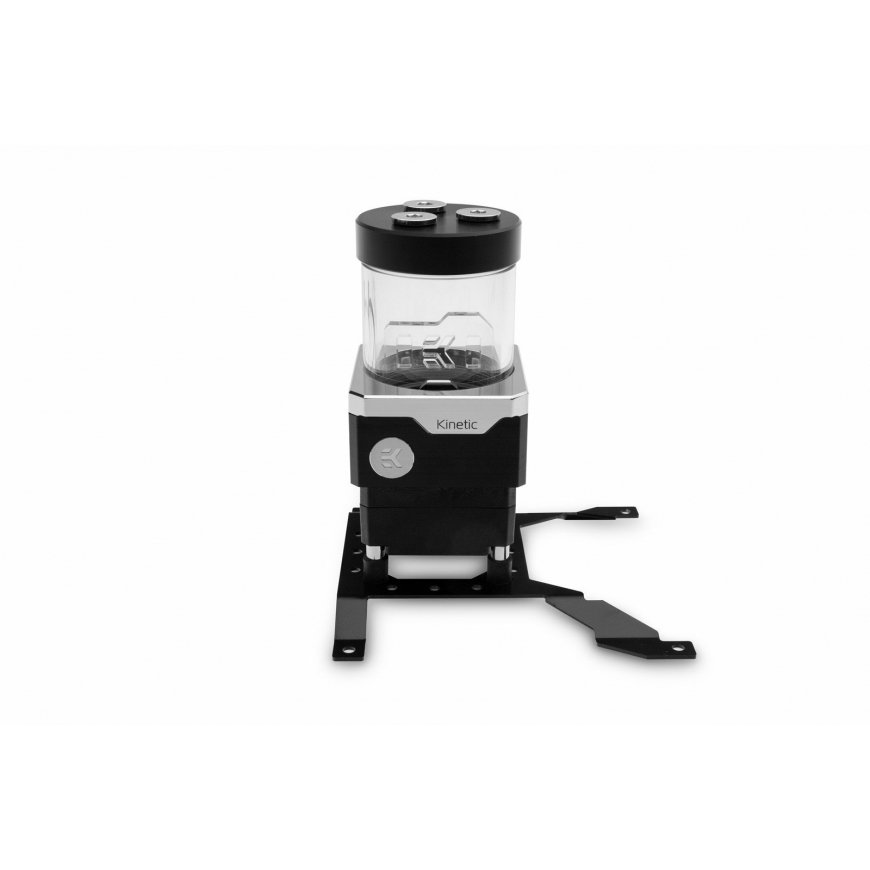

EK-Loop UNI Pump Reservoir Bracket - 140mm is a mounting adapter for installation of EK D5, DDC, SPC, and VTX pumps and pump-reservoir combo units to any 140mm fan mounting hole pattern (125mm hole spacing). Additionally, it can be used with EK-RES X3 Holder 60mm (2pcs) to mount any reservoir or pump-reservoir combo with a tube of 60mm in diameter.It can be used horizontally or vertically. The offset on the bracket allows for precise placement of the pump or reservoir according to your needs for clearance or easier tube routing. By turning the bracket around the offset can be moved left, right, back, or forward in a horizontal setup, and also left, right, up, or down in a vertical setup.
Made from press-bent 1,5mm thick painted steel. The height of the bracket is 11.5mm.
Performance | |
| Type | Mounting plate |
| Fan diameter | N |
| Quantity per pack | 1 pc(s) |
Design | |
| Product colour | Black |
| Material | Steel |
Weight & dimensions | |
| Height | 11.5 mm |
| Width | 140 mm |
Packaging content | |
| Screws included | Yes |
Other features | |
| Country of origin | Slovenia |
