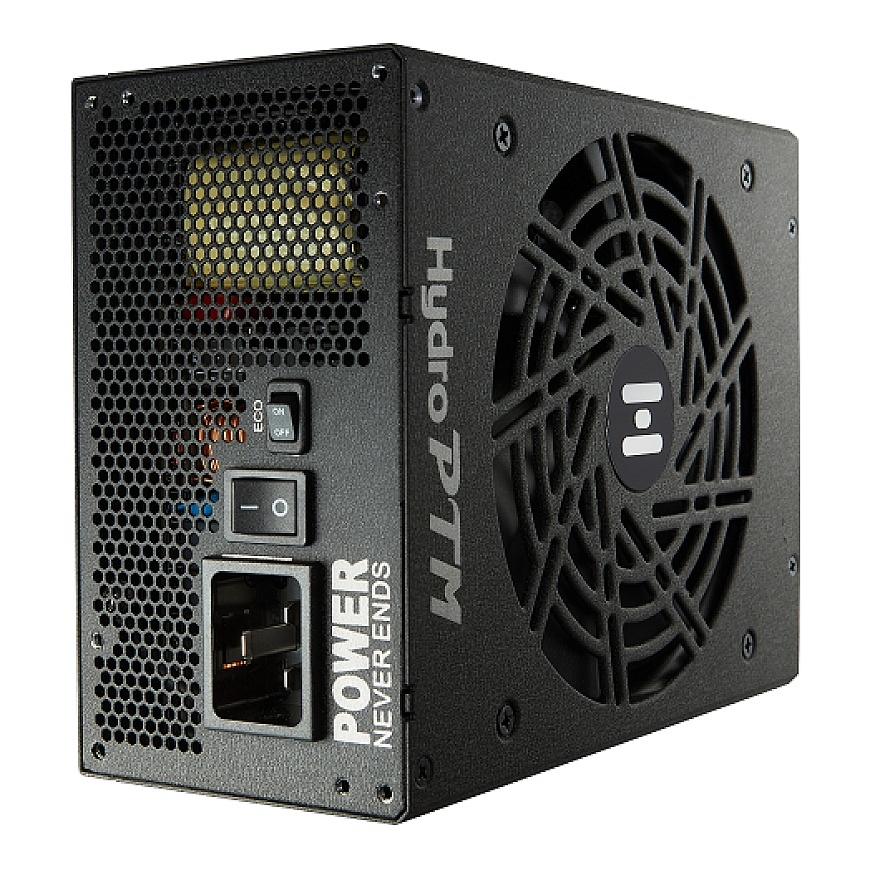

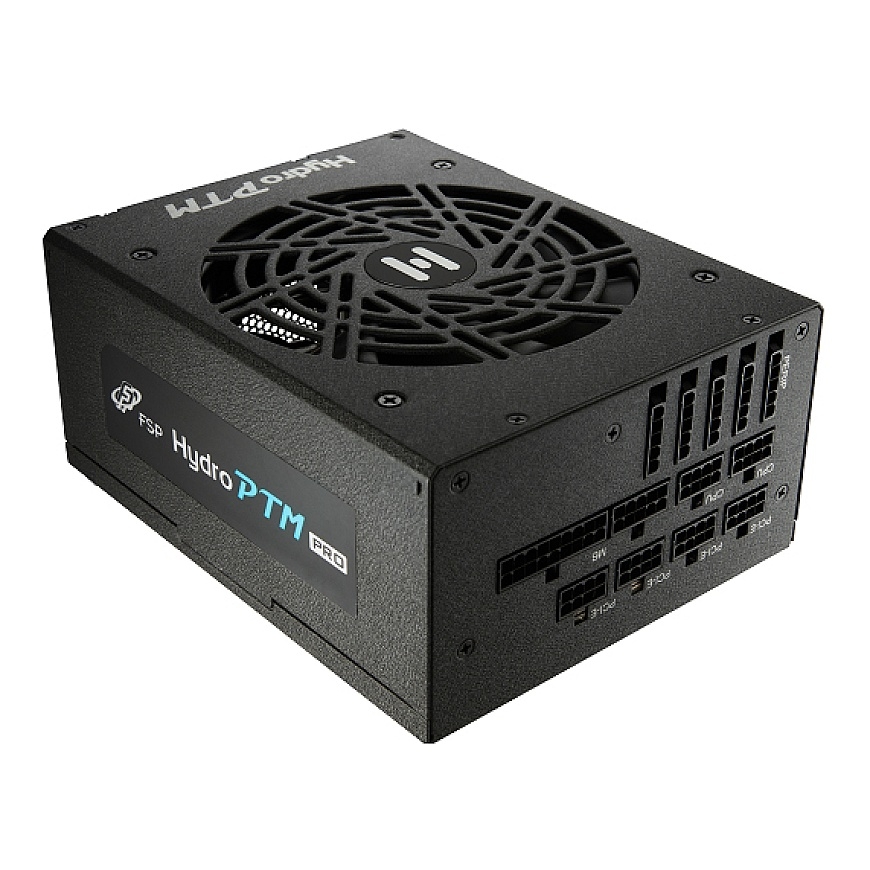

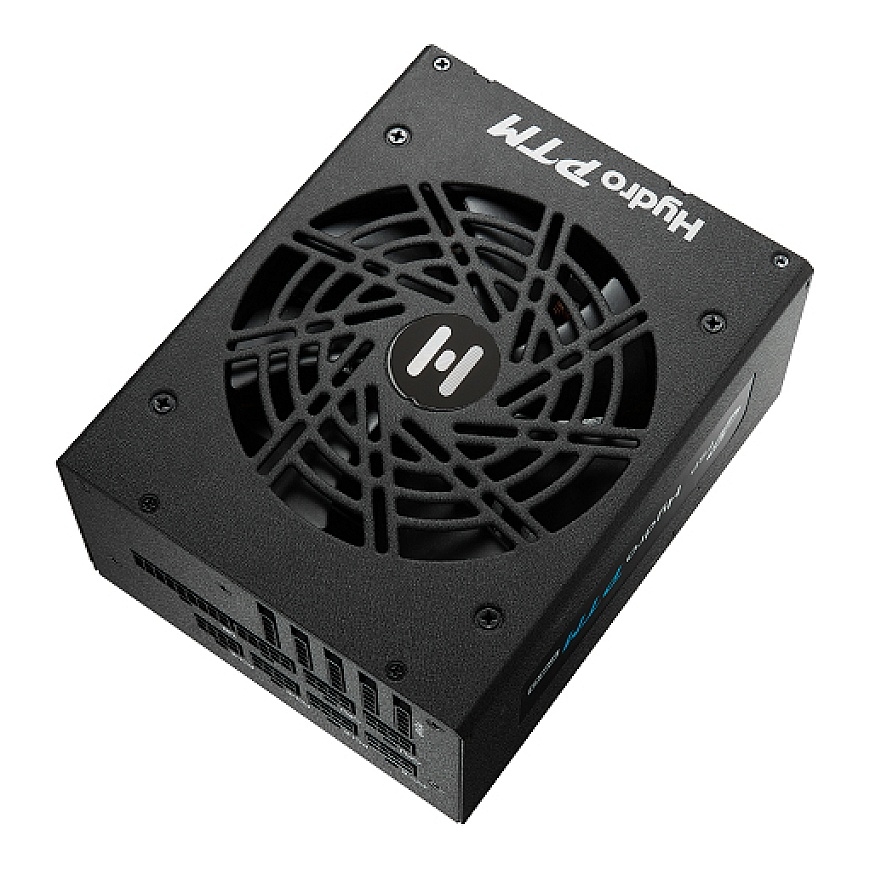

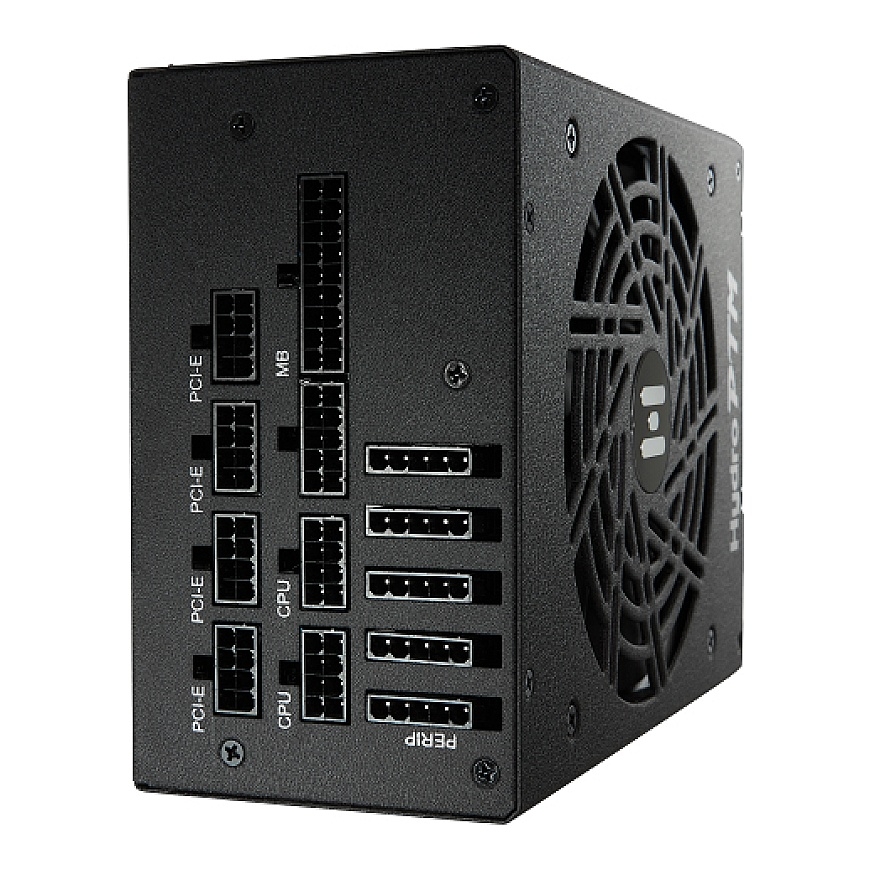

FSP HYDRO PTM PRO 850W power supply unit 20+4 pin ATX ATX Black
189.00 €
Monthly payment from 5,77 €
1760327 PPA8502200
4713224522772
Shipping 15-16 b.d.
You are interested in this product?
All about the product
The FSP Hydro PTM PRO series offers high efficiency and longevity to your PC build. Our proprietary conformal coating protects the power supply from dust, humidity, stains, and harsh environments. The Hydro PTM PRO has been designed to reliably operate at a relative humidity of up to 95%. It also features a semi-fanless eco mode that will suspend fan operation until the load has exceeded 30%. This feature can be controlled with the simple flick of a switch located next to the on/off button for easy access. This model also includes fully modular black ribbon cables for DIY enthusiasts looking to create cleaner builds. The FSP Hydro PTM PRO is a top-of-the-line power supply that delivers function, efficiency, and style making it a great addition to any system.Power | |
| Efficiency | 92% |
| Input current | 11 - 5.5 A |
| Power protection features | Over current, Overload, Over voltage, Overheating, Short circuit, Under voltage |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 120 W |
| Combined power (+12V) | 850 W |
| Combined power (+5V) | 120 W |
| Combined power (-12V) | 18.6 W |
| Combined power (+5Vsb) | 18.6 W |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V) | 70.83 A |
| Max output current (+5V) | 20 A |
| Max output current (+5Vsb) | 3 A |
| Max output current (-12V) | 0.3 A |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Total power | 850 W |
Performance | |
| ATX version | 2.52 |
| EPS version | 2.92 |
| Purpose | PC |
| 80 PLUS certification | 80 PLUS Platinum |
| Bearing technology | FDB |
| Power supply unit (PSU) form factor | ATX |
Design | |
| Product colour | Black |
| Number of fans | 1 fan(s) |
| Fan diameter | 13.5 cm |
| Fan location | Top |
| Cooling type | Active |
| On/off switch | Yes |
Ports & interfaces | |
| Floppy drive power connector | 1 |
| Number of SATA power connectors | 14 |
| Peripheral (Molex) power connectors (4-pin) | 5 |
| ATX power connector (20+4 pin) | Yes |
| CPU power connector (4+4 pin) | Yes |
| PCI Express power connectors (6+2 pin) | 8 |
| Motherboard power connector | 20+4 pin ATX |
| Cabling type | Fully-Modular |
| Floppy disk drive connector | Yes |
| Motherboard power cable length | 60 cm |
| CPU power cable length | 70 cm |
Weight & dimensions | |
| Width | 150 mm |
| Depth | 190 mm |
| Height | 86 mm |
Logistics data | |
| Harmonized System (HS) code | 84733020 |
Packaging content | |
| Cables included | SATA, CPU, PCIe, Peripheral (Molex) |
