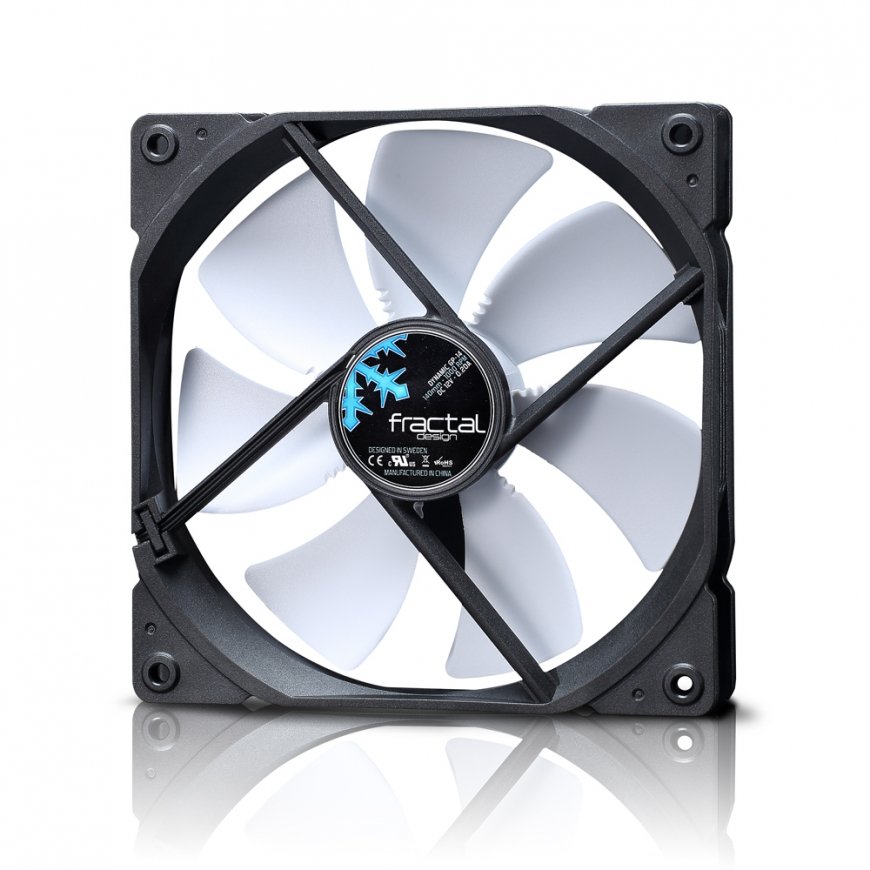

Fractal Design FD-FAN-DYN-GP14-WT computer cooling system Computer case 14 cm Black, White
1738798 FD-FAN-DYN-GP14-WT
7350041083320, 0801947367825, 0809396066092, 0817301013321, 5054629723814, 8536692531840
Shipping 15-16 b.d.
All about the product
Trip wire
Includes a trip wire on the rear side of the blades, near the leading edge. The trip wire technology, also commonly found in airplane wing designs, introduces a micro-turbulent layer that helps to combat the elements that negatively affect performance. The presence of the trip wire overall provides a more efficient and quiet fan environment.
Hydraulic bearings
Featuring hydraulic bearings; a cost-efficient compromise between a standard sleeve and true FDB
Aerodynamically shaped
Aerodynamically shaped thin stator struts (including wire strut), mimicking the design commonly found on airplane wings, delivering correct angles allowing for air to easily pass through reducing noise and unwanted turbulence.
Performance | |
| Type | Fan |
| Mean time between failures (MTBF) | 40000 h |
| Fan diameter | 14 cm |
| Maximum airflow | 68.4 cfm |
| Maximum air pressure | 0.71 mmH2O |
| Noise level (high speed) | 18.9 dB |
| Rotational speed (max) | 1000 RPM |
| Suitable location | Computer case |
Design | |
| Product colour | Black, White |
| Fan connector | 3-pin |
Power | |
| Power supply | 1.7 W |
| Maximum current | 0.2 A |
| Voltage | 12 V |
Weight & dimensions | |
| Weight | 250 g |
| Height | 25 mm |
| Width | 140 mm |
| Depth | 140 mm |
| Cable length | 0.5 m |
| Package height | 26 mm |
| Package width | 167 mm |
| Package depth | 142 mm |
Technical details | |
| Bearing technology | Hydraulic |
Other features | |
| Country of origin | Sweden |
| Mounting hole pattern (W x D) | 125 x 125 mm |
Logistics data | |
| Harmonized System (HS) code | 84733080 |
