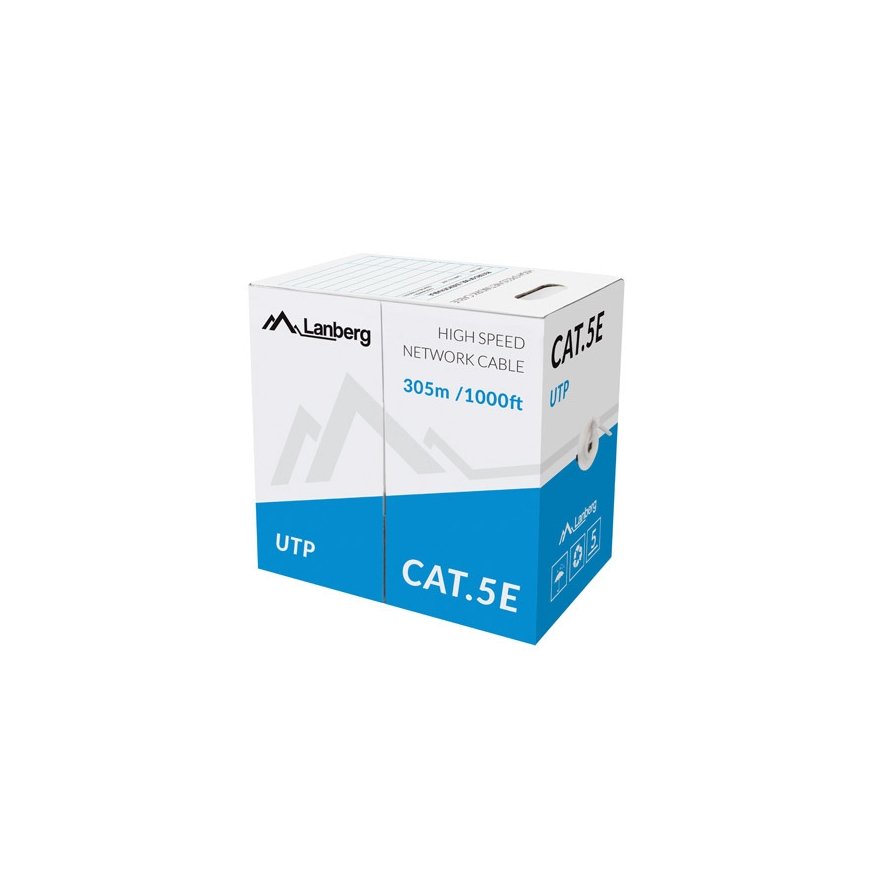

Lanberg LCU5-11CU-0305-S networking cable Grey 305 m Cat5e U/UTP (UTP)
127.20 €
Monthly payment from 4,18 €
1736121 LCU5-11CU-0305-S
5901969421781
Shipping 3-7 b.d.
You are interested in this product?
All about the product
- LAN cable category 5e UTP (Unshielded).- Length 305m.
- The wires are made of pure copper (CU 100% copper).
- AWG 24 (4*2*0.50mm).
- Conductor stranding: single wire.
- Color: PANTONE COOL GRAY 5C.
- Printed length counter at every meter of cable.
- External PVC insulation: 5.0mm.
- HDPE conductor insulation: 0.88mm.
- Operation up to 100Mhz.
- Recommended connector / guide diameter for braided cables: 1.0 mm.
- Package: Color inner box with master carton.
- Packaging dimensions (W x D x H): 36.5x36.5x43.5 cm.
(Inner box dimension: 35x35x21 cm)
Electrical characteristics (20 degrees):
- direct-current resistance: ?9.1?/100m
- Pair-to-Ground capacitance: ?160PF / 100m.
- Characteristic impedance: 100?±15.
- Transport and storage temperature: 0 - 60 degrees.
- Operating temperature: -20 - 75 degrees.
- Working distance: 100m.
Features | |
| Cable length | 305 m |
| Connector 1 | No |
| Connector 2 | No |
| Jacket material | Polyvinyl chloride (PVC), High-Density Polyethylene (HDPE) |
| Cable standard | Cat5e |
| Cable shielding | U/UTP (UTP) |
| Plug and Play | Yes |
| AWG wire size | 24 |
| Frequency | 100 MHz |
| Conductor material | Copper |
| Product colour | Grey |
| Connector 1 gender | No |
| Connector 2 gender | No |
Packaging data | |
| Package height | 435 mm |
| Package width | 365 mm |
| Package depth | 365 mm |
| Package type | Box |
| Quantity per pack | 1 pc(s) |
Operational conditions | |
| Operating temperature (T-T) | -20 - 75 °C |
| Storage temperature (T-T) | 0 - 60 °C |
Certificates | |
| Compliance certificates | RoHS |
| Certification | CE, CPR, Fluke |
