Akyga AK-S1-300 power supply unit 300 W 20+4 pin ATX SFX Silver
39.00 €
Monthly payment from 1,90 €
1735050 AK-S1-300
5901720135117
This product is no longer in stock
You are interested in this product?
All about the product

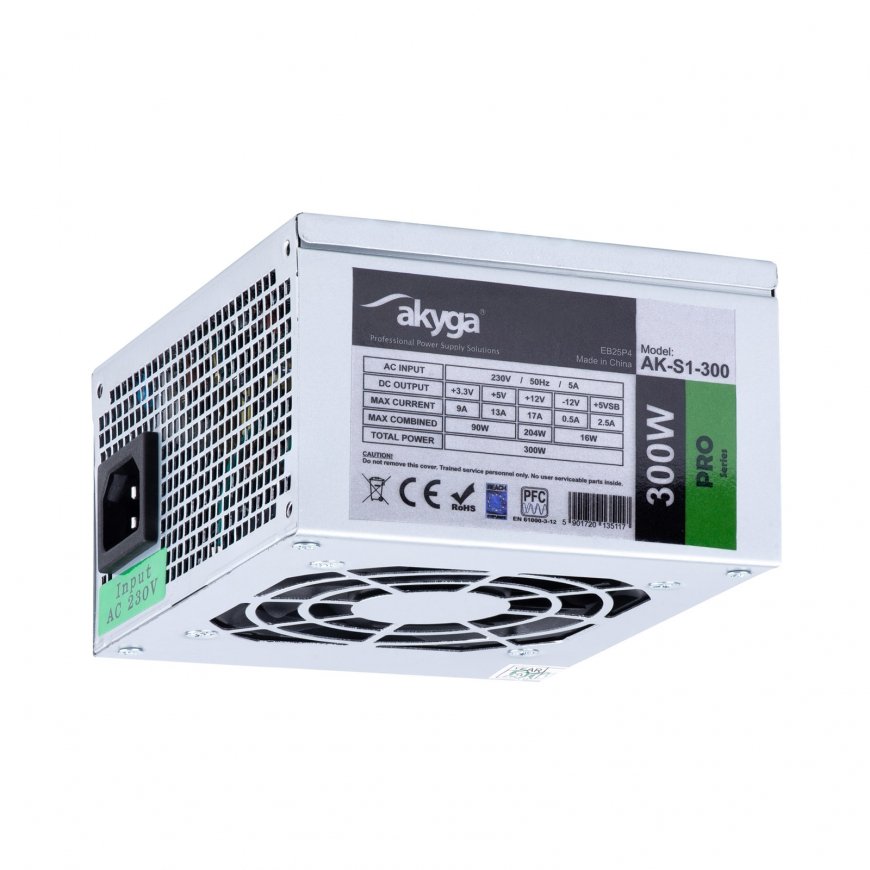

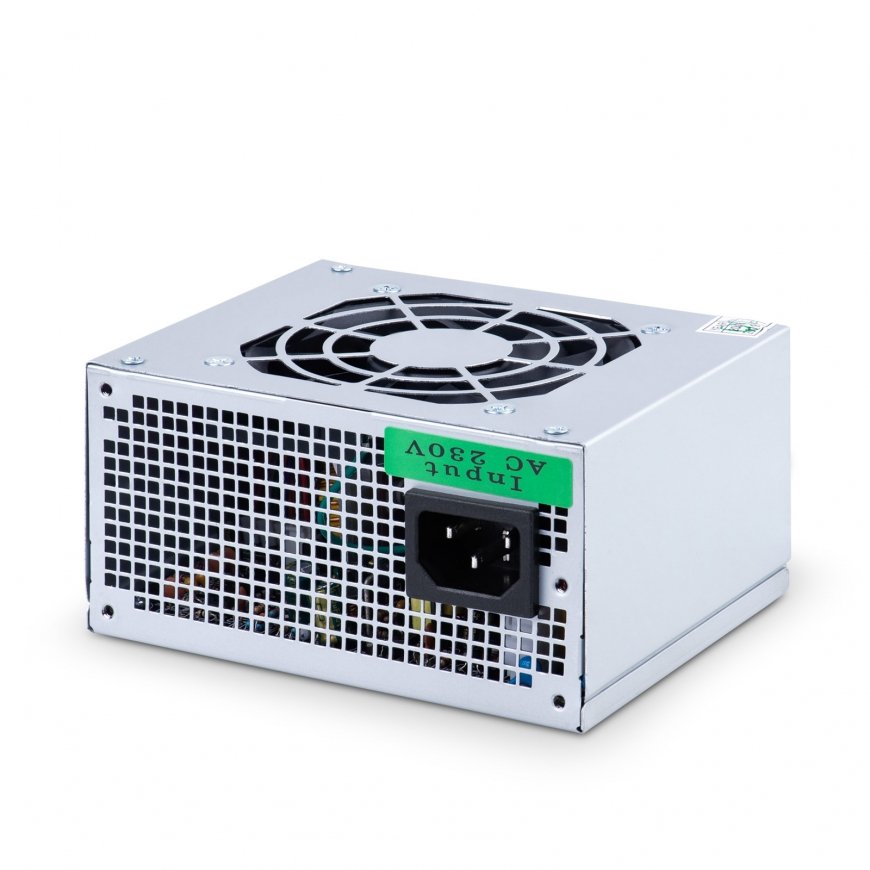

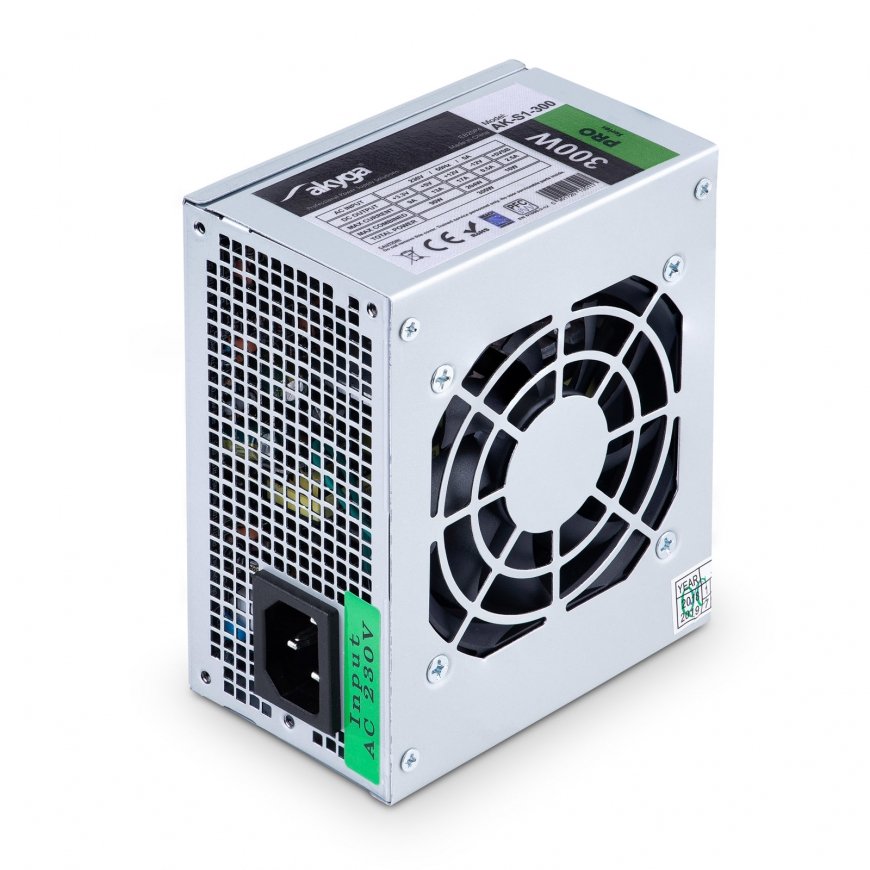

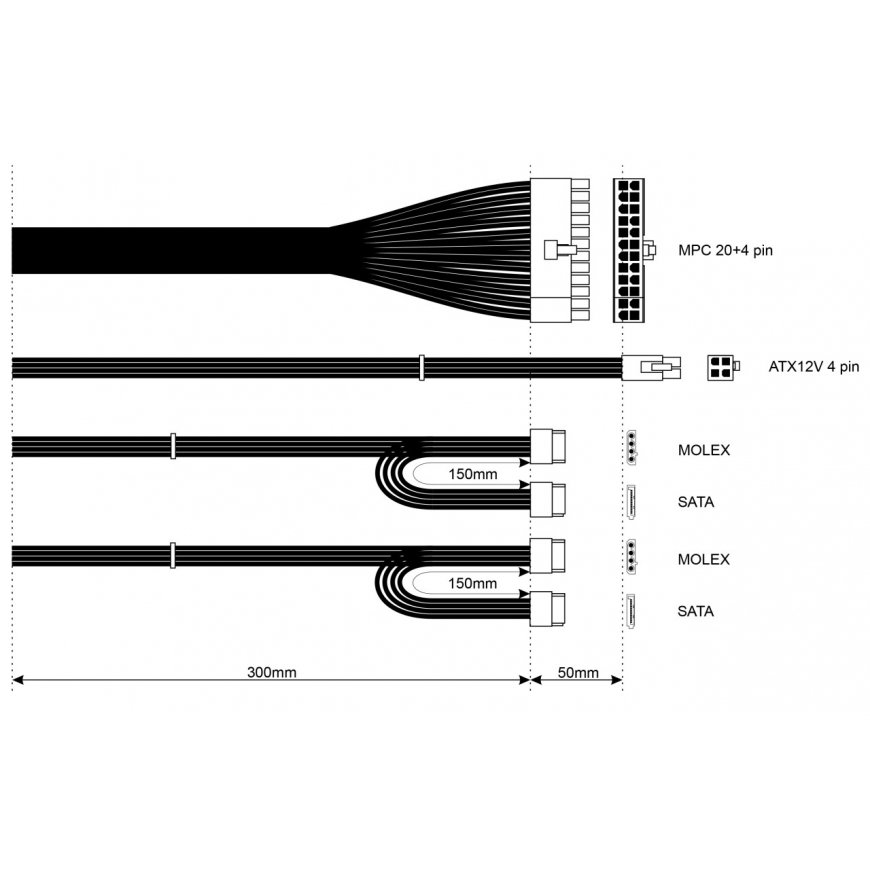

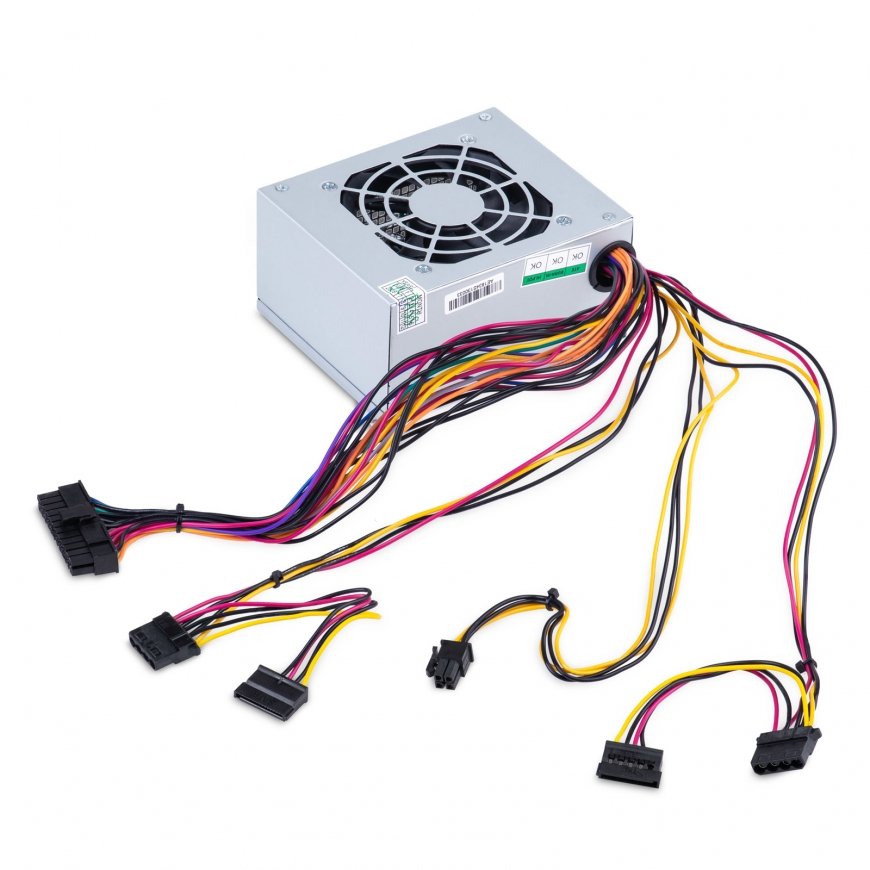

The modern SFX Akyga® AK-S1-300 Pro series power supply with 300W power has been designed for mounting in compact computer enclosures in which space is limited.SFX has been equipped with a P4 4pin power connector, 2 MOLEX connectors, 2 SATA connectors and a universal 24pin connector for motherboards. For a better cooling effect, it has an 80 mm silent fan with automatic speed control. The power supply is characterized by high efficiency above 70%. It was made of durable, galvanized steel.
The PFC filter and a number of protections (OVP, OCP, OPP, OTP, SCP, UVP) ensure stability of both the power supply itself and the powered components, protecting against damage, including motherboard and processor.
In the set with the power supply there is a power cable.
Power | |
| Efficiency | 70% |
| Input current | 5 A |
| Peak power | 300 W |
| Power protection features | Over current, Overload, Over voltage, Overheating, Short circuit |
| Power Factor Correction (PFC) type | Passive |
| Combined power (+3.3V) | 90 W |
| Combined power (+12V) | 204 W |
| Combined power (+5V) | 90 W |
| Combined power (-12V) | 16 W |
| Combined power (+5Vsb) | 16 W |
| Max output current (+3.3V) | 9 A |
| Max output current (+12V) | 17 A |
| Max output current (+5V) | 13 A |
| Max output current (+5Vsb) | 2.5 A |
| Max output current (-12V) | 0.5 A |
| AC input voltage | 230 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Total power | 300 W |
Performance | |
| Noise level | 30 dB |
| Mean time between failures (MTBF) | 100000 h |
| Purpose | PC |
| Power supply unit (PSU) form factor | SFX |
Design | |
| Product colour | Silver |
| Number of fans | 1 fan(s) |
| Fan diameter | 8 cm |
| Fan location | Top |
| Cooling type | Active |
Ports & interfaces | |
| ATX Power connector (24-pin) | Yes |
| Number of SATA power connectors | 2 |
| PCI Express power connectors (6-pin) | 0 |
| Peripheral (Molex) power connectors (4-pin) | 2 |
| ATX power connector (20+4 pin) | Yes |
| PCI Express power connectors (8-pin) | 0 |
| CPU P4 connector (4-pin) | 1 |
| PCI Express power connectors (6+2 pin) | 0 |
| Motherboard power connector | 20+4 pin ATX |
| Cabling type | Non-Modular |
| Motherboard power cable length | 35 cm |
| SATA power cable length | 350 mm |
| CPU power cable length | 40 cm |
Operational conditions | |
| Operating relative humidity (H-H) | 0 - 60% |
| Operating temperature (T-T) | 5 - 50 °C |
| Storage temperature (T-T) | 0 - 60 °C |
| Storage relative humidity (H-H) | 5 - 60% |
Weight & dimensions | |
| Weight | 600 g |
| Width | 125 mm |
| Depth | 63.5 mm |
| Height | 100 mm |
Packaging data | |
| Package weight | 700 g |
| Package height | 150 mm |
| Package width | 125 mm |
| Package depth | 63.5 mm |
Logistics data | |
| Country of origin | Poland |
Certificates | |
| Certification | RoHS, REACH, CE |
| Compliance certificates | RoHS |
