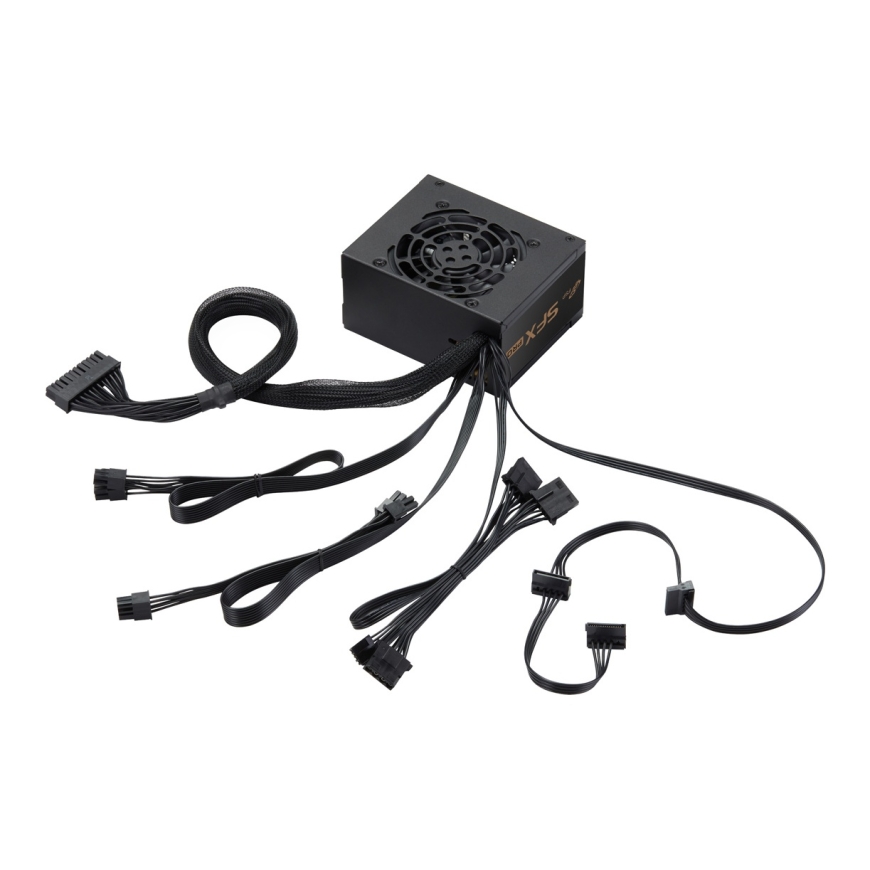

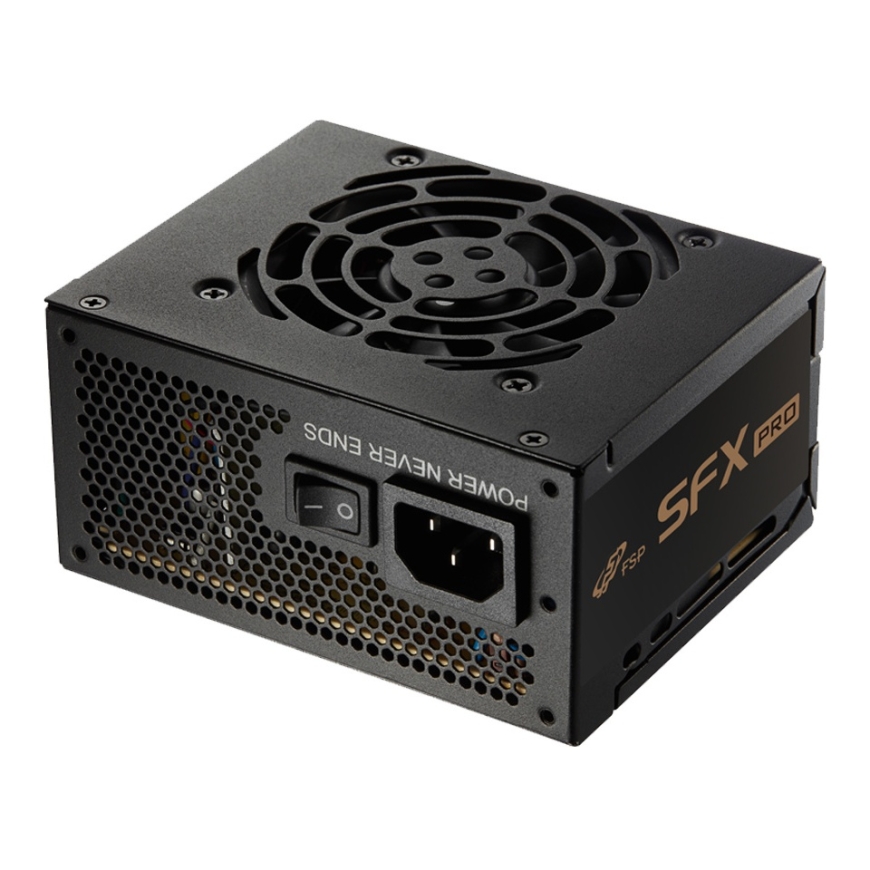

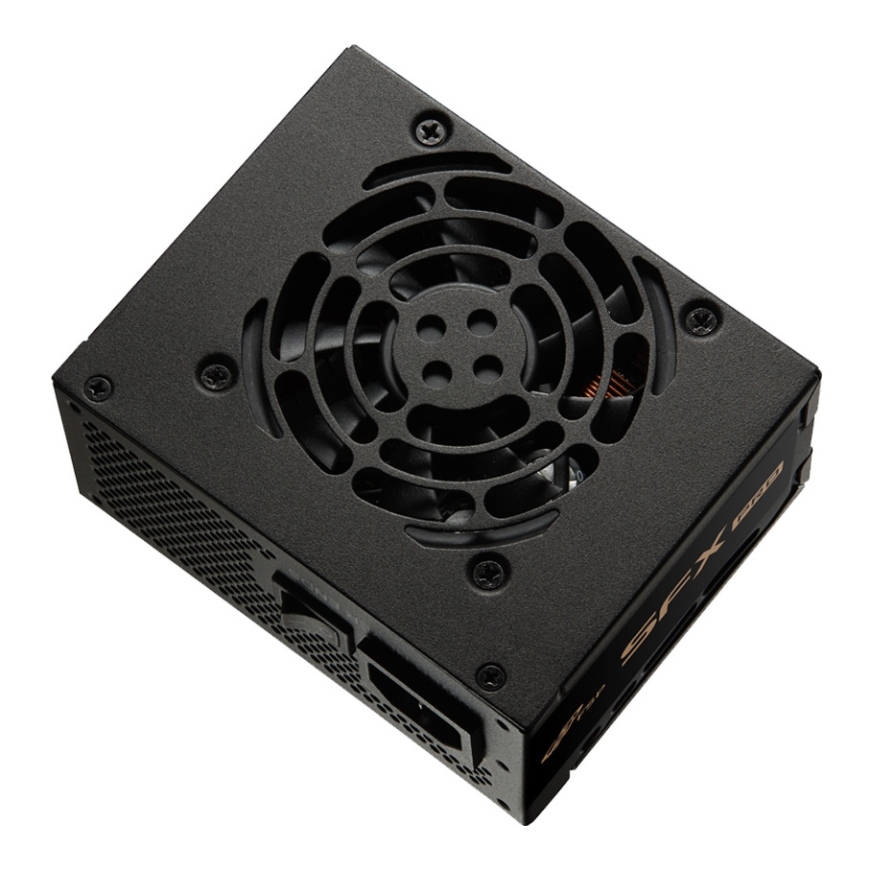

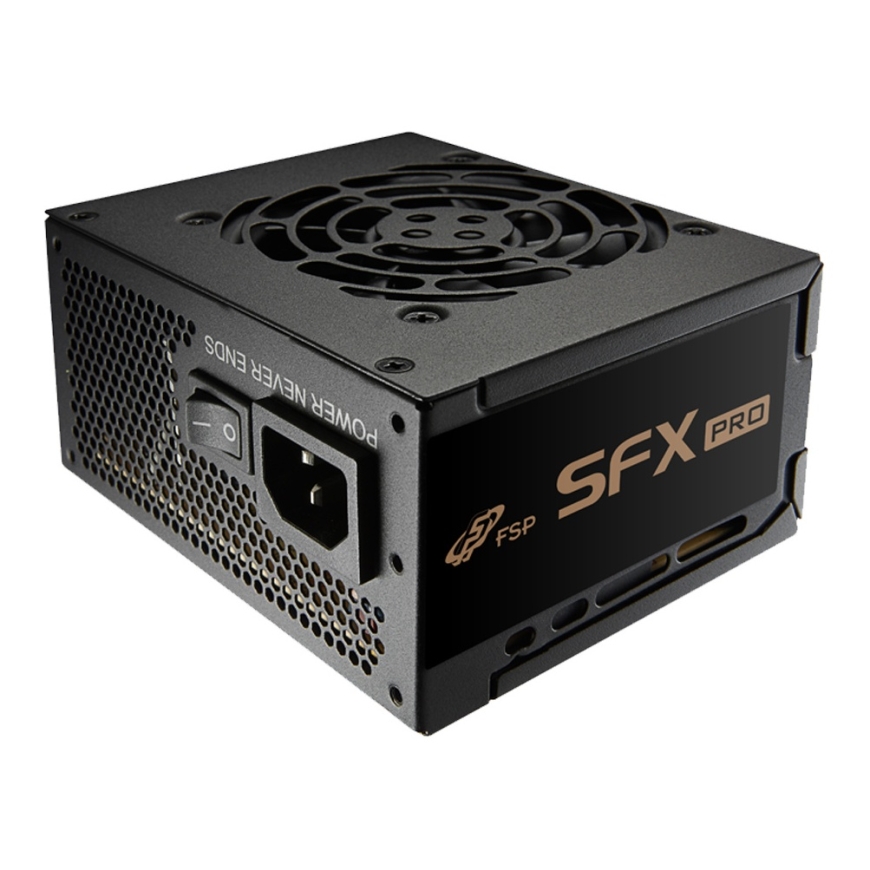

FSP SFX PRO 450W Power supply unit SFX SFX3.3 Black
88.99 €
Monthly payment from 3,19 €
1684974 PPA450AA00
4713224522123
Shipping 3-5 b.d.
You are interested in this product?
All about the product
The SFX PRO series is a dream PSU that’s designed to deliver the best power, performance and efficiency to every mini PC enthusiast. Featuring the 80 Plus bronze certified efficiency, IEC62368 certified safety regulation, DC-DC Module, and black ribbon cables, the SFX PRO series came to the world with a mission “Never Let You Down” to provide users a stylish mini PC look as well as the best PC gaming experience!Intelligent Fan Speed Control
SFX Pro’s sleeve fan will automatically adjust its fan speed according to the PSU’s temperature. This helps to provide excellent airflow and low noise operation.
80 Plus® Bronze Certification
SFX Pro series features 80 PLUS Bronze certification, saving energy through its high efficiency rating up to 85%.
DC-to-DC Module Design
With DC to DC structure, SFX Pro Series ensure you the outstanding conversion efficiency and offers reliability and stability.
Compliant with IEC/EN 62368
FSP complies with the latest green power technology, and provides a full array of additional safety approvals to keep designs ahead of the changing regulations. FSP has upgraded the majority of their power supplies to comply with the new IEC/EN 62368 standard for your gaming rig.
All Black Ribbon Cables
The matte black coating and all black ribbon cables give your system a sophisticated look.
SFX to ATX Adapter Bracket
Adapts to your individual requirements, not only does it fit into cases with the SFX form factor, but also it can be installed simply into regular ATX, Micro-ATX or Mini-ITX cases.
Universal Use, Wide Input Range Power Supply
Wide input voltage 100-240V, can ensure the stability of the system when the input voltage is not stable.
Power | |
| Efficiency | 85% |
| Power protection features | Over current, Overload, Over voltage, Overheating, Short circuit |
| Power Factor Correction (PFC) type | Active |
| Maximum input current (@110V) | 6 A |
| Combined power (+3.3V) | 85 W |
| Combined power (+12V) | 450 W |
| Combined power (+5V) | 85 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 12.5 W |
| Max output current (+3.3V) | 16 A |
| Max output current (+12V) | 37.5 A |
| Max output current (+5V) | 16 A |
| Max output current (+5Vsb) | 2.5 A |
| Max output current (-12V) | 0.3 A |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Maximum input current (@220V) | 2.5 A |
| Total power | 450 W |
Performance | |
| Noise level | 43 dB |
| Mean time between failures (MTBF) | 100000 h |
| Purpose | PC |
| 80 PLUS certification | 80 PLUS Bronze |
| Bearing technology | Rifle |
| Power supply unit (PSU) form factor | SFX |
Design | |
| Product colour | Black |
| Number of fans | 1 fan(s) |
| Fan diameter | 8 cm |
| Fan location | Top |
| Cooling type | Active |
| On/off switch | Yes |
Ports & interfaces | |
| Floppy drive power connector | 1 |
| Number of SATA power connectors | 3 |
| Peripheral (Molex) power connectors (4-pin) | 3 |
| CPU power connector (4+4 pin) | Yes |
| PCI Express power connectors (6+2 pin) | 2 |
| Motherboard power connector | 24-pin ATX |
| Cabling type | Non-Modular |
| Floppy disk drive connector | Yes |
Weight & dimensions | |
| Weight | 1.22 kg |
| Width | 100 mm |
| Depth | 125 mm |
| Height | 63 mm |
Logistics data | |
| Harmonized System (HS) code | 84733020 |
