Neomounts WL30S-910BL16 TV pillar mount 40-75" - fixed - lockable - diam. 25-100 cm
189.00 €
Monthly payment from 5,77 €
1654580 WL30S-910BL16
8717371449520
Shipping 3-7 b.d.
You are interested in this product?
All about the product

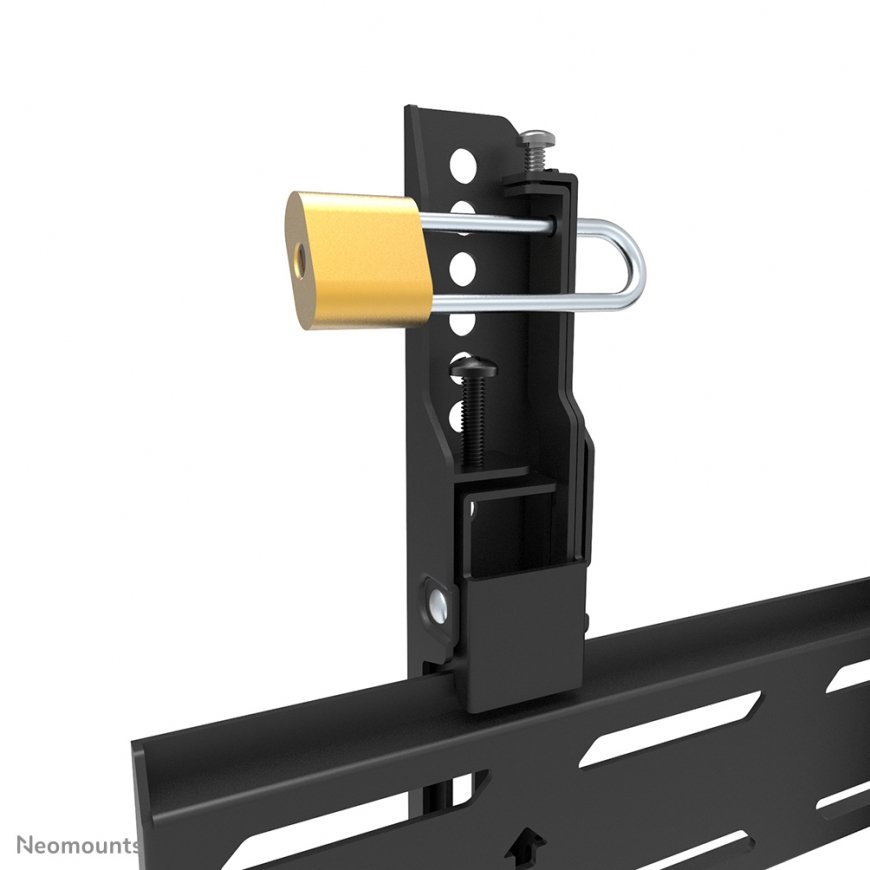

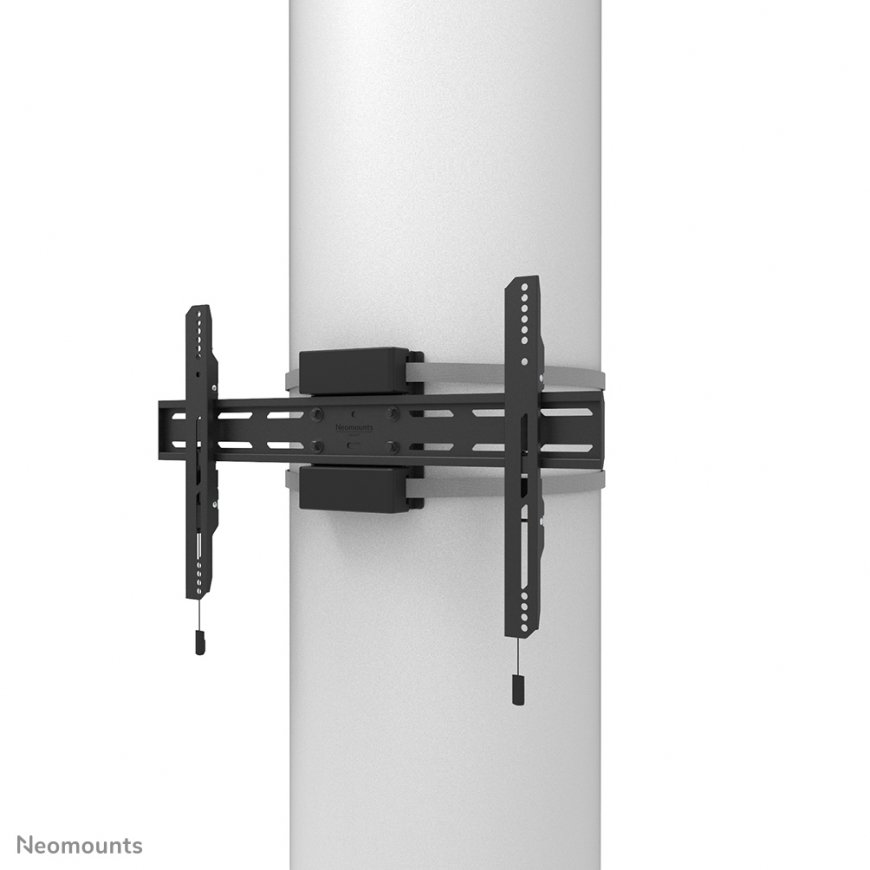

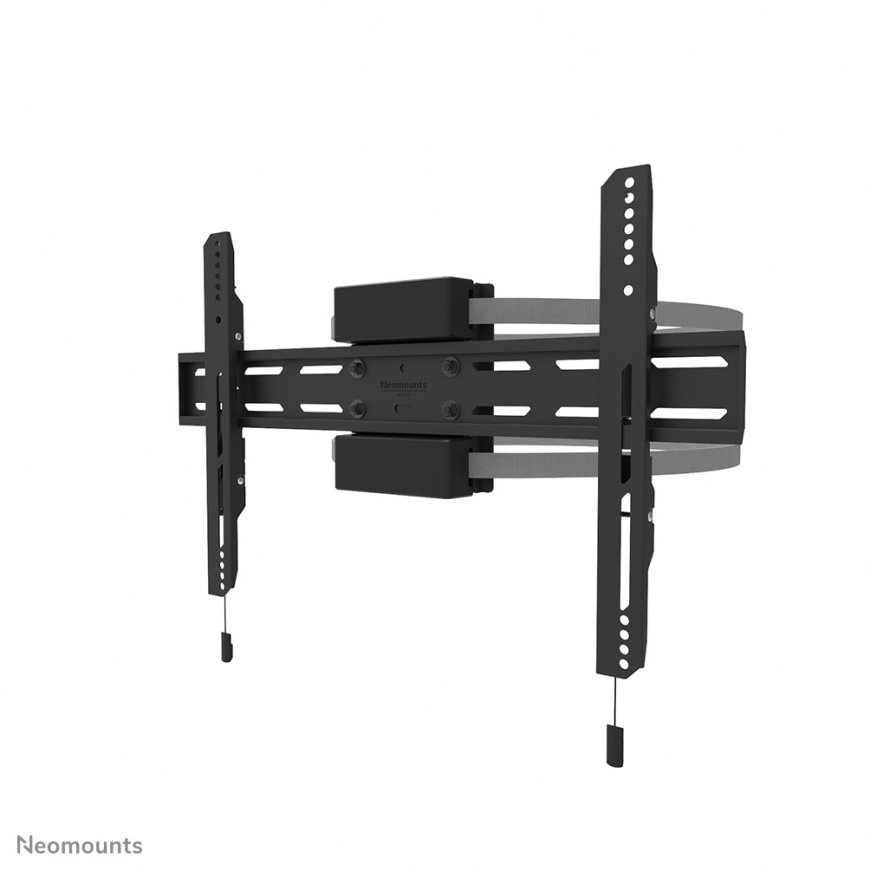

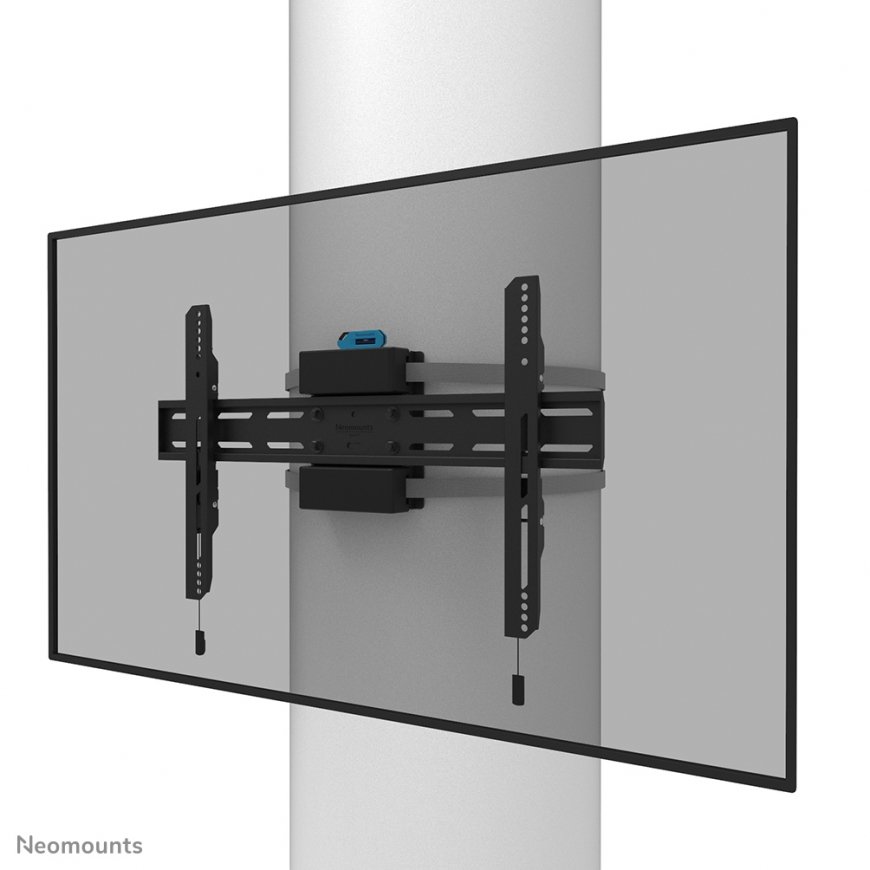

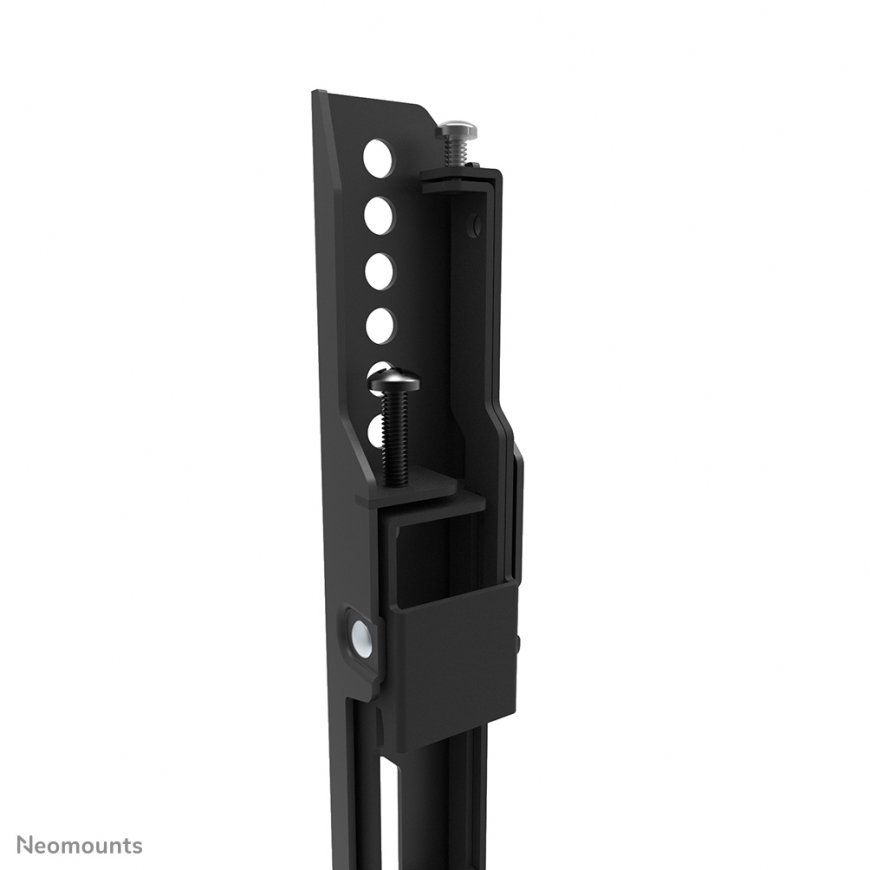

The Neomounts WL30S-910BL16 is a fixed pillar mount for screens up to 75" with a maximum weight capacity of 50 kg. The mount is suitable for Ø25-100 cm cylinder, square and rectangular pillars. Individual bracket height and level adjustment are available for the perfect installation.The WL30S-910BL16 has a depth of 6,7 cm and is suitable for screens that meet VESA hole pattern 200x100 to 600x400 mm. The pillar mount has a strap of 350 cm and can be locked if required with the anti-theft screw provided or with a padlock (not included).
The mount features a nifty magnetic pull & release system, that allows you to attach the TV in a wink of an eye and secure the TV in safe and solid manner. Afterwards, the pull & release straps can be easily hidden behind the screen by clicking the magnet to the mount. The ratchet clamp ensures easy installation, as well as the separate magnetic spirit level tool that is included.
Features | |
| Maximum weight capacity | 50 kg |
| Panel mounting interface | 300 x 300, 300 x 200, 400 x 200, 400 x 400, 400 x 300, 600 x 400, 200 x 100, 600 x 200, 600 x 300, 300 x 100, 440 x 400, 350 x 350, 500 x 400 |
| Minimum screen size | 101.6 cm (40") |
| Maximum screen size | 190.5 cm (75") |
| Number of displays supported | 1 |
| Minimum VESA mount | 200 x 100 mm |
| Maximum VESA mount | 600 x 400 mm |
| Mounting type | Pole |
| Cable management | No |
| Angle of rotation | 6° |
| Product colour | Black |
| Housing material | Steel |
Mounting | |
| Maximum weight capacity (per display) | 50 kg |
Ergonomics | |
| Distance to the wall (max) | 6.7 cm |
| Pivot angle | -3 - 3° |
| Type | Fixed |
Design | |
| Accepts padlock | Yes |
Packaging data | |
| Package weight | 5.3 kg |
| Package depth | 74 mm |
| Package height | 900 mm |
| Package width | 238 mm |
Weight & dimensions | |
| Weight | 4.2 kg |
| Width | 684 mm |
| Depth | 67 mm |
| Height | 425 mm |
| Depth (max) | 6.7 cm |
Technical details | |
| Country of origin | China |
| Package net weight | 5.3 kg |
| Compatible pole diameter (min) | 25 cm |
| Compatible pole diameter (max) | 100 cm |
| Warranty period | 5 year(s) |
| Lockable | Security screw included |
Logistics data | |
| Master (outer) case width | 315 mm |
| Master (outer) case length | 258 mm |
| Master (outer) case height | 920 mm |
| Master (outer) case gross weight | 21.7 kg |
| Products per master (outer) case | 4 pc(s) |
| Master (outer) case net weight | 16.8 kg |
| Harmonized System (HS) code | 7326909890 |
| Products per pallet (EU) | 48 pc(s) |
