Neomounts desk monitor arm
185.00 €
Monthly payment from 5,66 €
1639123 DS70-450WH1
8717371449483
Shipping 2-3 b.d.
You are interested in this product?
All about the product

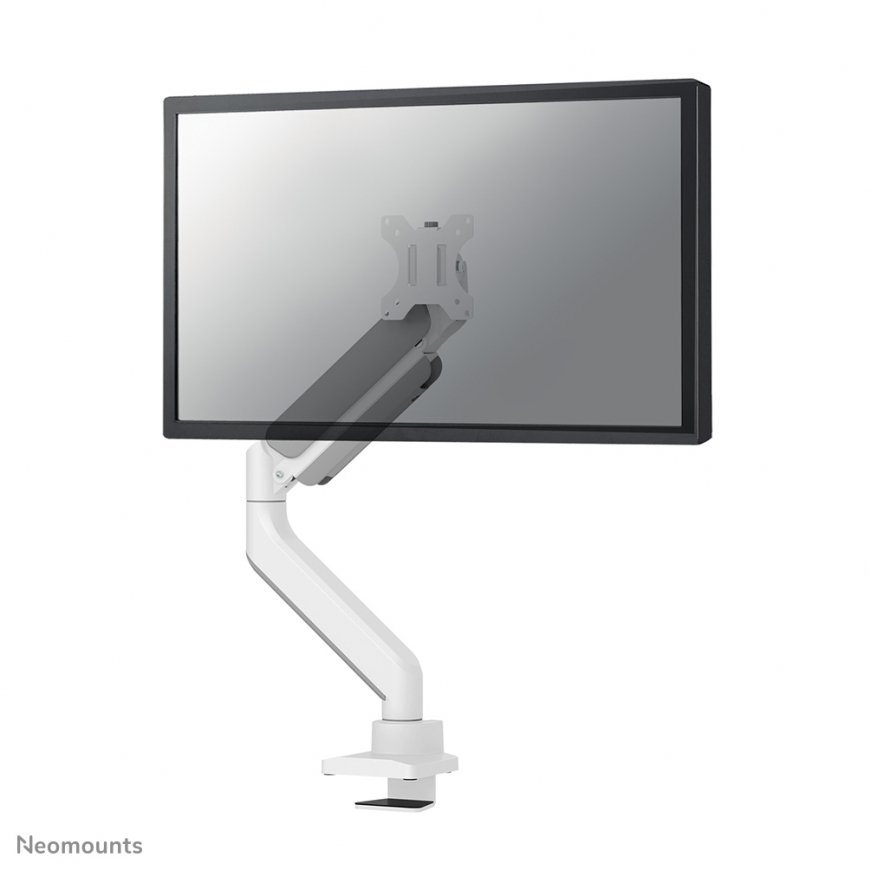

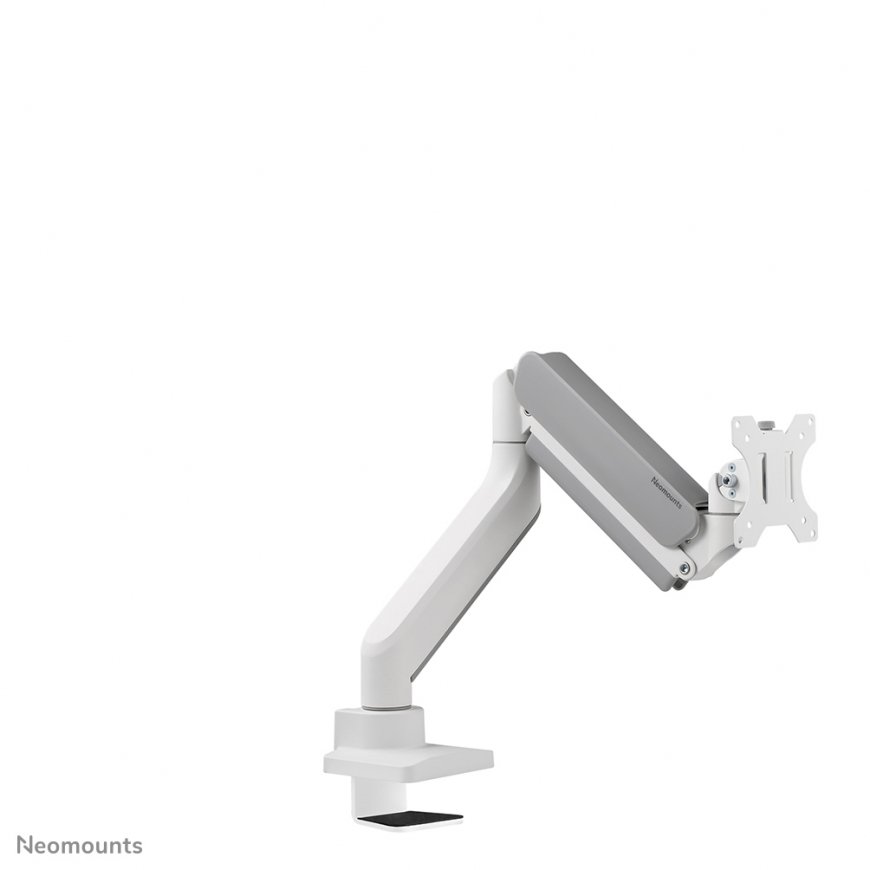

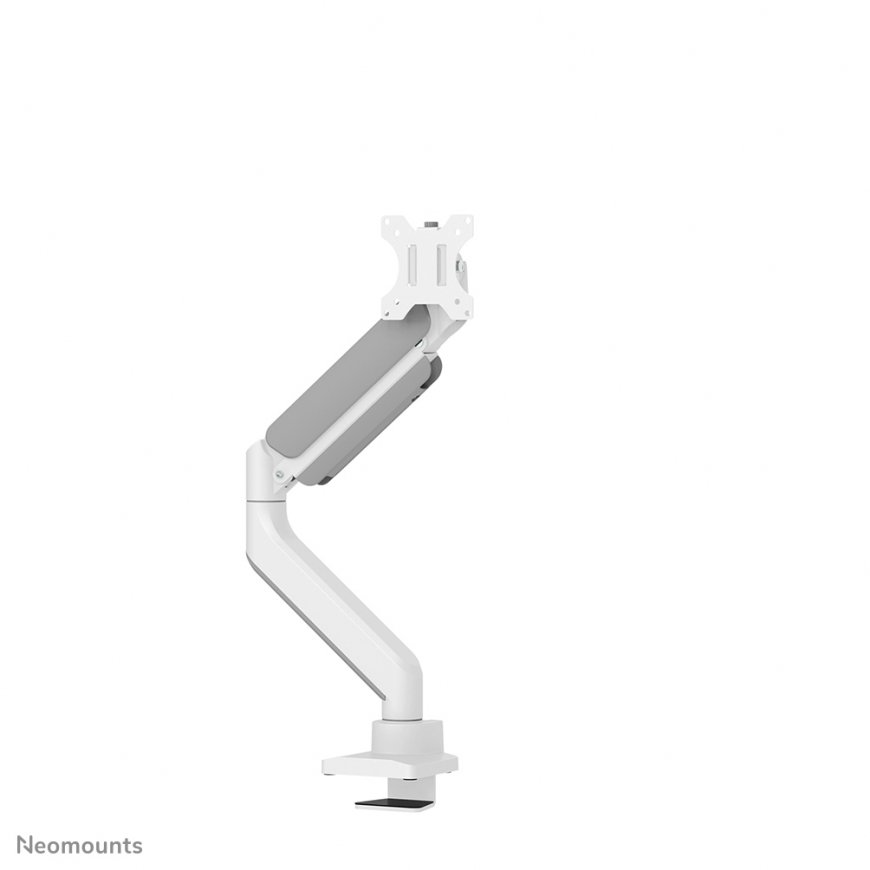

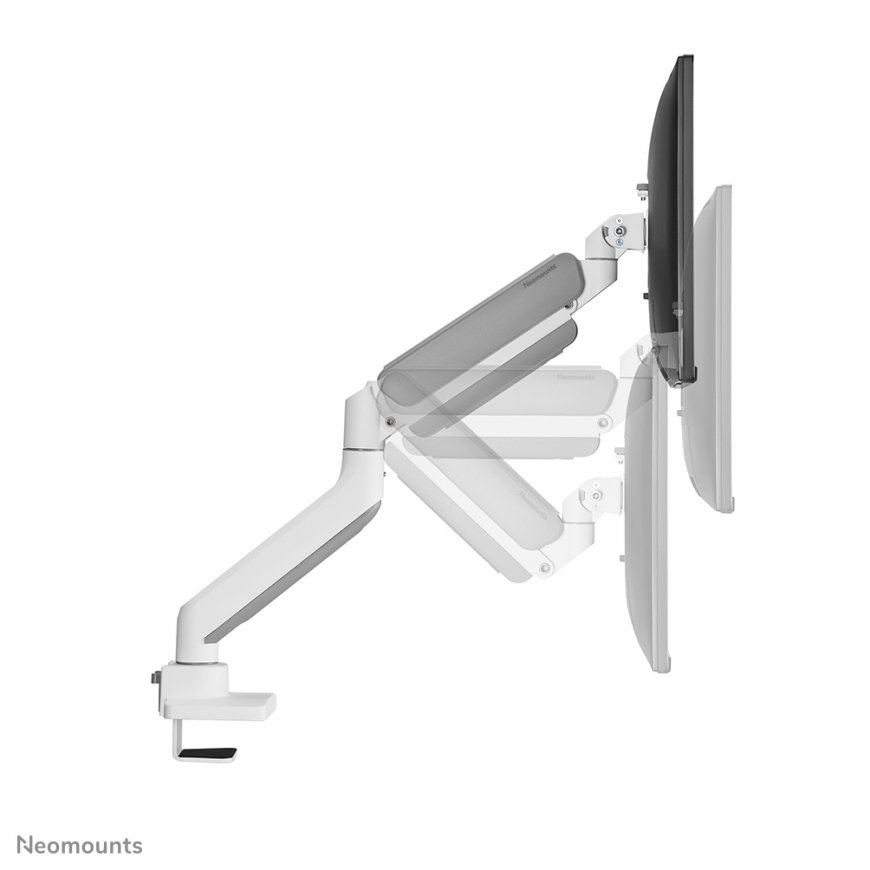

The Neomounts DS70-450WH1 NEXT Core is a full motion desk mount for one flat screen up to 42" with a maximum weight capacity of 15 kg. The versatile tilt (90°), rotate (360°) and swivel (180°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the screen. Additionally, the mount has gas spring height adjustment (26,1-55 cm) and depth adjustment (0-51,4 cm), to create the perfect working position.The DS70-450WH1 NEXT Core features the nifty 180° stop mechanism, that allows you to safely adjust the mount even when it's placed close to a wall or separation panel without making contact with the wall. The smart cable management system ensures orderly routing of the cables.
The DS70-450WH1 is suitable for screens that meet VESA hole pattern 75x75 or 100x100 mm. Unused hole patterns can be covered using one of Neomounts VESA adapter plates. The desk mount is equipped with an Quick-release VESA system and comes with both a topfix clamp and grommet for quick and easy installation.
The inner packaging of the NEXT Core is plastic free and made from cardboard and paper.
For wall installation, the AWL75-450WH wall adapter is optionally available.
Features | |
| Product colour | White |
| Maximum weight capacity | 15 kg |
| Panel mounting interface | 100 x 100 mm |
| Cable management | Yes |
| Maximum screen size | 106.7 cm (42") |
Weight & dimensions | |
| Height | 653 mm |
| Width | 120 mm |
| Depth | 568 mm |
Packaging data | |
| Package height | 445 mm |
| Package width | 280 mm |
| Package depth | 127 mm |
| Package net weight | 5.1 kg |
Other features | |
| Height adjustment | Yes |
| Swivel angle range | -90 - 90° |
| Tilt angle range | -35 - 45° |
| Angle of rotation | 360° |
| Swivel angle | 180° |
| Height adjustment range | 261 - 550 mm |
| Distance to the wall (min) | 10.8 cm |
| Mounting | Clamp/Bolt-through |
| Warranty period | 5 year(s) |
Logistics data | |
| Master (outer) case width | 460 mm |
| Master (outer) case length | 275 mm |
| Master (outer) case height | 580 mm |
| Products per master (outer) case | 4 pc(s) |
| Master (outer) case net weight | 18.4 kg |
| Harmonized System (HS) code | 7326909890 |
| Products per pallet (EU) | 64 pc(s) |
| Country of origin | China |
Technical details | |
| Depth adjustment range | 0 - 514 mm |
