Sharkoon SilentStorm SFX Gold power supply unit 500 W 20+4 pin ATX Black
129,32 €
127.32 €
Monthly payment from 4,18 €
1547671 4044951016419
4044951016419
Shipping 14-15 b.d.
You are interested in this product?
All about the product

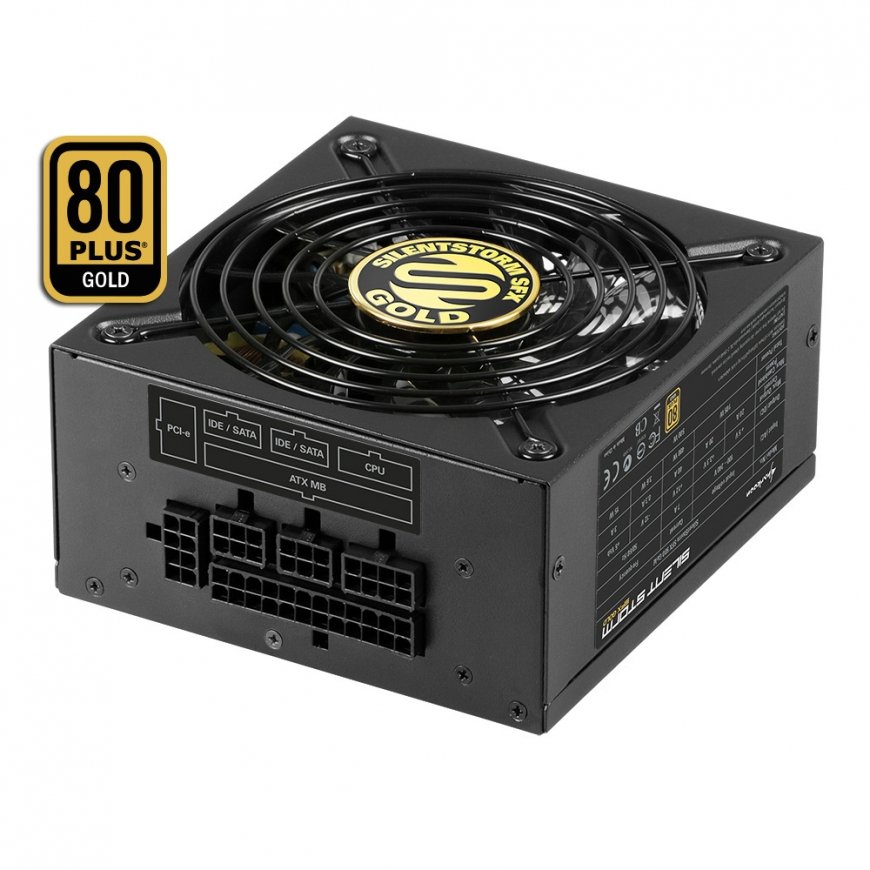

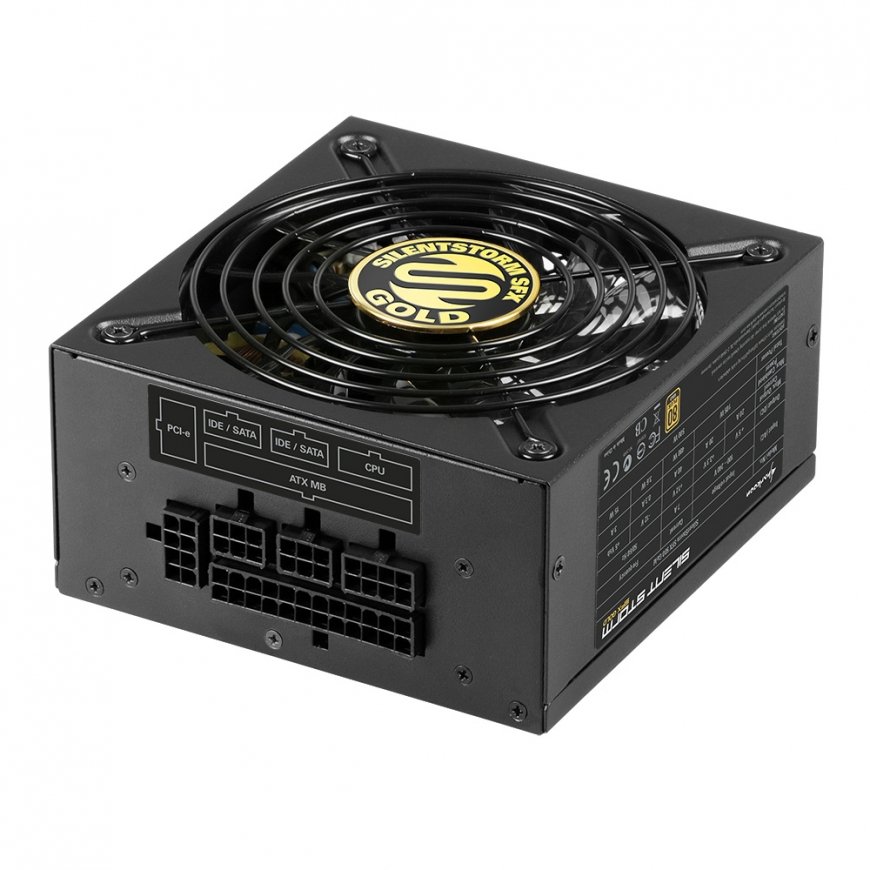

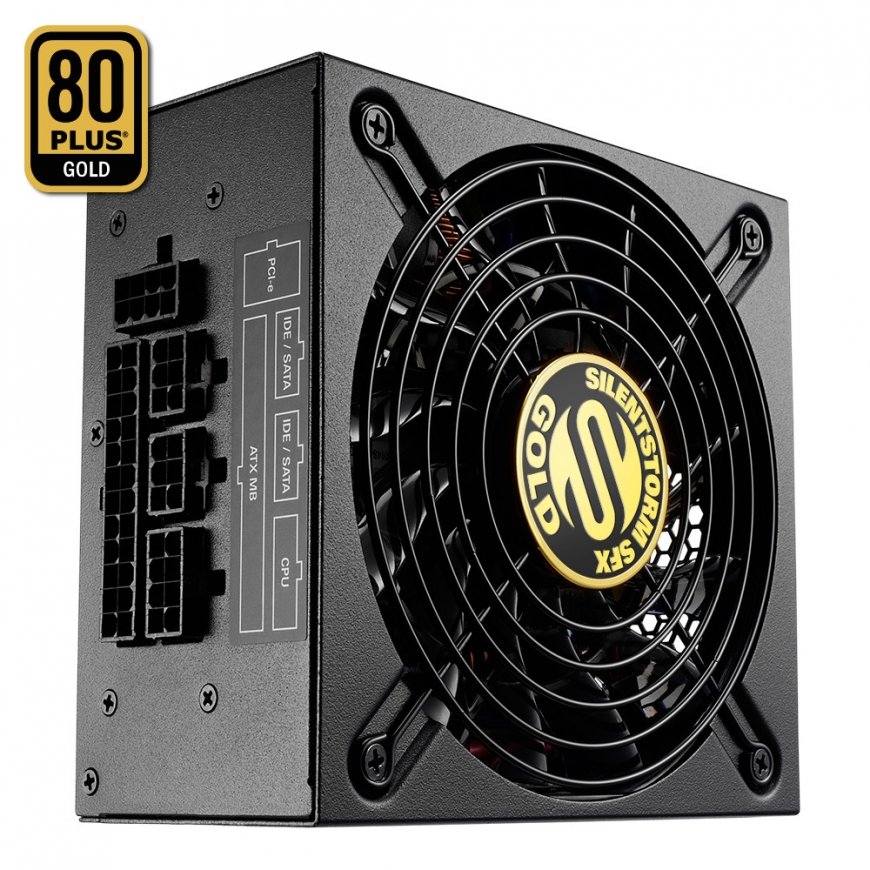

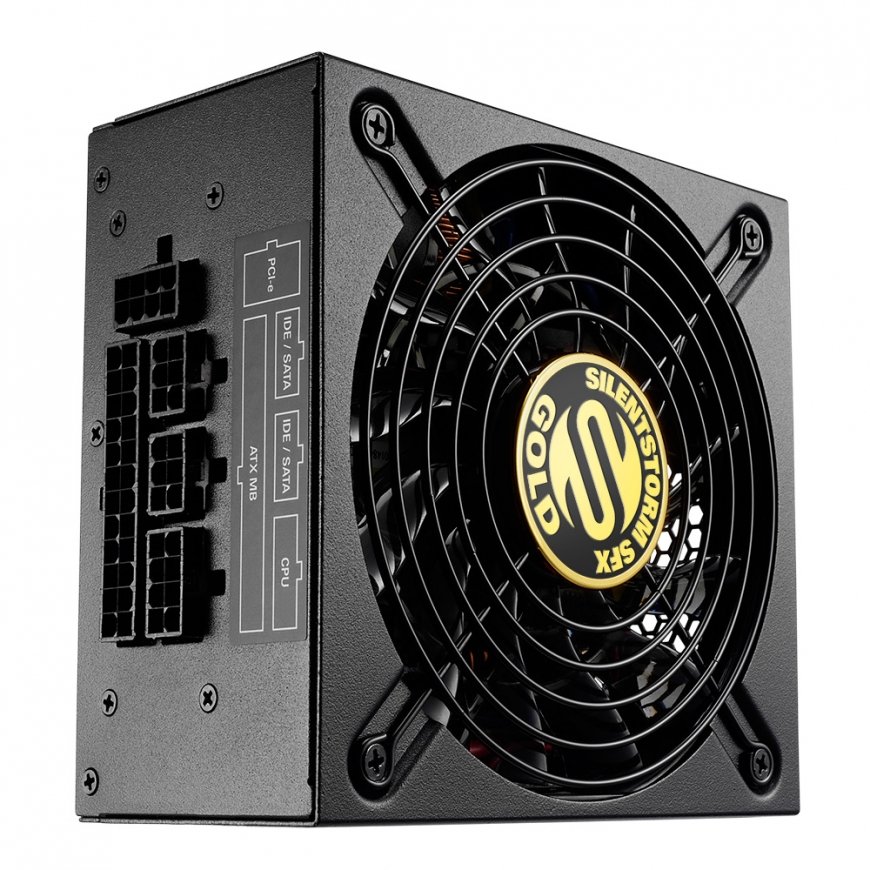

SFX Power Supply with “80 PLUS Gold” CertificationThe SilentStorm SFX Gold 500W is an “80 PLUS Gold” certified SFX power supply for high demands. It offers outstanding efficiency of over 90 percent by 50 percent load and meets the strict requirements of the independent 80 PLUS Initiative “PLUG LOAD SOLUTIONS”. The compact dimensions total to only 130 x 125 x 63 mm. Power supplies can be installed into conventional ATX cases using the enclosed ATX mounting frame.
Great Connectivity

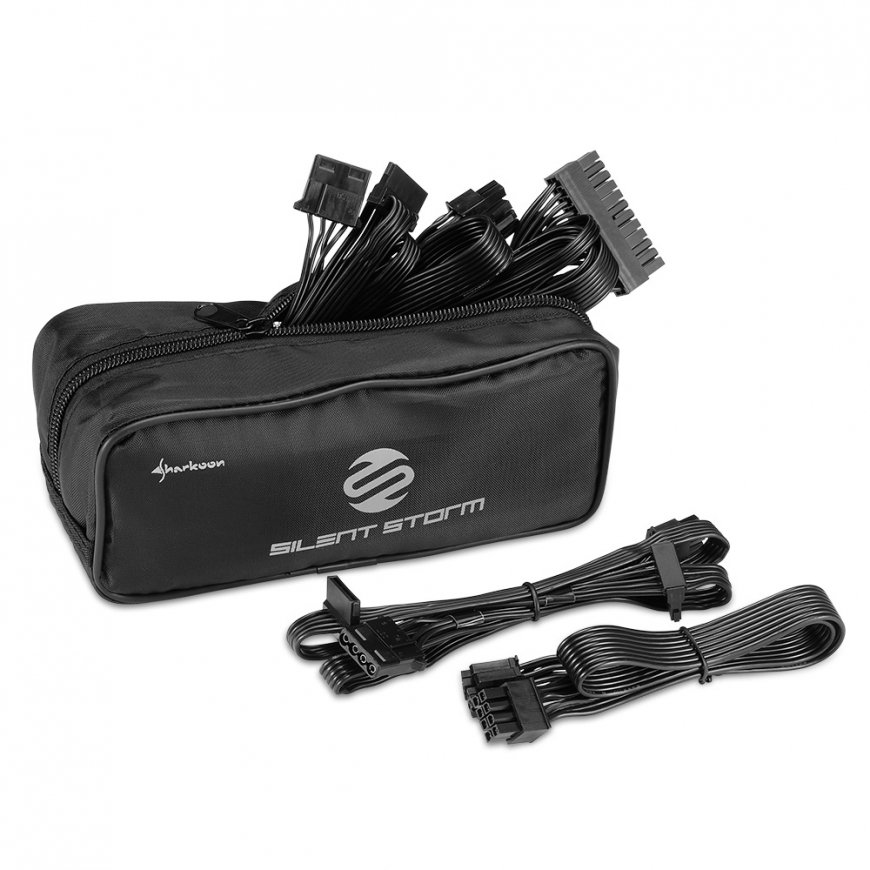

Thanks to the modular cable system the only cables used are those needed in the PC. For the setup of modern systems there is a 500 Watt power supply with two 6+2 pin PCIe power connectors for high-performance graphics cards. In addition to the CPU and mainboard standard connectors the SFX power supply offers four SATA, two IDE and a floppy power connector. It is compatible with Intel HASWELL CPUs.
Effective and Quiet Cooling
The operating noise of the power supply is effectively reduced by means of a quiet 120 mm fan and is especially suitable for lovers of Silent PCs that do not want to miss out on a powerful PSU.
Guaranteed Protection
The SilentStorm SFX Gold 500W features an overcurrent, overtemperature, overload, overvoltage, undervoltage and short circuit protection. The warranty period is three years. The SilentStorm SFX Gold 500W is also certified to current energy and environmental standards.
High Energy Efficiency
This power supply is “80 PLUS Gold” certified and meets all requirements with an efficiency of at least 90 % under 50 % load and 87 % under both 20 % and 100 % load.
Power | |
| Input current | 7 A |
| Power protection features | Over current, Overload, Over voltage, Overheating, Short circuit, Under voltage |
| Maximum input current (@110V) | +12V,+3.3V,+5V,+5Vsb,-12V |
| Combined power (+3.3V) | 105 W |
| Combined power (+12V) | 480 W |
| Combined power (+5V) | 105 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V) | 40 A |
| Max output current (+5V) | 20 A |
| Max output current (+5Vsb) | 3 A |
| Max output current (-12V) | 0.3 A |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Total power | 500 W |
Performance | |
| Purpose | PC |
| 80 PLUS certification | 80 PLUS Gold |
| Power supply unit (PSU) form factor | SFX |
Design | |
| Product colour | Black |
| Number of fans | 1 fan(s) |
| Fan diameter | 12 cm |
| Fan location | Top |
| Cooling type | Active |
Ports & interfaces | |
| Number of SATA power connectors | 4 |
| Peripheral (Molex) power connectors (4-pin) | 2 |
| CPU power connector (4+4 pin) | Yes |
| PCI Express power connectors (6+2 pin) | 2 |
| Motherboard power connector | 20+4 pin ATX |
| Cabling type | Fully-Modular |
| Floppy disk drive connector | Yes |
Weight & dimensions | |
| Width | 125 mm |
| Depth | 130 mm |
| Height | 63 mm |
Packaging data | |
| Package weight | 1.8 kg |
| Manual | Yes |
| Package height | 80 mm |
| Package width | 230 mm |
| Package depth | 190 mm |
Other features | |
| Case colour | Black |
| Housing colour | Black |
Logistics data | |
| Harmonized System (HS) code | 84733020 |
