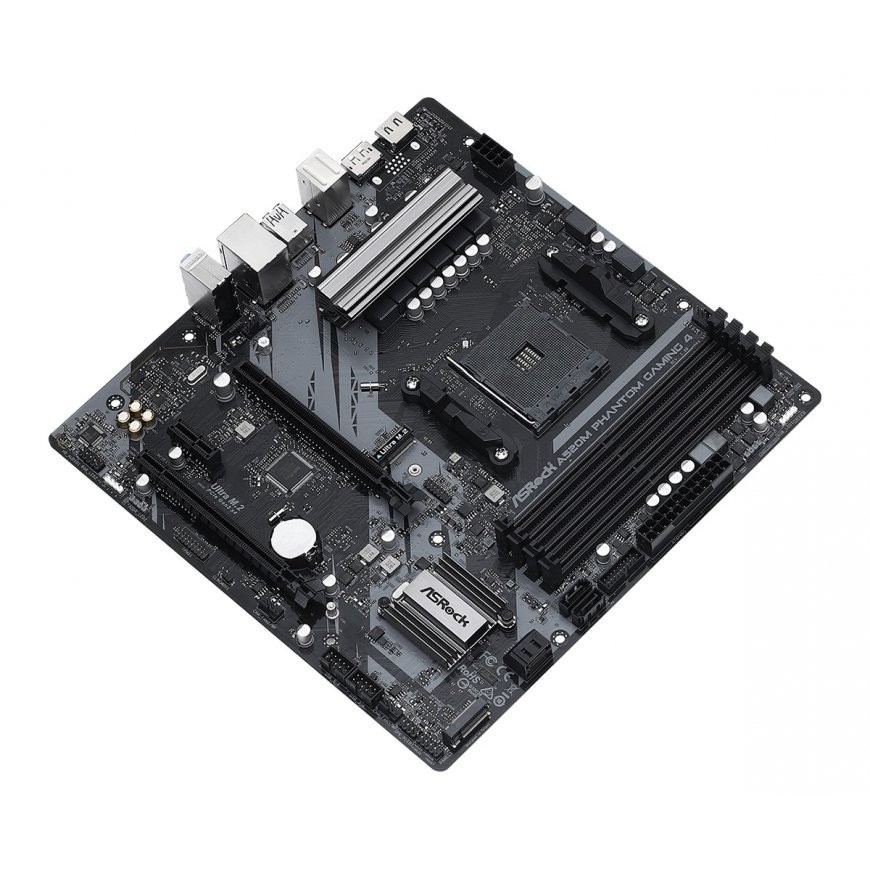

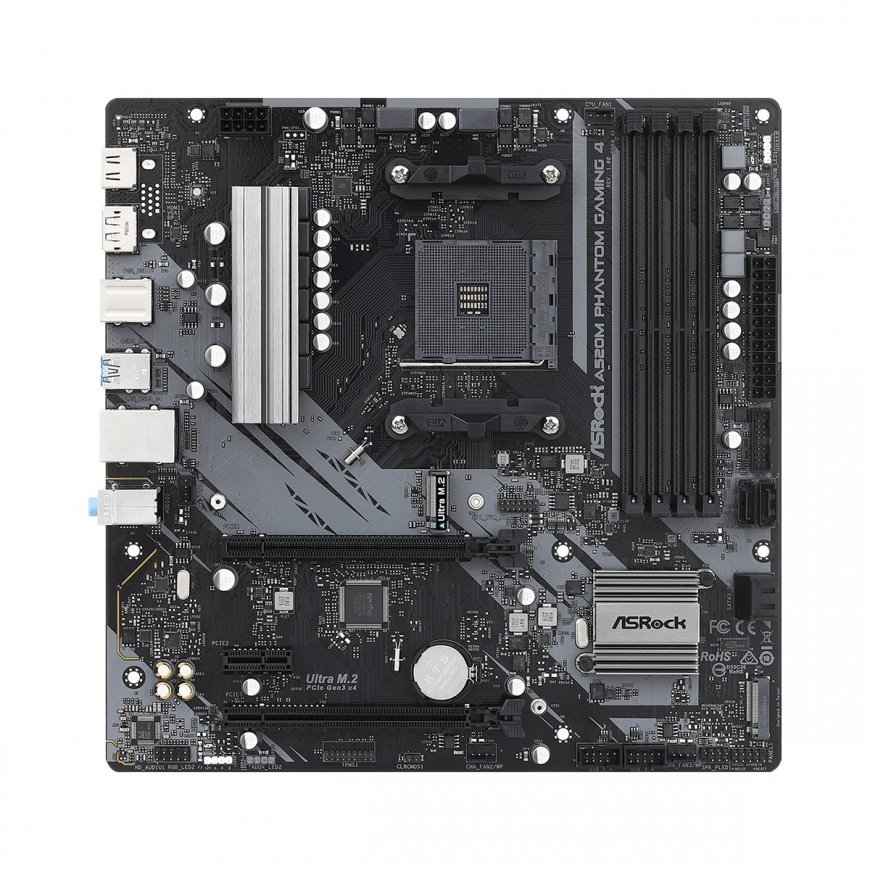

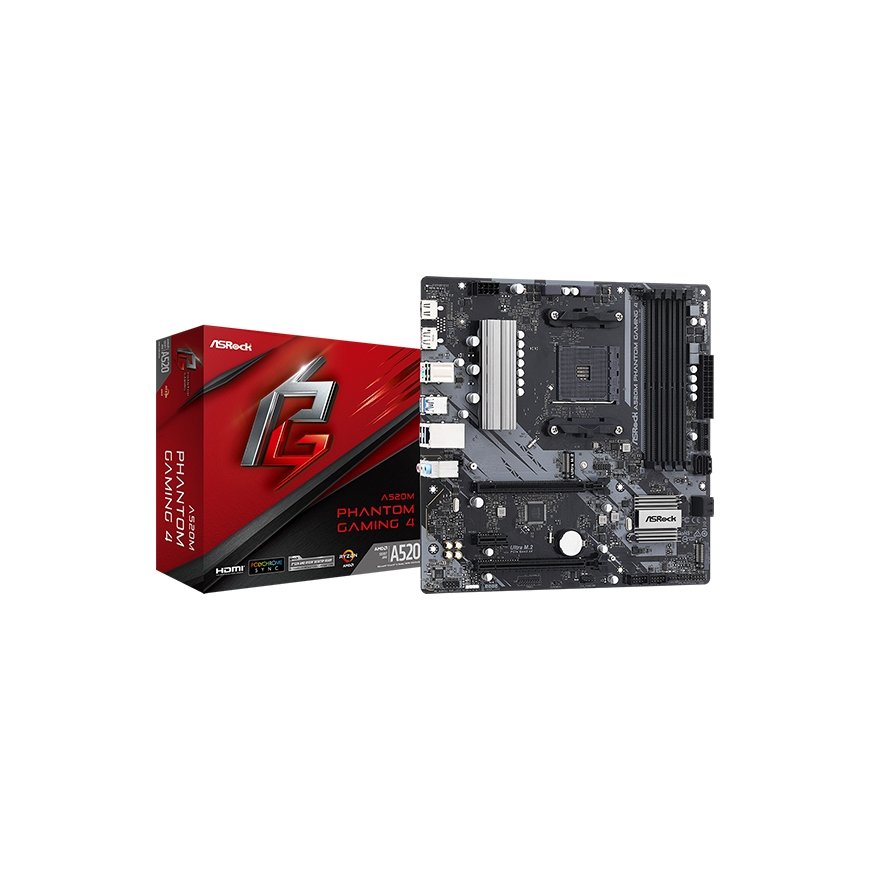

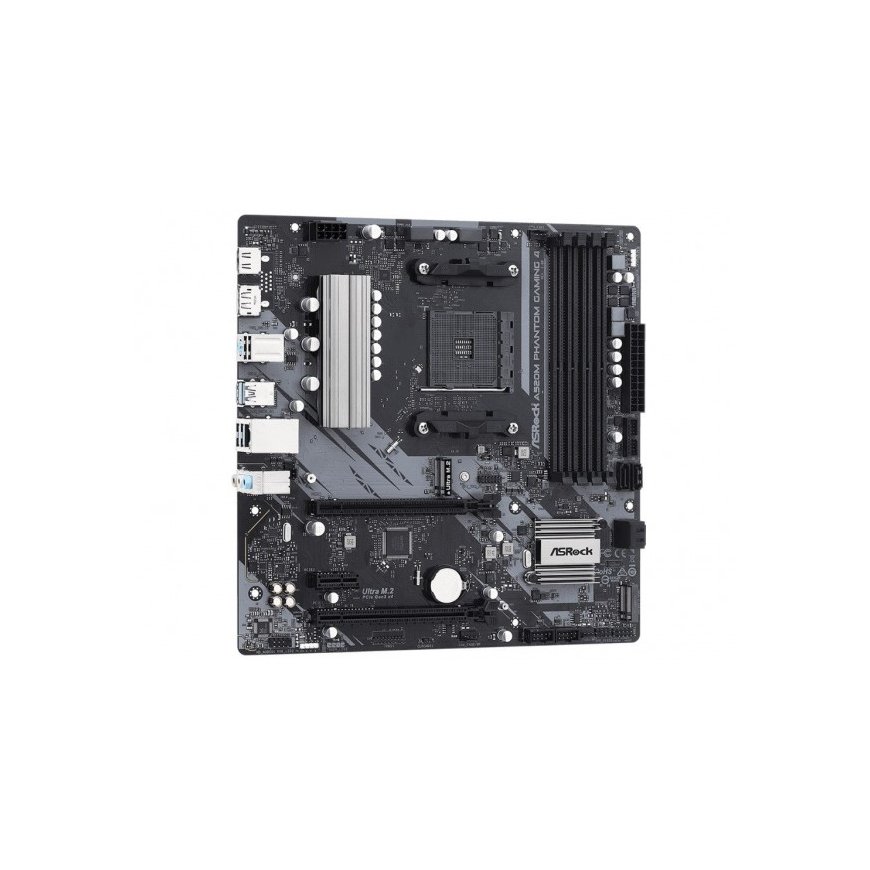

Asrock A520M Phantom Gaming 4 AMD A520 Socket AM4 micro ATX
116.19 €
Monthly payment from 3,89 €
1491414 90-MXBEK0-A0UAYZ
4710483932915
Shipping 7-11 b.d.
You are interested in this product?
All about the product
Phantom Gaming is designed by gamers and for gamers! Underneath its relentless appearance lie plentiful gaming oriented features and excellent gaming capabilities. It’s all about bringing a new gaming experience to gamers!8 Power Phase Design
Featuring sturdy components and completely smooth power delivery to the CPU. Plus, it offers enhanced performance with the lowest temperature for advanced gamers.
Premium 50A Power Choke
Compared to traditional chokes, ASRock’s premium 50A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.
AMD SMART ACCESS MEMORY
Conventional PC systems processor can only access a fraction of graphics memory and limits system performance. With AMD Smart Access Memory, the data channel gets expanded to harness the full potential of GPU memory, removes the bottleneck and increase performance.
Dual M.2 For SSD
One PCIe Gen3 x4 Ultra M.2 interface that pushes data transfer speeds up to 32Gb/s. The other one supports PCIe Gen3 x2 & SATA3 M.2 modules.
2oz Copper PCB
2 ounce copper inner layers that provide stable signal traces and power shapes! Delivering lower temperature and higher energy efficiency for overclocking, it's able to support the latest DDR4 memory modules with most extreme memory performance!
RULE YOUR OWN LIGHTING WAY - POLYCHROME RGB
This motherboard features onboard RGB headers and an addressable RGB header that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects.
Dual Graphics Outputs
Complete with two types of most used connectors! Packed with a HDMI + DisplayPort combo, you have more graphics output options now.
HDMI 4k @60Hz
Supports the most recent HDMI 4K 60Hz graphics output specification. With the larger bandwidth and increased frame rate, the motion on your screen becomes more fluid and less blurry.
AMD StoreMI Technology
A powerful tool that combines the speed of your SSD with the capacity of your hard disk into a single, fast, easy-to-manage drive, AMD StoreMI technology “combines” these two types of storage into a single drive and automatically moves the data you access the most to the SSD, so you get the best of both worlds.
Full Spike Protection
Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard’s components from being damaged by these unexpected voltage spikes.
Live Update & APP Shop
ASRock Live Update & APP Shop is designed for your convenience. We provide various apps and support software for users to download. You can also easily optimize your system and keep your motherboard up to date with ASRock Live Update & APP Shop.
Processor | |
| Compatible processor series | AMD Ryzen™ 3, AMD Ryzen™ 5 |
| Processor socket | Socket AM4 |
| Processor manufacturer | AMD |
Memory | |
| Maximum internal memory | 128 GB |
| Supported memory clock speeds | 2133, 2400, 2667, 2933, 3200, 3466, 3600, 3866, 4000, 4133, 4400, 4733, 3733, 3800, 4266, 4333, 4466, 4200, 4533 |
| Supported memory types | DDR4-SDRAM |
| Memory channels | Dual-channel |
| Memory slots type | DIMM |
| Unbuffered memory | Yes |
| Number of memory slots | 4 |
| ECC сompatibility | ECC & Non-ECC |
Storage controllers | |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | Serial ATA, M.2, PCI Express 3.0 |
Graphics | |
| Maximum graphics card memory | 16000 MB |
| Graphics card | Radeon Vega |
| HDCP | Yes |
| Graphics card family | AMD |
| DirectX version | 12.0 |
| On-board graphics card | Yes |
Internal I/O | |
| Number of SATA connectors | 4 |
| Number of SATA III connectors | 4 |

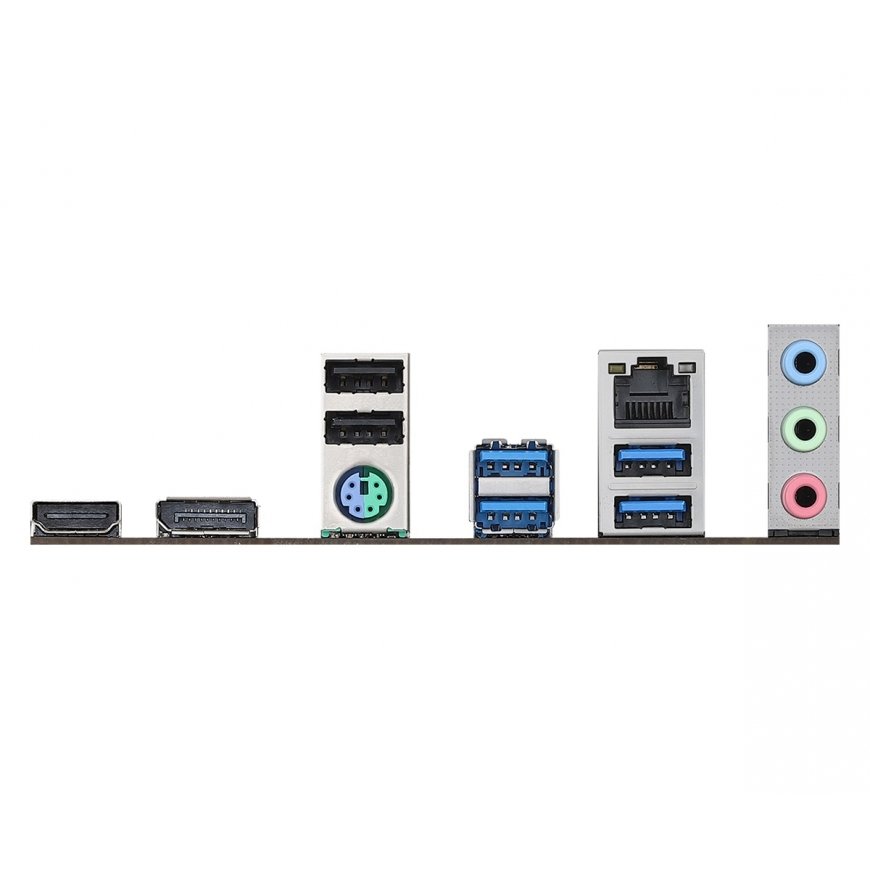

Rear panel I/O ports | |
| PS/2 ports quantity | 1 |
| USB 2.0 ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| Microphone in | Yes |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
Network | |
| Ethernet LAN | Yes |
Features | |
| Motherboard form factor | micro ATX |
| Motherboard chipset | AMD A520 |
| Audio output channels | 7.1 channels |
| Certification | ErP/EuP ready (ErP/EuP ready power supply is required), FCC, CE, RoHS |
| Motherboard chipset family | AMD |
| Component for | PC |
| Windows operating systems supported | Windows 10 |
Expansion slots | |
| PCI Express x1 (Gen 3.x) slots | 1 |
| PCI Express x16 (Gen 3.x) slots | 2 |
BIOS | |
| BIOS type | UEFI AMI |
| BIOS memory size | 256 Mbit |
| ACPI version | 5.1 |
| System Management BIOS (SMBIOS) version | 2.3 |
Weight & dimensions | |
| Width | 244 mm |
| Depth | 244 mm |
Logistics data | |
| Harmonized System (HS) code | 84733020 |
