The product's shade and actual color may differ from what is shown in the picture, as the images are for illustrative purposes. The product description is general and may not include all the product's features.

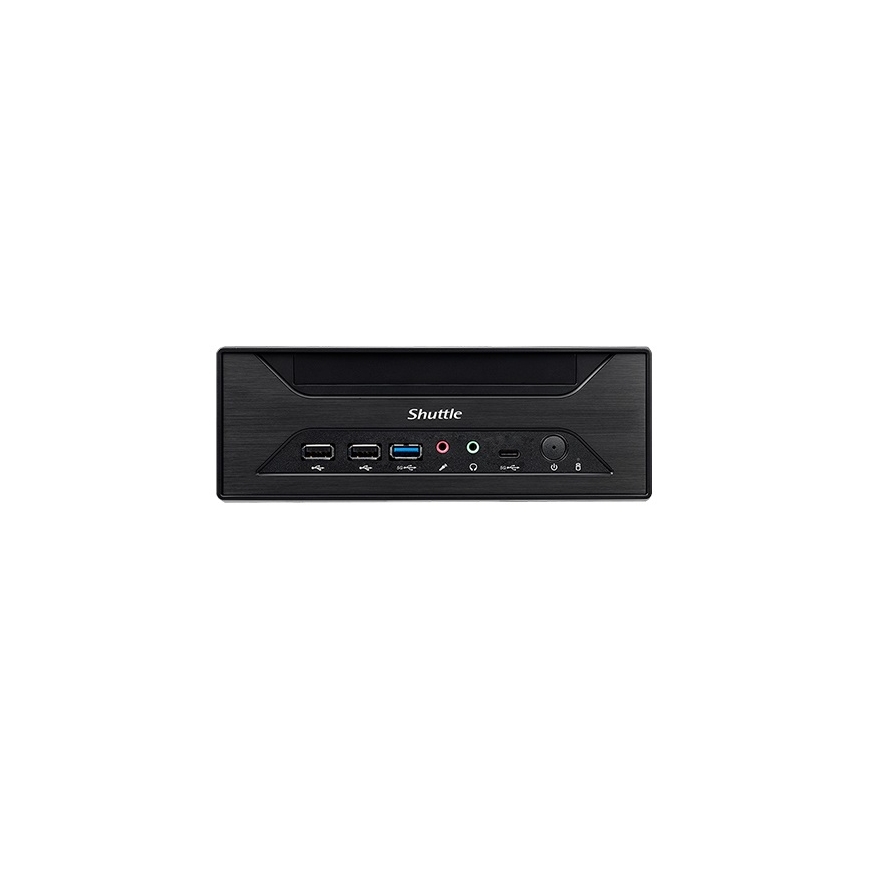

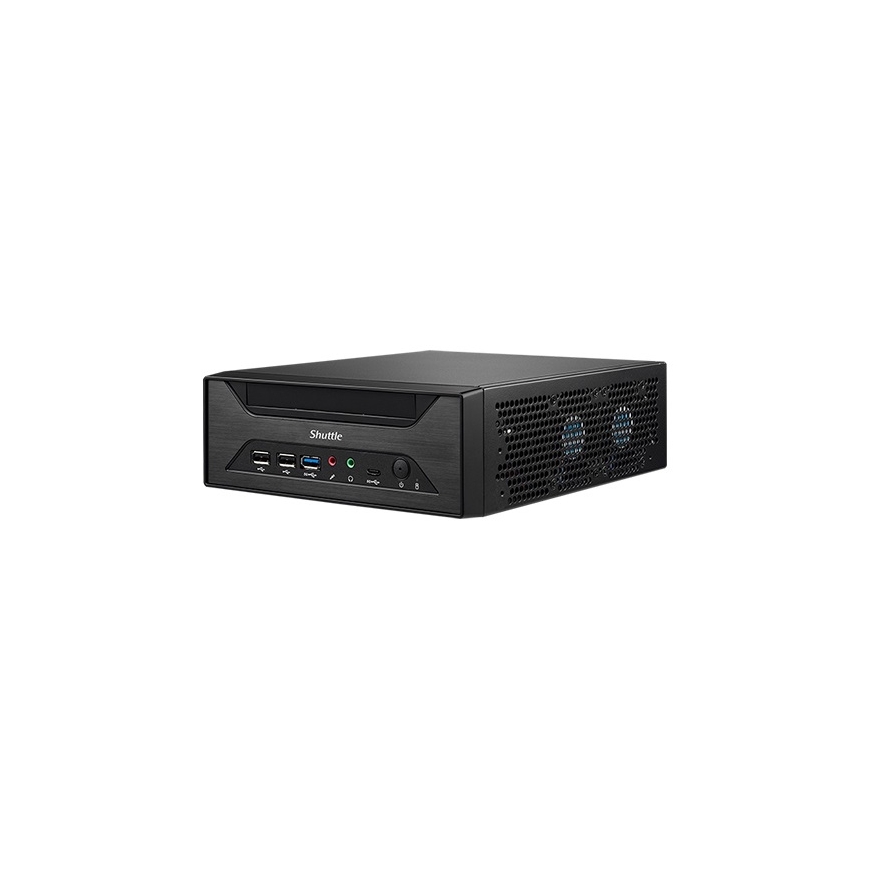

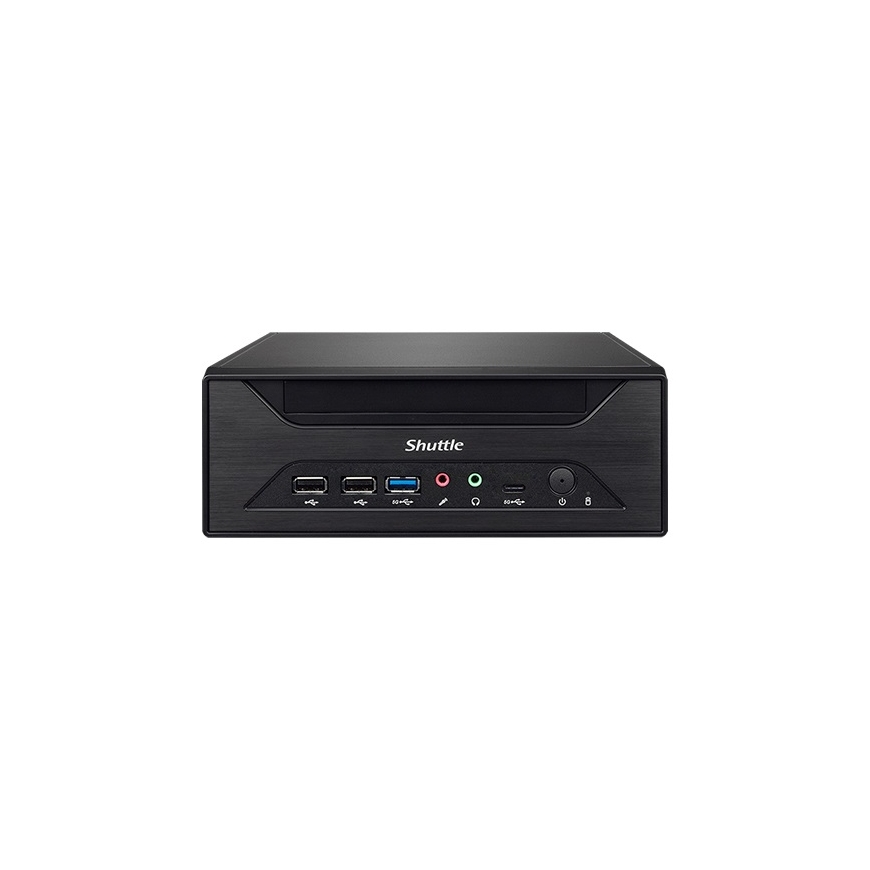

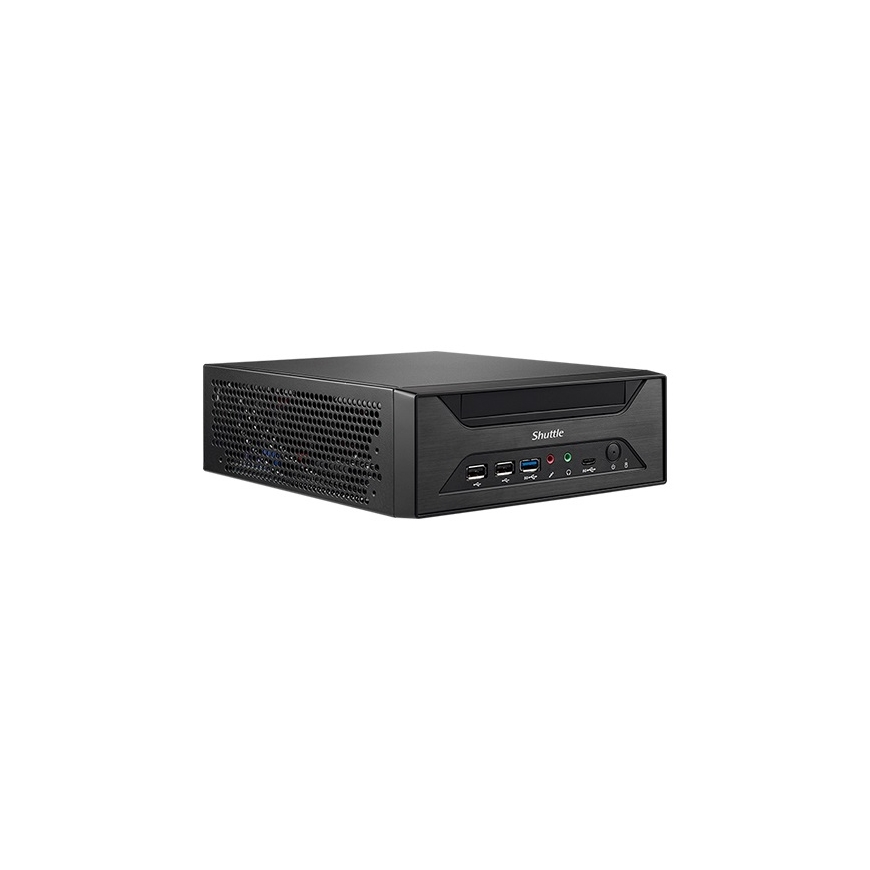

Shuttle XH610 PC/workstation barebone
349,00 €
Monthly payment from 9.89 €
1475851 XH610
0887993005171
2026-08-07
You are interested in this product?
Shuttle XPC slim 3-liter XH610/XH610V is equipped with Intel® H610 chipset that supports Intel® 12th LGA1700 65W processors and delivers 4K UHD video content. Up to three displays can be used simultaneously via one HDMI 2.0b, one DisplayPort, and one VGA. Feature an extra storage expansion that supports three 2.5” HDD/SSD storage drives or one 3.5” HDD (with an optional PHD4). Besides, the series includes 4 x USB 3.2 Gen1 (Include one Type-C), 4 x USB 2.0, Intel® 1G + Intel® 2.5G LAN, 2 x M.2, and 2 x RS232 to perform its rich I/O capabilities. In addition, another optional accessory PCM31 can be chosen to support a max of five RS232 ports to connect peripheral devices and deliver a robust performance that can drive highly interactive kiosks, vending machines, digital signage, and surveillance applications.
Processor | |
| Compatible processor series | Intel® Celeron®, Intel® Pentium®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9 |
| Processor socket | LGA 1700 |
Memory | |
| ECC | No |
| Maximum internal memory | 64 GB |
| Non-ECC | Yes |
| Memory voltage | 1.2 V |
| Supported memory clock speeds | 2133, 2400, 2666, 2933, 3200 |
| Supported memory types | DDR4-SDRAM |
| Memory channels | Dual-channel |
| Memory slots type | SO-DIMM |
| Number of memory slots | 2 |
Storage controllers | |
| Supported storage drive types | HDD & SSD |
Graphics | |
| Graphics card family | Intel |
| On-board graphics card | Yes |

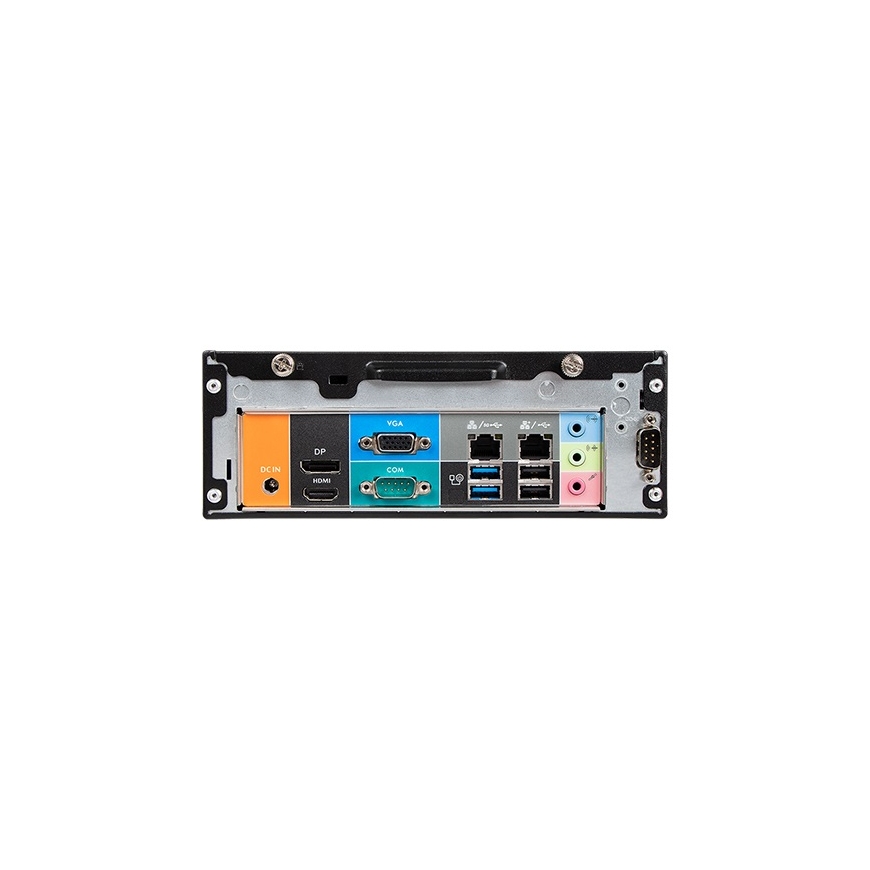

Rear panel I/O ports | |
| USB 2.0 ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 2 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| VGA (D-Sub) ports quantity | 1 |
| COM ports quantity | 2 |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 1 |
| HDMI version | 2.0b |
| DisplayPort version | 1.4a |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
Network | |
| Ethernet LAN | Yes |
| Wi-Fi | No |
Features | |
| Motherboard chipset | Intel H610 |
| Cooling type | Active |
| Windows operating systems supported | Windows 10, Windows 11 |
| Linux operating systems supported | Yes |
| Power supply | 120 W |
| Product colour | Black |
Expansion slots | |
| Number of M.2 (M) slots | 1 |
BIOS | |
| BIOS type | AMI |
Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Operating relative humidity (H-H) | 10 - 90% |
Weight & dimensions | |
| Width | 200 mm |
| Depth | 238 mm |
| Height | 72 mm |
Other features | |
| Weight | 2.2 kg |
| DC-in jack | Yes |
| Number of processors supported | 1 |
| Chassis type | 3.5L sized PC |
Technical details | |
| Product type | PC barebone |
| Operating system installed | No |
| Sustainability certificates | ENERGY STAR, ErP |
| Compliance certificates | RoHS |
Packaging content | |
| Drivers included | Yes |
Processor special features | |
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
Packaging data | |
| Package weight | 3.5 kg |
Logistics data | |
| Harmonized System (HS) code | 84733080 |
| Country of origin | China |
