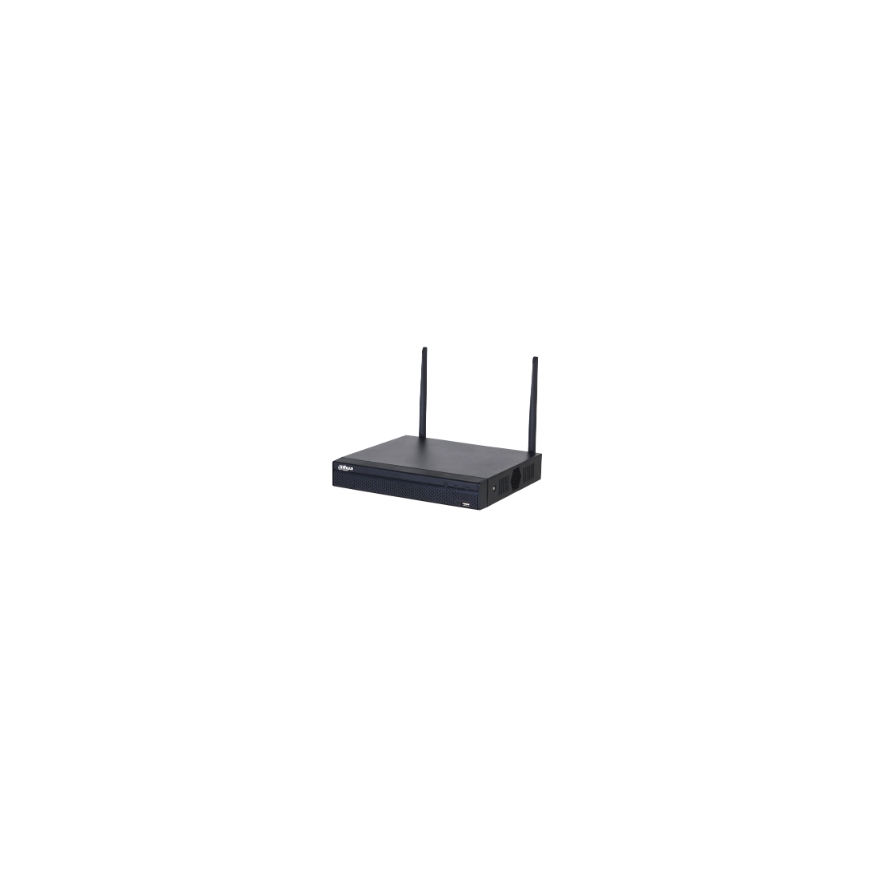

Dahua Technology NVR1104HS-W-S2-CE 1U Black
89.04 €
Monthly payment from 3,19 €
1389982 DHI-NVR1104HS-W-S2-CE
6939554982866, 6923172542984
2026-09-29
You are interested in this product?
All about the product
With its embedded Wi-Fi module, Dahua's Lite Series Wireless Recorder supports the AP function, and automatically detects and connects with Dahua wireless cameras. It has two antennas that together produce strong wireless signals, and has IEEE 802.11 b/g/n (2.4G Hz) Wi-Fi which allows it to cover a wider area. This NVR also supports the access of IP cameras, making installation more convenient.Without the limitation of network cables, the wireless recorder combined with the Dahuawireless camera provides a great solution for SMB surveillance systems, making this NVR ideal for a wide range of applications including home safety, cafes, supermarkets, retail, education and more industries.
New User Interface
Highly user friendly, the new web interface and GUI have a minimalist
flat design, that makes navigating the system much easier. The
functional modules have also been arranged to be clearer and easier to
understand.
Automatic Wireless Pairing
In just 120 seconds, the wireless NVR automatically pairs with the
wireless IPC after the system starts up, allowing you to work faster and
more efficiently.
Wireless Cascading
The wireless NVR automatically cascades IPCs for long-distance
surveillance.
Features
| Operating system installed | Embedded LINUX |
| Product colour | Black |
| HDMI ports quantity | 1 |
| USB 2.0 ports quantity | 2 |
| Maximum frame rate | 25 fps |
| Weight | 824 g |
| Width | 260.3 mm |
| Depth | 247.3 mm |
| Height | 44.7 mm |
| Package width | 372 mm |
| Package depth | 117 mm |
| Package height | 308 mm |
| Package weight | 1.56 kg |
| Mobile operating systems supported | Android; iOS |
| Certification | CE: EN62368-1; EN55032; EN55024; EN55035; EN61000-; 3-2; EN61000-3-3; EN50130-4 FCC: Part 15 Subpart B CE-; RED: EN301489-1; EN 301489-17; EN300328; EN300328;; EN62311; FCC ID: 47 CFR PART 15 SUBPART C |
| Operating temperature (T-T) | -10 - 45 °C |
| Operating relative humidity (H-H) | 10 - 93% |
| DC-in jack | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 10; 100 |
| LED indicators | Power; HDD; Network |
| Output voltage | 12 V |
| Output current | 1.5 A |
| Maximum storage capacity | 16 TB |
| Video recording modes | 720p; 1080p |
| Input bandwidth | 40 Mbit/s |
| Number of HDDs installed | 1 |
| Supported network protocols | HTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; NTP; DHCP; DNS; Alarm Server;P2P |
| Video motion detection | Yes |
| Browser supported | Chrome; IE 9 or later; Firefox |
| Built-in processor | Yes |
| HDD interface | SATA |
| Rack capacity | 1U |
| HDMI output | Yes |
| Rack mounting | Yes |
| Video input channels | 4 channels |
| VGA (D-Sub) output ports | 1 |
| Audio RCA inputs | 1 |
| Audio RCA outputs | 1 |
| Backup function | Yes |
| Audio codecs | PCM; G711A; G711U; G726 |
| Recording modes | Manual |
| Video codecs | Smart H.265; H.265; Smart H.264; H.264; MJPEG |
| Output bandwidth | 20 Mbit/s |
