The product's shade and actual color may differ from what is shown in the picture, as the images are for illustrative purposes. The product description is general and may not include all the product's features.

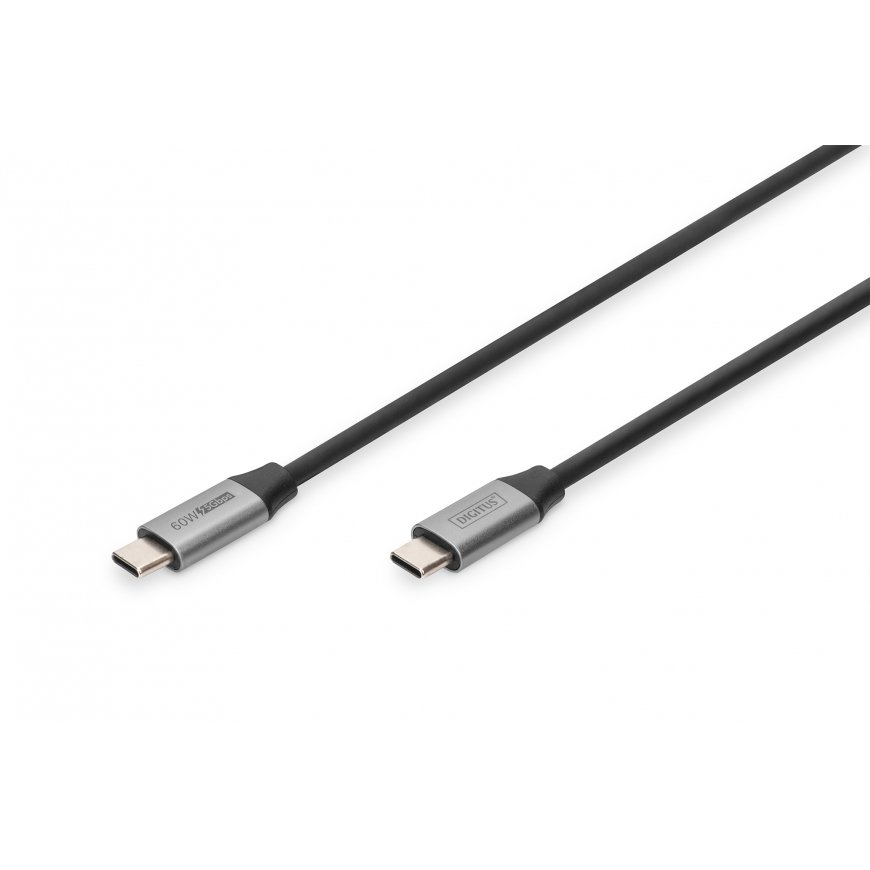

Digitus USB-3.0 Gen.1, USB Type-C connection cable
15.09 €
1381299 DB-300220-010-S
4016032481164
Shipping 3-5 b.d.
You are interested in this product?
All about the product
Supports the following transmission types: audio/video data transfer/charging function- Supports data transfer rates of up to 5 Gbit/s
- Supports USB Power Delivery with 20 V, 3A and 60W
- Backwards-compatible with Thunderbolt 3 and USB 2.0
- Supports DisplayPort video/audio signals and PCi Express
- Video/audio support up to 4K with 60 Hz
- USB version: USB-3.0 Gen. 1
- Aluminum housing
The DIGITUS® USB 3.0 Gen. 1 connection cable is an all-rounder among cables. Thanks to the Thunderbolt 3 protocol, it can be used for PCI Express, DisplayPort and Host-to-Host transfers. With this cable, you can transfer audio/video signals, data as well as power. The data transfer speed is 5 Gbit/s. This allows you to transfer large quantities of data such as films and music within seconds. Video signals are transmitted max. in 4K with a display refresh rate of 60 Hz. Thanks to USB Power Delivery, the charging function is ensured. With the corresponding charging device, you can charge your smart devices rapidly with max. 60 W (3 A / 20 V). The USB Type-C interface enables wide compatibility with devices with this connection.
Features
| Product colour | Black |
| USB version | USB 3.2 Gen 1 (3.1 Gen 1) |
| Cable length | 1 m |
| Connector 1 | USB C |
| Connector 2 | USB C |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Connector contacts plating | Nickel |
| Conductor material | Copper |
| Quantity per pack | 1 pc(s) |
| Package width | 120 mm |
| Package depth | 110 mm |
| Package height | 30 mm |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Cable jacket material | Thermoplastic elastomer (TPE) |
| Plug and Play | Yes |
| Package weight | 48.889 g |
| Cable type | Round cable |
| Country of origin | China |
| Operating temperature (T-T) | -20 - 60 °C |
| Storage temperature (T-T) | -10 - 50 °C |
| Output voltage | 20 V |
| Maximum data transfer rate | 5000 Mbit/s |
| Package volume | 396 cm³ |
| Maximum data transfer rate | 5 Gbit/s |
| Ferrite bead | No |
| Output current (max) | 3 A |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery up to | 60 W |
| Connector material | Nickel |
