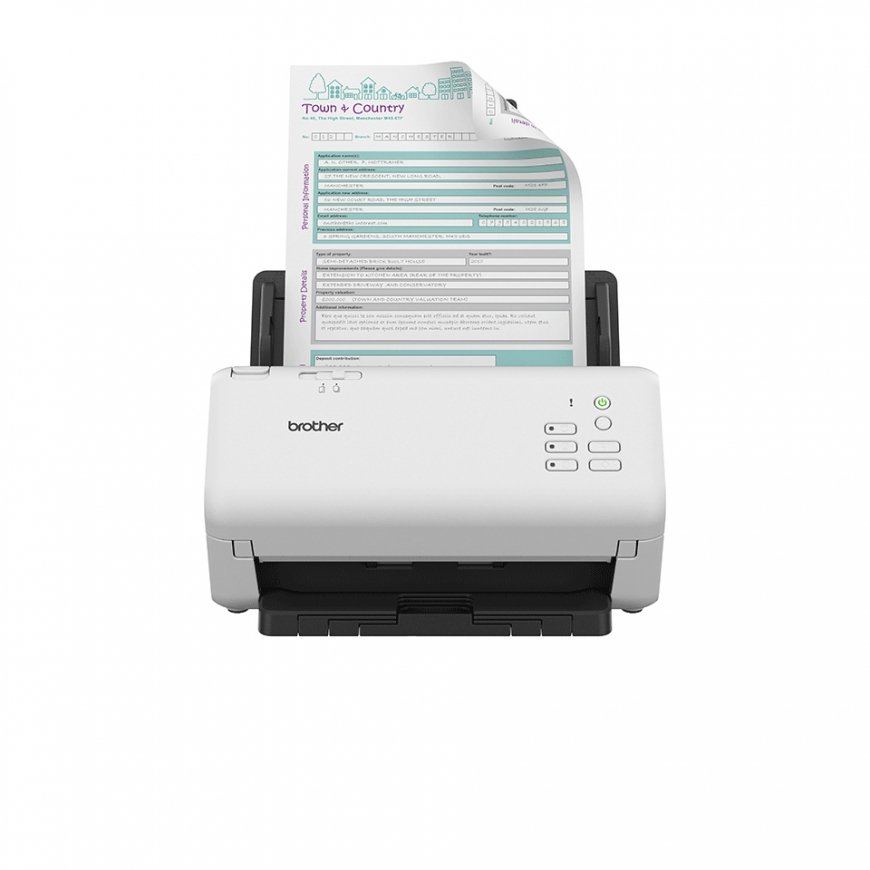

Brother ADS-4300N scanner ADF scanner 600 x 600 DPI A4 Black, White
392,70 €
391.50 €
Monthly payment from 10,98 €
1337241 ADS-4300N
4977766814638, 0012502666349, 4977766814621, 4977766814652
Shipping 5-7 b.d.
You are interested in this product?
All about the product
With high-speed wired connectivity. Great choice for scanning documents to the network and collaborating with colleagues. Ideal for shared use in the office.Features | |
| Scanner type | ADF scanner |
| Product colour | Black, White |
| Colour scanning | Yes |
Performance | |
| Sensor type | Dual CIS |
| Maximum duty cycle | 120000 pages per month |
| Scan file formats | PDF, TIFF, JPEG |
| Scan to | FTP, Image, PC, USB, SMB |
| Daily duty cycle (max) | 6000 pages |
| Scanning noise level | 59 dB |
| Scan drivers | TWAIN, WIA, SANE, ICA |
Paper handling | |
| Maximum scan width | 21.6 cm |
| Auto Document Feeder (ADF) media weight | 40 - 200 g/m² |
| Scanning media types supported | Plastic Card, Business Card, Plain paper, Recycled paper, Thick paper, Thin paper |
| Maximum ISO A-series paper size | A4 |
| Maximum scan length | 5 m |
| Card thickness (max) | 1.1 mm |
| Paper tray media weight | 40 - 200 g/m² |
Ports & interfaces | |
| USB version | 2.0/3.2 Gen 1 (3.1 Gen 1) |
| USB port | Yes |
Network | |
| Ethernet LAN | Yes |
| Supported network protocols | DHCP, APIPA (Auto IP), WINS/NetBIOS, DNS Resolver, mDNS, SNMPv1/v2c/v3, ICMP, Web Services(Scan), HTTP/HTTPS server, LLMNR responder, SNTP Client, LDAP, RA, DNS Resolver, mDNS, LLMNR responder, Web Services(Scan), SNTP Client, HTTP/HTTPS server, ICMPv6 |
| Security algorithms | SSL/TLS, EAP-FAST, EAP-MD5, EAP-TLS, EAP-TTLS, HTTPS, PEAP, SMTP-AUTH, SNMPv3 |
| Supported network protocols (IPv6) | RA, DNS Resolver, mDNS, LLMNR responder, Web Services(Scan), SNTP Client, HTTP/HTTPS server, ICMPv6 |
| Supported network protocols (IPv4) | DHCP, APIPA (Auto IP), WINS/NetBIOS, DNS Resolver, mDNS, SNMPv1/v2c/v3, ICMP, Web Services(Scan), HTTP/HTTPS server, LLMNR responder, SNTP Client, LDAP |
| IPv6 support | Yes |
Other features | |
| Certification | GS Mark, ISIS, WHQL KofaxTM 5,10, VRS Elite 5.2.0, Kofax Express 3.3.0 |
| Light source | LED |
| Linux operating systems supported | Yes |
| Compliance certificates | RoHS |
| Spare part retention | 5 year(s) |
Design | |
| Built-in display | No |
| Control type | Buttons |
Logistics data | |
| Country of origin | China |
| Pallet gross weight | 166.4 kg |
| Master (outer) cases per pallet layer | 8 pc(s) |
| Quantity per pack | 1 pc(s) |
| Products per pallet | 40 pc(s) |
| Master (outer) cases per pallet | 40 pc(s) |
| Layers per pallet | 5 pc(s) |
| Pallet gross height | 17.8 cm |
| Harmonized System (HS) code | 84716070 |
Power | |
| Power consumption (standby) | 6.8 W |
| Power consumption (typical) | 24 W |
| Power supply type | AC |
| Power consumption (off) | 0.1 W |
| Output voltage | 24 V |
| Output current | 1.9 A |
| Power consumption (sleep) | 1.7 W |
| AC input frequency | 50 - 60 Hz |
Weight & dimensions | |
| Weight | 3.09 kg, 2.64 kg |
| Width | 243 mm, 299.5 mm |
| Depth | 320 mm, 215.9 mm |
| Height | 190.5 mm, 391 mm |
Operational conditions | |
| Operating temperature (T-T) | 5 - 35 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 10 - 90% |
Scanning | |
| Maximum scan size | 215.9 x 355.6 mm |
| Optical scanning resolution | 600 x 600 DPI |
| Enhanced scan resolution | 1200 x 1200 DPI |
| Greyscale levels | 256 |
| Duplex scanning | Yes |
| Input colour depth | 48 bit |
| Output colour depth | 24 bit |
| ADF scan speed (b/w, A4) | 40 ppm |
| ADF scan speed (colour, A4) | 40 ppm |
| Duplex ADF scan speed (b/w, A4) | 80 ipm |
| Duplex ADF scan speed (colour, A4) | 80 ipm |
| Output greyscale depth | 8 bit |
System requirements | |
| Windows operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Server operating systems supported | Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019 |
Technical details | |
| Pallet type | 800 x 1200 mm |
Sustainability | |
| Sustainability compliance | Yes |
Packaging content | |
| Cables included | AC, USB |
Packaging data | |
| Package width | 391 mm |
| Package depth | 320 mm |
| Package height | 243 mm |
| Package weight | 3.74 kg, 3.32 kg |
Input capacity | |
| Auto document feeder (ADF) input capacity | 80 sheets |
