Digitus 483 mm (19“) DIN Rail Holder, 4U
79.00 €
Monthly payment from 2,93 €
1326448 DN-19-DIN-4U
4016032456100
Shipping 3-5 b.d.
You are interested in this product?
All about the product
- For quick and screwless mounting of 35 mm DIN rail equipment- Incl. mounted DIN rail acc. to DIN EN 60715 (HxW= 35x390 mm), variable in depth
- Rear side with c shaped cable tray for optimized cabling, variable in height

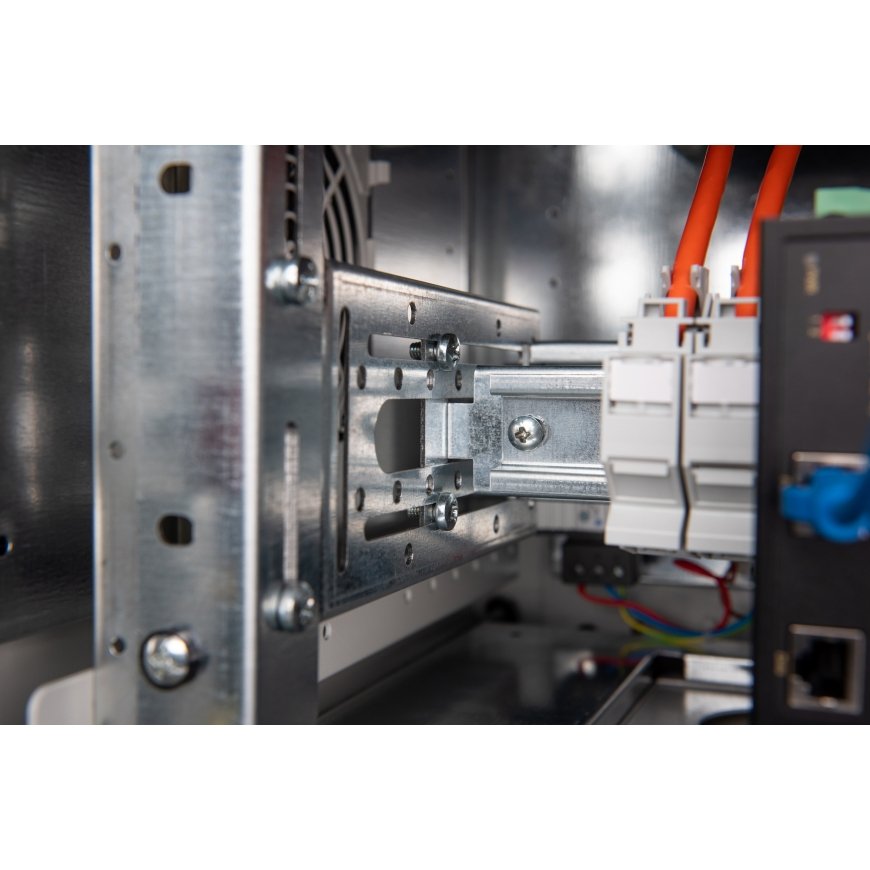

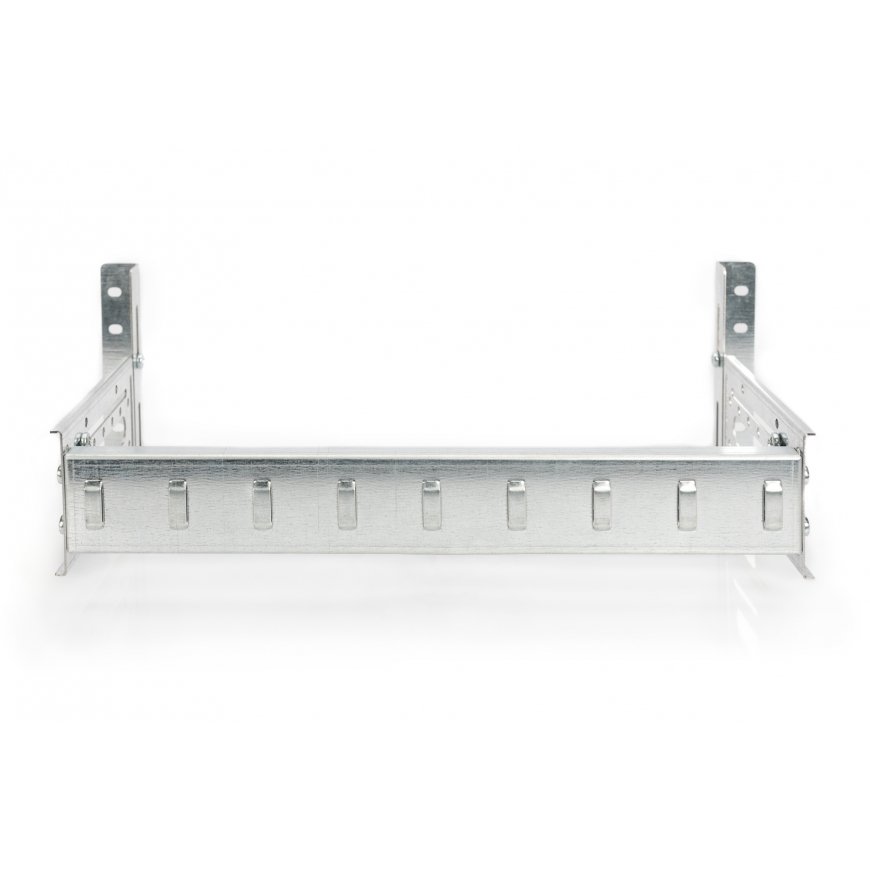

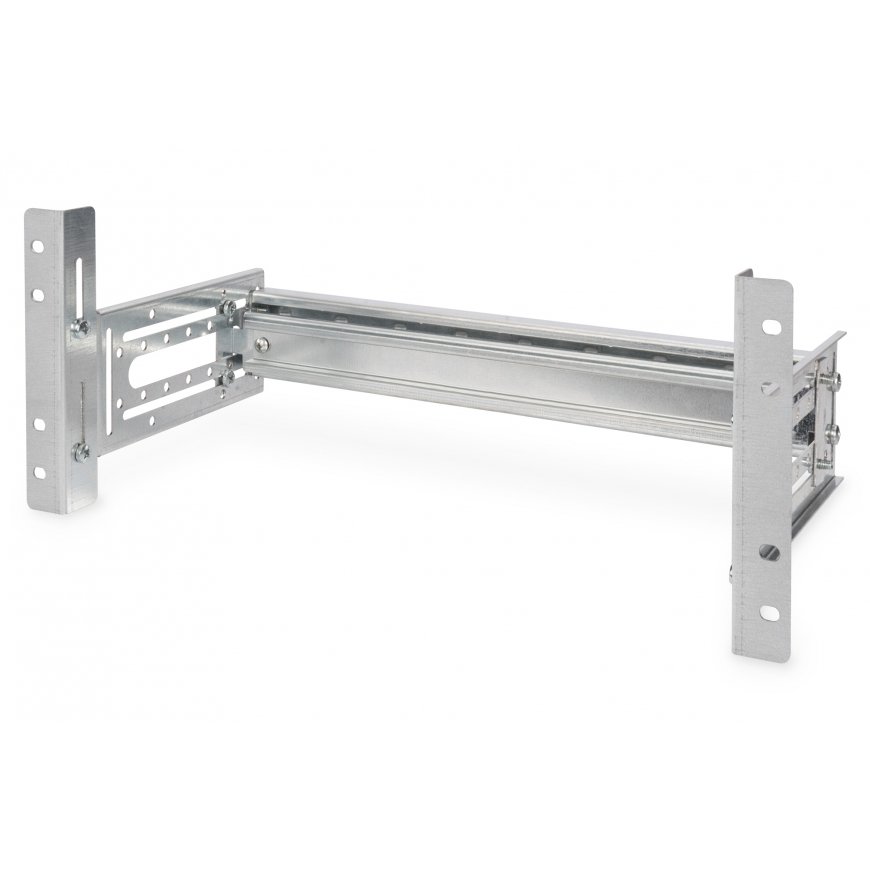

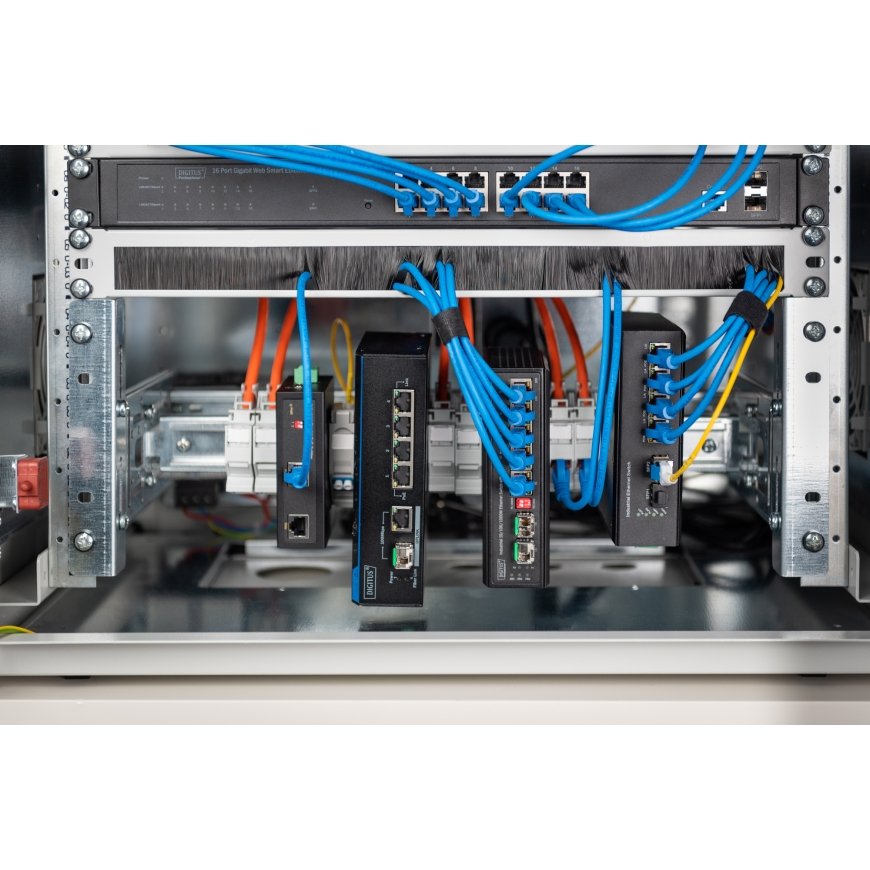

The 483 mm (19“) DIN Rail Holder makes the installation of suitable equipment on the already mounted 390 mm width DIN rail possible. It is variable in depth and can be turned 90° up or down to install the components horizontally if necessary. The rear side is equipped with a height variable C shaped cable tray with fixing points for tape or cable ties. The complete frame can also be adjusted in height (4U brackets are fixed in the rack) to suit individual needs of space.
Features
| Product colour | Silver |
| Weight | 1.6 kg |
| Width | 483 mm |
| Depth | 223 mm |
| Height | 178 mm |
| Material | Zinc steel |
| Package width | 500 mm |
| Package depth | 240 mm |
| Package height | 200 mm |
| Package weight | 3.5 kg |
| Country of origin | Turkey |
| Package volume | 24000 cm³ |
| Rack capacity | 4U |
