The product's shade and actual color may differ from what is shown in the picture, as the images are for illustrative purposes. The product description is general and may not include all the product's features.

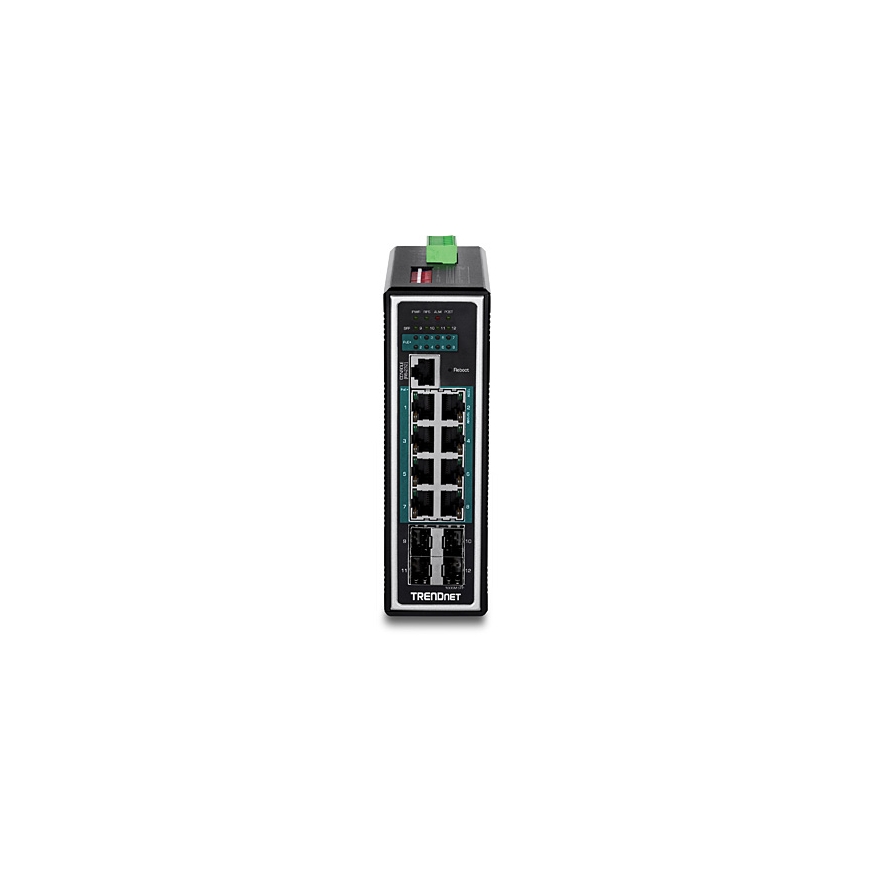

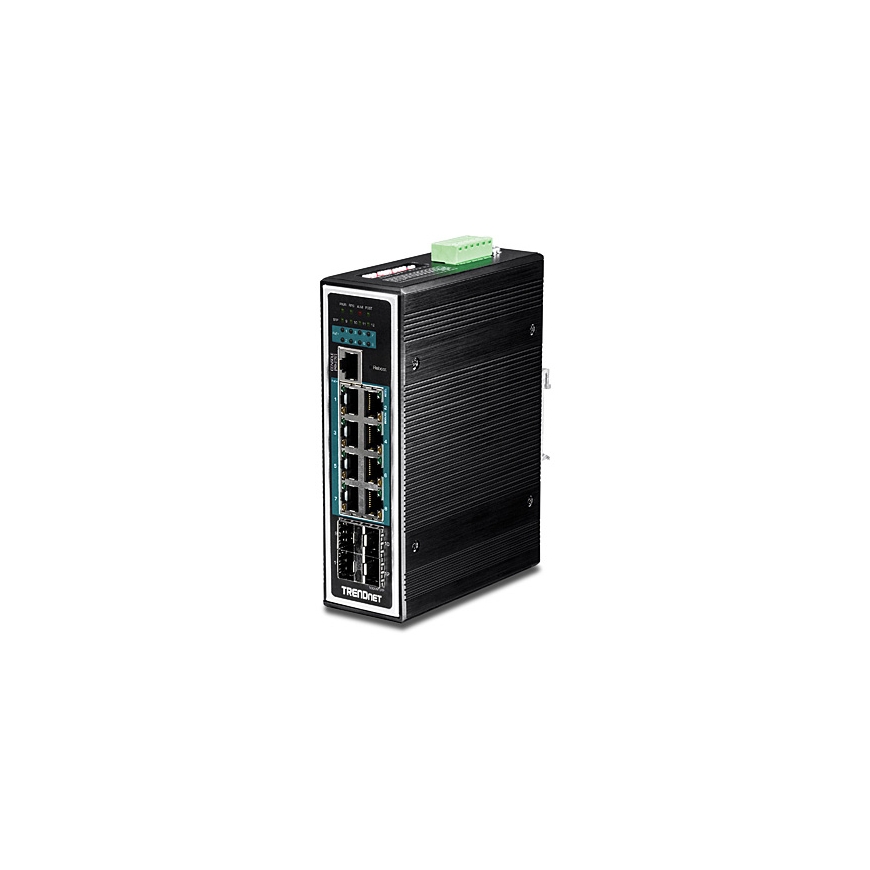

Trendnet TI-PG1284i Managed L2+ Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
689,35 €
Monthly payment from 18.65 €
1266584 TI-PG1284I
0710931160598
This product is no longer in stock
You are interested in this product?
Industrial Hardened Design
Equipped with a rugged IP30 rated enclosure and designed to withstand a high degree of vibration, shock, protection against ESD / EMI / surge, and operate with a wide temperature range (- 40 – 75 °C (- 40 - 167 °F)) for harsh environments.
Integration Flexibility
Managed features include PoE control, IP static routing, access control lists, VLAN, IGMP snooping, QoS, RMON, SNMP trap, and syslog for monitoring and flexible network integration.
Fault Tolerance
Features dual redundant power inputs (Primary and RPS) from external power sources and an output alarm relay to indicate the event of input power failure.
Full PoE+ Power Budget
Supplies up to 30 Watts of PoE / PoE+ power per port with a 240 Watts PoE power budget
Network Ports and Capacity
8 x Gigabit PoE+ ports and 4 x Gigabit SFP slots allow for a 24 Gbps switching capacity and 1 x console (RJ-45 to RS-232) for out-of-band management
Integrated DIN-Rail Mount
IP30 rated metal enclosure with integrated DIN-Rail mounting hardware
Full PoE Control Per Port
PoE control features include enabling/disabling PoE and class, power priority, PD alive check, scheduling, and power delay per port using CLI or web management.
Traffic Management
Managed features include 802.1Q / Q-in-Q / GVRP / MAC & Protocol-Based VLAN, IGMP v1 / 2 / 3, IGMP Snooping, MLD, MVR, per port bandwidth control / 802.1p / DSCP / Queue Scheduling (SPQ / WRR), STP / RSTP / MSTP spanning tree, static and dynamic link aggregation, and Xpress Ring + ERPS protection for flexible network integration.
Layer 2+ Management
Offers IPv4 / IPv6 static or DHCPv4 / v6 assignment, IPv4 / IPv6 static routing and proxy ARP, DHCP server / relay / option 82, and DHCP server snooping / screening to filter out unauthorized DHCP servers
Access Controls
Management via HTTPS and SSH protocols and features such as trusted host, ACLs, IP-MAC-Port binding, ARP inspection, 802.1X RADIUS, MAC address learning, IP Source Guard provide layered network access controls.
System Monitoring
Monitoring features include SNMP v1 / v2c / 3, MIB support, SNMP trap, RMON Groups (1, 2, 3, 9), SMTP alert, syslog, port mirroring, SFP DDMI, and ModBus / TCP.

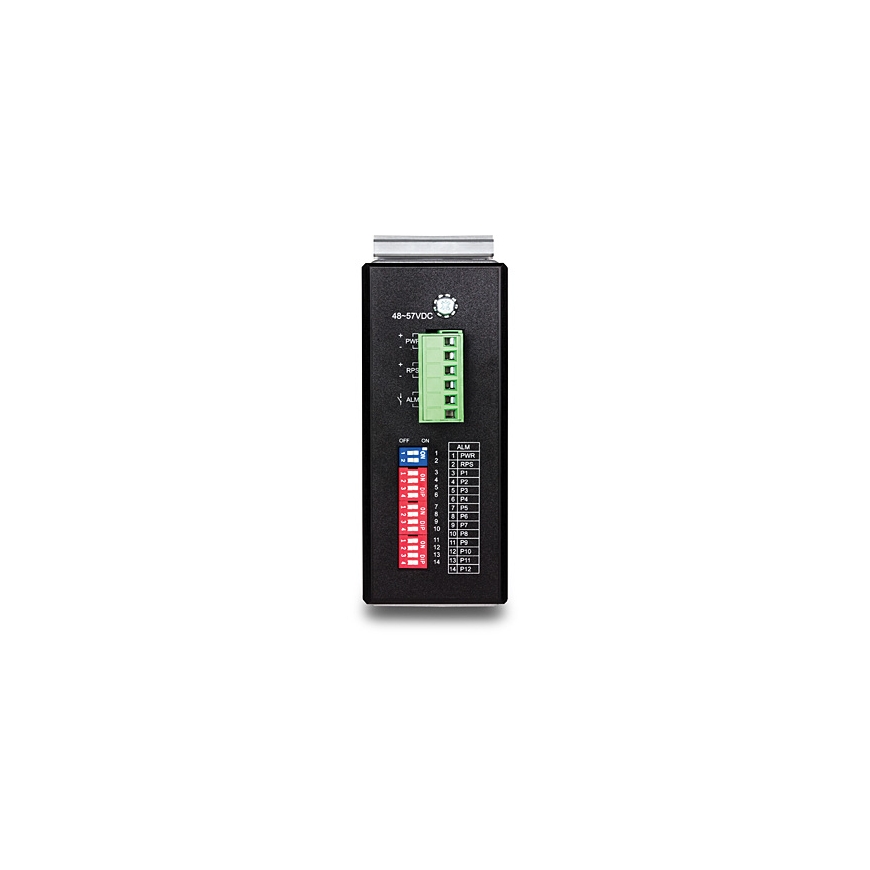

Redundant Power
Dual redundant power inputs (primary and RPS) with overload current protection
Alarm Output
Alarm relay output triggered by power failure of primary and/or redundant power and failure per port (DIP switch)
Jumbo Frame
Sends larger packets, or Jumbo Frames (up to 10 K)
Wide Temperature
Hardened switch is rated for an operating temperature range of - 40 to 75 °C (-40 to 167 °F)
Electro Magnetic Compliance
Complies with IEC61000-6-2 EMC generic standard immunity for industrial environments
Shock and Vibration Resistant
Rated for shock (IEC 60068-2-27), freefall (IEC 60068-2-32), and vibration (IEC 60068-2-6)
LED Indicators
LED indicators convey power, redundant power, alarm, SFP, PoE, and network port status
Grounding Point
Grounding point protects equipment from external electrical surges
Network | |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3at, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ad, IEEE 802.3x, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3z |
| Full duplex | Yes |
| Multicast support | Yes |
| Jumbo frames support | Yes |
| Jumbo frames | 10000 |
| Port mirroring | Yes |
| Number of VLANs | 256 |
Ports & interfaces | |
| Terminal block port | Yes |
Management features | |
| Web-based management | Yes |
| Quality of Service (QoS) support | Yes |
Security | |
| Security algorithms | 802.1x RADIUS, HTTPS, SNMP |
| MAC address table | 16000 entries |
| System event log | Yes |
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
Design | |
| LED indicators | Yes |
| Product colour | Black |
| International Protection (IP) code | IP30 |
Features | |
| Mean time between failures (MTBF) | 322805 h |
Power | |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Output voltage | 48 V |
| Output current | 5 A |
| Power over Ethernet (PoE) | Yes |
Operational conditions | |
| Operating temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 0 - 95% |
Weight & dimensions | |
| Width | 170 mm |
| Depth | 132 mm |
| Height | 50 mm |
| Weight | 920 g |
Other features | |
| Rack mounting | No |
Certificates | |
| Certification | CE, FCC |
Logistics data | |
| Harmonized System (HS) code | 85176990 |
Packaging content | |
| Quick start guide | Yes |
