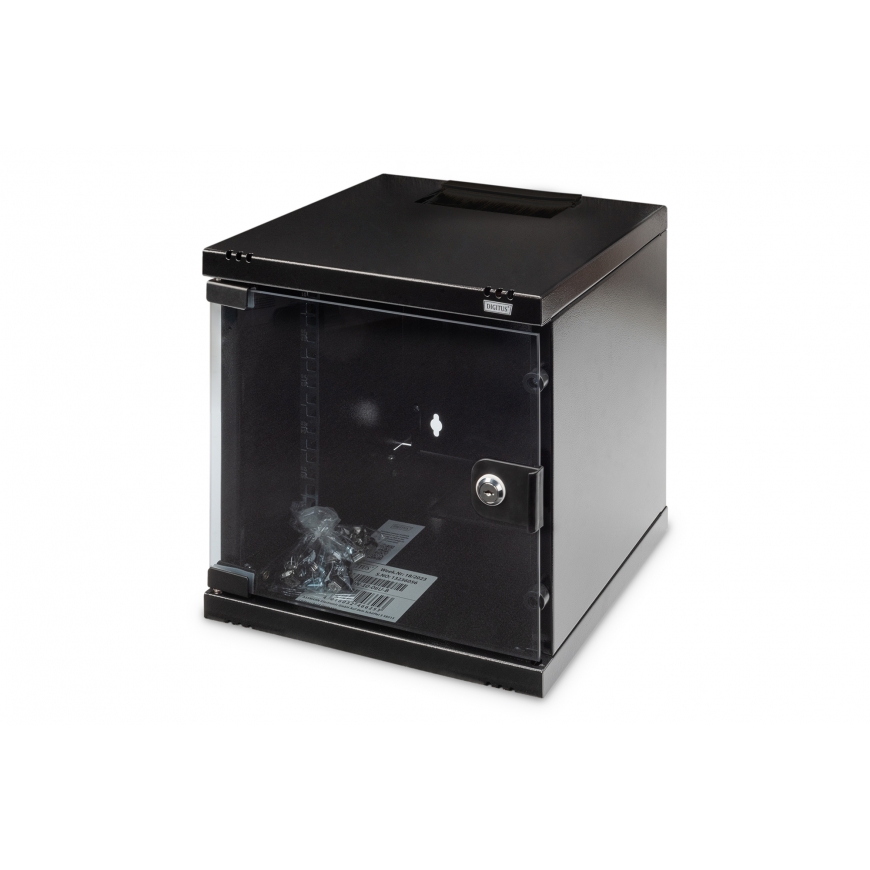

Digitus Wall-mounted housing 254 mm (10") - 312x300 mm (WxD)
80,71 €
Monthly payment from 2.98 €
1251496 DN-10-06U-B
4016032466253, 2100017572533
Shipping 1-2 b.d.
You are interested in this product?
- Compact housing for installations where space is limited
- Ready for immediate use: Delivery is assembled
- Flexible cable routing options thanks to protected openings in the roof and floor
- Lockable safety glass door with 200° door opening angle
- Depth-adjustable 254 mm (10") profile rails
- Load capacity for the installation of components: 30 kg
Whether in the home, office or in sub-distribution boards where space is limited: With the compact 254 mm (10") solutions, you can install your network wherever you want. Available in three height units (6U, 9U, 12U), the wall-mounted enclosures are equipped with a full glass door and a cable entry with brushes in the top and bottom. A pair of galvanized 254 mm (10") profile rails labelled with legible height units are installed inside. These can be adjusted in depth. Each cabinet is a robust steel construction made of up to 1.5 mm thick sheet steel. The coloring takes the form of electrostatic powder coating in the standard colors grey (RAL 7035) and black (RAL 9005). Door hinges can be changed. Furthermore, the cabinets can be completely dismantled if required thanks to the demountable design.
Features | |
| Product colour | Black |
| Material | Steel |
| International Protection (IP) code | IP20 |
| Key lock | Yes |
| Maximum weight capacity | 30 kg |
Design | |
| Rack capacity | 6U |
Logistics data | |
| Country of origin | China |
| UK Trade Tariff code | 94032080 |
| Harmonized System (HS) code | 85381000 |
Weight & dimensions | |
| Weight | 5.33 kg |
| Package weight | 8 kg |
| Depth | 300 mm |
| Height | 330 mm |
| Package depth | 360 mm |
| Package height | 400 mm |
| Package width | 370 mm |
| Width | 312 mm |
Technical details | |
| Package volume | 51948 cm³ |
Other features | |
| Type | Wall mounted rack |
