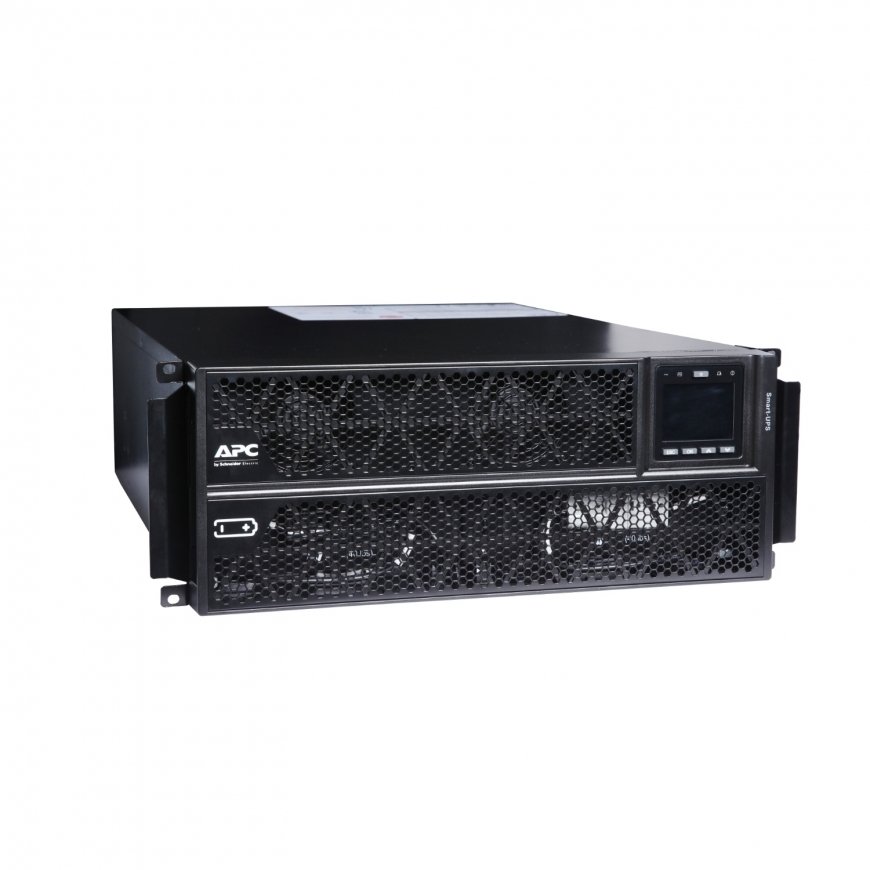

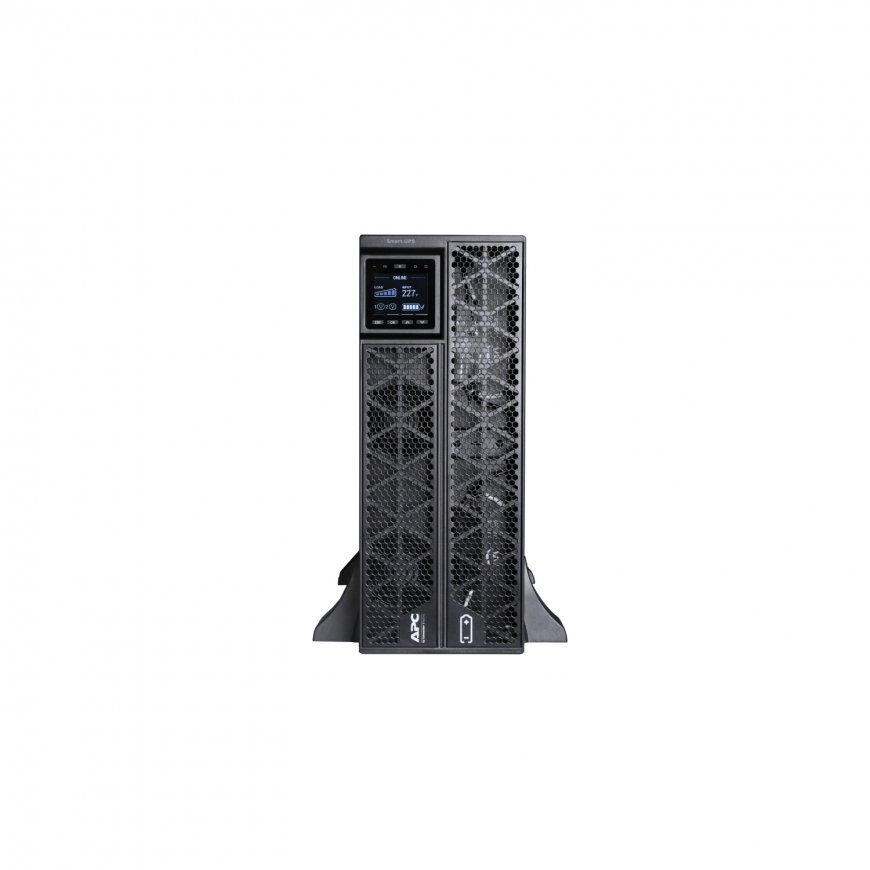

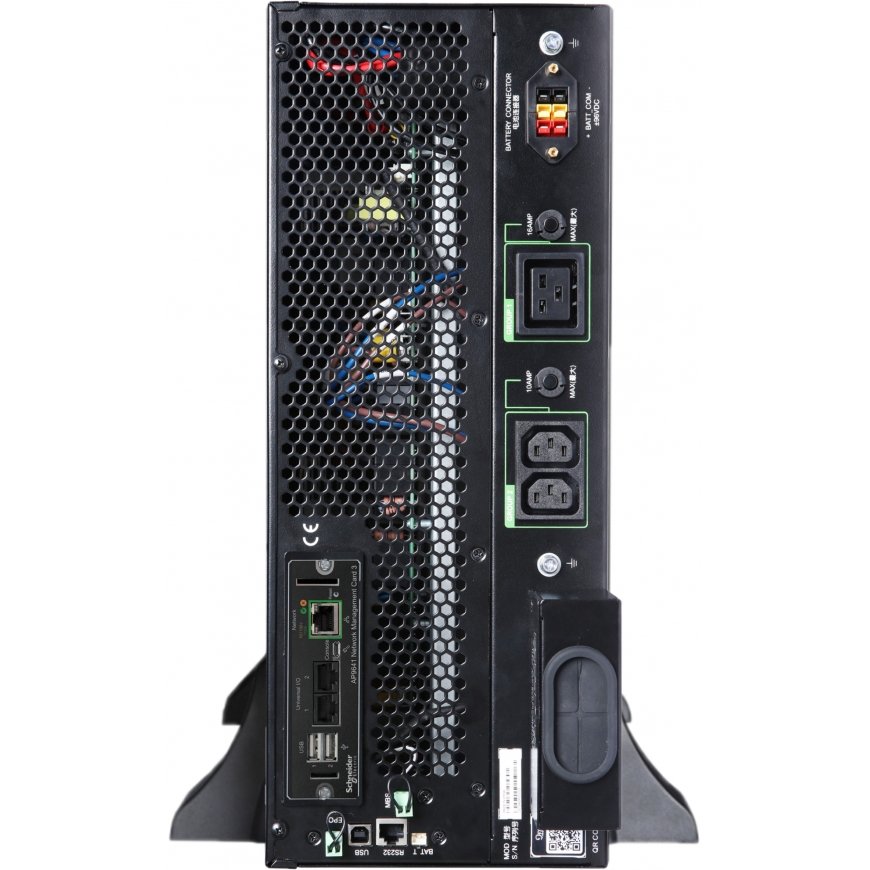

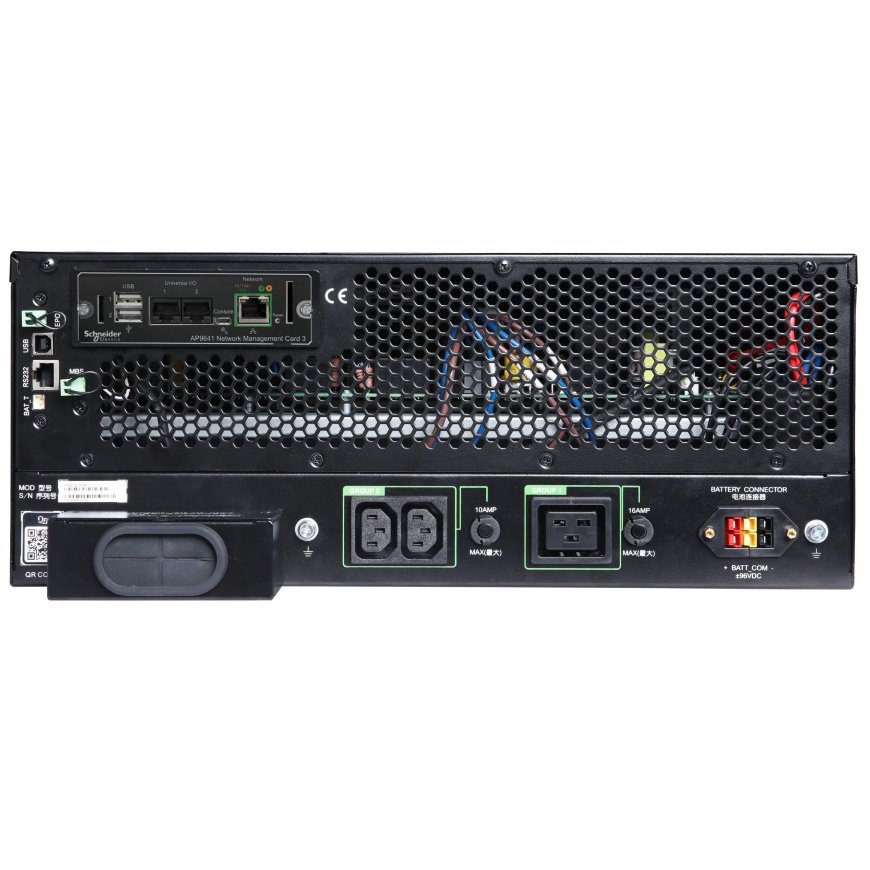

APC SRTG5KXLI uninterruptible power supply (UPS) Double-conversion (Online) 5 kVA 5000 W 3 AC outlet(s)
4 137.50 €
Monthly payment from 107,44 €
1245168 SRTG5KXLI
0731304411802, 0731304411796
Shipping 5-7 days
You are interested in this product?
All about the product
Automatic restart of loads after UPS shutdownAutomatically starts up the connected equipment upon the return of utility power.
Automatic self-test
Periodic battery self-test ensures early detection of a battery that needs to be replaced.
Battery failure notification
Provides early-warning fault analysis on batteries enabling timely preventive maintenance
ECO Mode
Operating mode that by-passes unused electrical components in good power conditions to achieve high operating efficiency without sacrificing protection
LCD Status Display
Provides key UPS status at a glance. Multiple status indicators with load and battery bar graphs.
Cold-start capable
Provides temporary battery power when the utility power is out.
Safety-agency approved
Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.
Resettable circuit breaker
Easy recovery from overloads; no need to replace a fuse. (Not available on Wall Tap SKUs)
Power conditioning
Protects connected loads from surges, spikes, lightning, and other power disturbances.
Input Power Factor Correction
Minimizes installation costs by enabling the use of smaller generators and cabling.
Generator compatible
Ensures clean, uninterrupted power to protected equipment when generator power is used.
Frequency and voltage regulation
Gives higher application availability by correcting poor frequency and voltage conditions without using the battery.
SmartSlot
Customize UPS capabilities with management cards.
Network manageable
Most models provide remote power management options of the UPS over the network. Many do not have NMC embedded.
Serial connectivity
Provides management of the UPS via a serial port.
InfraStruXure Manager Compatible
Enables centralized management via the APC InfraStruXure Manager.
LED status indicators
Quickly understand unit and power status with visual indicators.
Features
| Product colour | Black |
| Display type | LCD |
| USB port | Yes |
| Form factor | Compact |
| International Protection (IP) code | IP20 |
| Weight | 51.9 kg |
| Width | 440 mm |
| Depth | 620 mm |
| Height | 178 mm |
| Package width | 590 mm |
| Package depth | 790 mm |
| Package height | 275 mm |
| Package weight | 59 kg |
| Certification | CE, EN/IEC 62040-1 |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -15 - 45 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Ethernet LAN (RJ-45) ports | 1 |
| LED indicators | Yes |
| Battery technology | Sealed Lead Acid (VRLA) |
| Battery recharge time | 4 h |
| Battery voltage | 96 V |
| Noise level | 55 dB |
| Storage relative humidity (H-H) | 0 - 95% |
| Audible alarm(s) | Yes |
| AC outlets quantity | 3 AC outlet(s) |
| Operating altitude | 0 - 2011 m |
| Output power | 5000 W |
| Rack capacity | 4U |
| Non-operating altitude | 0 - 15240 m |
| Serial interface | Yes |
| UPS topology | Double-conversion (Online) |
| Output power capacity | 5 kVA |
| Waveform | Sine |
| Input operation voltage (min) | 100 V |
| Input operation voltage (max) | 285 V |
| Input frequency | 40/70 Hz |
| Output operation voltage (min) | 220 V |
| Output operation voltage (max) | 240 V |
| Surge energy rating | 600 J |
| Crest factor | 3:1 |
| Emergency Power Off (EPO) | Yes |
| AC outlet types | C19 coupler; C13 coupler |
| SmartSlot | Yes |
| Battery life (max) | 5 year(s) |
| Hot-swap battery | Yes |
| Automatic battery test | Yes |
| Cold start | Yes |
| Output frequency | 50/60 Hz |
| Output voltage Total Harmonic Distortion (THD) | 2% |
| Audible alarm modes | Alarm when on battery; Low battery alarm; Overload alarm |
| ECO mode | Yes |
| Emergency Power Off (EPO) connector | Yes |
