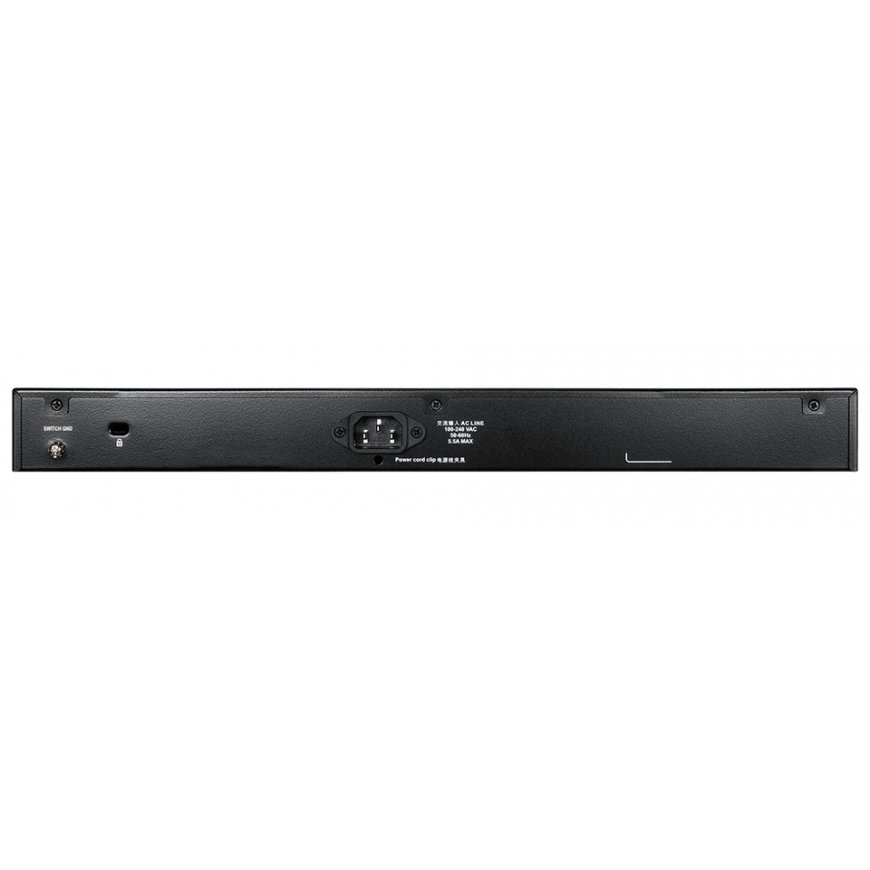

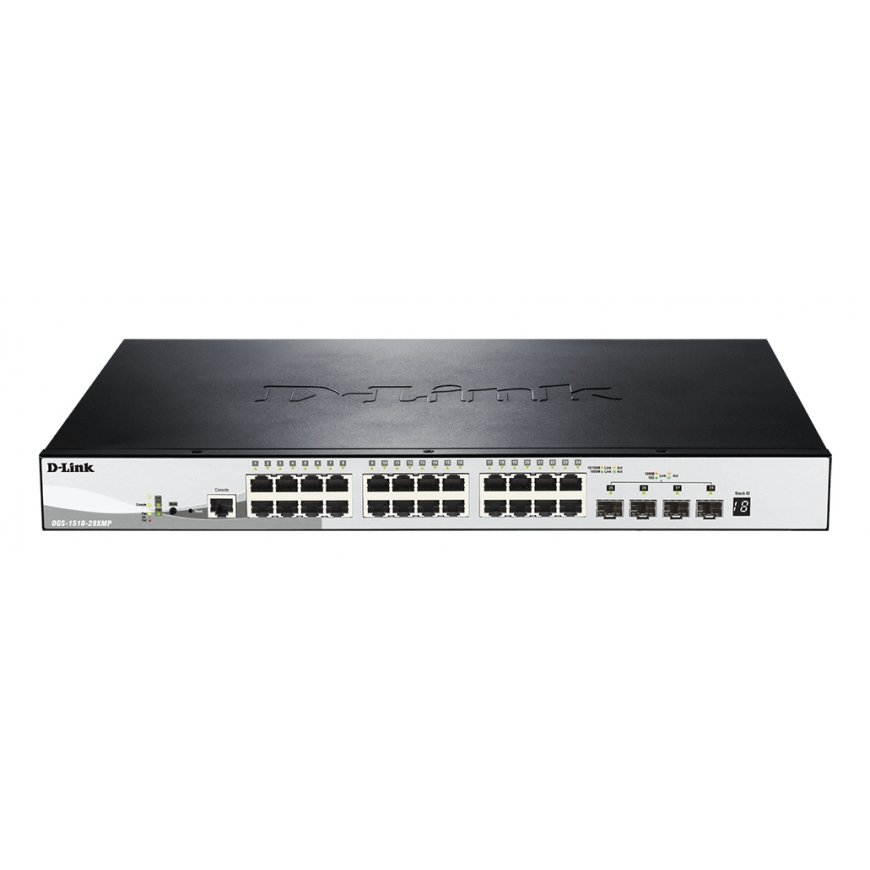

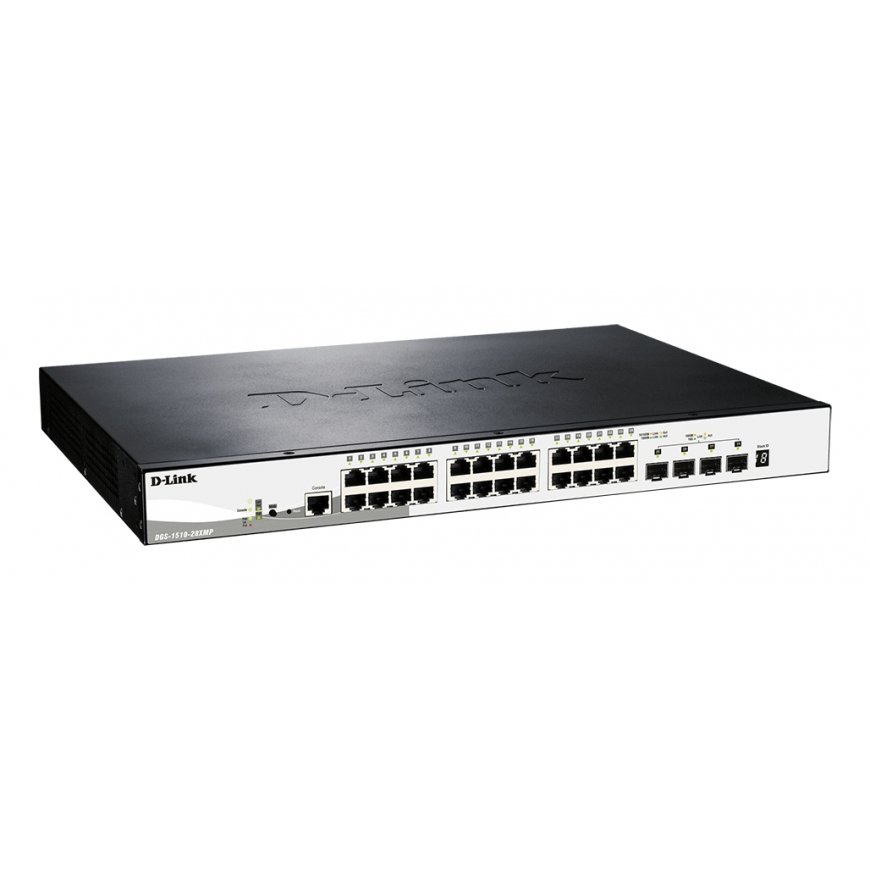

D-Link DGS-1510-28XMP Managed L2/L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black, Grey
958,00 €
938.40 €
Monthly payment from 25,06 €
1196852 DGS-1510-28XMP/E
0790069467943, 5704174940500
Shipping 5-7 days
You are interested in this product?
All about the product
Industry Standard CLI with 10G SFP+ stackingThe D-Link DGS-1510 Series is the latest generation of Smart Managed switches with 10G SFP+ fibre ports for physical stacking or uplinks. The combination of high bandwidth connections, an Industry Standard CLI, and PoE options make the DGS-1510 Series ideal for Small-Medium Enterprise environments.
Fully‑Featured with Layer 3 Traffic Management
The DGS-1510 family has advanced network management options, accessible via Industry Standard CLI, Serial Port Console or the Web-based UI, that equip your business with network capabilities such as VLANs, multiple spanning tree protocol (MSTP), link aggregation (LACP), static routing, multiple firmware images,and multiple configuration files.
10G SFP+ Stacking
Create a physical stack of up to 6 units in a fault‑tolerant ring or linear topology using Direct Attach Cables or any compatible SFP+ transceivers for a total of 288 Gigabit ports. The remaining uplink ports can be used for other functions, offering 10G connectivity to core networks and servers.1
With powerful security features like IGMP snooping, access control lists, port security, and the unique D-Link Safeguard Engine that protects your network against malicious denial-of-service attacks from broadcast, multicast and unicast flooding, the DGS-1510 family is a versatile solution for enterprise network environments.
Max PoE with budgets up to 740W2
Choose between 193W and 370W power budget options. Or utilise a total of 740W when adding a redundant power supply to the DGS-1510-52XMP.
Powerful Network Design and Management Software
The DGS-1510 Series supports D-View 8, an intelligent management platform that allows for centralized management of the core network. This extensive toolset enables administrators to easily set up and remotely manage their networks, greatly reducing switch deployment time.
Smart Energy‑Saving Design
D-Link Green technology enables the DGS-1510 series to save power without sacrificing performance. The entire series of switches feature a smart fan that adjusts fan-speed and only powers on above a certain temperature. With advanced silicon technology, the DGS-1510 series saves up to 73% of energy compared to normal switches.
Network | |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.1x, IEEE 802.3af, IEEE 802.3at, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ad, IEEE 802.3x, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ae |
| Flow control support | Yes |
| Auto MDI/MDI-X | Yes |
| Full duplex | Yes |
| Multicast support | Yes |
| Jumbo frames support | Yes |
| Jumbo frames | 9216 |
| Port mirroring | Yes |
| Number of VLANs | 4094 |
Ports & interfaces | |
| Fiber optic connector | SFP+ |
Management features | |
| Quality of Service (QoS) support | Yes |
Security | |
| Security algorithms | 802.1x RADIUS, SSH, SSL/TLS, SNMP, SSH-2, EAP |
| MAC address table | 16384 entries |
| System event log | Yes |
| Access Control List (ACL) | Yes |
| Access Control List (ACL) rules | 768 |
| IGMP snooping | Yes |
Design | |
| LED indicators | Power, Activity, Link, PoE, Speed |
| Product colour | Black, Grey |
Features | |
| Safety | cUL, CB |
| Built-in processor | Yes |
| Processor frequency | 400 MHz |
| Heat dissipation | 1487.78 BTU/h |
| Mean time between failures (MTBF) | 274796 h |
| Internal memory | 256 MB |
| Flash memory | 32 MB |
Power | |
| AC input voltage | 100 - 240 V |
| Power over Ethernet (PoE) | Yes |
Operational conditions | |
| Operating temperature (T-T) | -5 - 50 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
Weight & dimensions | |
| Width | 440 mm |
| Depth | 308.5 mm |
| Height | 44 mm |
| Weight | 4.25 kg |
Packaging data | |
| Package width | 450 mm |
| Package depth | 510 mm |
| Package height | 121 mm |
| Package weight | 7.06 kg |
Other features | |
| Rack mounting | Yes |
Logistics data | |
| Shipping (inner) case height | 48.5 cm |
| Shipping (inner) case width | 38.5 cm |
| Shipping (inner) case length | 53 cm |
| Shipping (inner) case net weight | 14.3 kg |
| Products per shipping (inner) case | 3 pc(s) |
| Pallet gross weight (air) | 561.6 kg |
| Master (outer) cases per pallet (air) | 24 pc(s) |
| Products per pallet (air) | 72 pc(s) |
| Pallet gross length | 110 cm |
| Pallet gross width | 120 cm |
| Pallet height (air) | 2.08 m |
| Pallet gross weight (sea) | 561.6 kg |
| Master (outer) cases per pallet (sea) | 24 pc(s) |
| Products per pallet (sea) | 72 pc(s) |
| Pallet height (sea) | 2.08 m |
| Shipping (inner) case gross weight | 22.6 kg |
| Harmonized System (HS) code | 85176990 |
