Kensington SD5600T TBT3/USB-C Dual 4K Docking Station
1185301 K34009EU
4049793068916, 4049793068923, 5028252618083
Shipping 6-10 b.d.
All about the product
Universal compatibility
Perfect for hot-desking and mixed deployment environments, the SD5600T works with Thunderbolt 3 and USB-C laptops running Windows or macOS.
Thunderbolt 3 technology
Allows you to transfer up to 40Gbps of data, video and audio (10Gbps for USB-C Gen2 laptops, 5Gbps for USB-C Gen1 laptops) using the included Thunderbolt 3 cable, for a quick and powerful plug and play experience.
Single 4K or Dual 4K video output for Thunderbolt 3 enabled devices
Extend visual productivity with the crisp resolution, contrast and colour depth of Ultra HD (Single or Dual 4K @ 60Hz) via two DisplayPort ports. USB-C laptops must support Alt Mode. For USB-C Alt Mode devices, a maximum resolution of Single 4K 60Hz or Dual 1440p @ 30Hz is supported for HBR3 laptops or Single 4K 60Hz or Dual 1080p @ 60Hz is supported for HBR2 laptops (dual monitors are for devices that support MST). M1/M2 Base Chipset MacBook supports only a single external display.
Supports USB-C PD 3.0 up to 100W (96W certified)
Quickly and simply charge any Thunderbolt 3 or USB-C enabled laptop. USB-C laptops must support Power Delivery. Ideal for devices that require higher power, such as the newer MacBook Pro. Power delivery rates vary based on host device.
Productive desktop setup

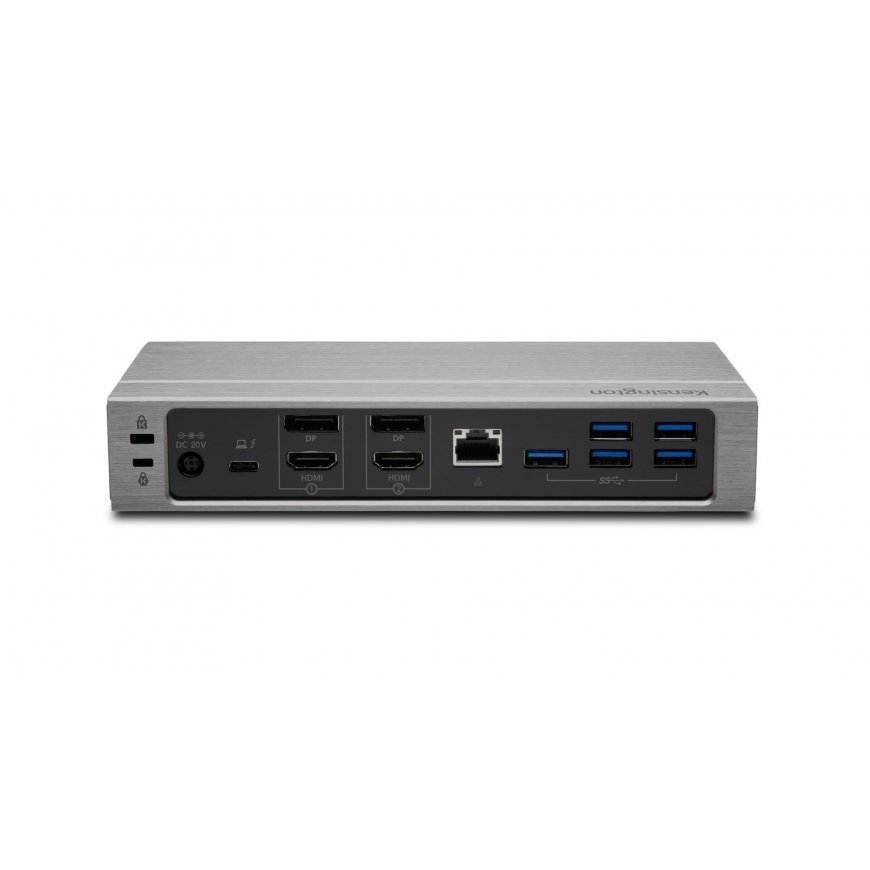

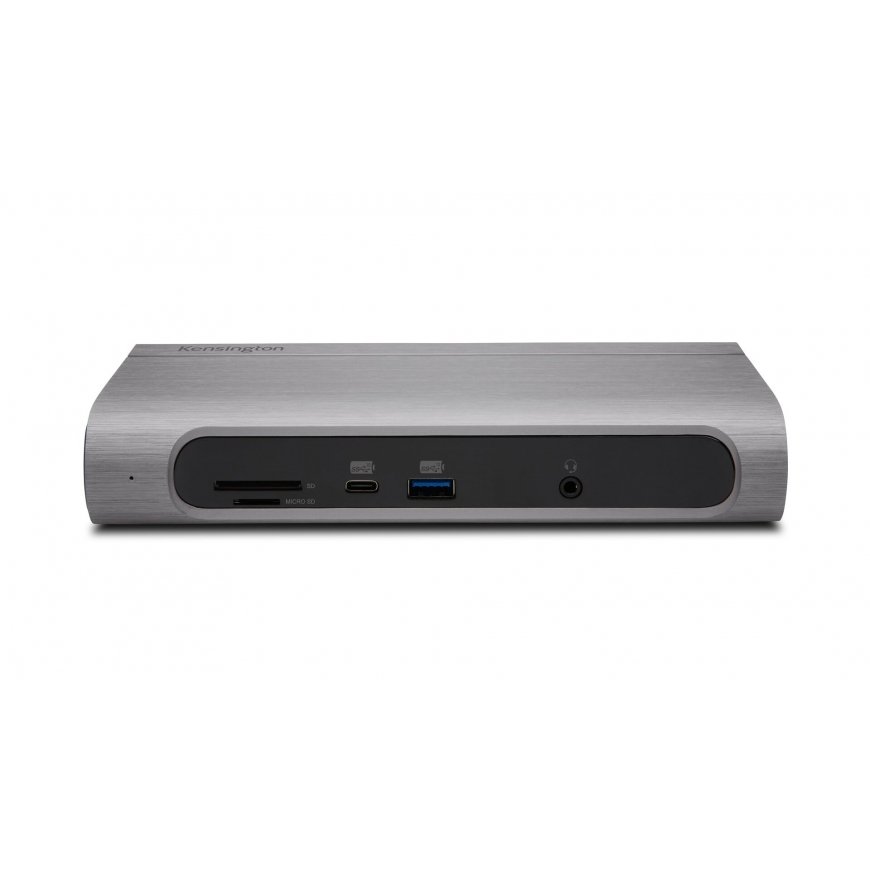

This 15-port universal docking station provides plenty of ports for all your needs: One front USB-C Gen2 port (up to 10Gbps with 5V/1.5A charging), six USB-A ports (1 front Gen2@10Gbps front with 5V/1.5A charging, 5 rear Gen1@5Gbps, 5V/0.9A), one Gigabit Ethernet port, and one audio combo jack.
Flexible mounting options

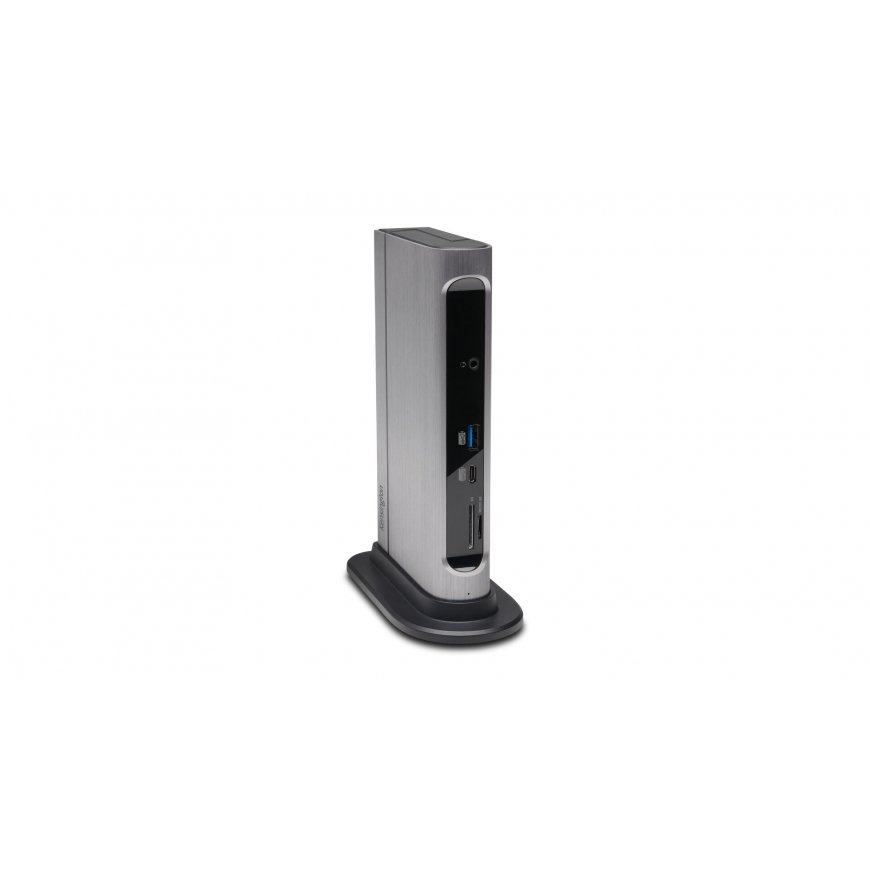

Choose a horizontal or vertical placement on the desktop, alternatively try our optional zero footprint mounting solution (K34050WW).
Built-in SD and Micro SD card readers
UHS II SD 4.0 card readers enable ultra-fast file transfer.
Free Kensington DockWorks™ software and three-year warranty
For the best connection, performance and security from your Kensington dock, and the peace of mind knowing you’re covered by Kensington.
Features | |
| Product colour | Grey |
| Plug and Play | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 6 |
| USB Type-C ports quantity | 1 |
Performance | |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash), SD |
| HD type | 4K Ultra HD |
| Data transfer rate | 40 Gbit/s |
| Windows operating systems supported | Yes |
Ports & interfaces | |
| Docking connector type | USB Type-C |
| HDMI | Yes |
| HDMI connector type | Full-size |
| DisplayPorts quantity | 1 |
| Combo headphone/mic port | Yes |
| HDMI ports quantity | 1 |
| HDMI version | 2.0 |
Other features | |
| Audio output | 3.5 mm |
Power | |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery revision | 3.0 |
| USB Power Delivery up to | 96 W |
| DC output current | 1.5 A |
| Power source type | DC |
| DC input voltage | 5 V |
Packaging data | |
| Quantity | 1 |
Weight & dimensions | |
| Weight | 835 g |
Logistics data | |
| Harmonized System (HS) code | 84719000 |
Network | |
| Bluetooth | No |
| Ethernet LAN data rates | 10, 100, 1000 |
