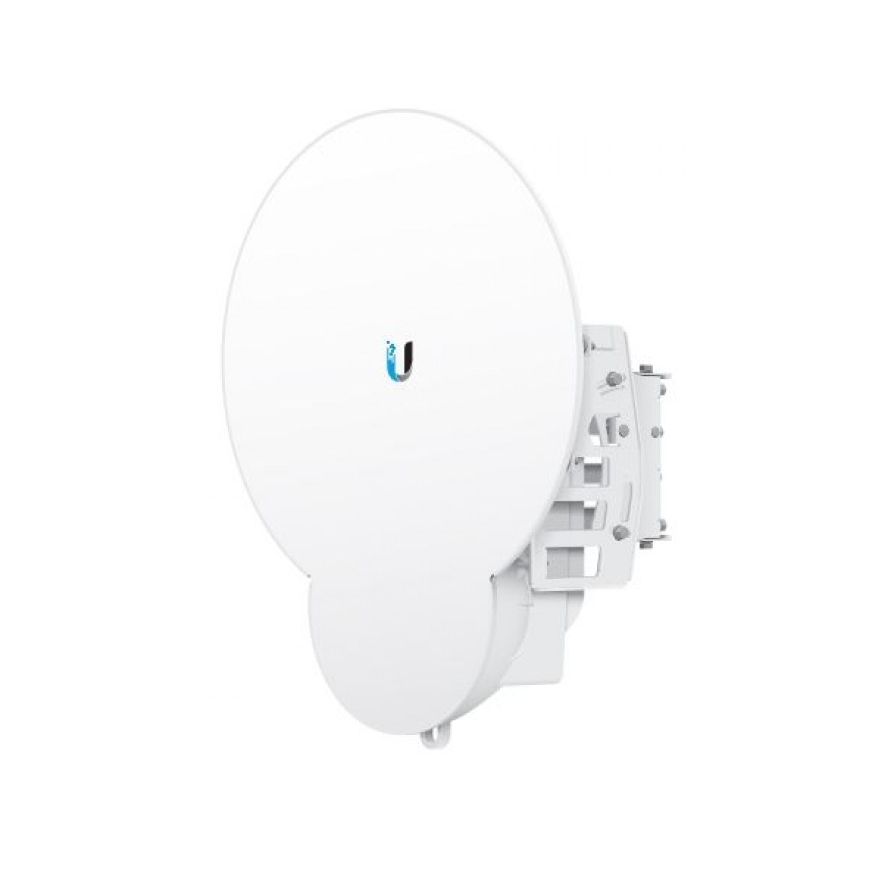

Ubiquiti airFiber24HD network antenna Sector antenna 40 dBi
3 379.00 €
Monthly payment from 87,91 €
1159344 AF-24-HD
0810354022050
Shipping 8-12 b.d.
You are interested in this product?
All about the product
Featuring our INVICTUS custom silicon for 2+ million packets-per-second processing, the airFiber 24HD is ideal for outdoor, PtP bridging and backhaul applications requiring maximum performance.Revolutionary Performance
Featuring the world’s best unlicensed-band spectral efficiency at 15.9 bps/Hz, the airFiber®24 HD supports the dense modulation rates, up to 256QAM, that are required for high data rates, up to 2 Gbps.
Proven Links: 20+ km
The airFiber®24 HD features the most powerful automatic compensation for path loss degradation due to rain fade, so it provides the best range – up to 20+ km – among 24 GHz products and allows for constellation threshold extension.
Low-Latency Carrier Backhaul
The airFiber®24 HD supports FDD (Frequency Division Duplexing) in full-duplex mode for 0.2 millisecond latency, resulting in increased efficiency for carrier-class network backhauls.
24 GHz Unlicensed Band
The airFiber®24 HD operates in worldwide, license-free, 24 GHz frequencies. Users can deploy airFiber®24HD almost anywhere they choose (subject to local country regulations).
Features | |
| Product colour | White |
Weight & dimensions | |
| Weight | 17.3 kg |
| Depth | 768 mm |
| Height | 370 mm |
| Width | 593 mm |
Operational conditions | |
| Operating temperature (T-T) | -40 - 55 °C |
Other features | |
| Mounting | Wall |
Packaging data | |
| Quantity per pack | 1 pc(s) |
Sustainability | |
| Sustainability certificates | RoHS |
