The product's shade and actual color may differ from what is shown in the picture, as the images are for illustrative purposes. The product description is general and may not include all the product's features.

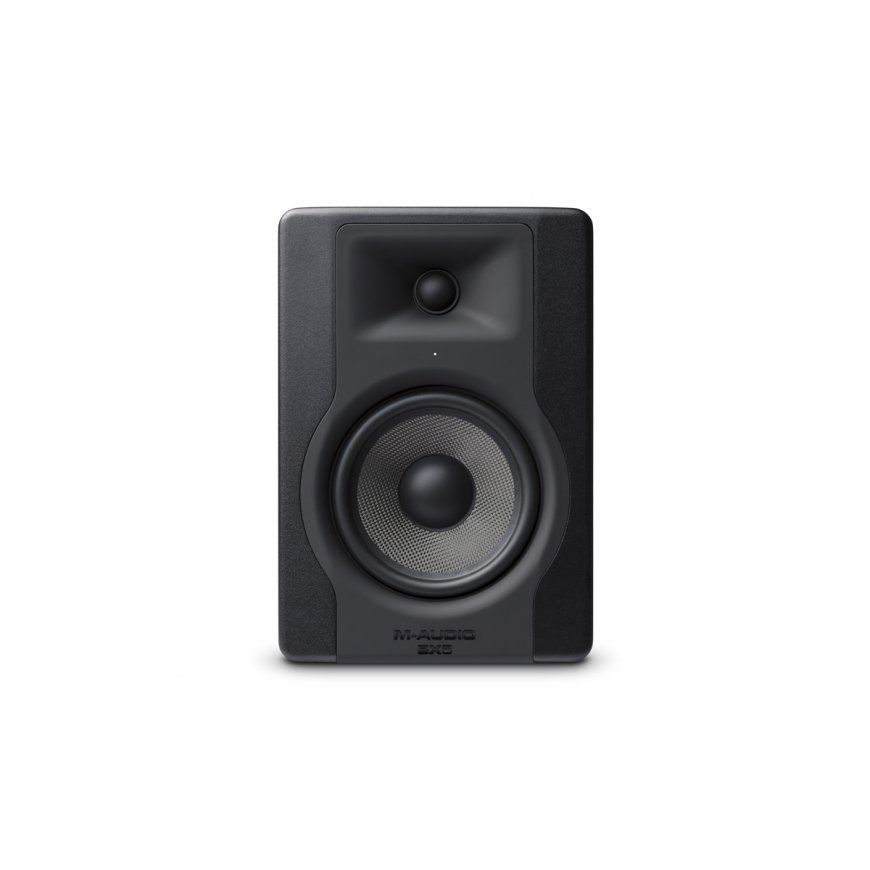

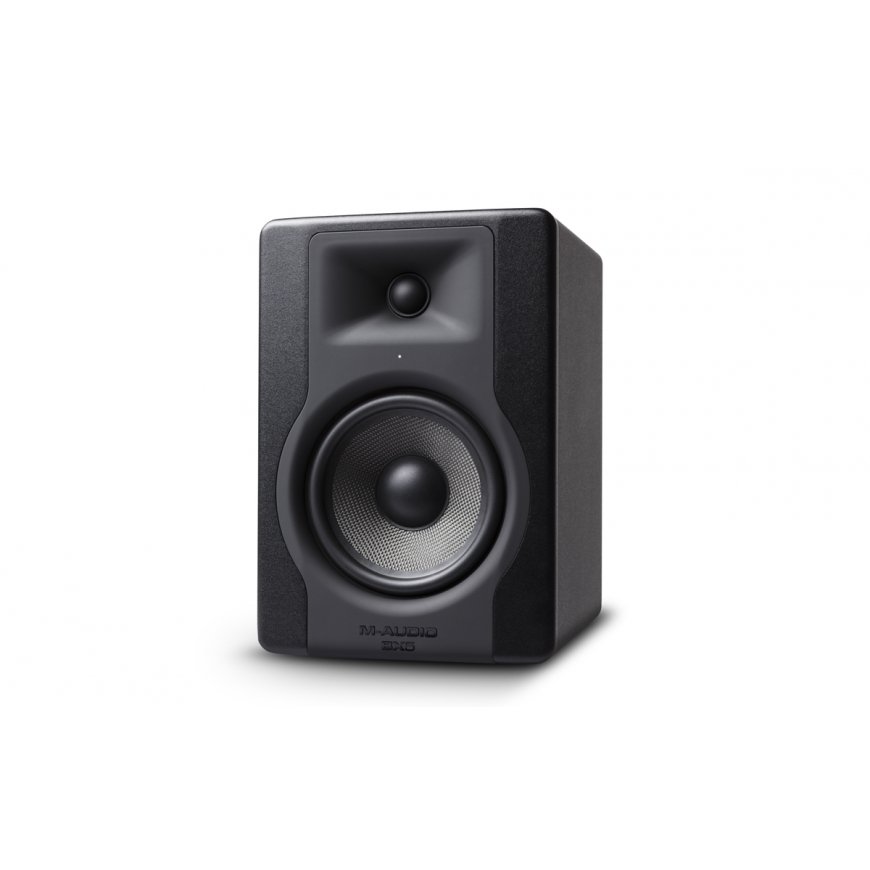

M-AUDIO BX5 D3 Black
129.00 €
Monthly payment from 4,22 €
1151560 BX5 D3
0694318022115, 0694318022955
Goods will arrive at the Tallinn warehouse on 22.09.26
You are interested in this product?
All about the product
Monitor Performance Starts with Driver ExcellenceA monitor’s drivers are the heart and soul of its performance. Driving the low-end and midrange, BX5-D3’s 5-inch military-grade Kevlar® woofers are rigid and lightweight, delivering outstanding transient response whist negating unwanted “cone breakup.” BX5- D3’s treated silk dome tweeter provides the perfect combination of low mass and the absence of audible resonances that plague conventional tweeters. Together, the BX drivers deliver critical detail, nuance and dynamic accuracy, so your mixes have the veracity and transparency you demand.
More Than Just an Enclosure
With M-Audio’s BX5-D3, every detail has been meticulously engineered with one goal in mind - to facilitate the freedom to mix with confidence. BX5-D3 monitors have a rear- mounted bass port, meticulously engineered to the exact length and diameter. The result? Deep, defined bass response with maximum bass extension and resolution. When combined with a smoothly-flared port, BX5-D3 monitors markedly reduce the audibly-intrusive air turbulence that results when bass is played back at high sound pressure levels (SPLs). BX5-D3’s tweeter is mounted in a custom waveguide for reliably accurate dispersion that eliminates unwanted high-frequency “scatter,” whilst ensuring a soundstage that remains consistently wide and stable. For seamless setup and easy-location of the optimum listening position, the BX5-D3’s front-mounted positioning LED shines brightly when you’re located in the perfect listening spot, for uncompromisingly accurate and reliable critical evaluations. Finally, BX5-D3’s iconic design on the front panel—M-Audio’s famous “keyhole” shape—is more than just an attractive look: This special “fastenerless” design ensures so there are no driver attachment screw heads to interfere with the sound coming from our drivers.
High-Current, High Headroom Class A/B Bi-Amplified Power
Efficient and accurate: Driving the BX5-D3 monitors are two Class A/B internal amplifiers that power the woofer and tweeter separately - each optimised for the specific frequency range it handles and engineered to complement the characteristics of its companion driver. A precision-tuned crossover guarantees each driver only handles the frequencies that it produces most efficiently for a sound that is cohesive across the entire frequency spectrum. Play louder with less audible distortion: The BX5-D3 bi-amplified design is a far more efficient and accurate way to power a loudspeaker than using a single full-range amplifier to drive multiple driver elements.
Tailor-Made Sound
At M-Audio, we understand no two listening spaces are the same. Therefore, the BX5- D3 monitors custom tailors your sound to your environment, so you will always experience sonically-true, reassuringly-accurate sound reproduction. Negate problematic bass frequencies and limit the impact of nuisance standing waves thanks to BX5-D3’s special Acoustic Space control for precise adjustment of BX5-D3’s sound output in line with your studio space.
Connectivity Covered

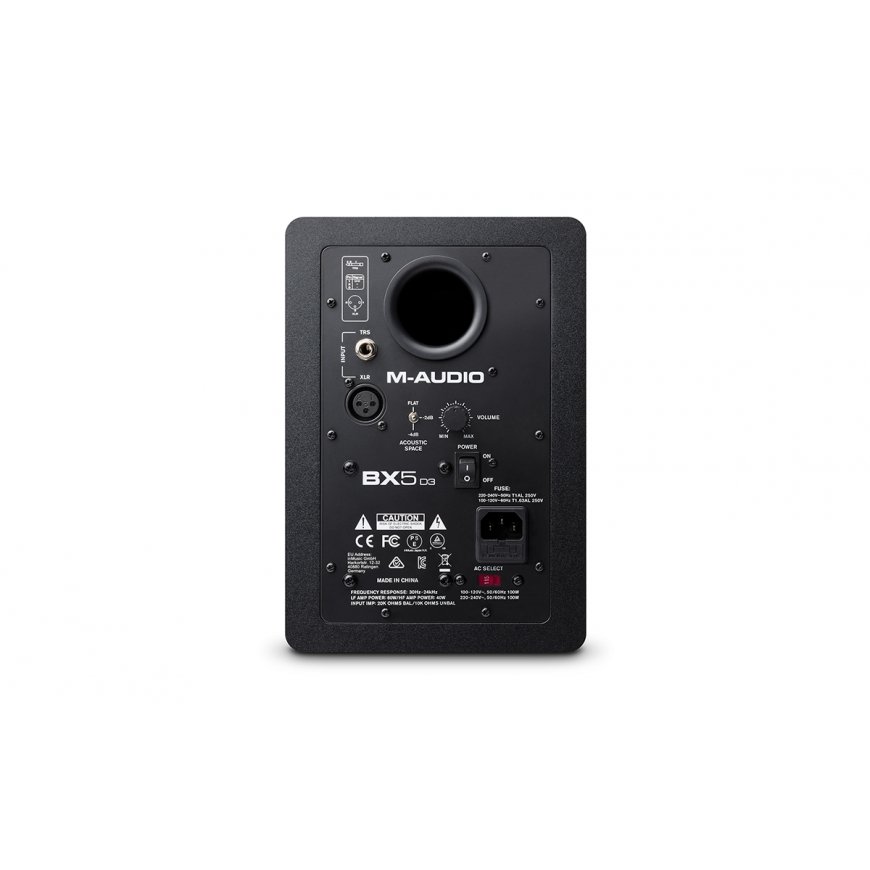

Whatever your needs, the BX5-D3 Studio monitors guarantee to assimilate into your existing setup with ease. Combining conveniently-located, rear-mounted XLR and 1/4- inch balanced inputs, BX5-D3 connects to virtually all studio equipment including audio interfaces, mixers, DJ gear and more.
It’s Far More Than The Sum of Its Parts
M-Audio’s BX5-D3 monitors excel in every way, the rightful successor to the original studio icon. Fusing superb drivers, meticulously engineered enclosures, great-sounding amplifiers, versatile control options and standardized connection facilities, BX5-D3 delivers sound quality you can trust.
Key Features
Bi-amplified design with 100 watts (60 LF, 40 HF) for powerful, accurate sound
5” Kevlar low-frequency driver with high-temp voice coil and damped rubber surround
1” natural silk dome tweeter delivers superb transient details
New computer-optimized tweeter waveguide for precise imaging
Acoustic Space Control to fine-tune low-end response to your room
Optimized rear port for extended low-frequency response
XLR balanced and 1/4” balanced/unbalanced inputs for connecting audio interfaces, mixers, synthesizers, DJ gear, and more
Volume control enables you to dial in the perfect monitor playback level
Ultra-wide range 52-35kHz frequency response covers full musical spectrum
Front panel LED shines brightly when speaker is positioned at ideal monitor angle
Audio | |
| RMS rated power | 100 W |
| Frequency range | 52 - 35000 Hz |
Performance | |
| Product colour | Black |
| LED indicators | Yes |
Power | |
| AC input voltage | 220 - 240 V |
| AC input frequency | 50 - 60 Hz |
Weight & dimensions | |
| Depth | 197 mm |
| Height | 254 mm |
| Weight | 5.6 kg |
| Width | 176 mm |
Loudspeakers | |
| Tweeter | Yes |
| Woofer | Yes |
| Tweeter diameter (imperial) | 2.54 cm (1") |
| Woofer diameter (imperial) | 12.7 cm (5") |
| Number of drivers | 2 |
Ports & interfaces | |
| XLR in | Yes |
Other features | |
| Built-in speaker(s) | Yes |
