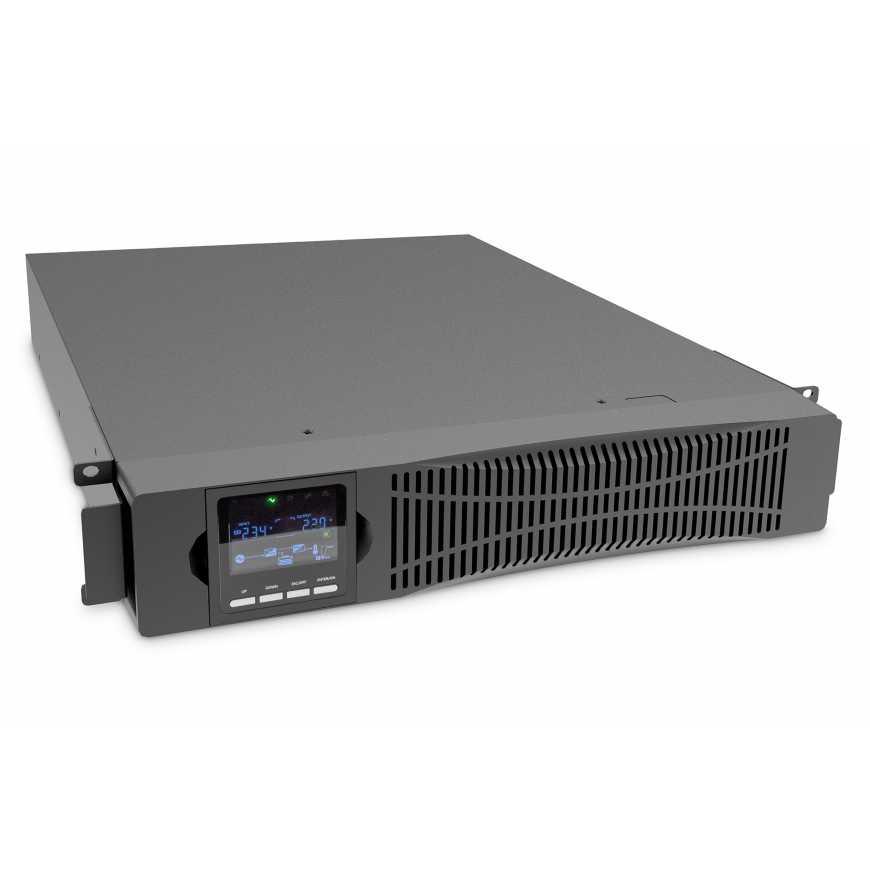

Digitus OnLine UPS system, 3000 VA / 3000 W
619,31 €
Monthly payment from 16.85 €
1150733 DN-170096
4016032474678
Shipping 3-7 b.d.
You are interested in this product?
- High power factor (1.0), a higher active power enables more connected loads, which saves space and reduces costs.
- High efficiency in online mode, higher efficiency means optimized energy management and lower heat dissipation, resulting in energy savings and improved reliability.
- User-friendly LCD screen provides insight into UPS status for easy installation, configuration and operation.

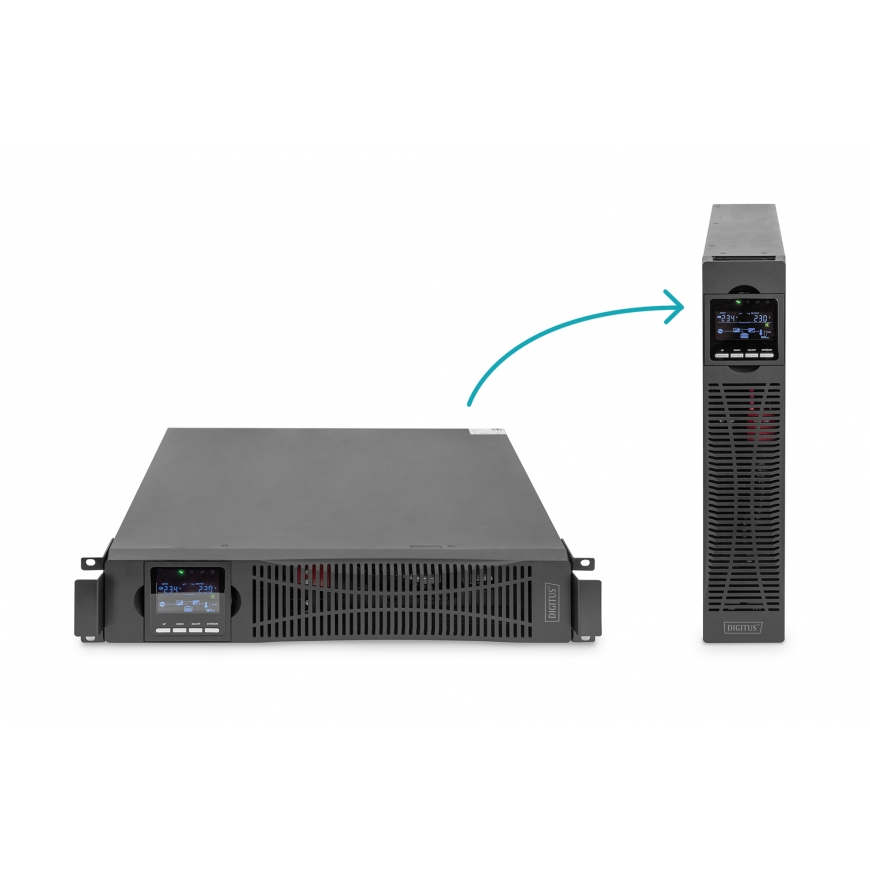

- Compact rack/tower design optimizes the installation space in the rack and enables flexible installation.
- Minimize device downtime with hot-swappable, user-replaceable battery modules that can be replaced during operation.
- External battery modules allow the runtime to be extended.

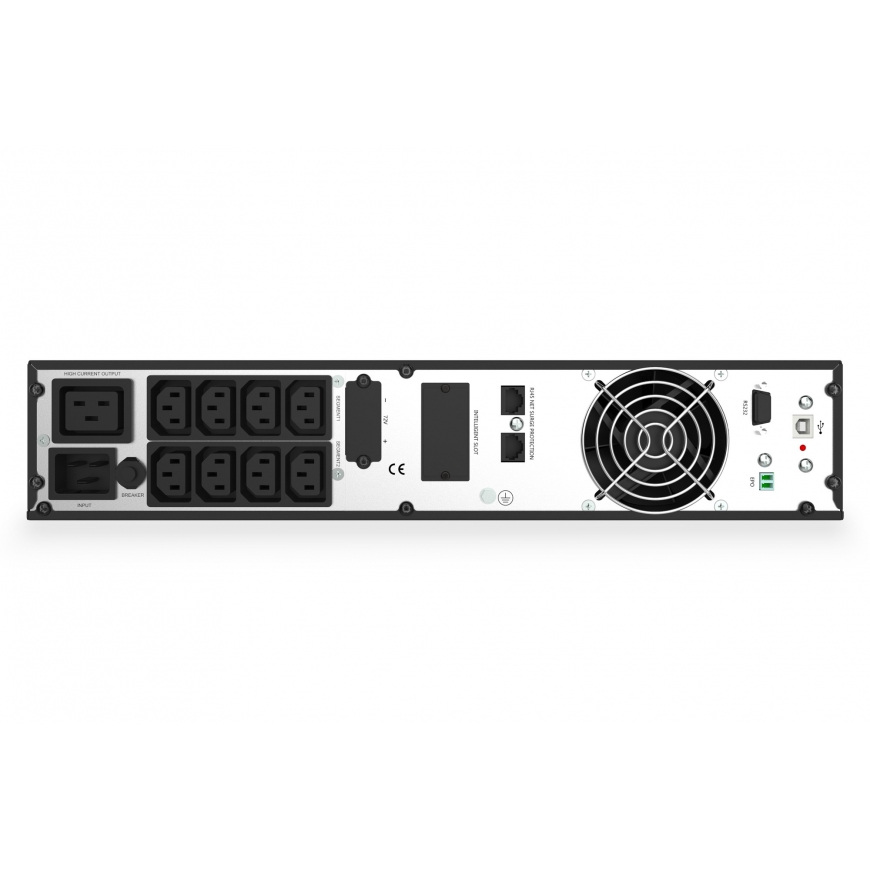

- High number of outlets (8 x C13 & 1 x C19) for optimum power distribution to the consumers.
- Various communication interfaces (RS232/USB, parallel port, SNMP slot) enable remote monitoring of the system
- Automatic battery self-test and fan speed control increase the service life of the components.
- The REPO function (Remote Emergency Power Off) switches the UPS off in the event of an emergency. If an emergency occurs, the REPO switch turns off the rectifier and the inverter and immediately stops the power supply to the load. The UPS stops charging and discharging the battery.
The DIGITUS® OnLine UPS is a double-conversion UPS solution that offers first-class power failure protection and continuous power generation in a compact and flexible system. The single-phase UPS operates with high energy efficiency and is ideal for protecting critical infrastructure in both centralized and edge network applications. Scalable runtime options with matching external battery cabinets provide additional flexibility when a longer uninterruptible power supply is required. The user-friendly LCD display and network management capability, including configuration, make this system easy to install and maintain. With market-leading efficiency and unity power factor, the UPS meets your critical application requirements.
| Product colour | Black |
| Display type | LCD |
| USB port | Yes |
| Form factor | Rackmount |
| Weight | 26 kg |
| Width | 440 mm |
| Depth | 600 mm |
| Height | 86.5 mm |
| Package width | 555 mm |
| Package depth | 732 mm |
| Package height | 200 mm |
| Package weight | 30.1 kg |
| Number of batteries supported | 6 |
| Country of origin | China |
| Certification | CE |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -25 - 55 °C |
| Operating relative humidity (H-H) | 20 - 90% |
| Battery recharge time | 4 h |
| Battery voltage | 12 V |
| Battery capacity | 9 Ah |
| Power factor | 1 |
| Package volume | 82064.5 cm³ |
| AC outlets quantity | 9 AC outlet(s) |
| Maximum current | 16 A |
| Operating altitude | 0 - 1500 m |
| Output power | 3000 W |
| UK Trade Tariff code | 85044085 |
| Size (imperial) | 48.3 cm (19") |
| Serial interface type | RS-232 |
| Safety | IEC/EN62040-2,IEC61000-4-2,IEC61000-4-3,IEC61000-4-4, IEC61000-4-5,IEC61000-4-6,IEC61000-4-8 |
| Serial interface | Yes |
| UPS topology | Double-conversion (Online) |
| Output power capacity | 3 kVA |
| Input operation voltage (min) | 208 V |
| Input operation voltage (max) | 240 V |
| AC outlet types | C19 coupler; C13 coupler |
| Power plug | C20 coupler |
| Typical backup time at full load | 3 min |
| Typical backup time at half load | 9 min |
| Efficiency (On-line mode) | 93% |
| Efficiency (ECO mode) | 98% |
| Automatic Voltage Regulation (AVR) | Yes |
| Emergency Power Off (EPO) connector | Yes |
