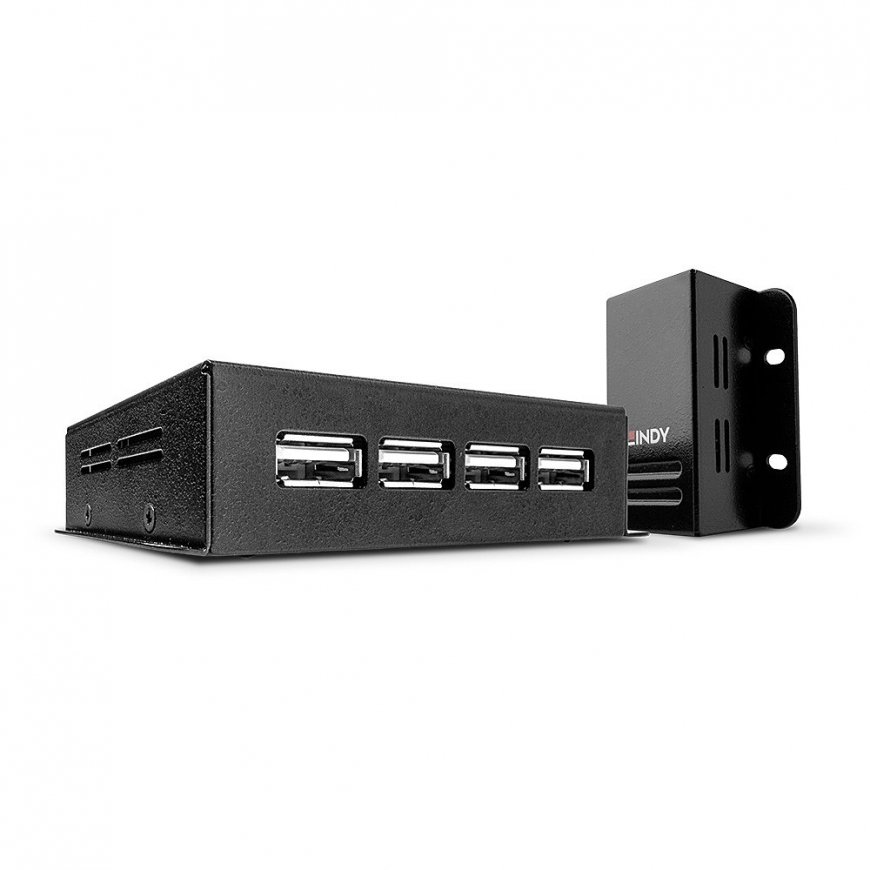

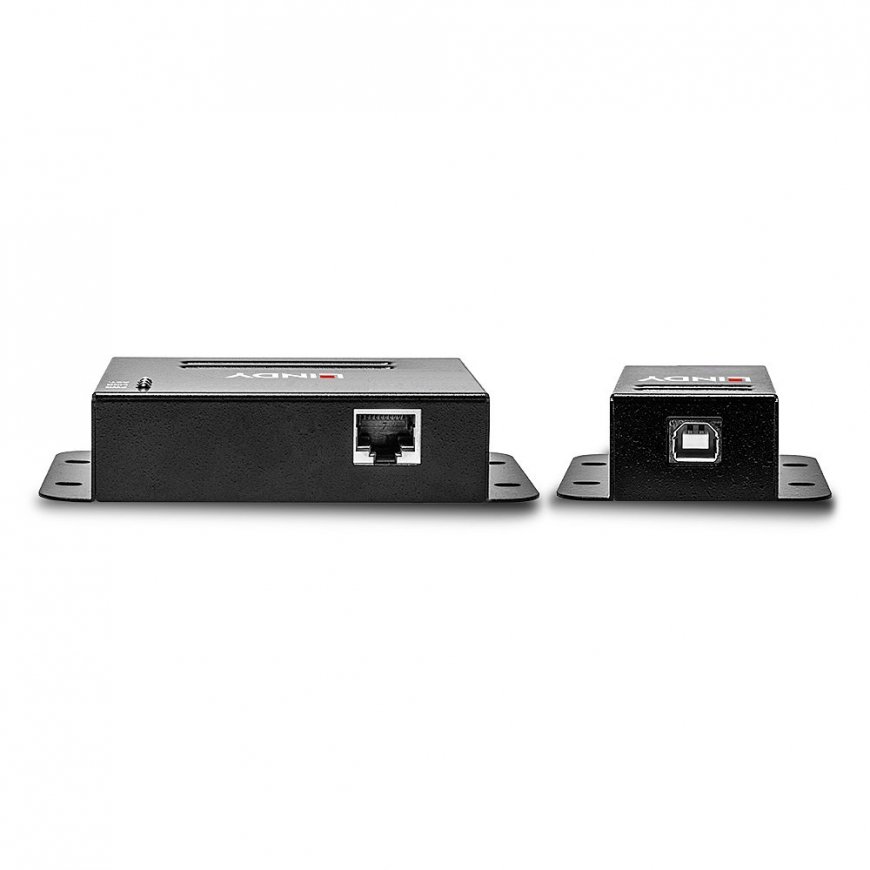

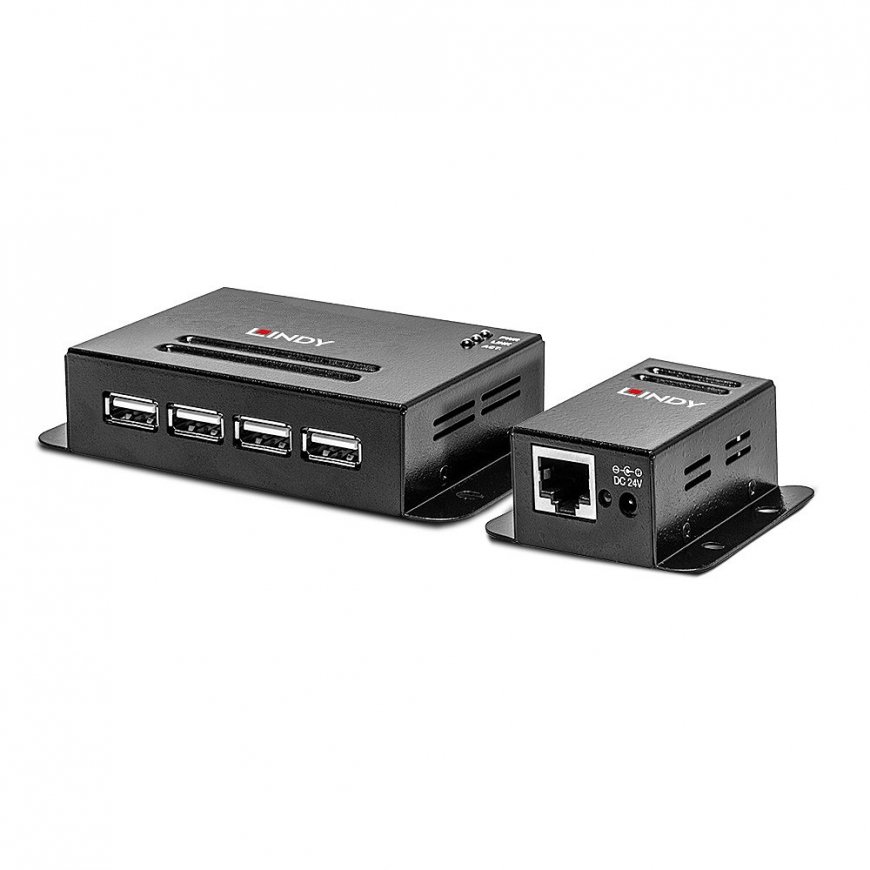

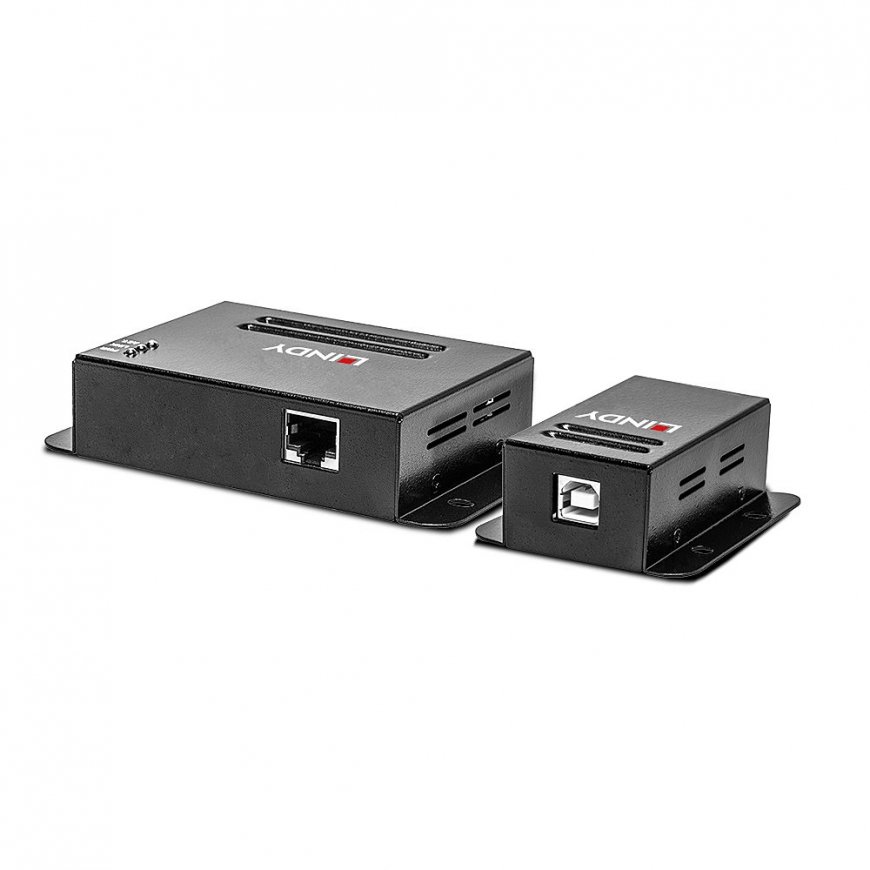

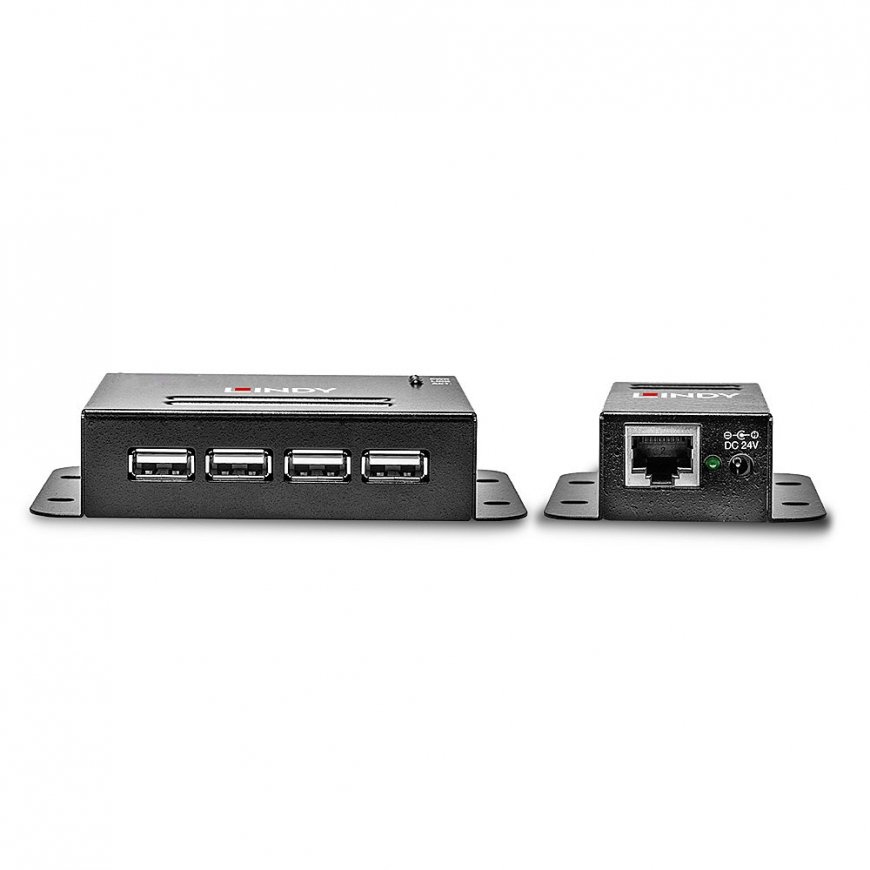

Lindy 50m 4 Port USB 2.0 Cat.6 Extender
141.38 €
Monthly payment from 4,54 €
1133706 42681
4002888426817
Shipping 2-3 b.d.
You are interested in this product?
All about the product
This Lindy USB 2.0 Cat.6 Extender can be used to extend the distance between four USB peripheral devices and the host computer by up to 50m.A standard, low cost Cat.5e/6 network cable (not included) is used to bridge the connection between the transmitter and the receiver unit. For best performance and compatibility, we recommend the use of solid core patched cables.
The Extender features Power over Cable, which requires a single power supply only to be connected to the transmitter unit. This handy feature allows the receiver unit and connected devices to be located more freely as no power supply is required. With robust metal housing and integrated mounting brackets this Extender is the ideal solution for industrial environments.
Features
| Product colour | Black |
| USB 2.0 ports quantity | 5 |
| Weight | 415 g |
| Cables included | USB Type-A to USB Type-B |
| Connector contacts plating | Gold |
| Data transfer rate | 480 Mbit/s |
| Type | Network transmitter & receiver |
| Package type | Box |
| Package width | 215 mm |
| Package depth | 155 mm |
| Package height | 50 mm |
| Plug and Play | Yes |
| Manual | Yes |
| Certification | CE, UKCA, FCC, RoHS, REACH |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -20 - 80 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| DC-in jack | Yes |
| Ethernet LAN (RJ-45) ports | 2 |
| LED indicators | Yes |
| Housing material | Metal |
| Output voltage | 24 V |
| Output current | 0.5 A |
| External power adapter | Yes |
| Package volume | 600 cm³ |
| Storage relative humidity (H-H) | 0 - 90% |
| Power over Ethernet (PoE) | Yes |
| Harmonized System (HS) code | 85176990 |
| Included power plug types | EU; UK; US; AU |
| Cable types supported | Cat5; Cat6; Cat5e |
| Maximum transfer distance | 50 m |
| Contact material | Phosphor bronze |
| Connector material | Gold |
| Receiver width | 11 cm |
| Receiver depth | 6.4 cm |
| Receiver height | 2.3 cm |
| Transmitter width | 6 cm |
| Transmitter depth | 6.7 cm |
| Transmitter height | 2.3 cm |
| RJ-45 ports quantity (transmitter) | 1 |
| RJ-45 ports quantity (receiver) | 1 |
| Power note | 3.5/1.35mm DC |
| Chipset (transmitter) | NS1021 |
