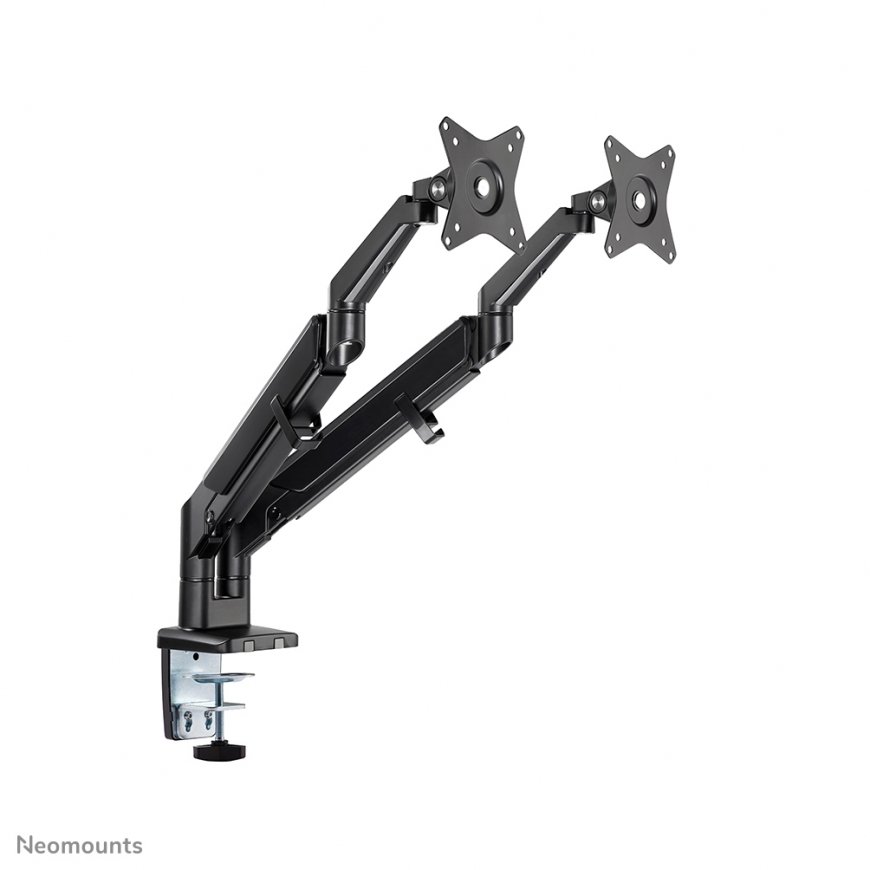

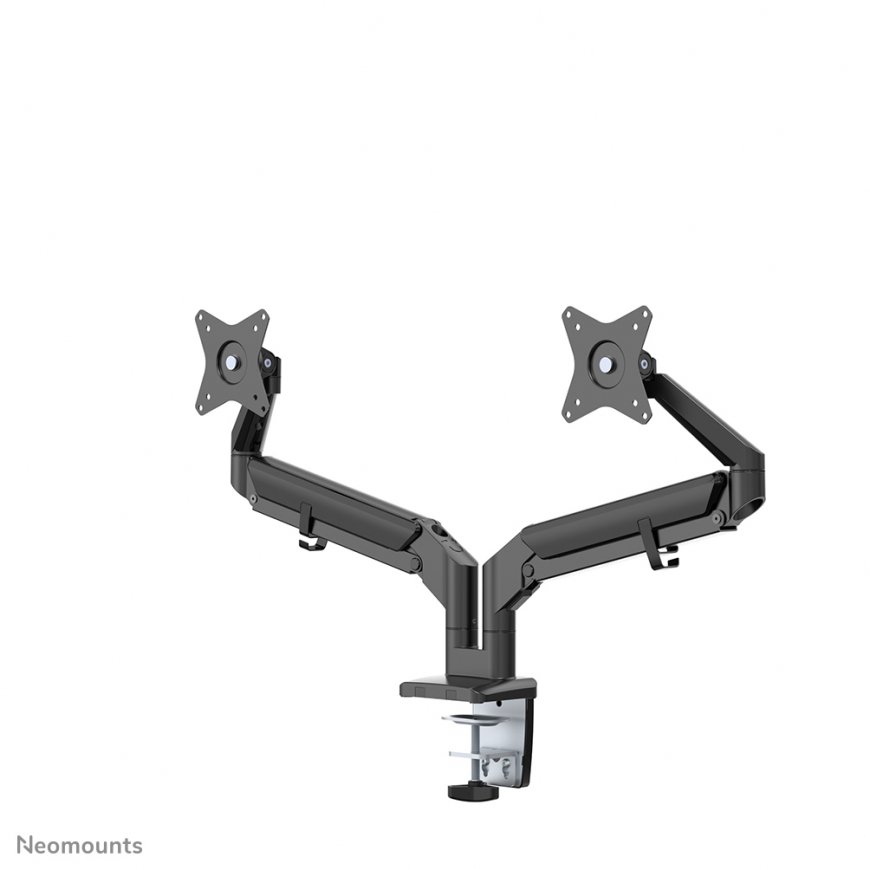

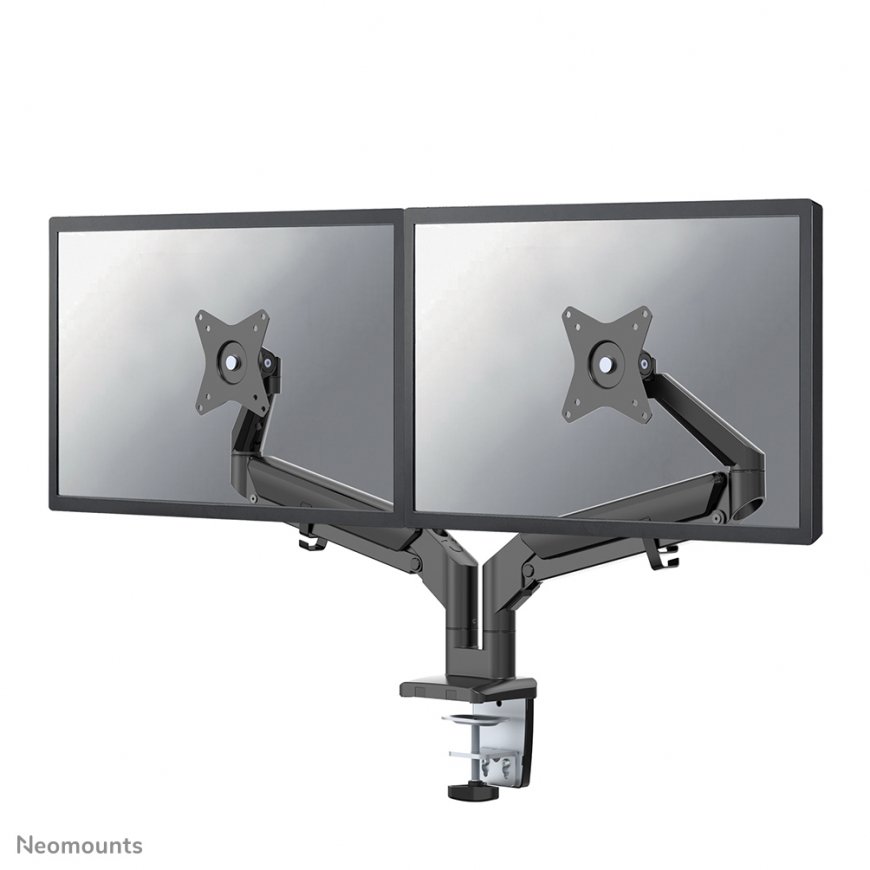

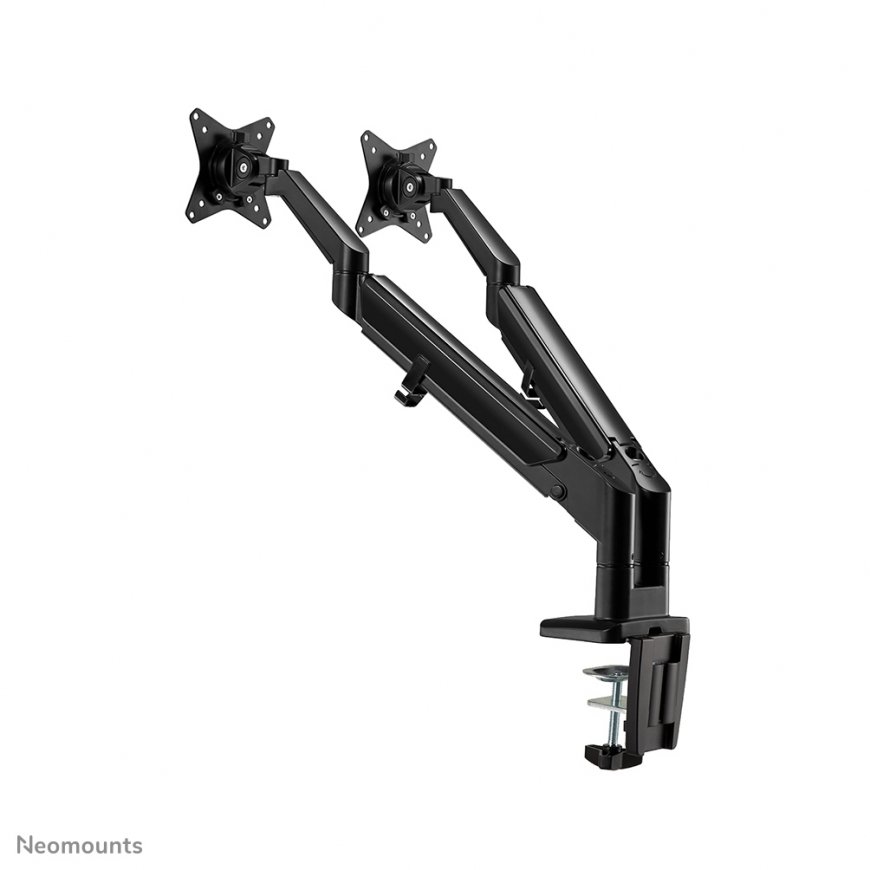

Neomounts DS70-810BL2 Monitor arm 17-32" - gas spring - space saving - 180°-stop
228.00 €
Monthly payment from 6,77 €
1129945 DS70-810BL2
8717371449223
Shipping 2-3 b.d.
You are interested in this product?
All about the product
The Neomounts DS70-810BL2 is a full motion desk mount for two flat screens up to 32" with a maximum weight capacity of 9 kg per screen. The versatile tilt (90°), rotate (360°) and swivel (180°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of your screens. Additionally, the mount features gas spring height adjustment (26,5-55 cm) and depth adjustment (0-49 cm), to create the perfect working position. Additionally, the DS70-810BL2 features the nifty 180° stop mechanism, that allows you to safely adjust the mount even when it's placed close to a wall or separation panel without making contact. The smart cable management clips ensure orderly routing of the cables.Due to the short T-Rex® upper arm, only minimal depth is required when placed near a wall or separation panel.This allows the screens to be positioned further away from the user which is better for the eyes and also leaves more space for good ergonomic working posture. The DS70-810BL2 is suitable for screens that meet VESA hole pattern 75x75 or 100x100mm. Unused hole patterns can be covered using one of Neomounts VESA adapter plates. The DS70-810BL2 is equipped with an Quick-release VESA system for easy installation and comes with both desk clamp and grommet.
Features
| Product colour | Black |
| Panel mounting interface | 75 x 75; 100 x 100 |
| Weight | 5.2 kg |
| Width | 117 mm |
| Depth | 555 mm |
| Height | 615 mm |
| Quantity per pack | 1 pc(s) |
| Package width | 265 mm |
| Package depth | 142 mm |
| Package height | 395 mm |
| Package weight | 6 kg |
| Master (outer) case width | 550 mm |
| Master (outer) case length | 410 mm |
| Master (outer) case height | 305 mm |
| Master (outer) case gross weight | 24.6 kg |
| Products per master (outer) case | 4 pc(s) |
| Country of origin | China |
| Housing material | Steel |
| Maximum screen size | 81.3 cm (32") |
| Mounting type | Desk |
| Minimum VESA mount | 75 x 75 mm |
| Maximum VESA mount | 100 x 100 mm |
| Minimum screen size | 43.2 cm (17") |
| Number of displays supported | 2 |
| Orientation | Landscape/Portrait |
| Angle of rotation | 360° |
| Master (outer) case net weight | 21 kg |
| Tilt angle range | -45 - 45° |
| Cable management | Yes |
| Height adjustment | Yes |
| Height adjustment type | Gas spring |
| Height adjustment range | 265 - 550 mm |
| Swivel angle range | -90 - 90° |
| Width adjustment range | 0 - 1070 mm |
| Harmonized System (HS) code | 7326909890 |

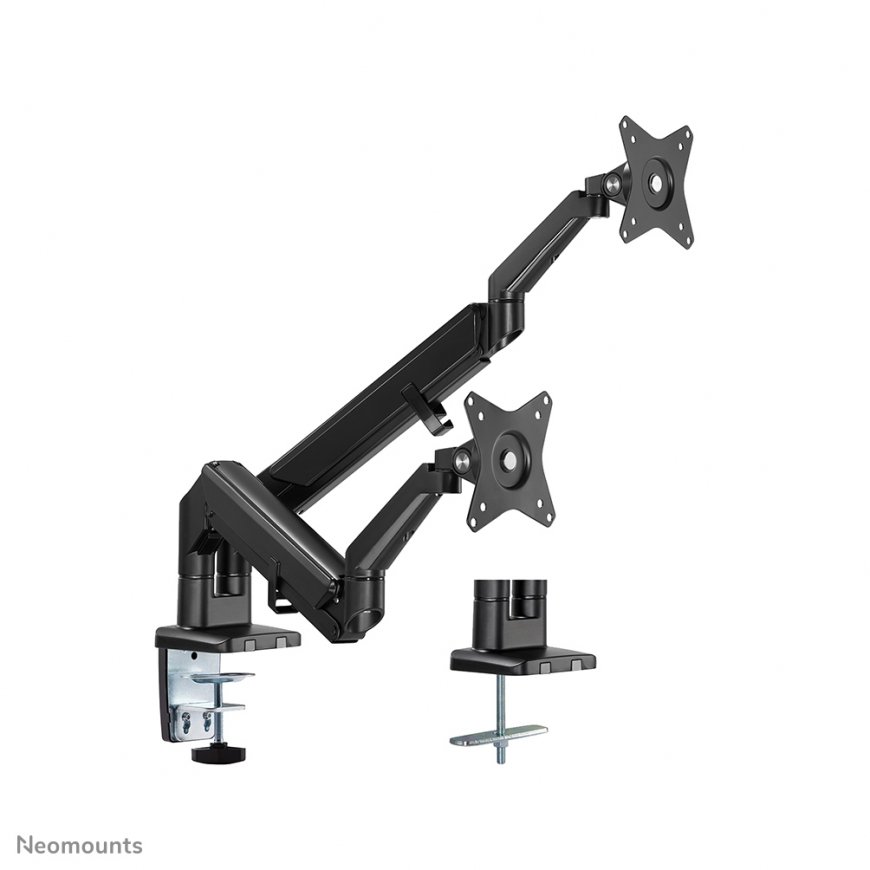

| Mounting | Clamp/Grommet |
| Desk thickness (min) | 1 cm |
| Desk thickness (max) | 8.5 cm |
| Swivelling | Yes |
| Adjustable depth | Yes |
| Rotating | Yes |
| Package net weight | 6 kg |
| Products per pallet (EU) | 72 pc(s) |
| Depth adjustment range | 0 - 490 mm |
| Maximum weight capacity (per display) | 9 kg |
| Tilt adjustment | Yes |
| Minimum weight | 1 kg |
