The product's shade and actual color may differ from what is shown in the picture, as the images are for illustrative purposes. The product description is general and may not include all the product's features.
Extralink PoE Switch EUROS V2 4x 100Mb/s PoE/PoE+, 2x RJ45 Uplink 100Mb/s, 60W
109.55 €
Monthly payment from 3,72 €
1128111 EX.14831
5903148914831
Shipping 4-5 b.d.
You are interested in this product?
All about the product
PoE Extralink EUROS v2 switchIt is a 6 port unmanaged switch with 4 PoE ports - with a maximum speed of 100 Mbps and IEEE 802.3af/at support - with maximum power per port up to 30W. The switch also has 2 RJ45 ports without PoE power options. These ports can be used as Uplink ports or to connect additional devices e.g. video recorder in monitoring applications
Four additional operating modes of the PoE switch

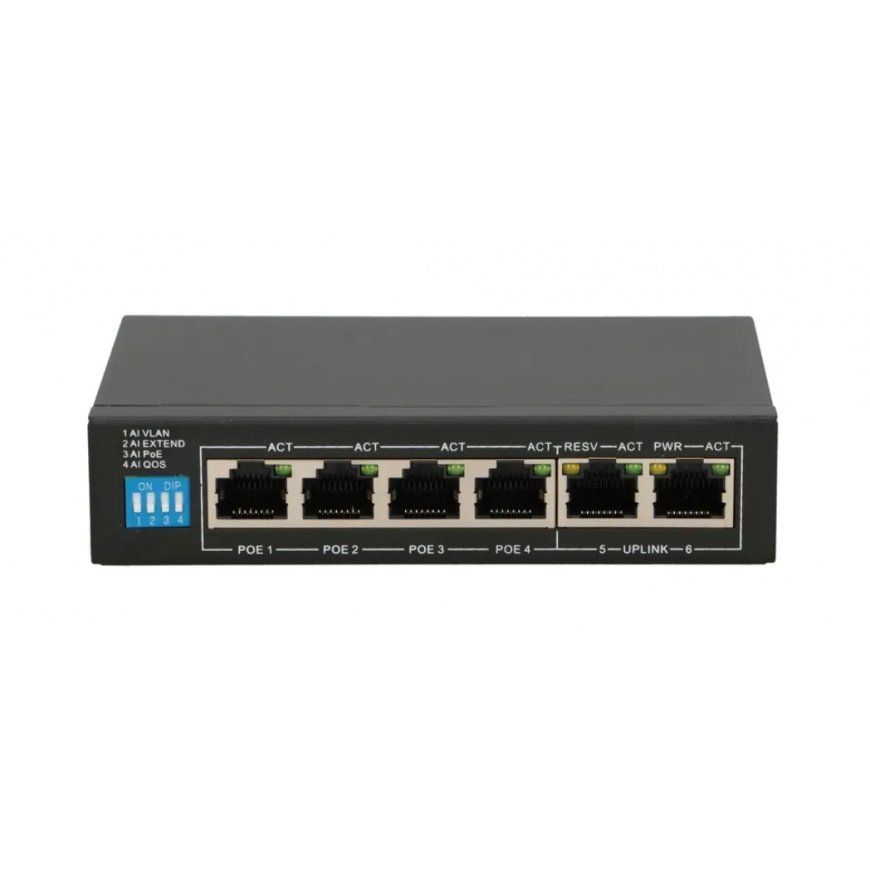

There are four switches on the front of the EUROS v2 Switch, which allow you to run additional modes to improve network performance or range. Below are the operating principles of each mode:
VLAN mode - when this mode is activated, the ports 1-4 are isolated from each other, which effectively suppresses broadcast storms and improves network performance.
EXTEND mode - allows ports 1-4 to effectively transmit data and PoE power over distances up to 250 meters. This is ideal for video surveillance systems.
AI QoS Mode - In this mode, video data is processed as a priority to ensure a smooth image. The solution used primarily in monitoring solutions.
AI PS mode - the switch automatically detects the operating status of the connected device to one of the PoE ports. When it detects that it is not working properly, it automatically restarts the device.
Power over Ethernet
The EUROS v2 switch supports IEEE 802.3 af/at standards, automatically detects and identifies PoE devices that comply with these standards and provides power to them. There is no need to worry about devices that do not need power through PoE (not supporting IEEE 802.3 af/at standards) because the switch will not power these devices. The maximum power supply connected to the switch is 60W.
Network | |
| Networking standards | IEEE 802.3u, IEEE 802.3af, IEEE 802.3at, IEEE 802.3x, IEEE 802.3i |
Management features | |
| Web-based management | No |
| Reset button | Yes |
| Quality of Service (QoS) support | No |
| Cloud-managed | No |
Security | |
| MAC address table | 4096 entries |
Design | |
| LED indicators | Access, Network, Ready |
| Product colour | Black |
| Wall mountable | Yes |
Power | |
| Power over Ethernet (PoE) | Yes |
Weight & dimensions | |
| Width | 125 mm |
| Depth | 75 mm |
| Height | 27 mm |
| Weight | 500 g |
Other features | |
| Rack mounting | No |
