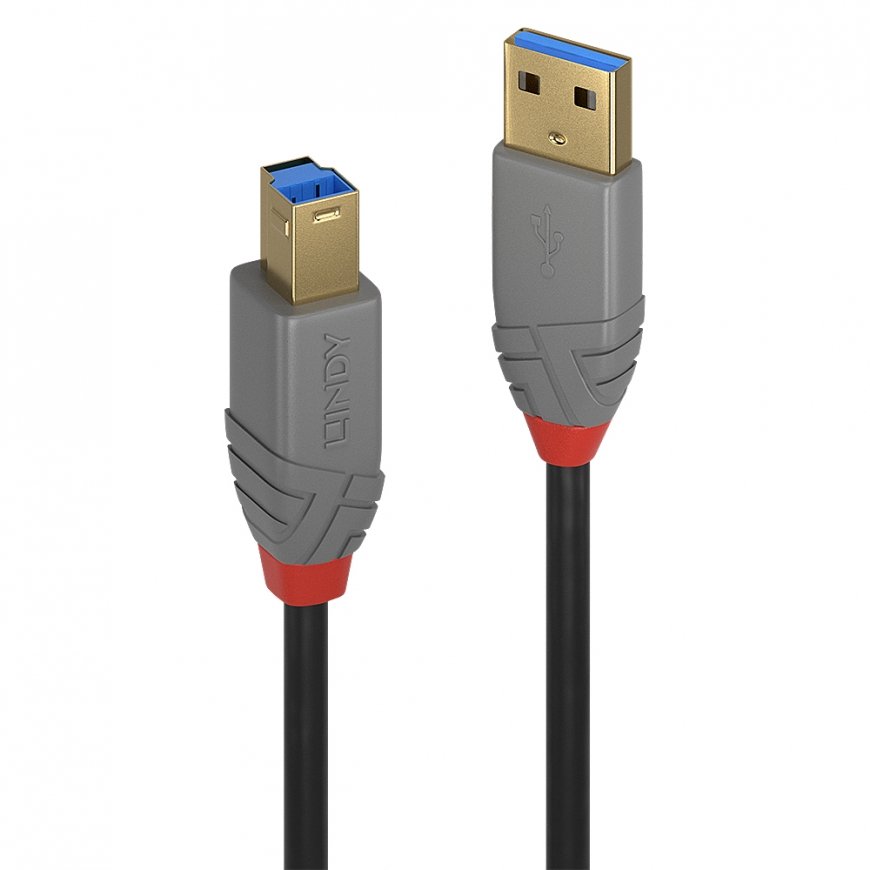

Lindy 2m USB 3.2 Type A to B Cable, 5Gbps, Anthra Line
20.48 €
1127412 36742
4002888367424
Shipping 8-12 b.d.
You are interested in this product?
All about the product
The Anthra Line USB 3.2 Type A to B cables from Lindy's Cable Lines concept are the professional choice for high performance connections in commercial AV and IT installations.Anthra Line USB 3.2 cables are premium connections that feature triple shielded construction with tinned copper conductors for performance and corrosion resistance. High quality gold plated contacts and connectors maintain optimal signal integrity and maximum reliability.
USB bandwidths up to 5Gbps are supported for rapid transfer of large data volumes.
Anthra Line USB 3.2 Type A to B cables are available in the following lengths: 0.5m, 1m, 2m, 3m and 5m.
Information about USB generations We have adapted the naming of our USB 3 cables to follow the updated USB specification. USB 3.0 and USB 3.1 Gen 1 have been renamed to USB 3.2 Gen 1, supporting data transfer up to 5Gbps USB 3.1 and USB 3.1 Gen 2 are now called USB 3.2 Gen 2, supporting data transfer rates up to 10 Gbps USB 3.2 Gen 2x2 is a new standard, supporting data transfer rates up to 20 Gbps
USB 3.0, USB 3.1 and USB 3.2 PCs, cables and devices are all compatible with each other, when using either a USB Type A or USB Type C host interface.
Features | |
| Cable type | Round cable |
| Cable length | 2 m |
| Connector 1 | USB A |
| Connector 2 | USB B |
| Connector contacts plating | Gold |
| AWG wire size | 24/28/30 |
| Connector shielding | Yes |
| Connector shield material | Aluminium |
| Conductor material | Tinned copper |
| Product colour | Black, Grey |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Nominal attenuation | 0.5-5m: 0.5MHz-7.5GHz |
| Connector housing material | Polyvinyl chloride (PVC) |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| USB version | USB 3.2 Gen 1 (3.1 Gen 1) |
| Maximum data transfer rate | 5000 Mbit/s |
| Magnetically shielded | Yes |
| Cable jacket material | Polyvinyl chloride (PVC) |
| Contact material | Copper |
| Connector material | Gold |
| Maximum data transfer rate | 5 Gbit/s |
Weight & dimensions | |
| Bend radius (min) | 4.8 cm |
| Connector 1 dimensions (WxDxH) | 15.5 x 35 x 7.8 mm |
| Connector 2 dimensions (WxDxH) | 12.2 x 35 x 13.5 mm |
| Cable diameter | 5.5 mm |
Packaging data | |
| Package type | Polybag |
| Quantity per pack | 1 pc(s) |
Operational conditions | |
| Operating temperature (T-T) | 0 - 60 °C |
| Storage temperature (T-T) | 0 - 60 °C |
Logistics data | |
| Harmonized System (HS) code | 84733080 |
Certificates | |
| Certification | RoHS, REACH, UL |
