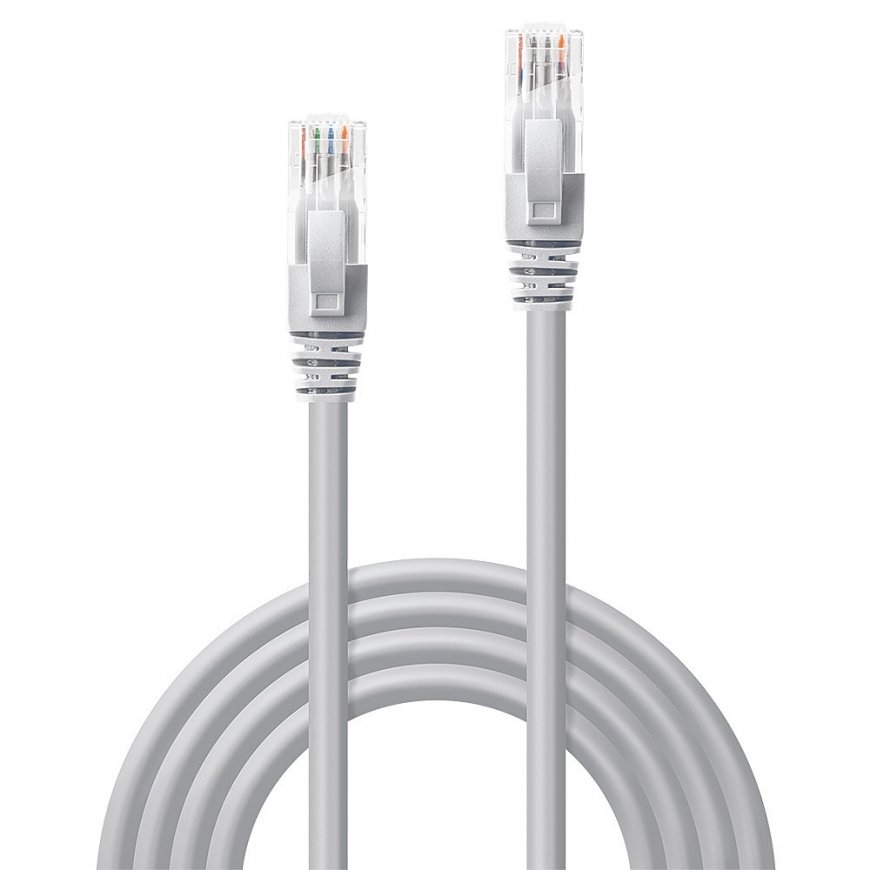

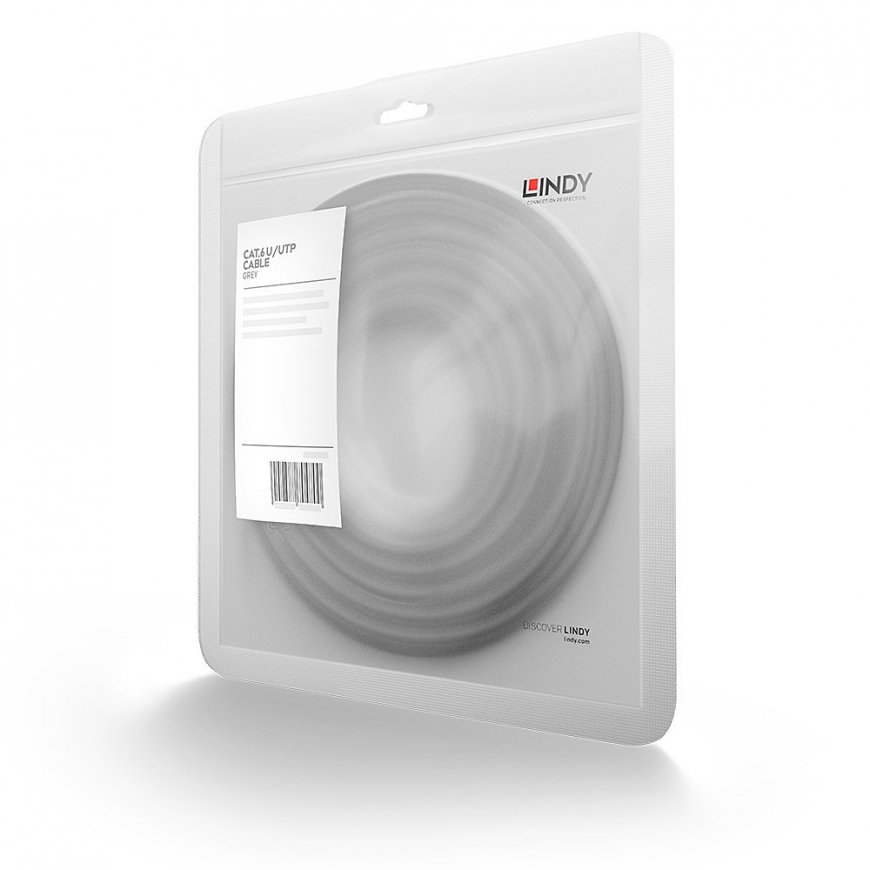

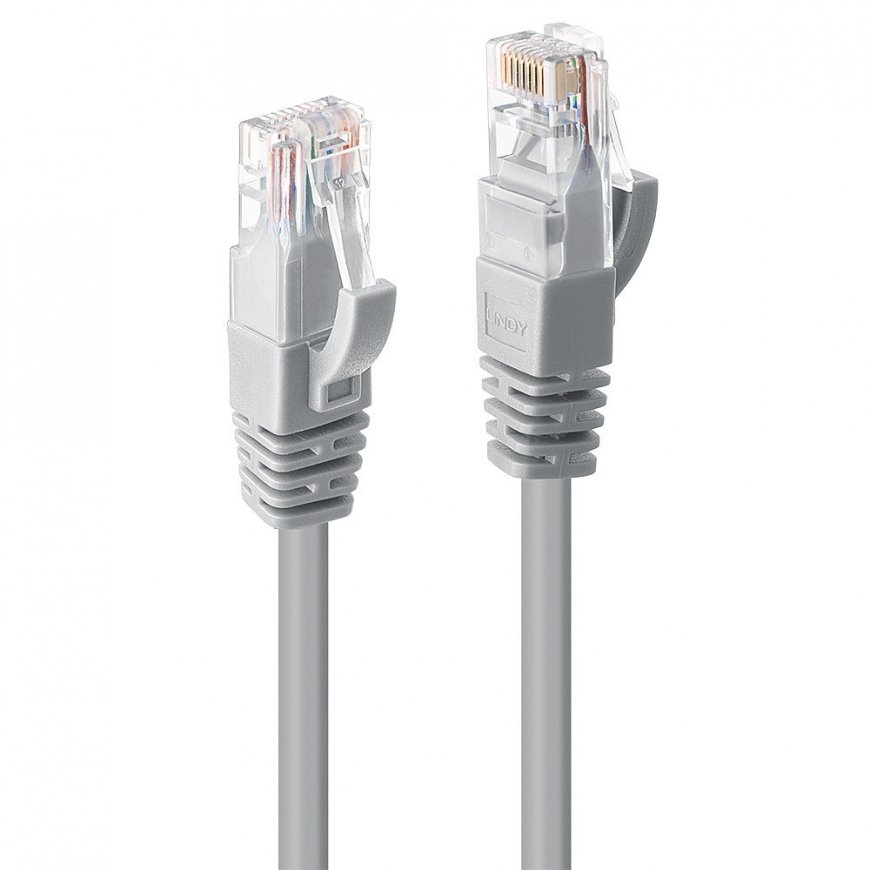

Lindy 5m Cat.6 U/UTP Network Cable, Grey
15.83 €
1123782 48005
4002888480055
Shipping 8-12 b.d.
You are interested in this product?
All about the product
Cat.6 U/UTP PVC network cable with support for bandwidth up to 250MHz and features a snagless design with gold plated contacts for ethernet standards up to 1GBase-T.Cat.6 cable for operating frequencies up to 250MHz. The unshielded version (U/UTP) can be used for Gigabit Ethernet thanks to the special design of the electrophysical parameters (NExT, FExT, etc.) despite the lack of shielding. These cables are manufactured and tested according to the ISO/IEC 11801 specification. The cables are packaged individually in a polybag.
The gold-plated contacts ensure reliable, corrosion-free connections over extensive periods of time. A robust snagless strain relief design prevents damage to the connector latch during installation and removal.
Available lengths: 0.3m, 0.5m, 1m, 2m, 3m, 5m, 7.5m, 10m, 15m, 20m, 30m.
Available colours: Blue, Red, Green, Yellow, Black, White, Orange, Purple, Grey.
Features | |
| Cable length | 5 m |
| Cabling technology | 10/100/1000Base-T(X) |
| Connector 1 | RJ-45 |
| Connector 2 | RJ-45 |
| Connector contacts plating | Gold |
| Data transfer rate | 1000 Mbit/s |
| Jacket material | Polyvinyl chloride (PVC) |
| Cable standard | Cat6 |
| Cable shielding | U/UTP (UTP) |
| AWG wire size | 24 |
| Frequency | 250 MHz |
| Snagless cable boot | Yes |
| Connector shield material | Copper alloy |
| Conductor material | Copper |
| Ethernet interface type | Gigabit Ethernet |
| Cable shape | Round |
| Product colour | Grey |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Nominal attenuation | 32.8dB/100m @250MHz |
| Connector housing material | Polycarbonate (PC) |
Weight & dimensions | |
| Bend radius (min) | 6.9 cm |
| Outer diameter | 5.8 mm |
| Connector 1 dimensions (WxDxH) | 11.6 x 22.8 x 8.3 mm |
| Connector 2 dimensions (WxDxH) | 11.6 x 22.8 x 8.3 mm |
Packaging data | |
| Package type | Polybag |
| Quantity per pack | 1 pc(s) |
Operational conditions | |
| Operating temperature (T-T) | -10 - 60 °C |
| Storage temperature (T-T) | -20 - 75 °C |
Logistics data | |
| Harmonized System (HS) code | 84733080 |
Certificates | |
| Certification | RoHS, REACH, UL, California Proposition 65 |
